RAM-109HU_RAM Horizontal 6" Swing Arm Mount for Fishfin
RAM-109HU Ram Mounts by Custom Mounts

We have new inventory arriving weekly, If you see low or no inventory it may change tomorrow. Please call us at 1.800.789.0087 or email us at [email protected] for current inventory status.
Price: $74.49
UPC : 793442010910
Mfg Part #: RAM-109HU


Free Shipping
Availability: IN STOCK!!
PART NUMBER:: RAM-109HU
Qty:

Description Additional Info Components

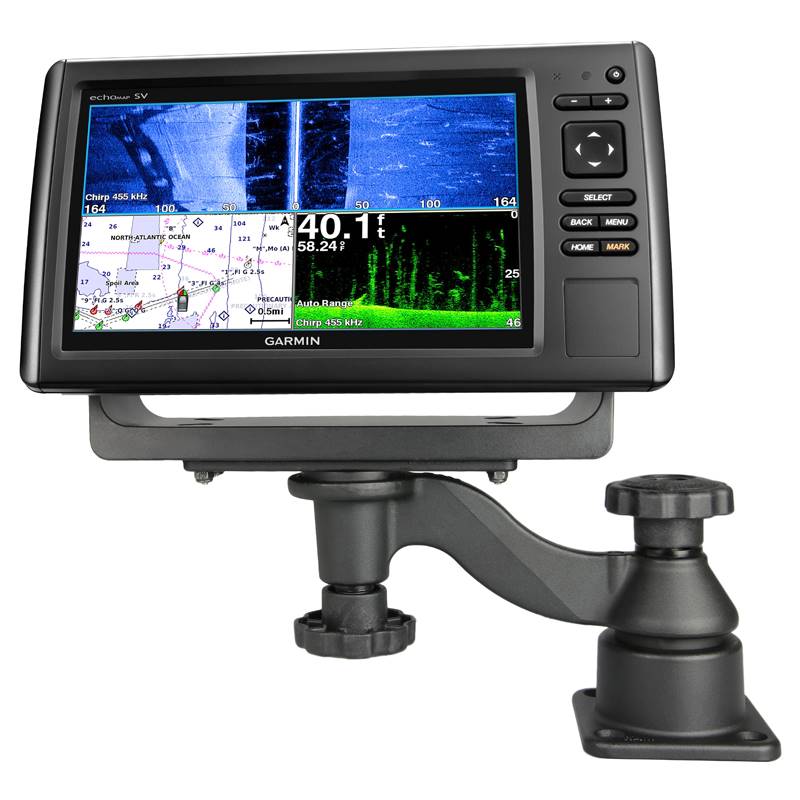

The RAM-109HU consists of a 6" long bent swing arm mounted on a horizontal surface base. At the
device mounting end is a rectangular 6.25" x 2" plate. There are two pivoting points on the mount:
one at the base of the swing arm and one at the center of the rectangular plate. Each pivoting point
allows a complete 360-degree rotation.

PRODUCT DIMENSIONS
Overall Height: 5.41"
Total Swing Arm Length: 6"

HOLE PATTERN
Top Plate: See Drawing
Bottom Plate: 2.5" x 2.5"

PLATE SIZE
Top Plate: 6.25" x 2"
Bottom Plate: 3.47" x 3.47"

WEIGHT CAPACITY
8 lbs

MATERIALS
Marine-grade aluminum

PACKAGING TYPE
Poly Bag

ADDITIONAL INFORMATION
The included plate is a universal mounting bracket with a selection of mounting hole locations. In
certain applications additional holes may need to be drilled for proper fit with your electronic
device.

FEATURES:
Universal drill-down fishfinder mounting solution features 6" swing arm for ideal device placement

Two pivot points allow for complete 360-degree rotation

Made of powder-coated steel and high-strength composite

Backed by a lifetime warranty


WEIGHT
2.09 lbs.
