RAM-B-125B-G1U_RAM Curved Extension Base with Ball & Mo

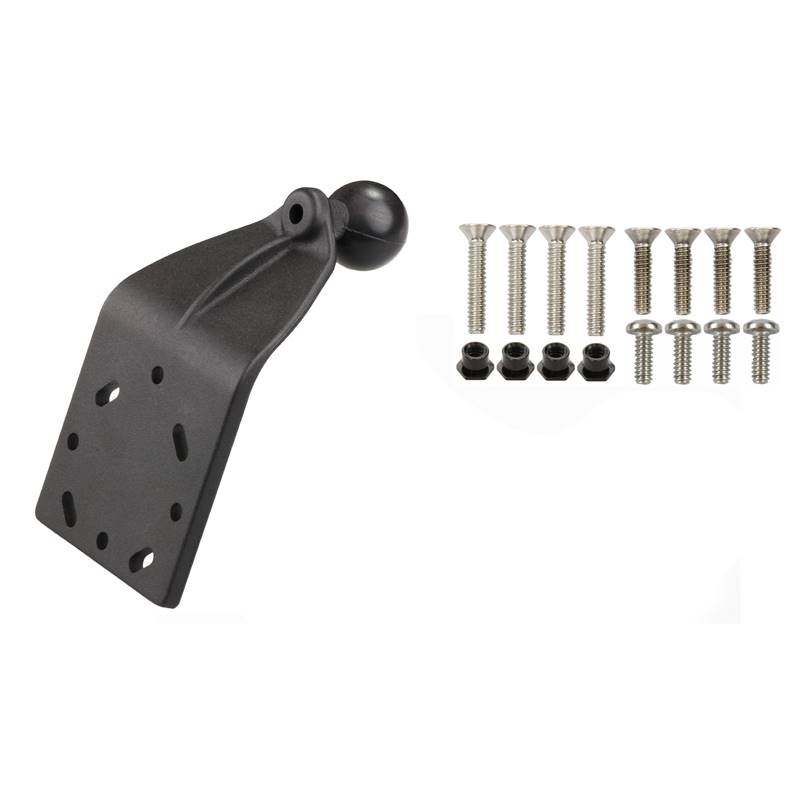

The RAM RAM-B-125B-G1U, extension base includes a 1" rubber ball; it allows for almost infinite
adjustment and perfect viewing angles. Originally designed to position your GPS in front of the yoke
on your plane, the extension plate can also be used in many other applications. The mounting section
of the plate is 2.5" square, predrilled holes for many different screw hole patterns, including the
universal AMPS hole pattern and all RAM made cradles. The connection section extends approximately
2.25" forward, at a 45 degree angle, from the center of the 1" ball and approximately 1.5'' above
the 1" ball (to the bottom of the connection section of the plate).

HARDWARE INCLUDED
(4) #6-32 x 5/8" Machine Screws
(4) #6-32 x 7/8" Machine Screws
(4) #6-32 x 3/8" Machine Screws
(4) #6-32 Nut Inserts

HOLE PATTERN
Various AMPS Hole Patterns
See Drawing

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum

PACKAGING TYPE
Poly Bag

WEIGHT
0.2 lbs.
