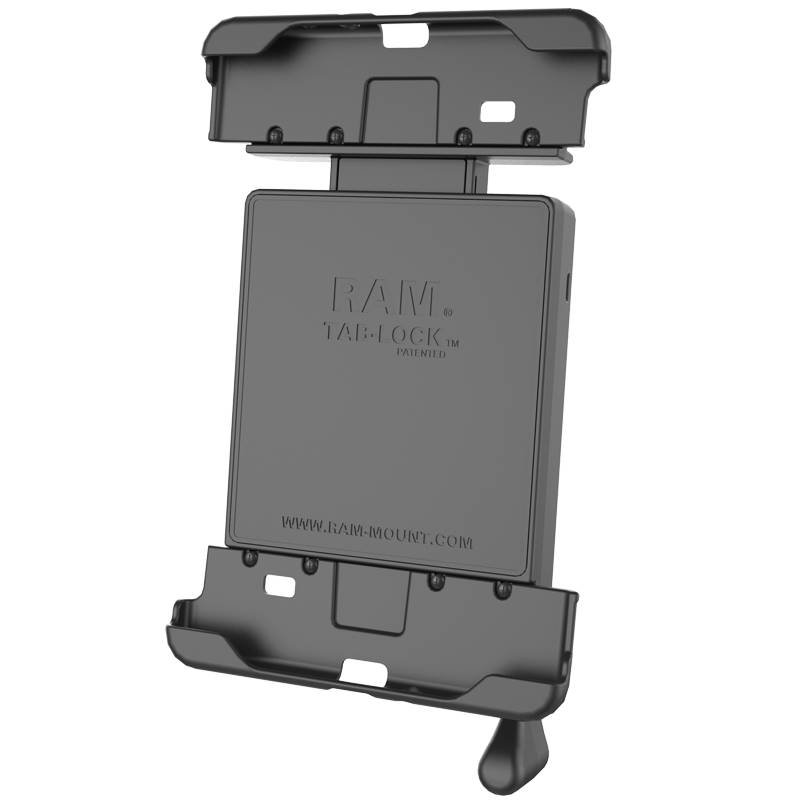

RAM-HOL-TABL31U_RAM Tab-Lock Tablet Holder for Samsung

The RAM Tab-Lock spring loaded, quick release holder with a keyed lock offers a secure fit with
easy access to the mounted tablet. The keyed lock offers theft deterrence and unwanted tampering in
public settings. The interchangeable cup ends are designed specifically for the Samsung Galaxy Tab E
9.6. The spring loaded design makes it easy to insert and remove your tablet, along with keeping it
secure in mobile applications. The custom end cups are designed to optimize the functionality of
your tablet, enabling access to all ports and tablet functions. Included is a set of four nuts and
bolts to connect the cradle to any RAM components or mounts that contain the universal AMPs hole
pattern. Cradle Dimensions: Samsung Galaxy Tab E 9.6 The Tab-Lock cradle is compatible with any
tablet that will fit the dimensions listed below. It is important to verify the dimensions of your
tablet when determining the overall size. Features: 1. Keyed lock for theft deterrence 2. Support
cups are designed to offer access to ports and tablet functions 3. Modular design makes upgrading to
a new tablet simple and cost effective 4. Easy, quick release of your tablet for on-the-go
applications 5. Versatility of holder allows for attachment to many RAM mounting solutions 6.
Lifetime warranty

HARDWARE INCLUDED
Assembly Hardware
(2) #8 x 5/8" Sheet Metal Screws
(2) M4 x 32mm Machine Screws
(2) M4 Nylock Nuts
(2) Keys

HOLDER DIMENSIONS
Height Range: 9.375" - 11.875"
Width Range: 4.5" - 5.875"
Depth Range: .3125" max

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"

MATERIALS
High strength composite

PACKAGING TYPE
Poly Bag

FEATURES:
Locking mechanism for theft deterrence

Support cups contain open slots to accomodate for tablets of various sizes

Back plate can support various size support cups

Spring loaded tension provides secure support and quick release for your tablet

Backed by a lifetime warranty
