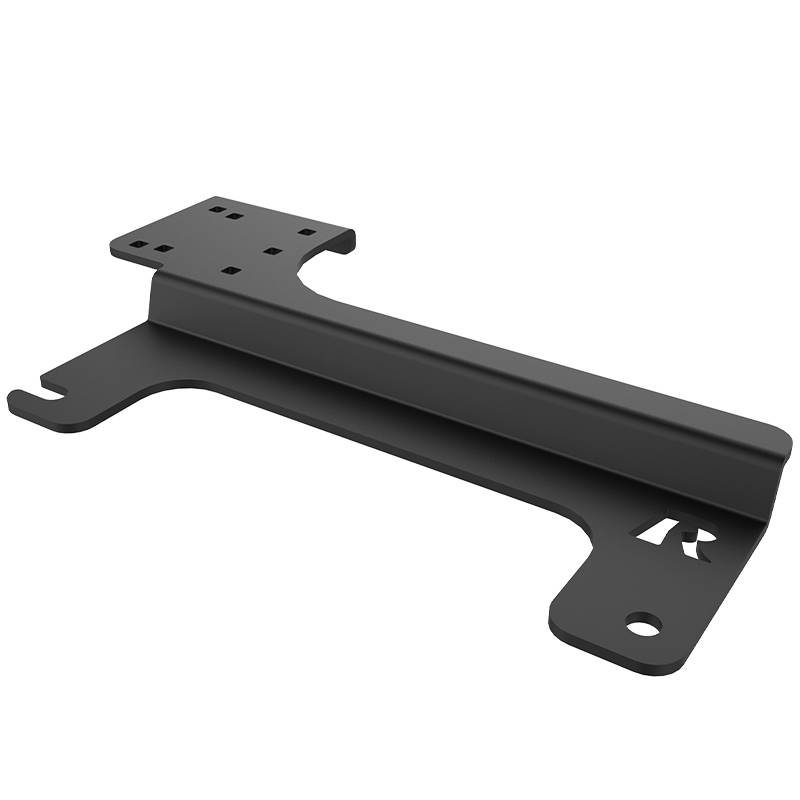

RAM-VB-202-A_RAM No-Drill Vehicle Base for Ford Explore

This RAM No-Drill  laptop stand system installs
quickly and easily into the 2020 Ford Explorer using the existing hardware of the passenger side seat
rails. This configuration provides a telescoping feature that ranges from 12� to 18�. Dual swing arms
provide articulation and 12� of reach for passenger and driver access to the mounted device.
RAM rubber ball and socket technology provides additional adjustability as well as shock and
vibration isolation. The spring-loaded RAM Tough-Tray  laptop holder accommodates
10� to 16� wide laptops, and 17� wide screens. The tray features four adjustable retaining arms with
rubber grips that can be moved both vertically and horizontally. These arms allow for a custom fit for
laptops of varying thickness while not blocking drives or ports. A screen support and USB light are also
available to accessorize the RAM Tough-Tray . In addition, hole patterns on the
perimeter of the laptop holder are compatible with several RAM mounting solutions.

FEATURES

RAM No-Drill  mounting base for the 2020 Ford Explorer offers low-profile mounting; telescoping pole allows for height adjustments

Dual articulating swing arm allows for ideal placement; universal laptop tray accommodates most laptops

Made of powder-coated steel and high-strength composite

Backed by a lifetime warranty

Hardware Included
Assembly Hardware Foot Stabilzier (2) M10-1.5 x 75mm Hex Bolts (2) 1.68 INCHES
Stand-Offs (2) 3/8 INCHES Fender Washers

Tray Dimensions
Width Range: 10 INCHES - 16 INCHES Side Arm Clamp Height: .5 INCHES - 1.75 INCHES Tray Depth: 10 INCHES
Tray Thickness: 2.125 INCHES

Hole Pattern
Seat Bolt Distance: 12 INCHES center to center

Ball/Socket Size
C Size (1.5 INCHES)

Weight Capacity
Standard Use: 4 lbs Heavy-Duty Use: 3 lbs

Materials
Powder coated steel Marine grade-aluminum High strength composite

Packaging Type
Box
