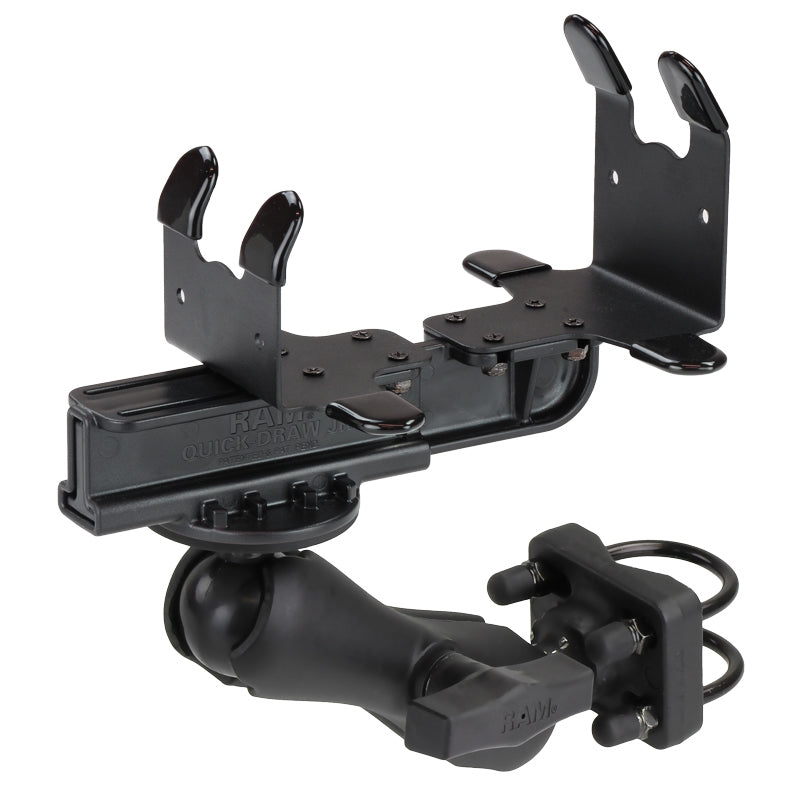

RAM-VPR-107-1_RAM Vehicle Pole Mount for Mobile Printer

The RAM-VPR-107-1 uses a unique spring loaded mechanism that holds strong, yet provides easy removal
for printer storage. At each end of the spring loaded cradle are small side clamp plates that are
designed to fit cleanly around either edge of the printer. Included is a standard length arm and
round pipe base, which will connect to any RAM Tele-Pole and other poles with a diameter from
1.25" to 1.5".

HARDWARE INCLUDED
Assembly Hardware
(2) 1/4"-20 U-Bolts for 1.25" - 1.5" Rails
(4) 1/4"-20 Nylock Nuts
(4) Rubber Caps

HOLDER DIMENSIONS
Max Height: 2.5" (tall side)
Max Height: 1.75" (short side)
Width Range: 6.125" - 10"

CLAMP RANGE
1.25" - 1.5" diameter

SOCKET-TO-SOCKET LENGTH
4.66"

BALL/SOCKET SIZE
C Size (1.5")

WEIGHT CAPACITY
4 lbs

MATERIALS
Powder coated steel
Marine-grade aluminum
High strength composite

PACKAGING TYPE
Poly Bag

FEATURES:
Spring-loaded RAM Quick-Draw holder provides easy removal of your Zebra, Intermec or Printronix
printer (check compatibility section)

Double U-bolt base is compatible with rails and bars ranging from 1.25" to 1.5" in diameter

Made of powder-coated, marine-grade aluminum, stainless steel, and high-strength composite for
durability and reliability in the most demanding environments

Backed by a lifetime warranty

RAM-VPR-107
RAM-101U-235-1
