GDS® Tough-Dock™ Vehicle Bundle for Samsung Tab A9+
GDS® Tough-Dock™ Vehicle Bundle for Samsung Tab A9+
Couldn't load pickup availability
Share
- Description
Overview

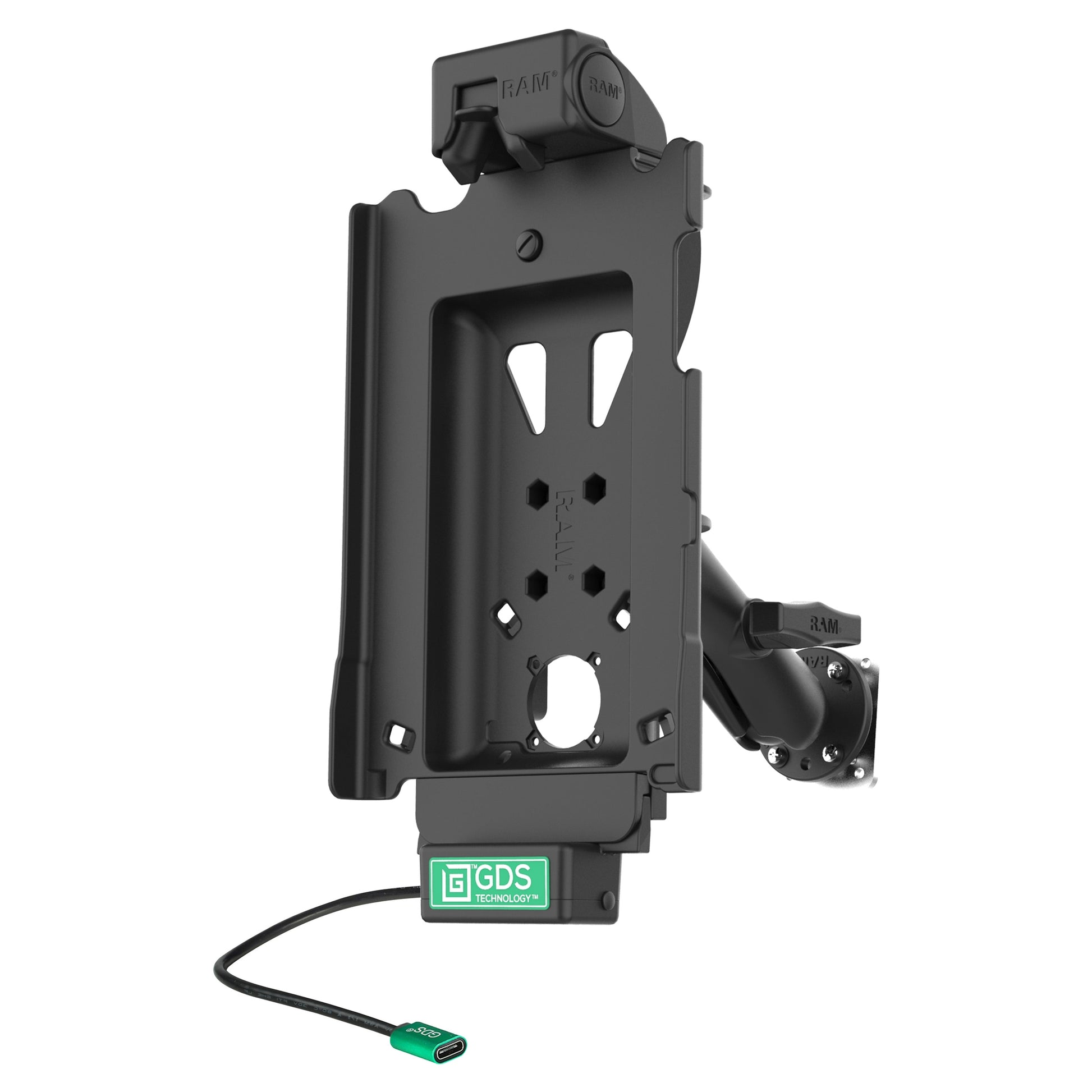

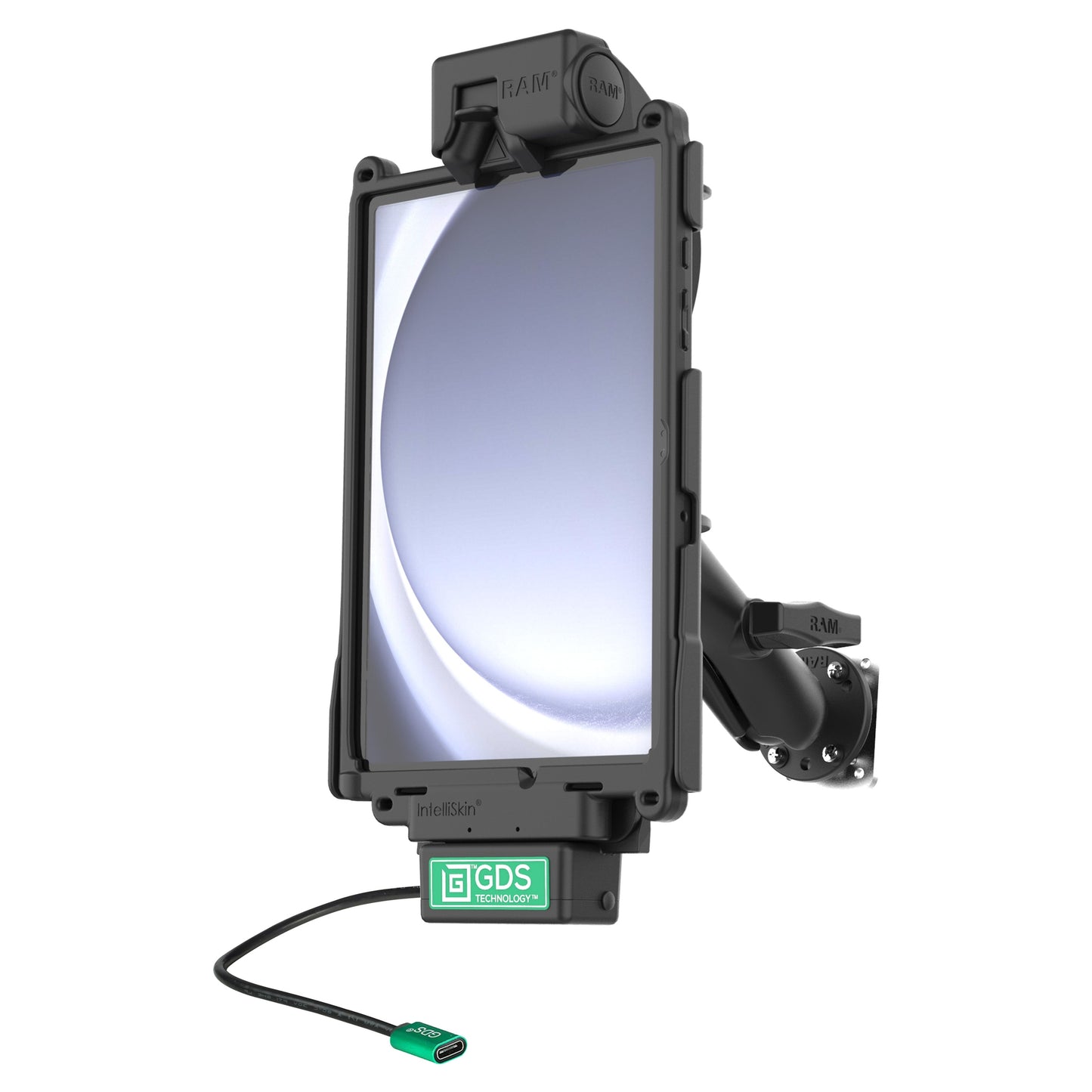

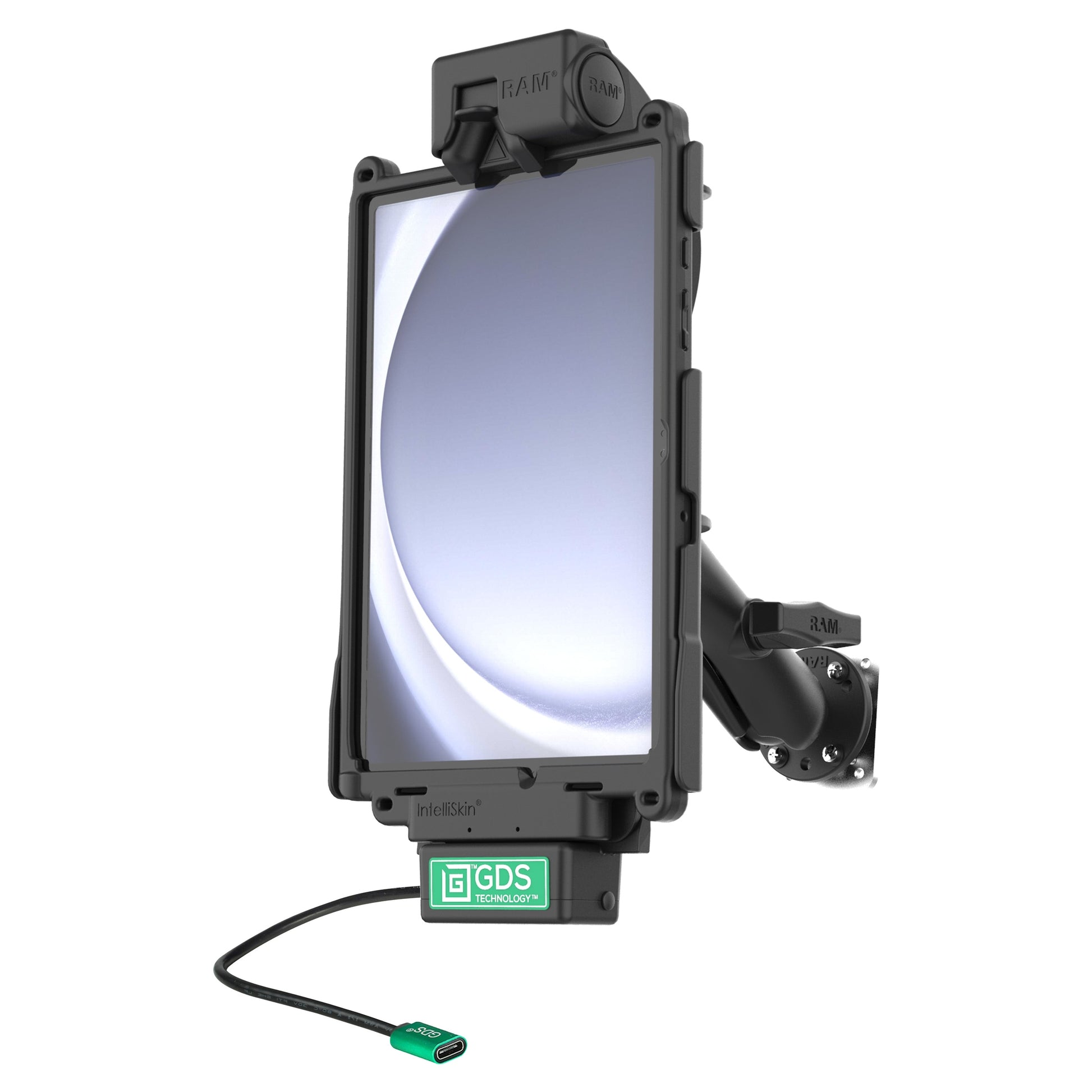

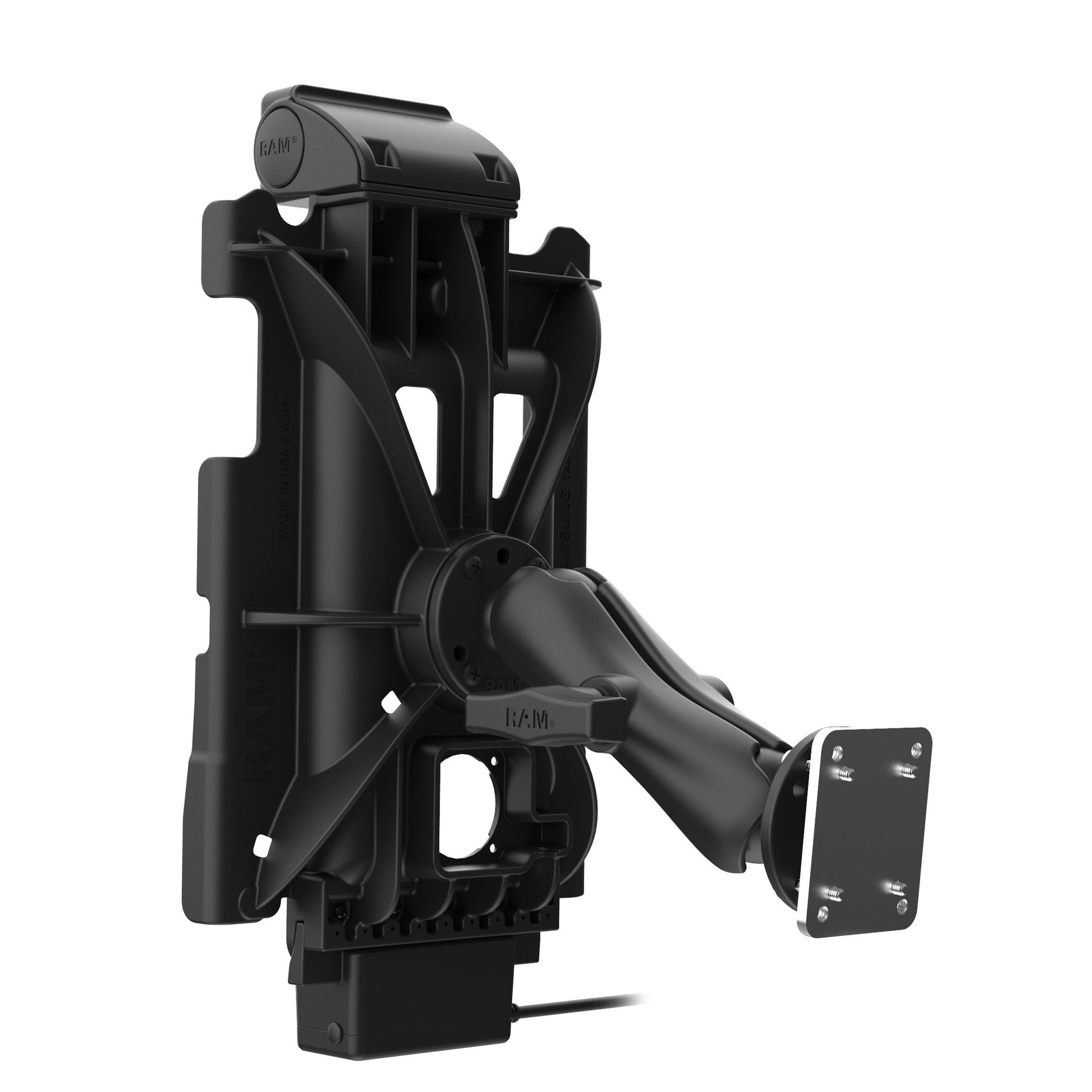

The GDS® Tough-Dock™ Vehicle Bundle for Samsung Tab A9+ (RAM-GDS-101B2-SAM88CP-V3CU) is an ideal solution for transportation and large fleet vehicles. This bundle includes a non-locking GDS® Tough-Dock™, IntelliSkin® Next Gen for Samsung Tab A9+, hardwire charger with USB Type-C connector, C Size double ball mount with short arm, backing plate adapter, and cable clamp. This bundle is ELD compliant, providing a turnkey solution for your fleet. Always Protected. Always Connected.®
Features

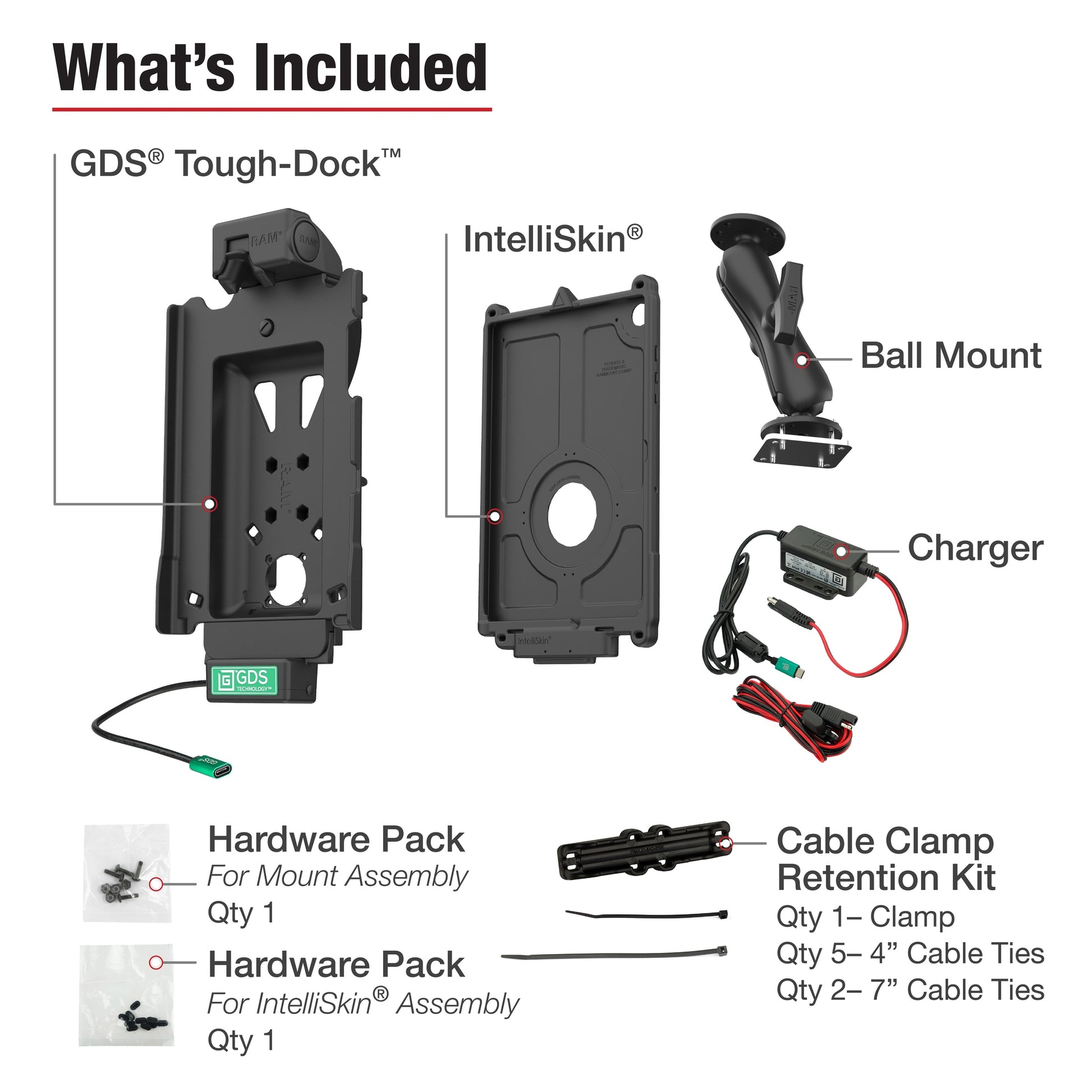

- Bundle includes non-locking GDS® Tough-Dock™, IntelliSkin® Next Gen for Samsung Tab A9+, hardwire charger with USB-C connector, low-profile double ball mount with C size (1.5") ball, backing plate adapter and cable clamp
- Dock features GDS® Technology™ for charging capabilities; uses USB-C port to connect to power
- RAM® Mounts Compatible™ and compatible with the GDS® Hand-Stand™ Hand Strap and Kickstand attachment
- Backed by a 3-year warranty
Specifications
Assembly Hardware
(1) 2.10" x 2.60" Steel Backing Plate
(4) #8-32 x 1" Screws
(4) #8 Split Lock Washers
(4) #8 Flat Washers
(1) Cable Clamp
(1) Vehicle Hardwire Charger
Socket to socket length: 4.66"
Hole pattern: 4-Hole AMPS: 1.181" x 1.496", 3-Hole 120-Degree: 1.812" Diameter
Ball size: C Size (1.5")
Weight capacity: Standard Use: 4 lbs, Heavy-Duty Use: 3 lbs
Materials: Steel, Marine-grade aluminum, High strength composite
Packaging type: Poly Bag
Input voltage: 10-30VDC
Output voltage: 5-15VDC
Output current: 3A max
Input connector: Female USB Type-C
Input cable length: 2.5 Meters
Output connector: USB Type-C Male
Output cable length: 1 Meter
Operating temperature: -20°C to +70°C
Storage temperature: -40°C to +85°C
Regulatory: Over Voltage Protection, Short Circuit Protection, Reverse Polarity Protection, RoHS Compliance, WEEE Compliance, SAE J-1113-5 Load Dump (Transient Voltage), Moisture Resistant
Certifications: CE Certification, RCM Certification, FCC Certification, UL 62368-1 Certification
Warranty: 3 year warranty
Weight: 3.94 lb
