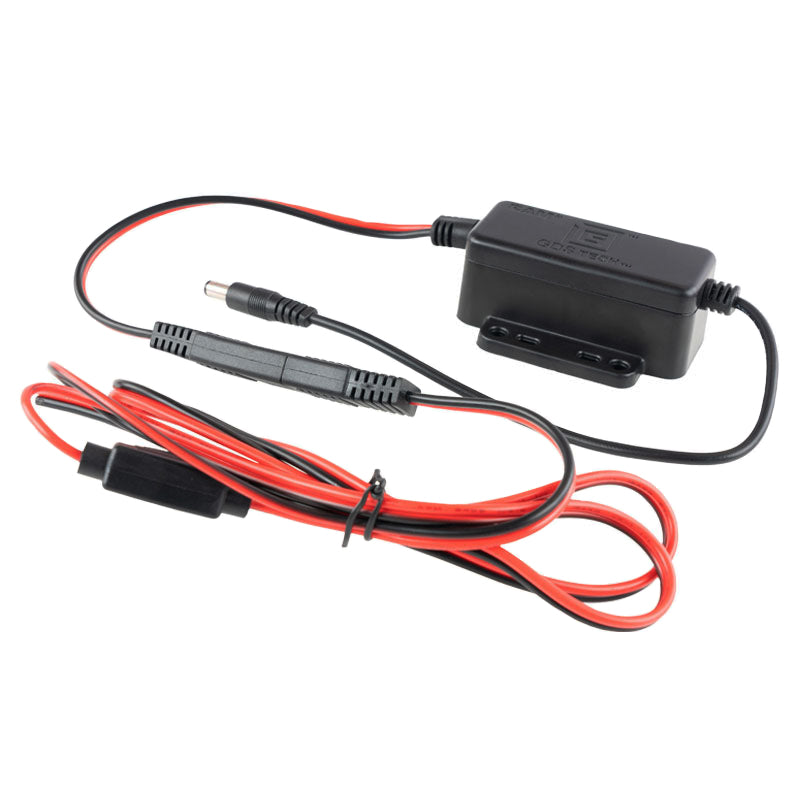

GDS® 10-32VDC Input (14VDC Output) Hardwire Charger with Male DC 5.5mm
GDS® 10-32VDC Input (14VDC Output) Hardwire Charger with Male DC 5.5mm
Couldn't load pickup availability
Share
- Description
The GDS® 10-32VDC Input (14VDC Output) Hardwire Charger with Male DC 5.5mm (RAM-GDS-CHARGE-V19U) is the ideal solution for providing power to any RAM® or GDS® DC powered docking station. This hardwire charger has an input of 10-32VDC input & 14VDC output, ideal for most any vehicle applications. The GDS® Hardwire chargers were thoughtfully designed with long-term solutions in mind so when it comes time to upgrade, you avoid any rewiring by simply unplugging the power connector and attaching the new charger components.
Features
- Hardwire charger includes male 5.5mm barrel connector; 10V-32V DC input range, 14VDC output
- When upgrading devices, avoid rewiring by unplugging power connector and attaching new charger components
- GDS® Ecosystem™ keeps devices protected, connected, and charged in nearly any application
- Backed by a 3-year warranty
Specifications
Packaging type: Poly Bag
Input voltage: 10-32VDC
Output voltage: 14VDC
Output current: 3.5A max
Input connector: Male 5.5mm OD x 2.5mm ID Barrel Connector
Input cable length: 1.2 Meters including 2 Pole Flat Marine Connector
Output cable length: .2 Meters
Operating temperature: -10°C to +70°C
Storage temperature: -40°C to +70°C
Regulatory: Over Voltage Protection, Short Circuit Protection, Reverse Polarity Protection, RoHS Compliance, WEEE Compliance, SAE J-1113-5 Load Dump (Transient Voltage), Moisture Resistant, FCC, CE, UKCA, IC, 3A Inline ATC Fuse, 18AWG Copper Wire
Warranty: 3 year warranty
Weight: 0.31 lb
