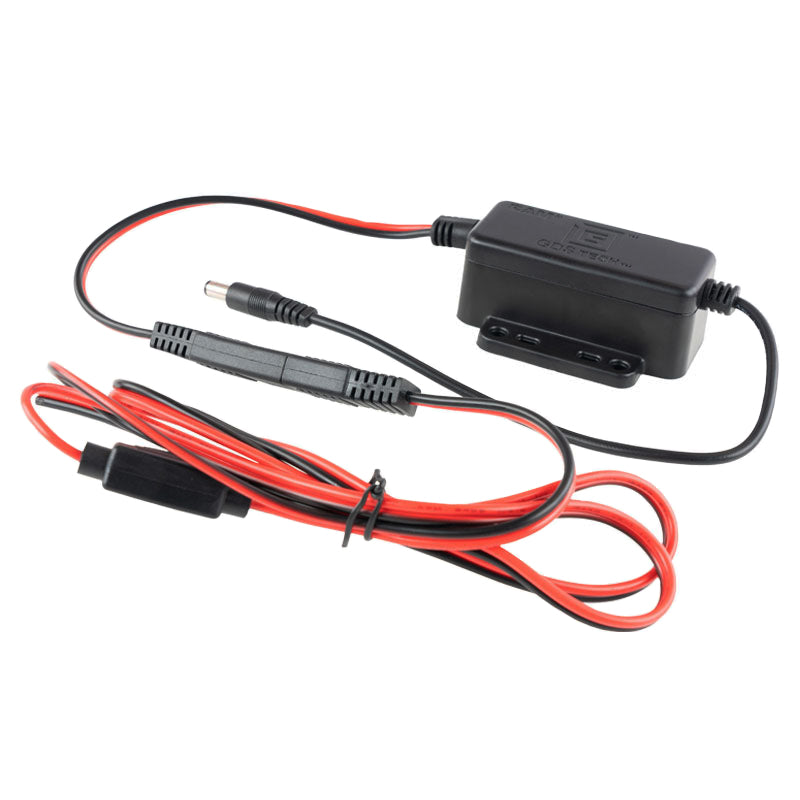

GDS® 10-32VDC Input (9VDC Output) Hardwire Charger with Male DC 5.5mm
GDS® 10-32VDC Input (9VDC Output) Hardwire Charger with Male DC 5.5mm
Couldn't load pickup availability
Share
- Description
The GDS® Modular Hardwire Charger with 5.5mm Male DC cable is the ideal solution for providing power to any RAM® or GDS® DC powered docking station. When it comes time to upgrade, avoid any rewiring by simply unplugging the power connector and attaching the new charger components. This hardwire charger has an input of 10-32VDC input, 9VDC output making it ideal for most any vehicle applications. Always Protected. Always Connected.®
Features
- Hardwire charger includes male 5.5mm barrel connector; 10-32VDC input range, 9VDC output
- When upgrading devices, avoid rewiring by unplugging power connector and attaching new charger components
- Part of the GDS® Ecosystem™ to keep devices protected, connected, and charged in nearly any application
- Backed by a 3-year warranty
Specifications
Packaging type: Poly Bag
Input voltage: 10-32VDC
Output voltage: 9VDC
Output current: 3.5A max
Input connector: Male 5.5mm OD x 2.5mm ID Barrel Connector
Input cable length: 1.2 Meters including 2 Pole Flat Marine Connector
Output cable length: .2 Meters
Operating temperature: -10°C to +70°C
Storage temperature: -40°C to +70°C
Regulatory: Over Voltage Protection, Short Circuit Protection, Reverse Polarity Protection, RoHS Compliance, WEEE Compliance, SAE J-1113-5 Load Dump (Transient Voltage), Moisture Resistant, FCC, CE, UKCA, IC
Certifications: RCM Certification
Warranty: 3 year warranty
Weight: 0.32 lb
