GDS® Uni-Conn™ Dock + Single USB-C with Release Lever
GDS® Uni-Conn™ Dock + Single USB-C with Release Lever
Couldn't load pickup availability
Share

- Description

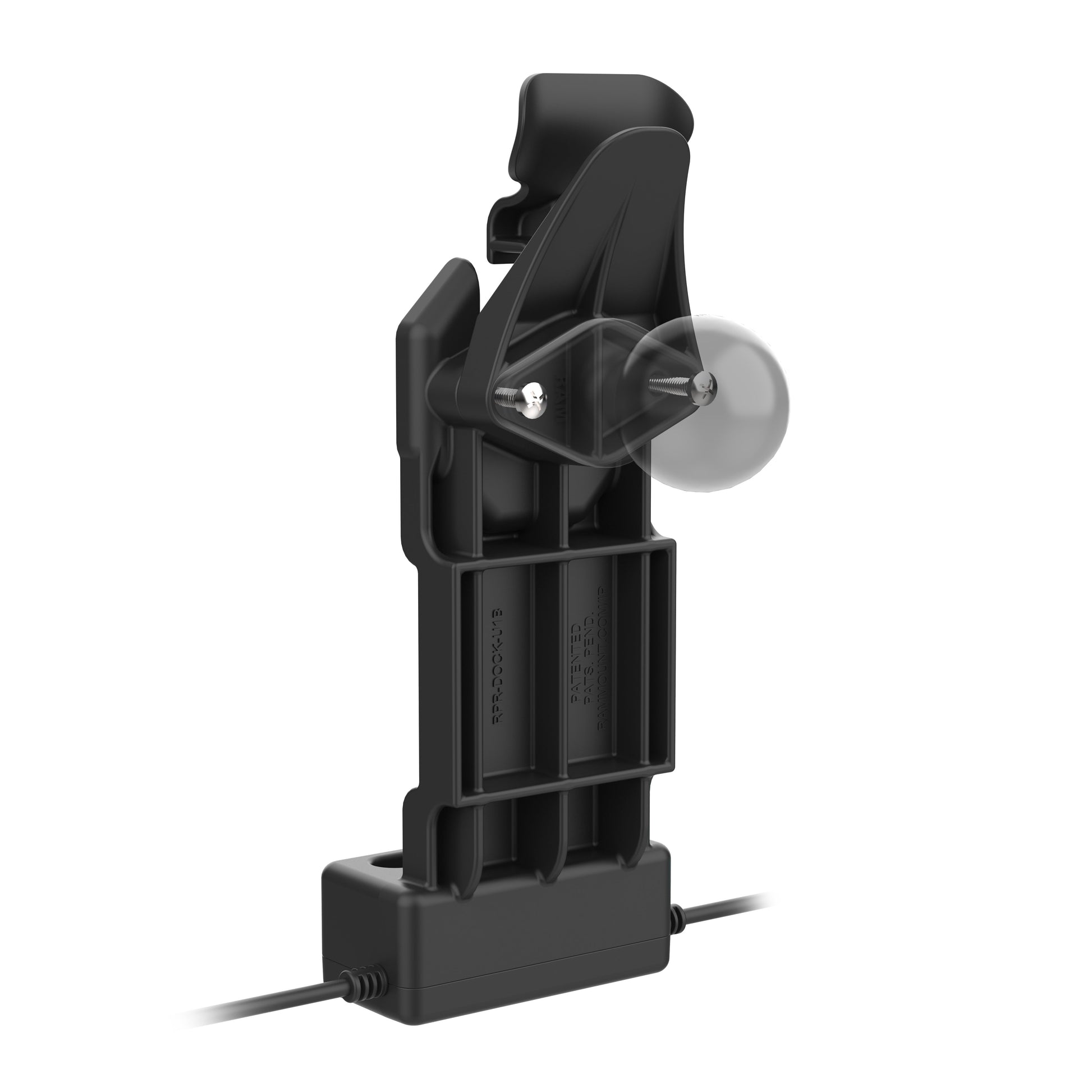

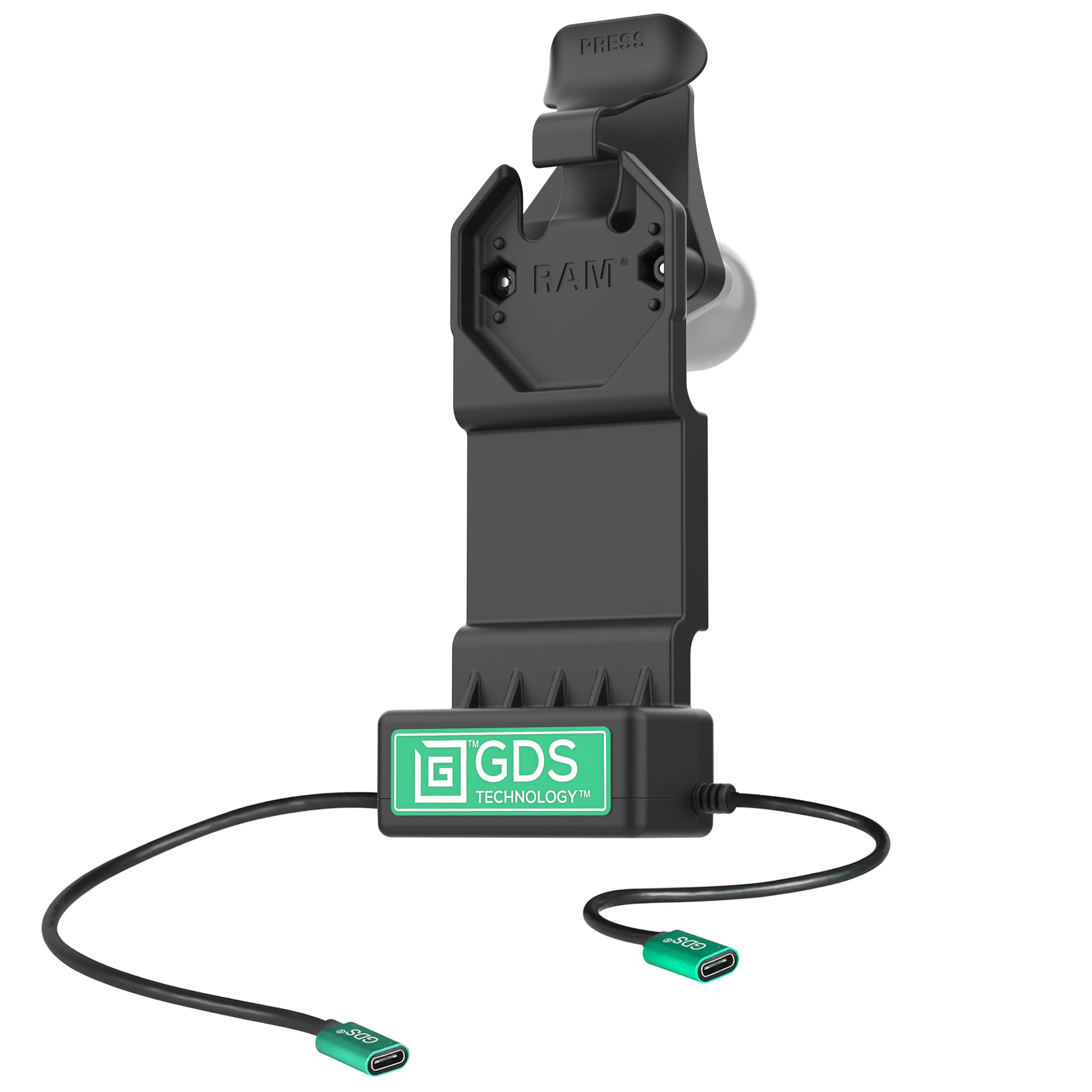

The GDS® Uni-Conn™ Dock + Single USB-C (RAM-GDS-DOCK-U1CP-CU) is a revolutionary universal docking platform. This clip-in, quick-release solution securely holds your device in place. When docked, power is delivered via the pogo pin connection, enabled by the USB-C female connector. Integrate one peripheral device into your solution with the USB-C female connector. It features an easy docking and undocking process, simply place the IntelliSkin®-wrapped device into the base of the dock and push it to snap into place. When undocking, a simple push of a lever releases the tablet. The docking station requires the GDS® Uni-Conn™ adapter (RAM-GDS-U1U) to be installed on the intended IntelliSkin®-wrapped device. Current compatibility for this fixed dock height includes the Samsung Tab A7 Lite, Tab A 8.4, Tab S9 FE, Tab S9 FE+, Tab Active5, Tab Active3, and Tab A9+. The GDS® Uni-conn™ dock is backed by a 3-year warranty. Warranty is void if lever stop is not installed. Always Protected. Always Connected.® One Dock to Connect Them All™.
Features

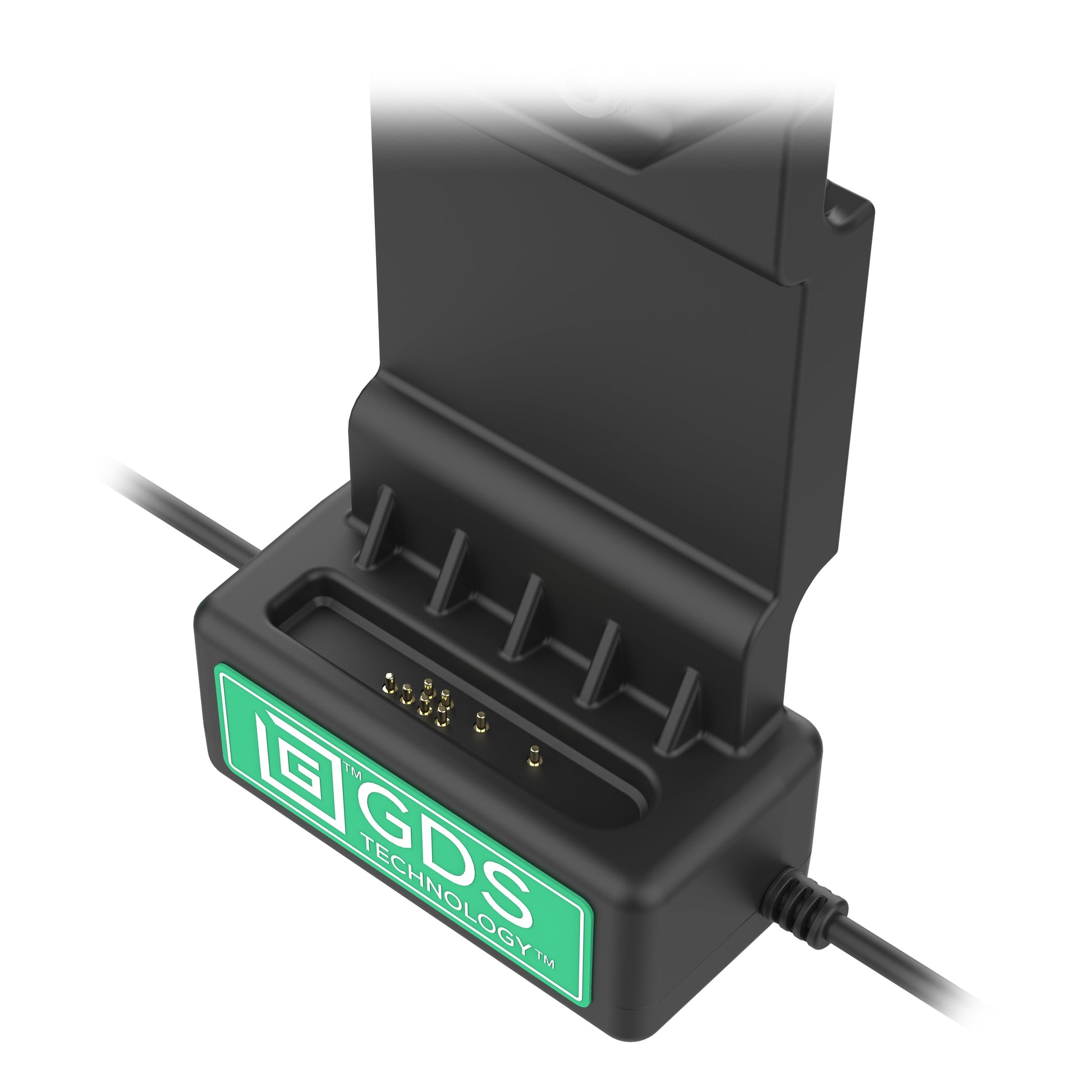

- Snap-in dock featuring GDS® Technology™ uses an integrated pogo pin connector to provide high-speed charging and connection to one additional USB peripheral

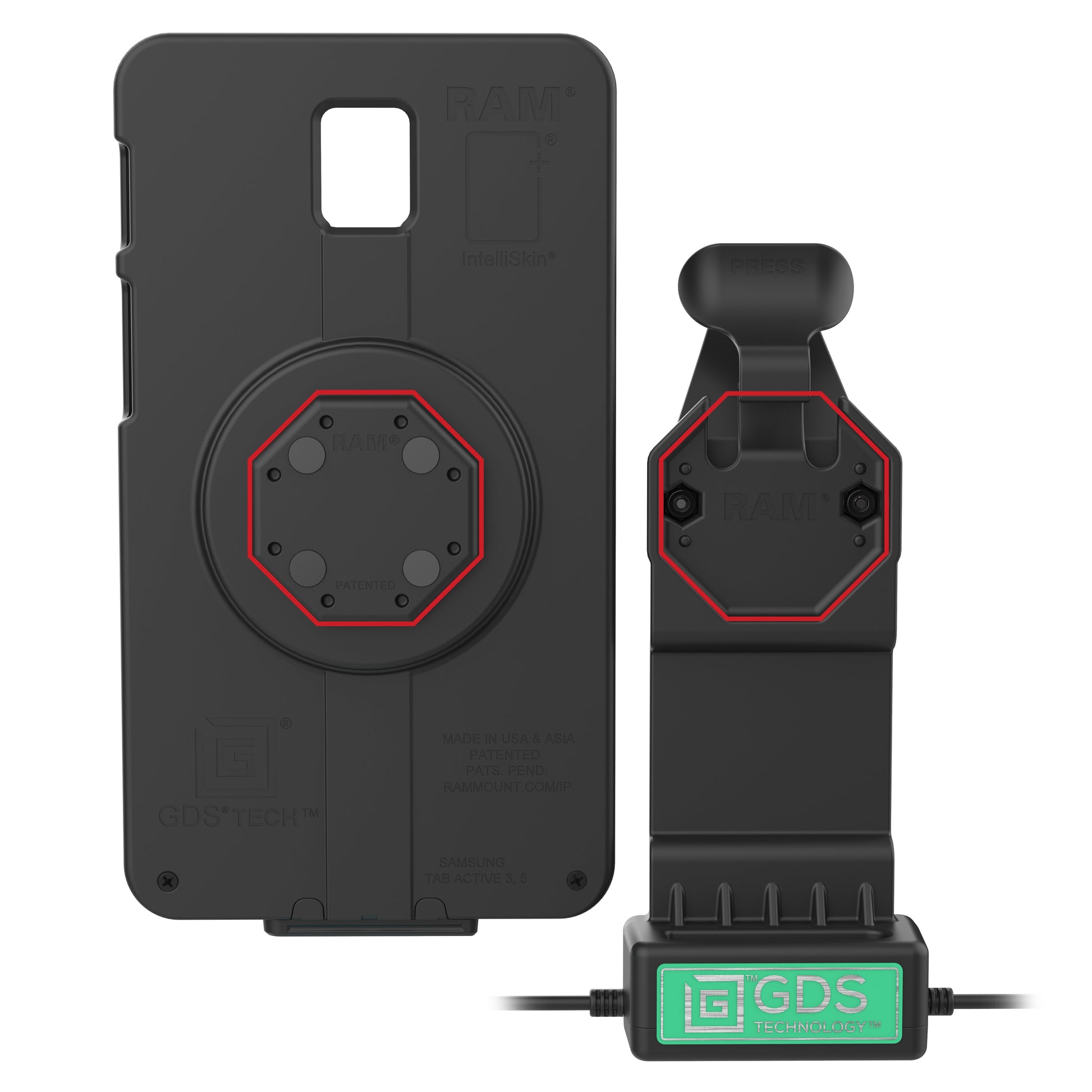

- Designed for devices wrapped in an IntelliSkin® protective sleeve with GDS® Uni-Conn™ Adapter installed
- USB Type-C Female connector provides high-speed charging and USB Type-C connects one peripheral device
- RAM® Mounts Compatible™
- Backed by a 3-year warranty
Specifications

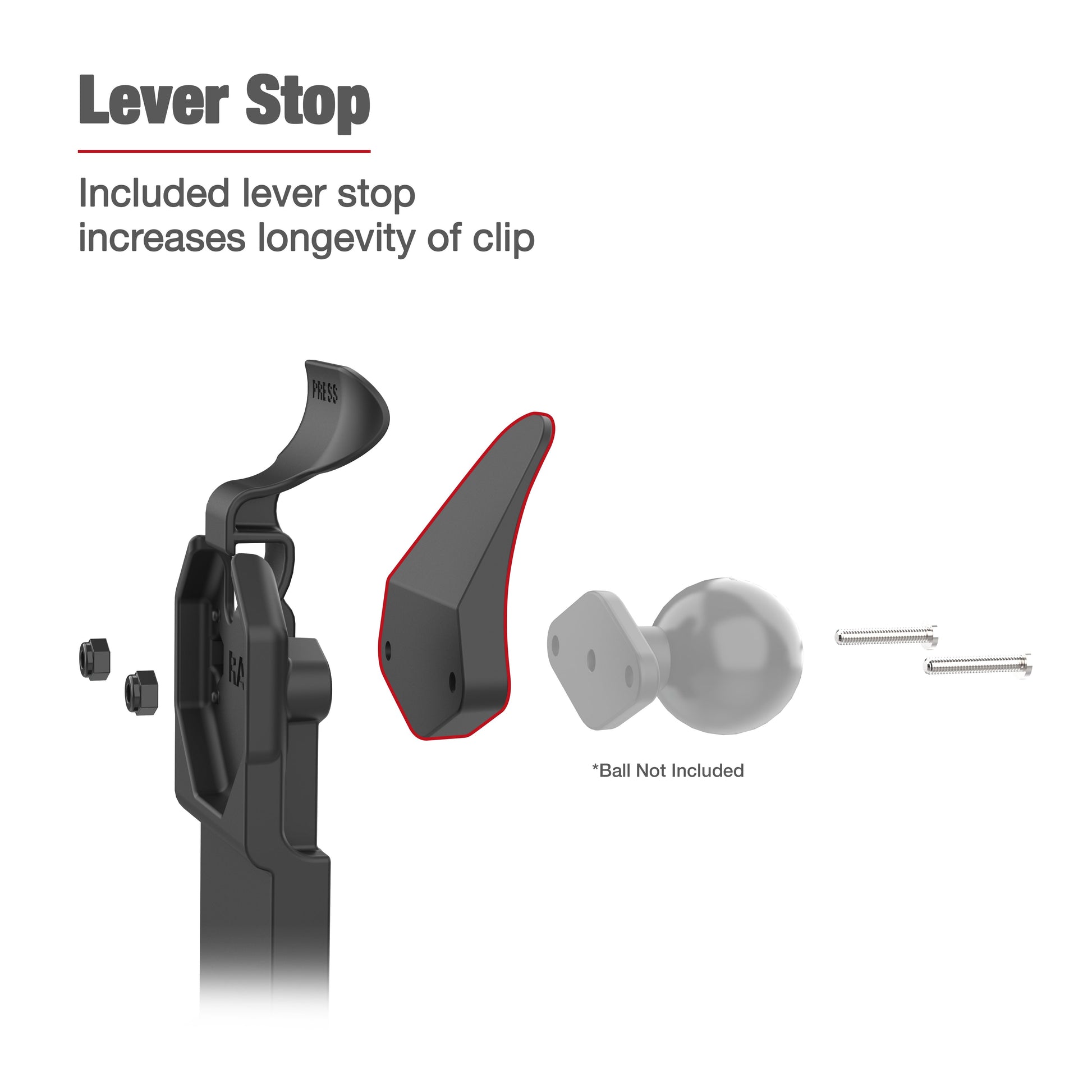

hardware included: (1) Lever Stop, (2) #8-32 x 1" Machine Screws, (2) #8-32 Nylock Nuts, (1) Cable Clamp Kit
product dimensions: Overall Width: 3.16", Overall Height: 8.44", Overall Depth: 3.03"
hole pattern: 2-Hole AMPS: 1.912"
materials: High strength composite
packaging type: Poly Bag
output voltage: 5V - 20V @ 3A
power output: 60W
input connector: USB Type-C, USB Type-C for 1 Peripheral

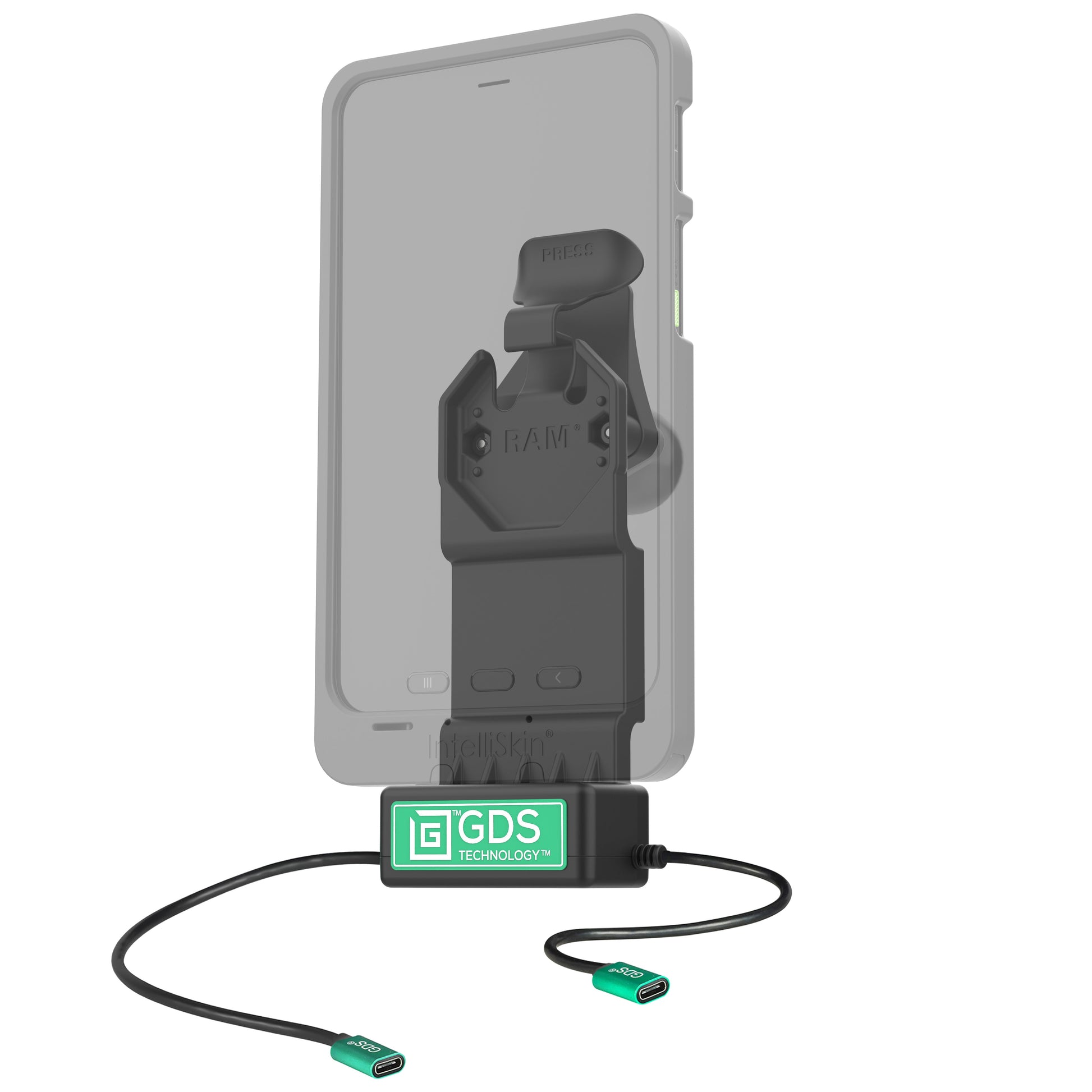

input cable length: 215mm
output cable length: 215mm
peripheral output: 500mA
Warranty: 3 year warranty
Weight: 0.47 lb
