GDS® Uni-Conn™ Locking Tilt & Swivel Dock with PoE - Gray

GDS® Uni-Conn™ Locking Tilt & Swivel Dock with PoE - Gray

Regular price $493.49 USD
Regular price Sale price $493.49 USD
Sale Sold out
UPC:
793442023873
Mfg Part #:
RAM-GDS-DOCKLR-D14-U1E-GRY
Availability:
Out Of Stock
Part Number:
RAM-GDS-DOCKLR-D14-U1E-GRY
Quantity
View full details

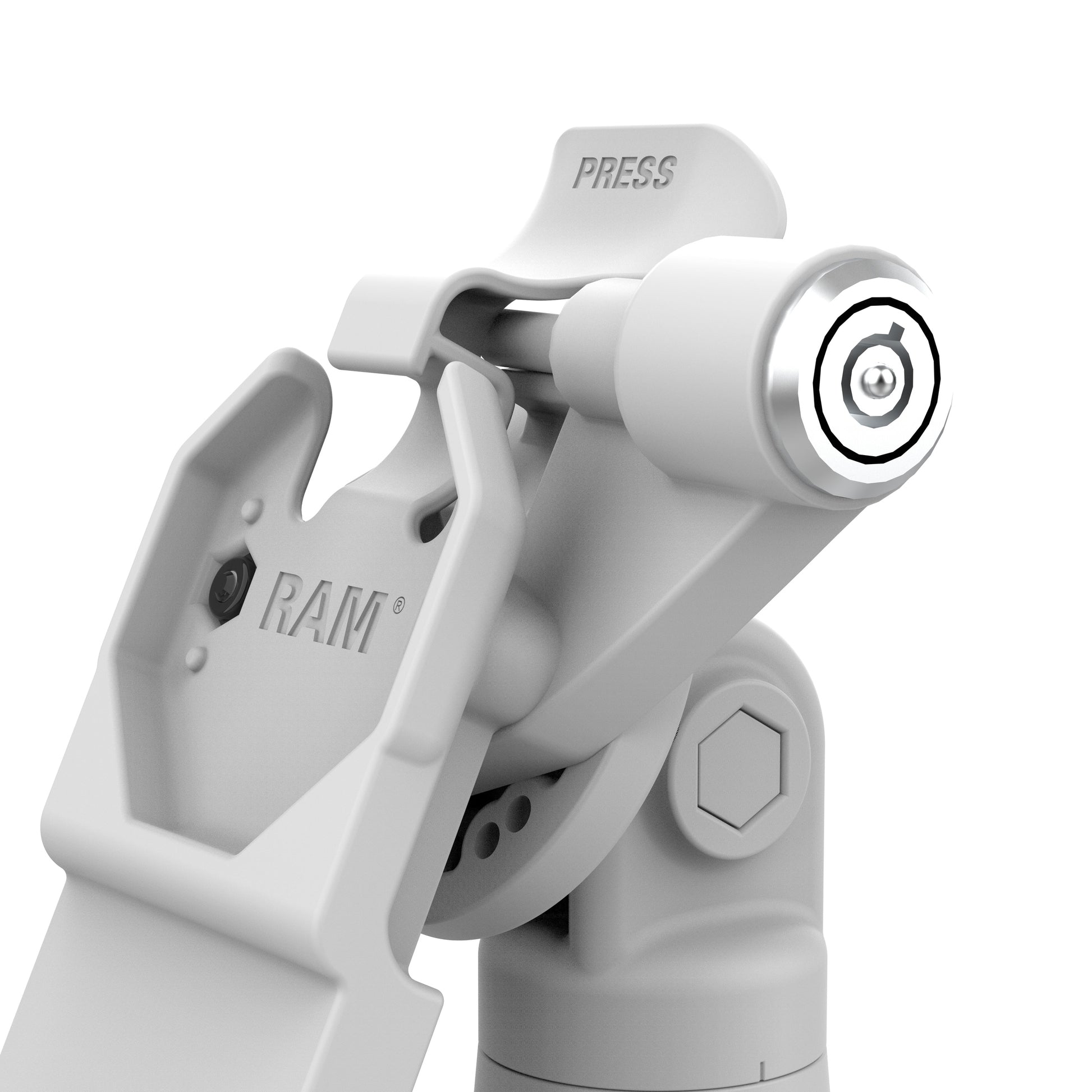

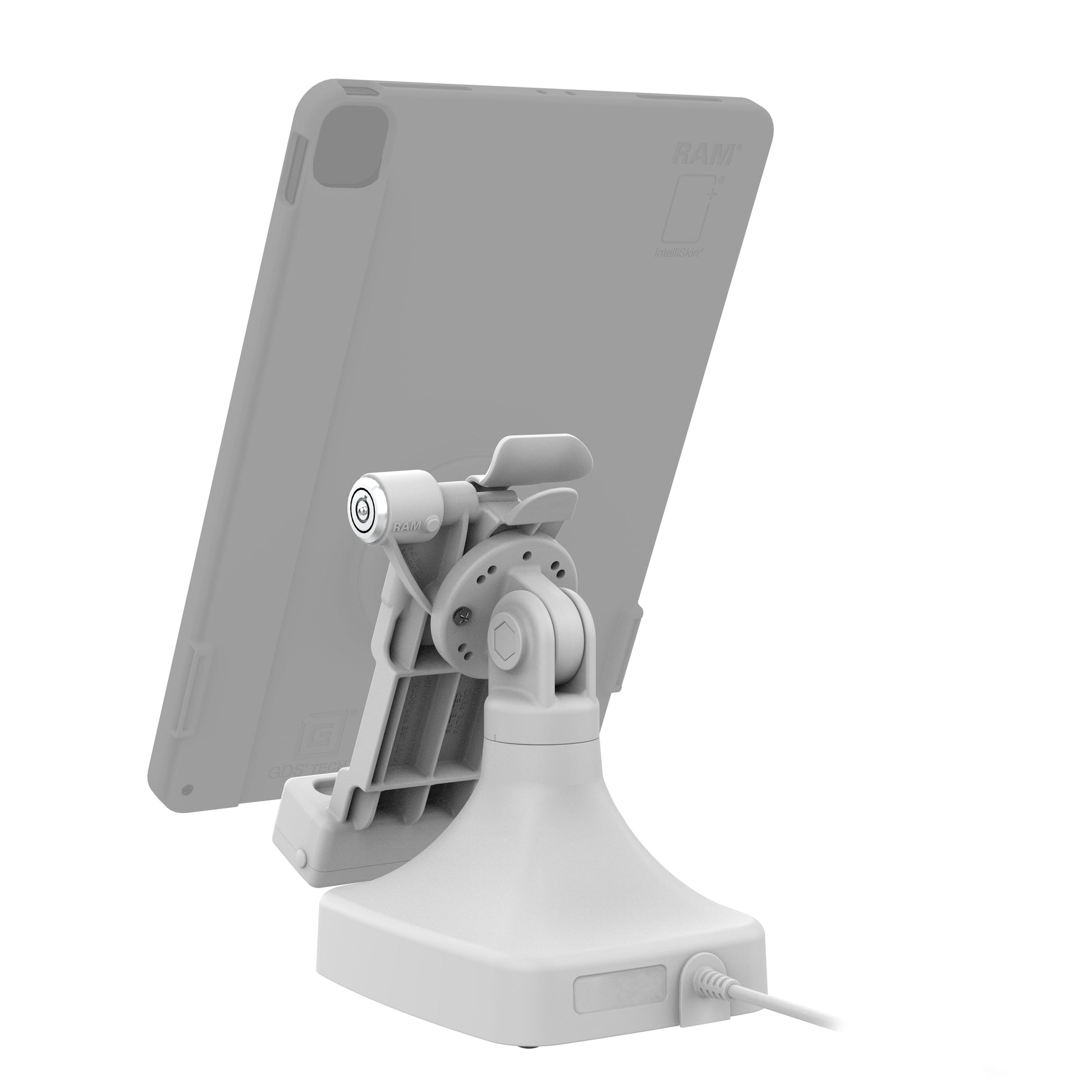

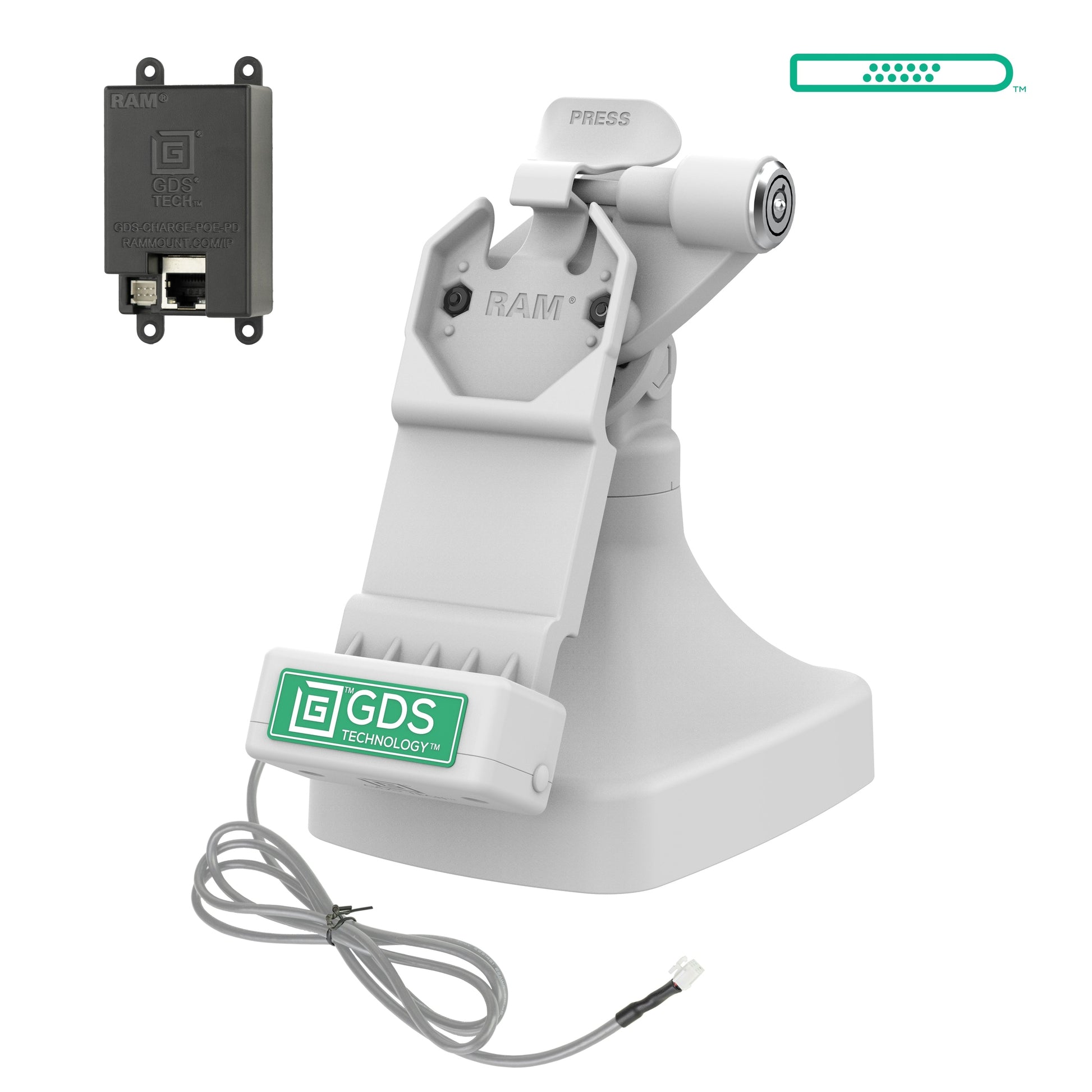

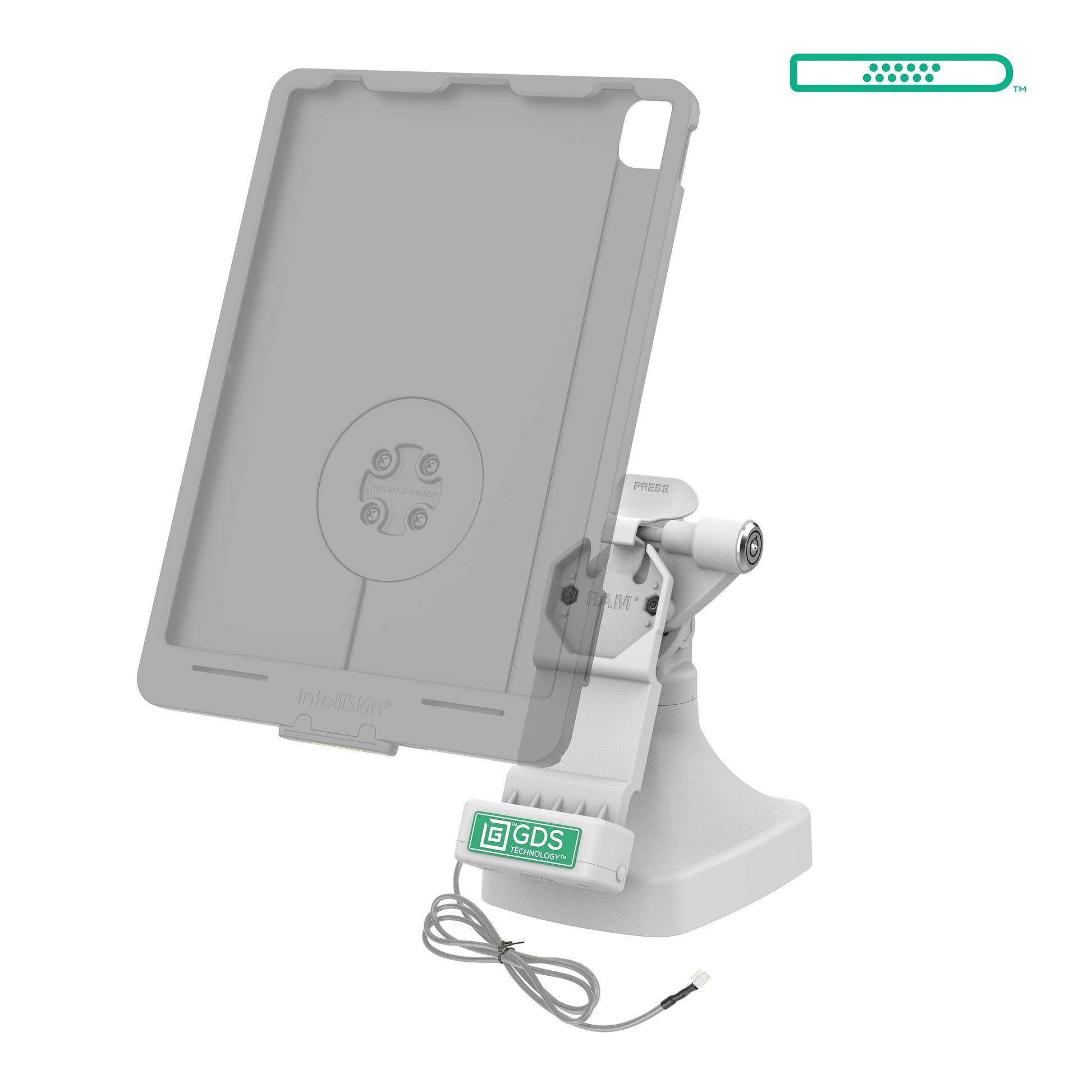

The GDS® Uni-Conn™ Locking Tilt & Swivel Dock with PoE - Gray (RAM-GDS-DOCKLR-D14-U1E-GRY) is a free-standing, powered dock for devices enclosed in an IntelliSkin® Next Gen, IntelliSkin® Hard Case, or standard IntelliSkin® Thin-Case™ with a GDS® Uni-Conn™ adapter. This solution can swivel 180 degrees and allows devices to tilt 180 degrees, which is ideal for customer-centric industries like retail, hospitality, food service, and more. Power over Ethernet (PoE) is provided to the pogo pins integrated into the GDS® Uni-Conn™ dock via RJ45 connection. This dock features a weighted base and rubber pads that offer theft deterrence and prevent it from sliding around on surfaces. Keep your device safe in high-traffic environments with the key lock, integrated to provide additional theft deterrence. The light gray aesthetic is ideal for sophisticated, bright workplaces. One Dock to Connect Them All™ Always Protected. Always Connected.®

Features

  • Light gray, key-locking powered Kiosk dock for devices enclosed in an IntelliSkin® with D-shaped bottom connection and GDS® Uni-Conn™ Adapter

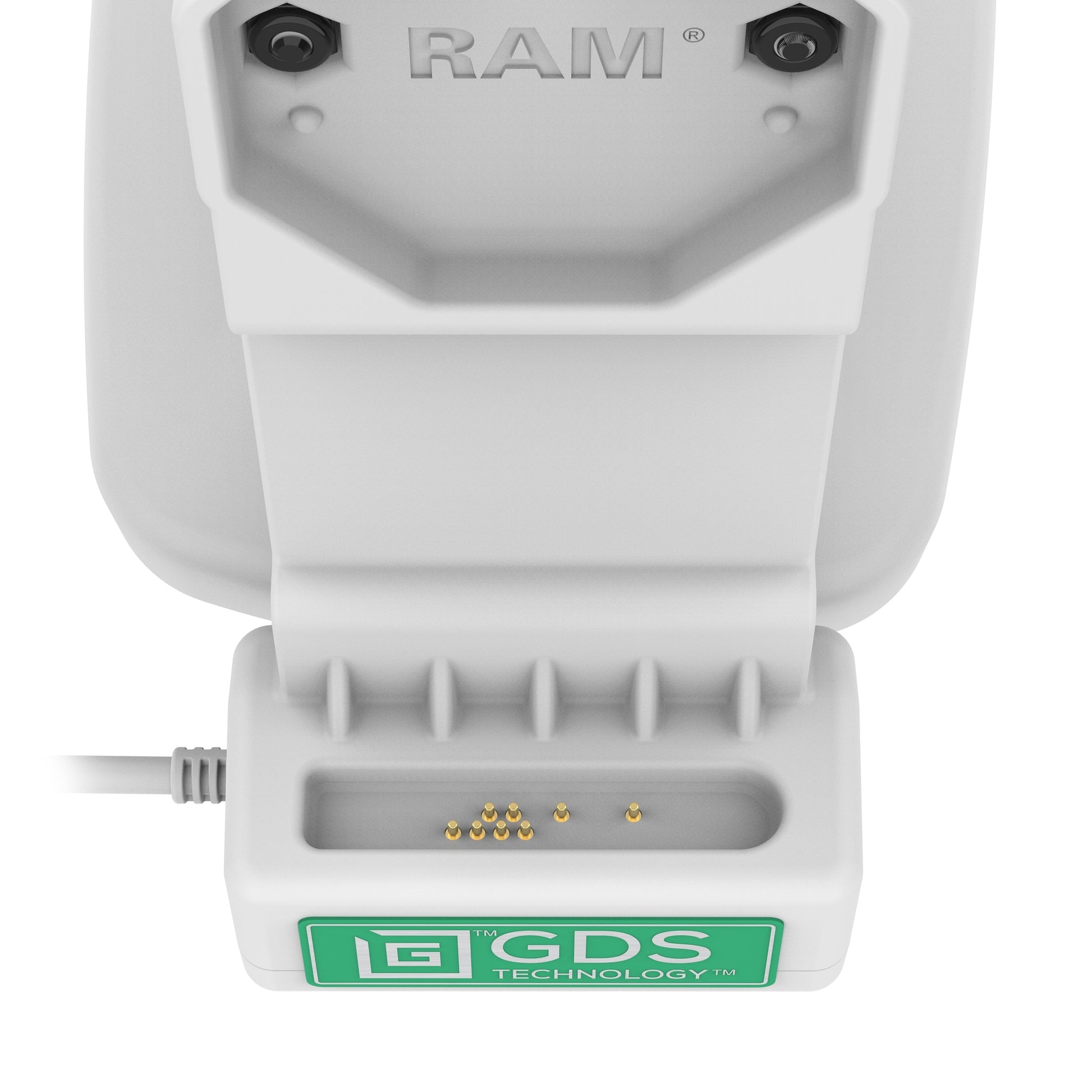

  • GDS® Uni-Conn™ dock pogo pins provide Power over Ethernet (PoE) via RJ45 connector

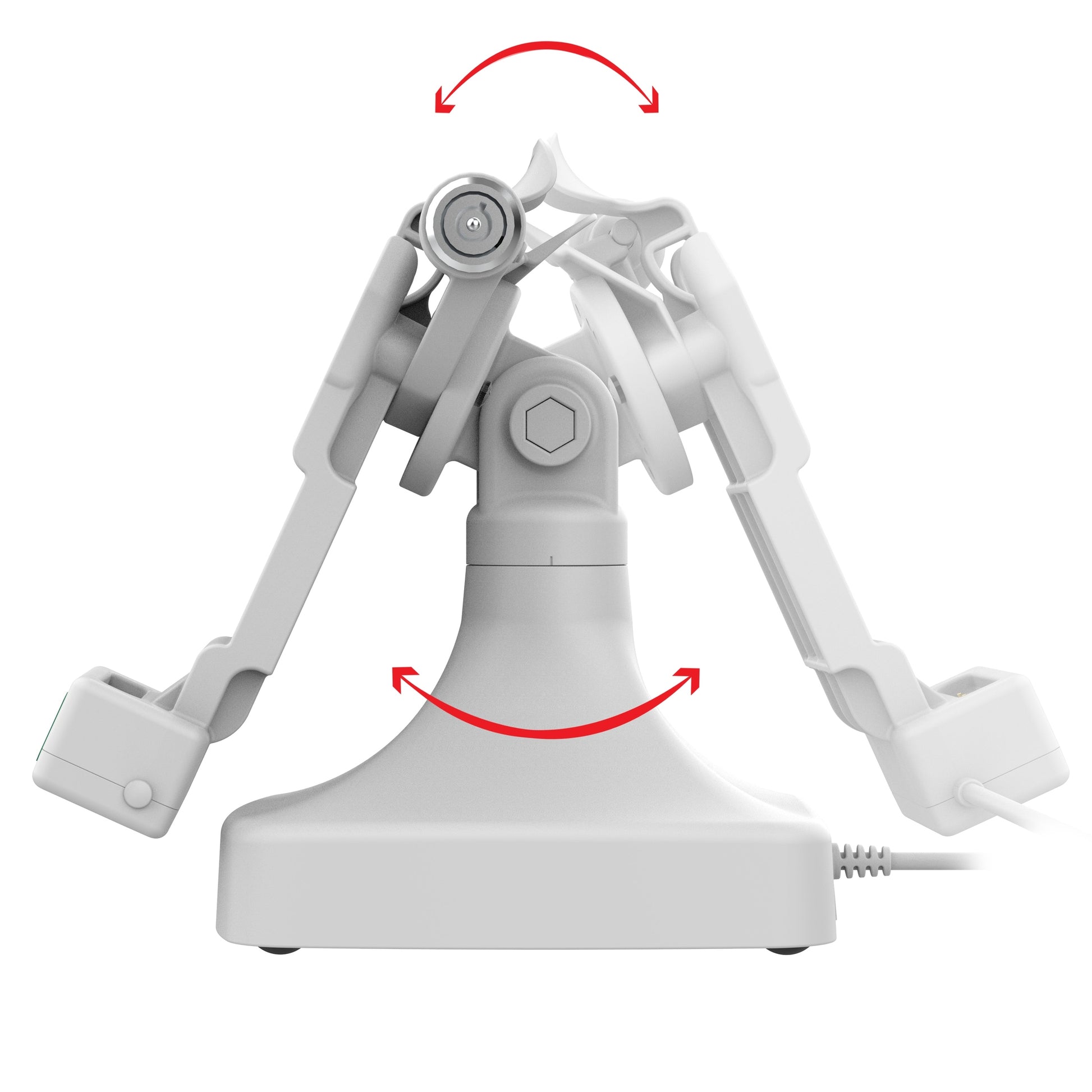

  • Dock swivels 180 degrees and enables connected devices to tilt 180 degrees
  • Weighted base with rubber pads prevents kiosk from moving
  • Backed by a 3-year warranty

Specifications

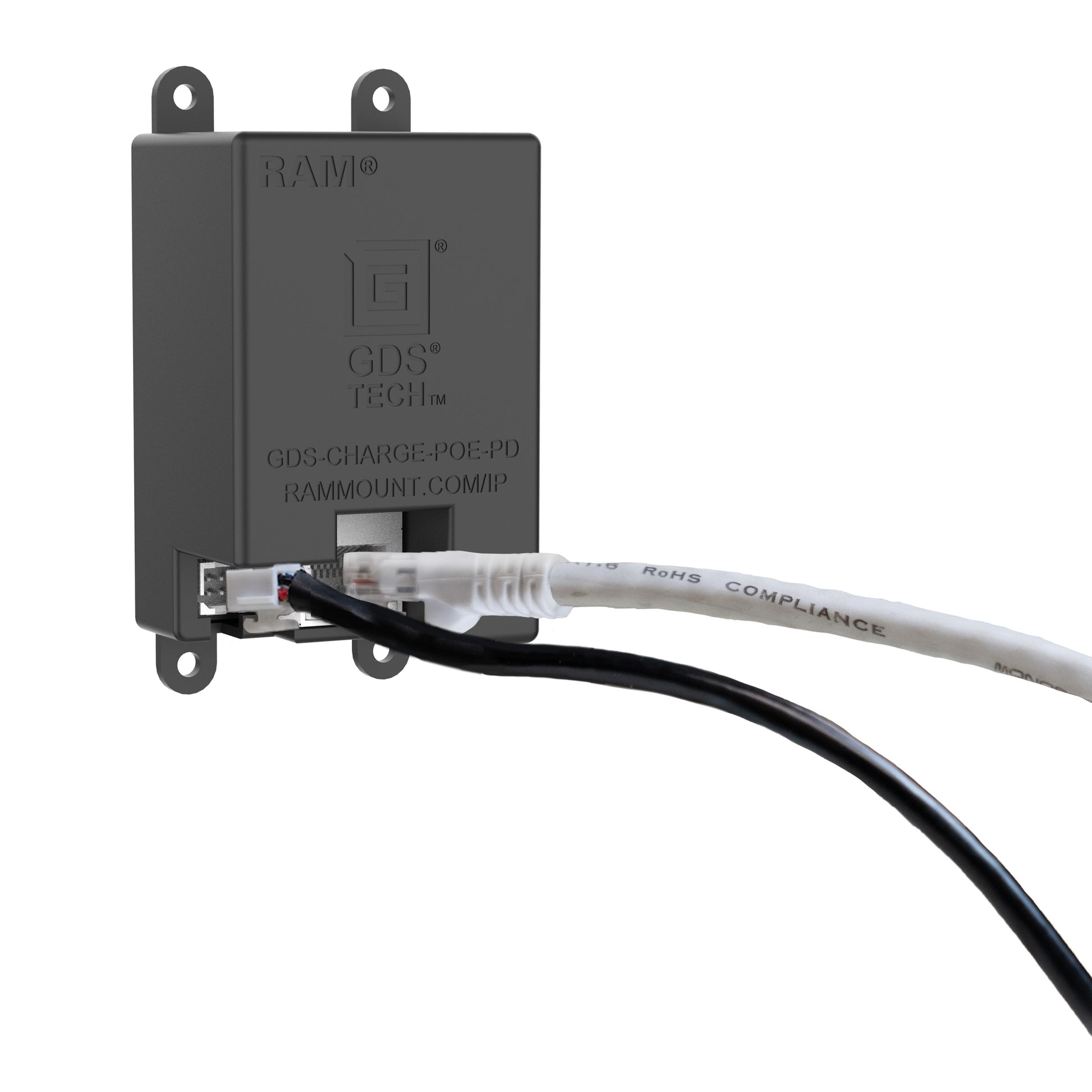

Hardware included: (1) RAM® PoE to PD Charging Module

Product dimensions: Height from Base to Tilt Bolt: 5.52", Base Width: 5.13", Base Depth: 6.63"

Materials: High Strength Composite

Packaging type: Box

Power specifications: Required Input: POE+ (802.3at) or greater

Output voltage: PD 3.0:
5V @ 3A
9V @ 2.22A
12V @ 1.67A

Power output: 20W Max

Input connector: JST Male Connector

Input cable length: 1.5 Meters

Transfer speed: 10/100Mbps

Warranty: 3 year warranty

Weight: 6.16 lb
