• RAM® 8" Upper Flange Pole with Double Ball Mount
  • RAM® 8" Upper Flange Pole with Double Ball Mount
1 2

RAM-VP-TTMF8-101U-D RAM® 8" Upper Flange Pole with Double Ball Mount

RAM-VP-TTMF8-101U-D RAM® 8" Upper Flange Pole with Double Ball Mount

$132.49 USD
$132.49 USD
Sale Sold out
UPC:
793442022296
Mfg Part #:
RAM-VP-TTMF8-101U-D
Availability:
In Stock
Part Number:
RAM-VP-TTMF8-101U-D
View full details
  • Description

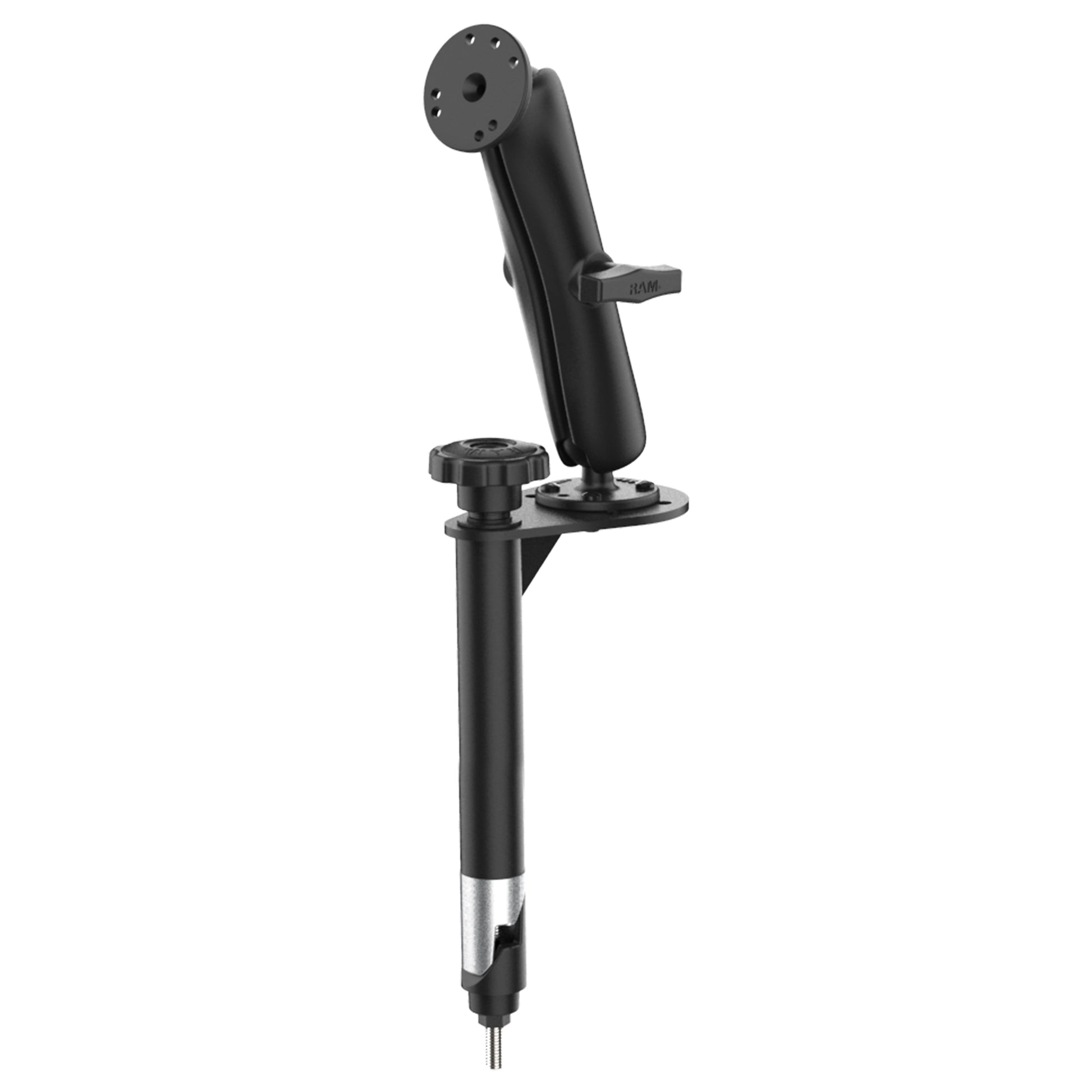

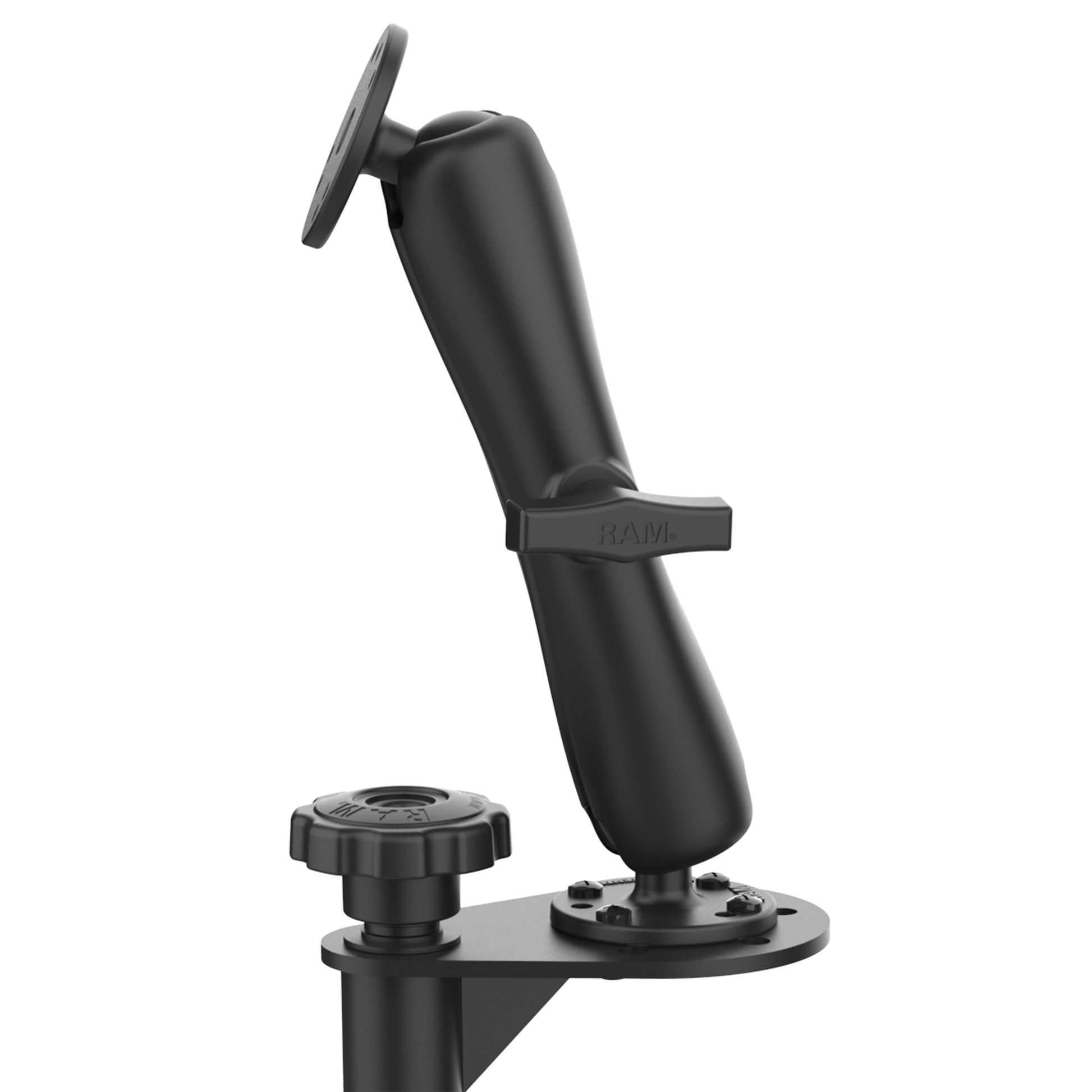

The RAM® 8" Upper Flange Pole with Double Ball Mount (RAM-VP-TTMF8-101U-D) consists of an 8" upper male Tele-Pole™ with a connection point for the 3-part ball and socket system. The 2.5" round ball features the universal 4-hole AMPS hole pattern to connect any RAM® device holder or GDS® Dock™. The Tele-Pole™ can be easily adjusted by turning the knob at the top of the post. Once the knob has been tightened, the Tele-Pole™ becomes a rigid support for connecting devices or cradles. The Tele-Pole™ will connect to any RAM® vehicle base with a welded female Tele-Pole™.

Features

  • 8" pole installs onto any RAM® vehicle base with a welded female Tele-Pole™
  • Ball and socket mounting system offers shock and vibration damping
  • Compatible with any RAM® holders or GDS® docks with a 4 hole AMPS pattern
  • Backed by a lifetime warranty

Specifications

  • Hardware included: Assembly Hardware
  • Product dimensions: Overall Height: 22.85"
  • Socket to socket length: 8"
  • Hole pattern: 4-Hole AMPS: 1.181" x 1.496", 3-Hole 120-Degree: 1.812" Diameter
  • Plate size: 2.5" Diameter
  • Ball size: C Size (1.5")
  • Materials: Powder coated steel, Marine-grade aluminum
  • Packaging type: Poly Bag
  • Weight: 4.63 lb
