RAM® Fishfinder Deck Kit with Single Marine Electronic Mount
RAM® Fishfinder Deck Kit with Single Marine Electronic Mount
Couldn't load pickup availability
Share

- Description
Overview

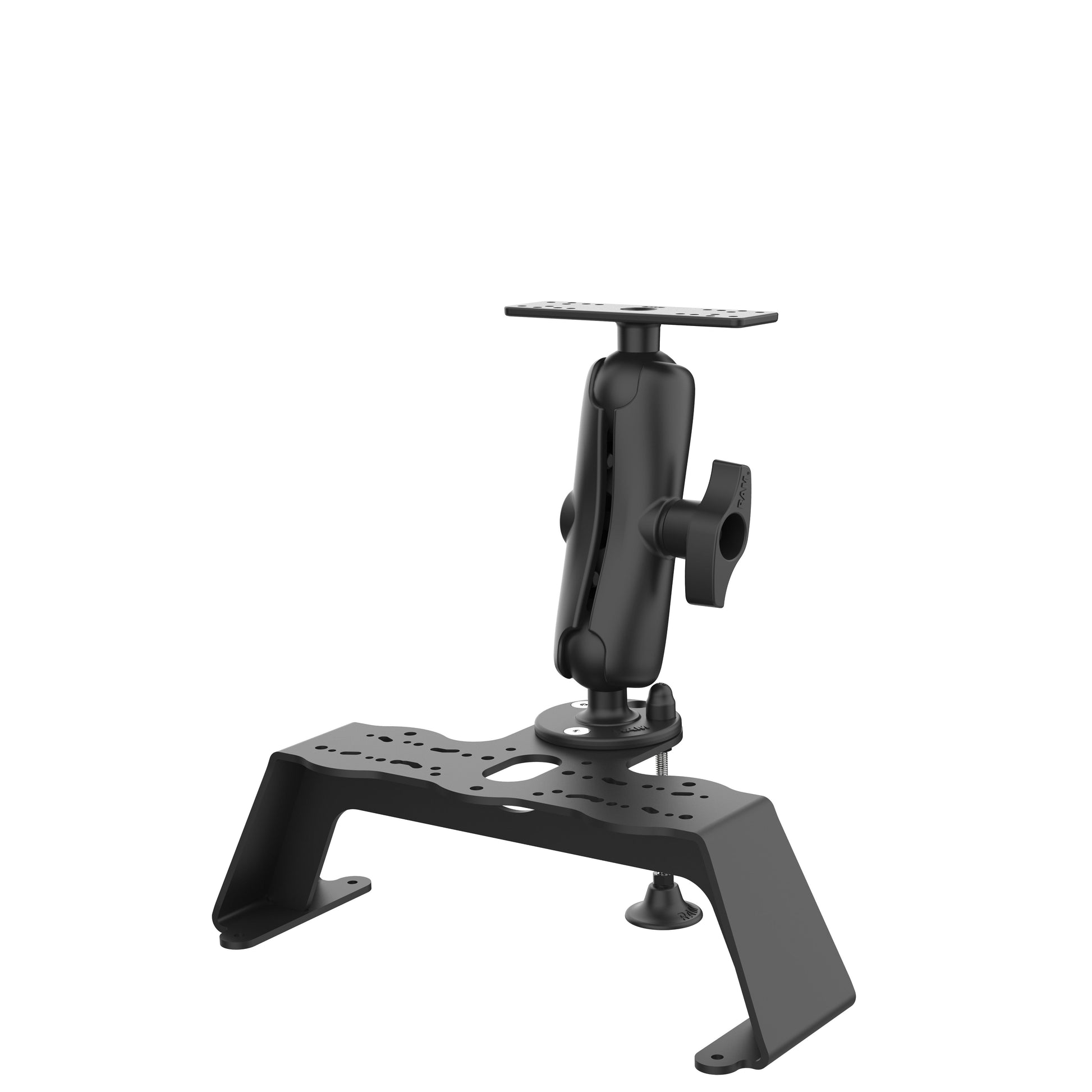

The RAM® Fishfinder Deck Kit with Single Marine Electronic Mount (RAM-FF1-D-115) is a robust, powder-coated aluminum bracket configured with a single D size fishfinder mount that allows you to mount two fishfinders simultaneously. Whether you're trolling deep waters or scanning shallow coves, this heavy-duty mount helps you take in more data for smarter navigation and better results. Built for versatility, the Deck Mount features a wide array of pre-drilled hole patterns, making it compatible with popular fishfinder brands like Garmin®, Lowrance®, and Humminbird®. It also includes three sets of 4-hole AMPS patterns and three sets of tri-hole patterns for seamless integration with RAM® Mounts D size bases. This solution comes with the RAM® Foot Stabilizer for added support and stability in rough waters. Crafted from marine-grade aluminum, this fishfinder mounting bracket is corrosion-resistant and engineered to withstand harsh marine environments—lasting longer than your boat and standing up to the roughest conditions. In fact, we guarantee it with a Lifetime Warranty for all RAM® components.
Features

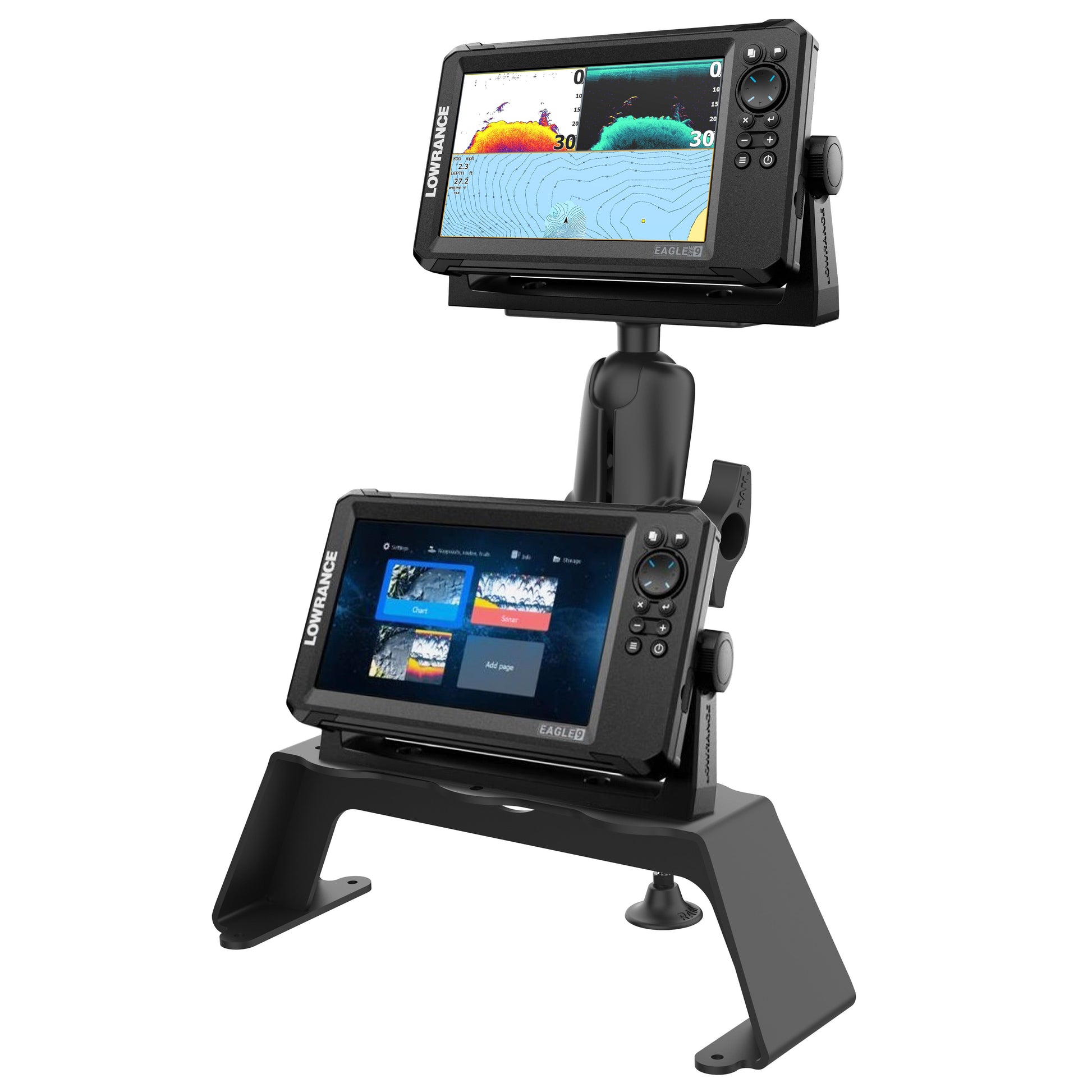

- Supports up two fishfinders for maximum data intake; ideal for bow or rear-mounted fishfinder setups
- Compatible with Garmin®, Lowrance®, and Humminbird® mounting patterns
- Includes AMPS and tri-hole patterns for RAM® D size bases
- Marine-grade aluminum construction with powder-coated finish
- Back by a Lifetime Warranty
Specifications

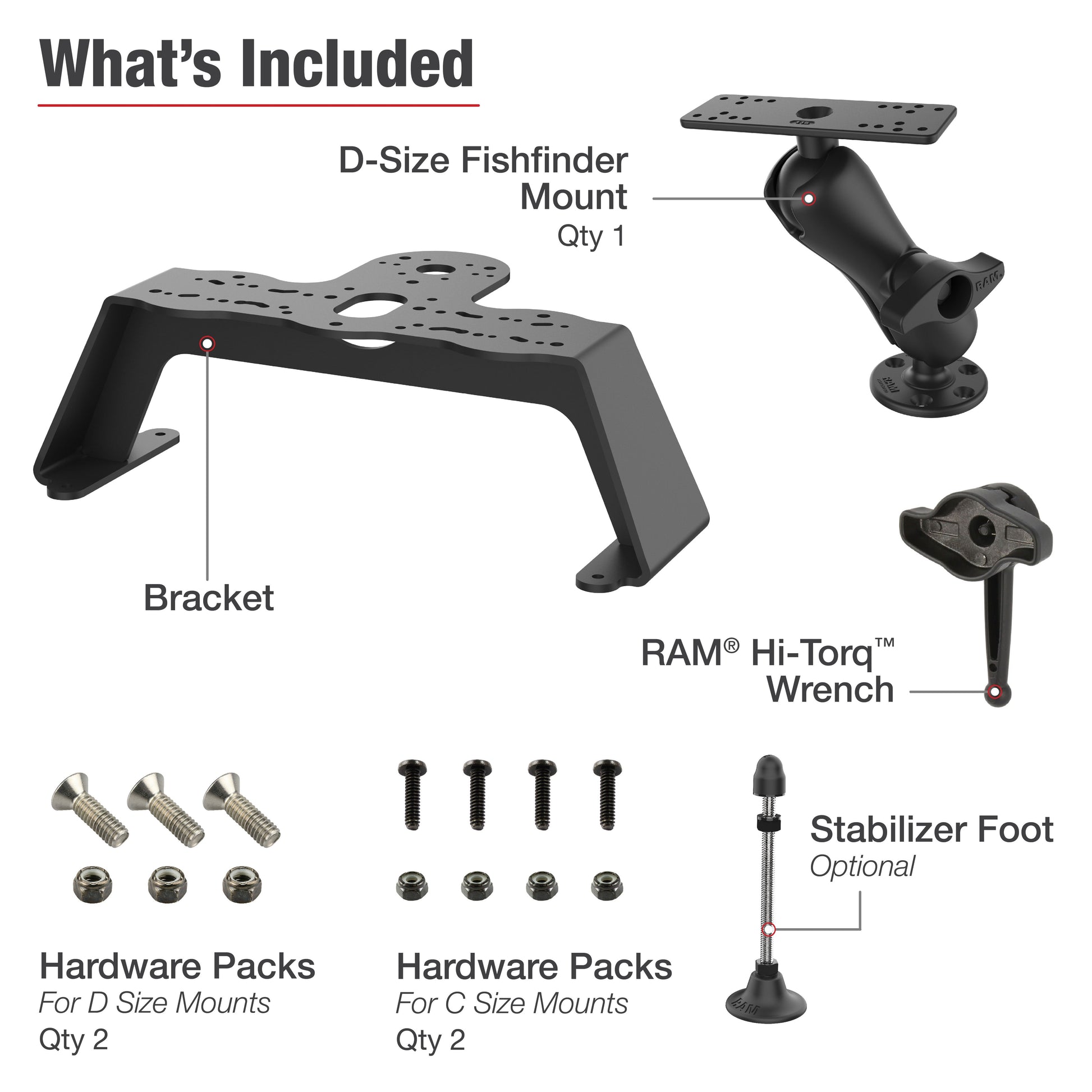

Hardware included: Mounting Hardware, (1) RAM® Hi-Torq™ Wrench, (1) Foot Stabilizer

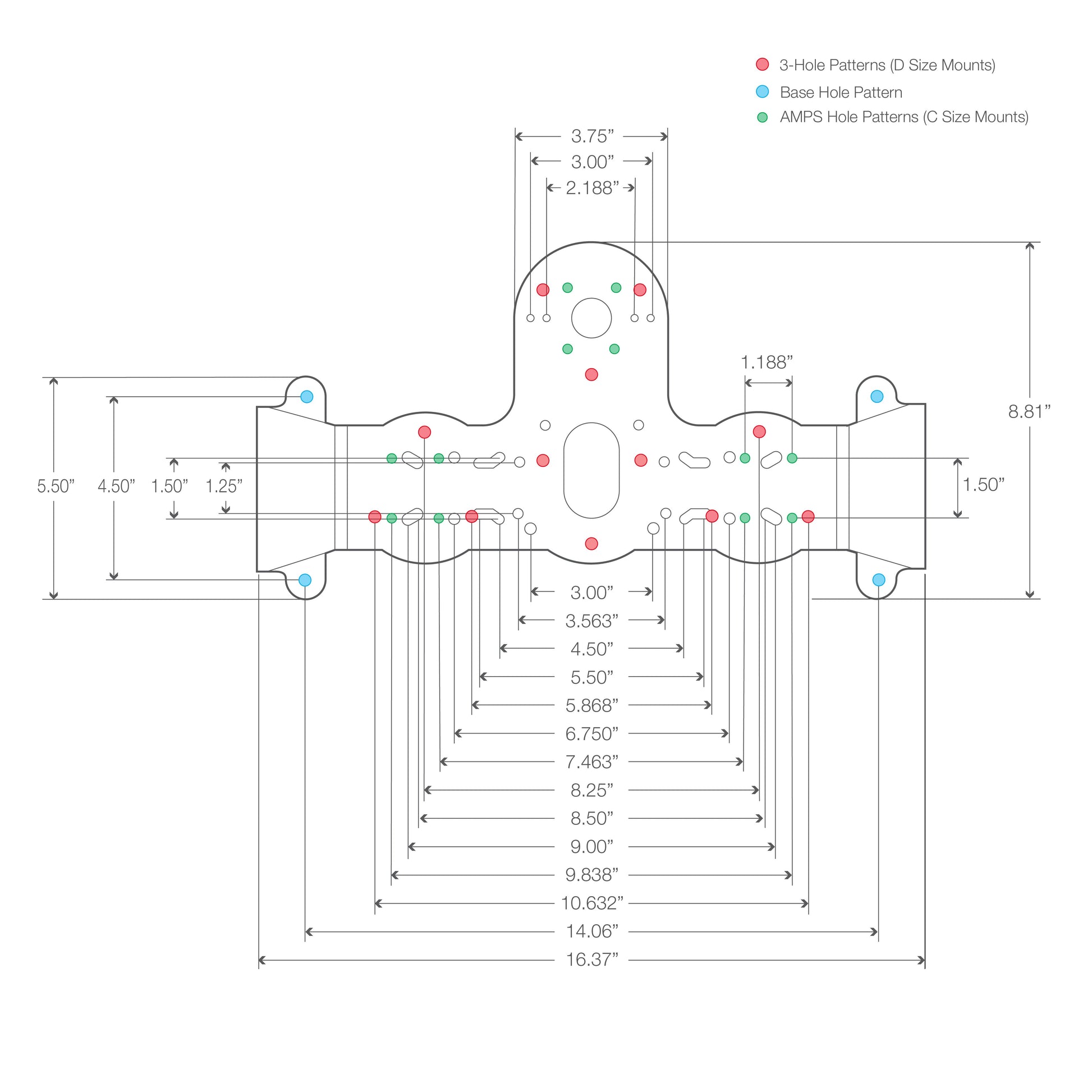

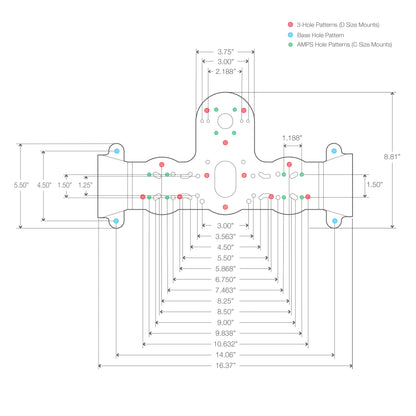

Hole pattern: See Drawing
Ball size: D Size (2.25")
Weight capacity: Standard Use: 6 lbs, Heavy-Duty Use: 5 lbs
Materials: Marine-grade aluminum
Packaging type: Poly Bag
Weight: 8.56 lb
