RAM-VB-178A-DB2 RAM® No-Drill™ Ball Mount for '12-26 Ram 2500 + More
RAM-VB-178A-DB2 RAM® No-Drill™ Ball Mount for '12-26 Ram 2500 + More
Couldn't load pickup availability
Share
- Description
Overview

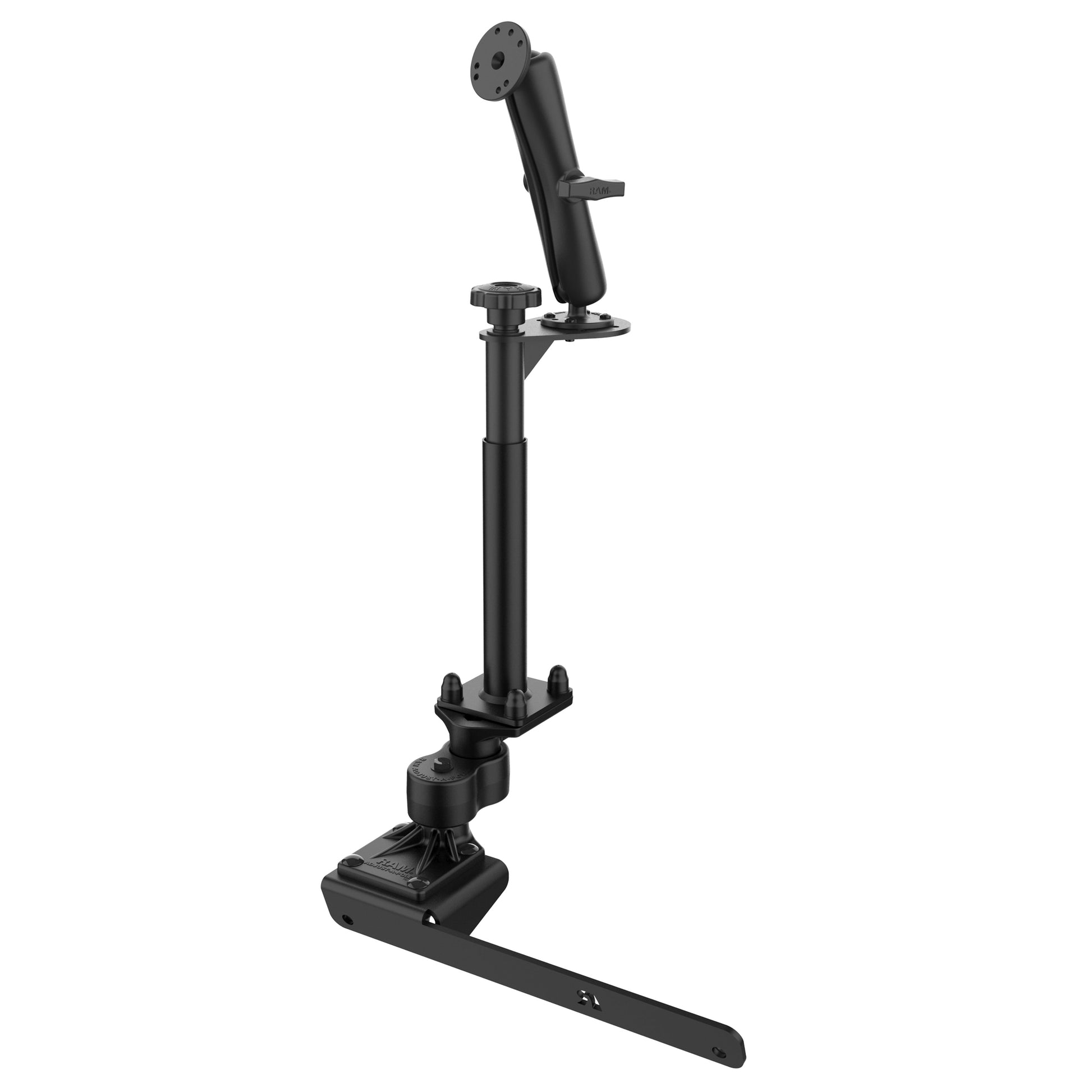

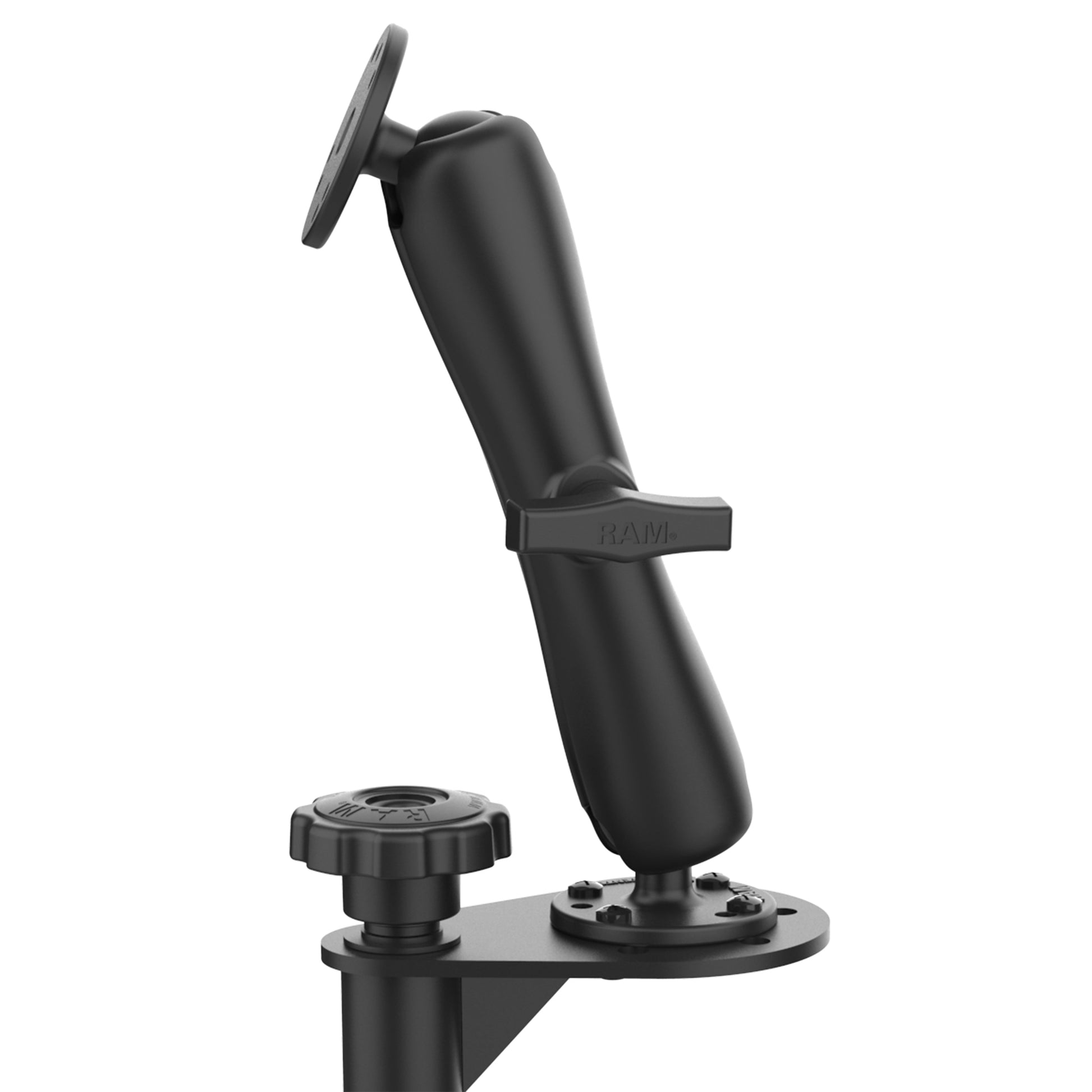

The RAM® No-Drill™ Ball Mount for '12-26 RAM 2500-5500 + More (RAM-VB-178A-DB2) installs quickly and easily into the specified vehicles using the existing hardware of the passenger side seat rails. This configuration provides a telescoping feature with upper and lower poles that allow you to set your mount to the desired height with the simple turn of a knob. The 3-part ball and socket system attached to the pole is compatible with a variety of device holders, while RAM® rubber ball and socket technology provides additional adjustability as well as shock and vibration isolation.
Features
- Custom vehicle mount designed specifically for 2012-2026 Ram 2500-5500 trucks
- Requires no drilling into the vehicle and installs on the passenger side using the existing seat bolts
- Ball and socket mounting system offers shock and vibration damping
- Compatible with any RAM® holders or GDS® docks with a 4 hole AMPS pattern
- Backed by a lifetime warranty hardware included:
Assembly Hardware
(2) M8-1.25 x 60mm Hex Bolts
(2) 3/4" Stand-Offs
(2) 5/16" Flat Washers
socket to socket length:
8"
hole pattern:
Seat Bolt Distance: 13.25" center to center
plate size:
2.5" Diameter
ball size:
C Size (1.5")
weight capacity:
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials:
Powder coated steel
Marine grade-aluminum
packaging type:
Box
Weight:
12.03 lb
