RAM-B-176-A-PD4-462 RAM® Quick-Grip™ XL Phone Mount with Vibe-Safe™ & Fork Stem Base - Short
RAM-B-176-A-PD4-462 RAM® Quick-Grip™ XL Phone Mount with Vibe-Safe™ & Fork Stem Base - Short
Couldn't load pickup availability
Share
- Description

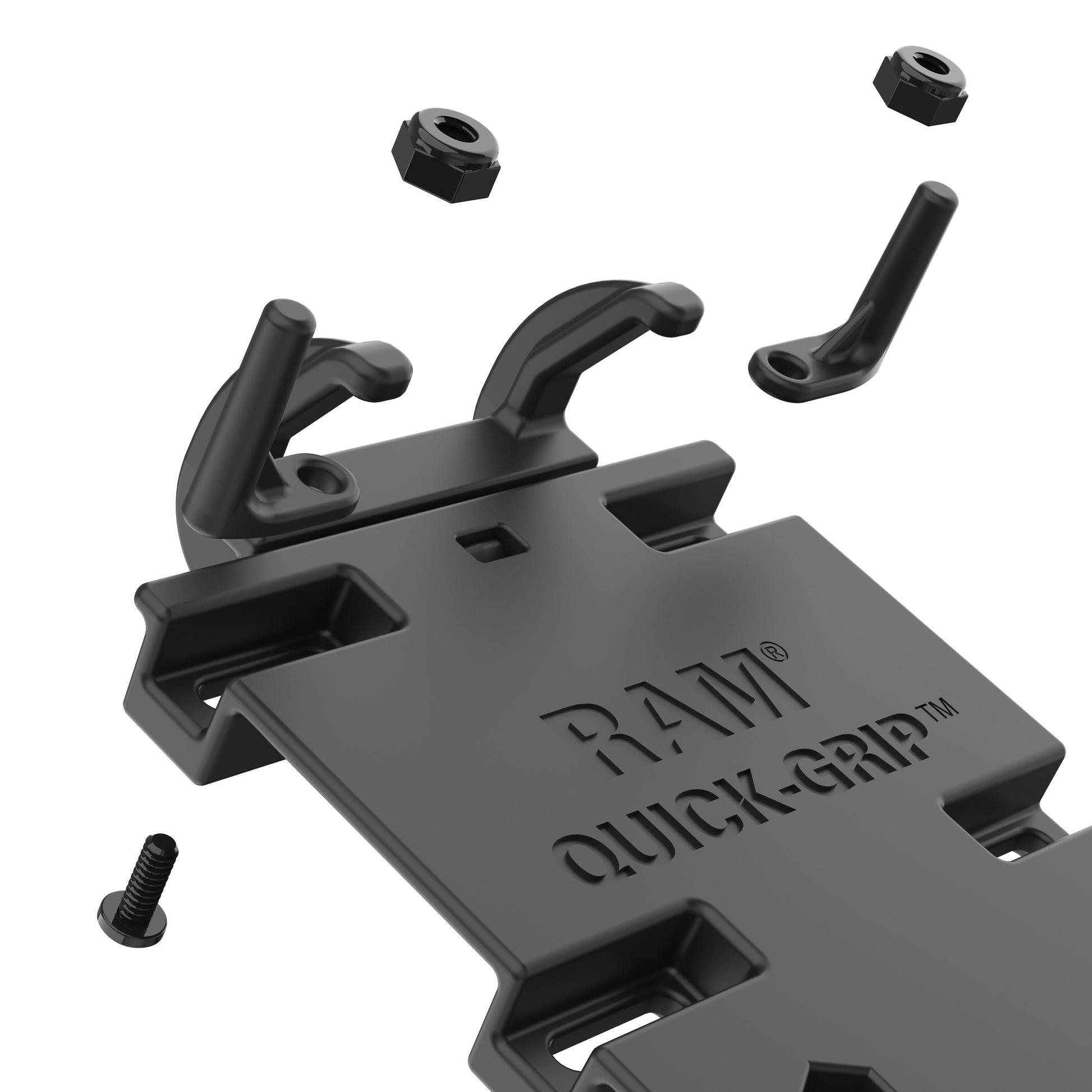

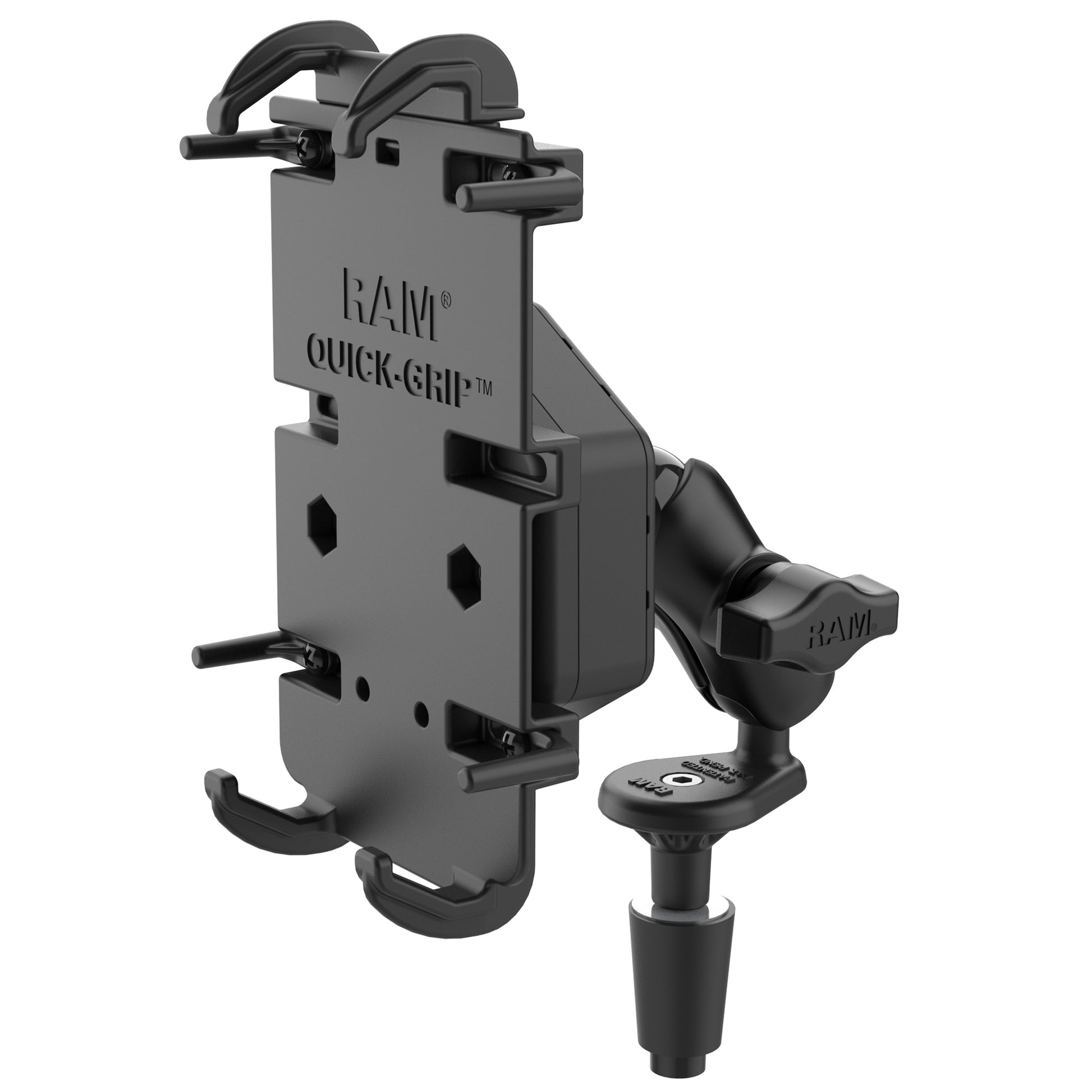

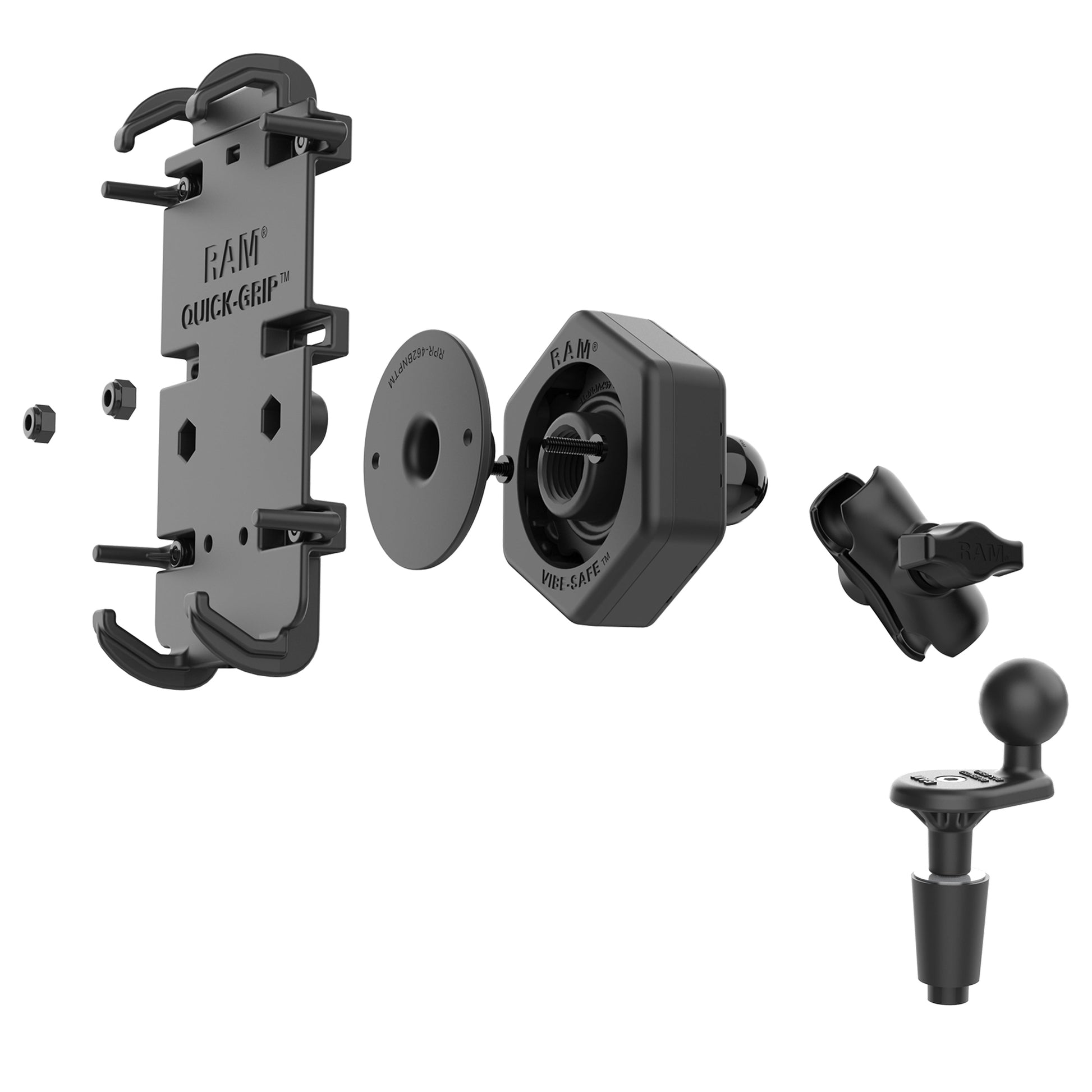

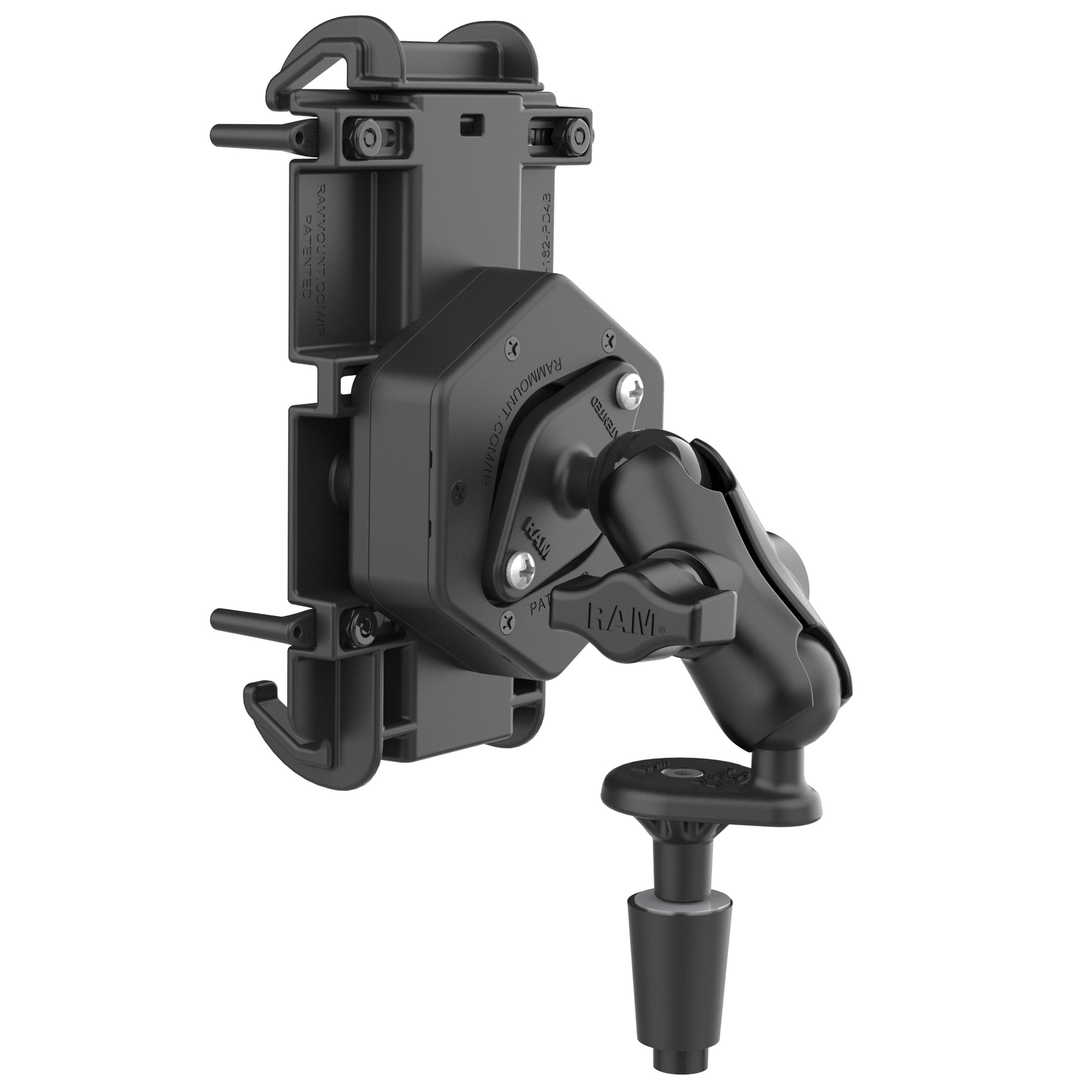

The RAM® Quick-Grip™ XL Phone Mount with Vibe-Safe™ & Fork Stem Base - Short (RAM-B-176-A-PD4-462) is a combination of the RAM® Quick-Grip™ XL Phone Mount and the RAM® Vibe-Safe™—our vibration damping accessory is designed to protect electronic devices from a wide range of vibration frequencies. The RAM® Vibe-Safe™ is based on an NPT connection point and boasts the versatility to rotate between portrait and landscape while keeping your device secure in rugged environments. This product comes with one (1) short B size arm and one (1) RAM® Motorcycle Fork Stem Ball Base and an optional device tether that is recommended for outdoor applications. The holder is compatible with handheld devices that will fit the dimensions listed below, it is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.
Features
- RAM® Vibe-Safe™ dampens a wide range of vibration frequencies
- NPT thread connection allows for rotation between portrait and landscape while remaining secure
- Made of high-strength composite and stainless steel hardware for durability and reliability in the most demanding environments
- Unique structure and thoughtfully designed with all industries in mind
- Backed by a lifetime warranty
Specifications
hardware included:
Assembly Hardware
(1) Expansion Plug for 12mm - 38mm (.5" - 1.49") Fork Stem Holes
(1) M5 x 60mm Machine Screw
(1) Steel Washer Set
(1) Nut Pocket Washer Set
(1) Brass Nylock Nut
holder dimensions:
Height Range: 5.75" - 7.25"
Width Range: 2.625" - 3.625"
Max Depth: .72"
socket to socket length:
1.75"
ball size:
B Size (1")
weight capacity:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials:
Marine-grade aluminum
High strength composite
packaging type:
Retail Bag
Weight:
1.15 lb
