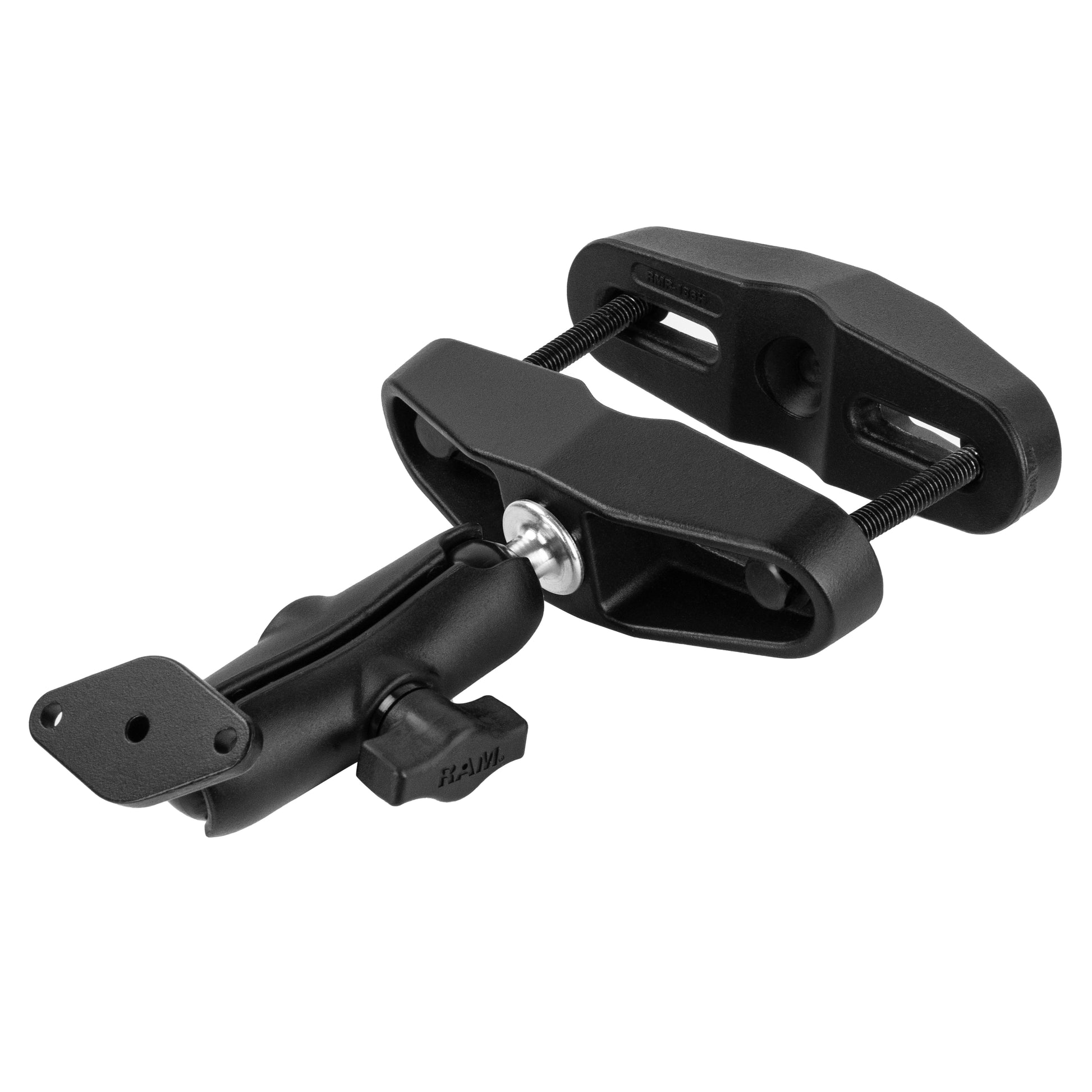

RAM-B-102U-247 RAM® Universal Post Clamp Mount with Diamond Plate - B Size Medium Arm
RAM-B-102U-247 RAM® Universal Post Clamp Mount with Diamond Plate - B Size Medium Arm
Couldn't load pickup availability
Share
- Description
The RAM® Universal Post Clamp Mount with Diamond Plate - B Size Medium Arm (RAM-B-102U-247) is a mounting solution designed to secure small handheld devices to forklifts. This kit consists of one (1) double socket B size medium arm, one (1) diamond plate with B size ball, and one (1) square post clamp. The square post clamp will wrap around a square post with a maximum width of 4" and is tightened by screwing the two plates together with the included nuts and bolts. The RAM® rubber ball and socket technology dampens shock and vibration, as well as allows for almost infinite adjustment and perfect viewing angles.
Features
- 2.43" x 1.31" diamond plate connects to RAM® device holders containing the universal AMPS hole pattern
- Includes 4" clamping base for posts and a medium length, B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
- Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
- Backed by a lifetime warranty
Specifications
Hardware included: Assembly Hardware
Clamp range: 1.75" - 4" width
Socket to socket length: 3"
Hole pattern: 2-Hole AMPS: 1.912"
Plate size: 2.43" x 1.31"
Ball size: B Size (1")
Weight capacity: Standard Use: 2 lbs, Heavy-Duty Use: 1 lb
Materials: Marine-grade aluminum
Packaging type: Poly Bag
Weight: 1.7 lb
