RAM-HOL-SAM60CPU RAM® USB-C Powered Dock for Samsung Tab Active5 & 3

RAM-HOL-SAM60CPU RAM® USB-C Powered Dock for Samsung Tab Active5 & 3

$91.49 USD
$91.49 USD
Sale Sold out
UPC:
793442018428
Mfg Part #:
RAM-HOL-SAM60CPU
Availability:
In Stock
Part Number:
RAM-HOL-SAM60CPU
View full details
  • Description
Product Information

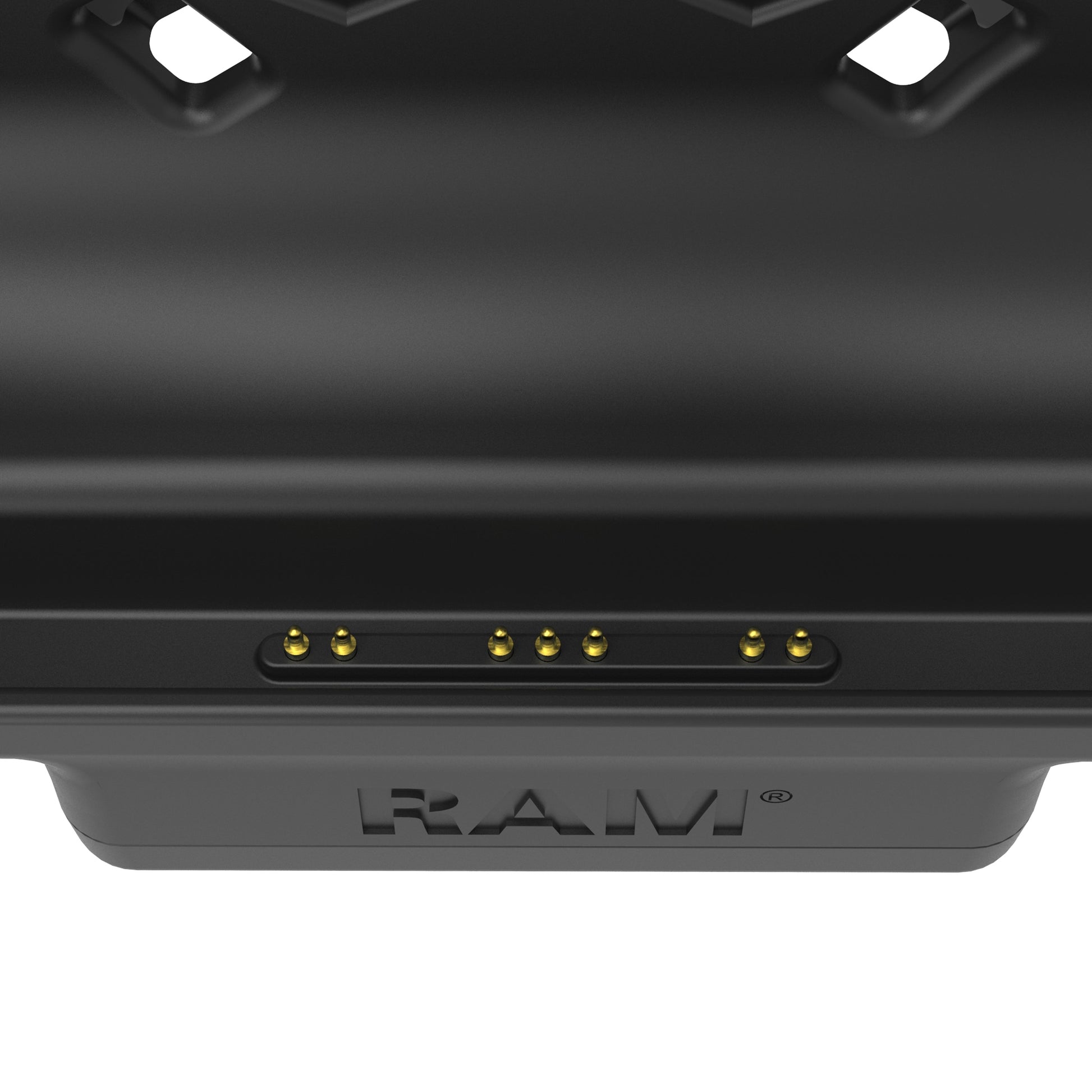

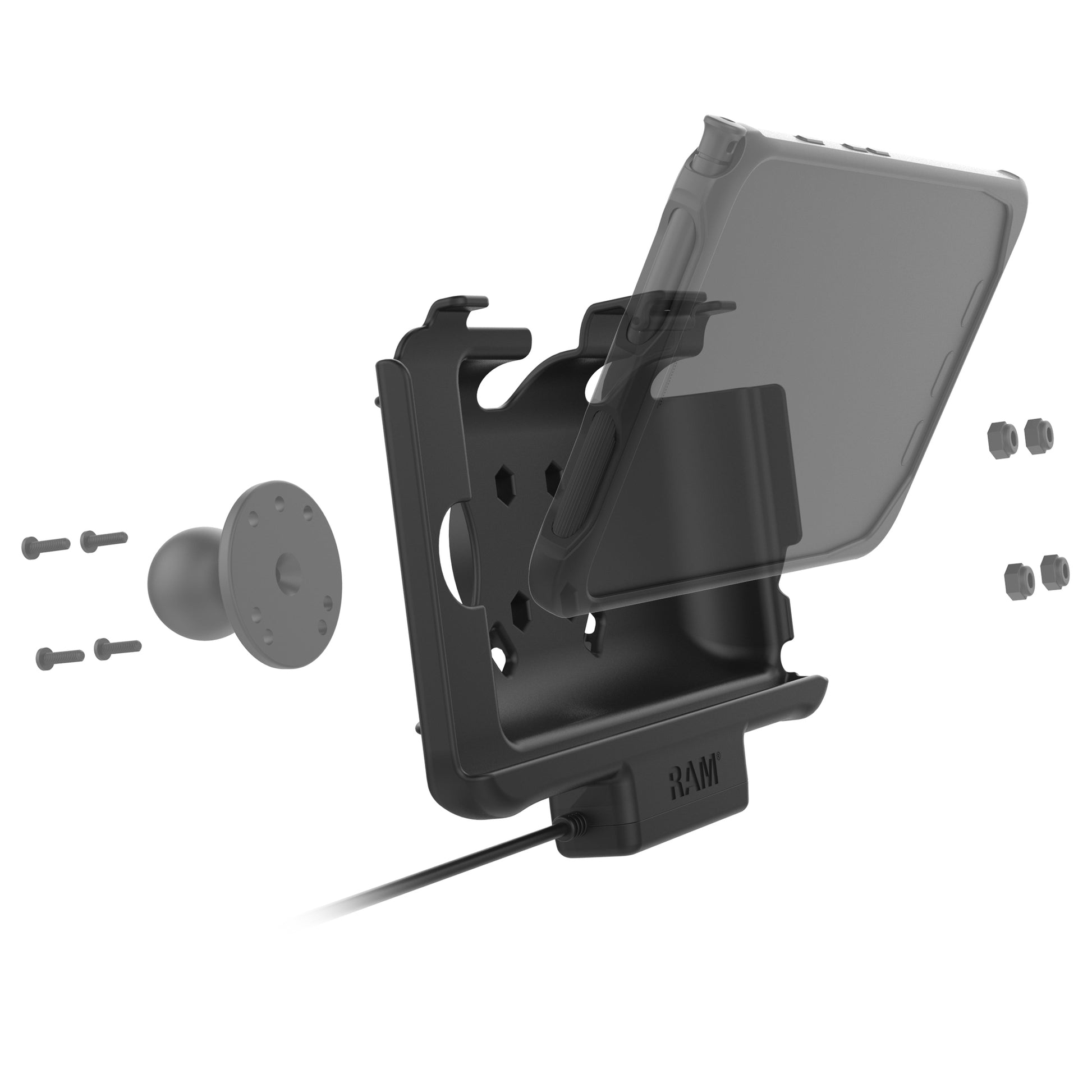

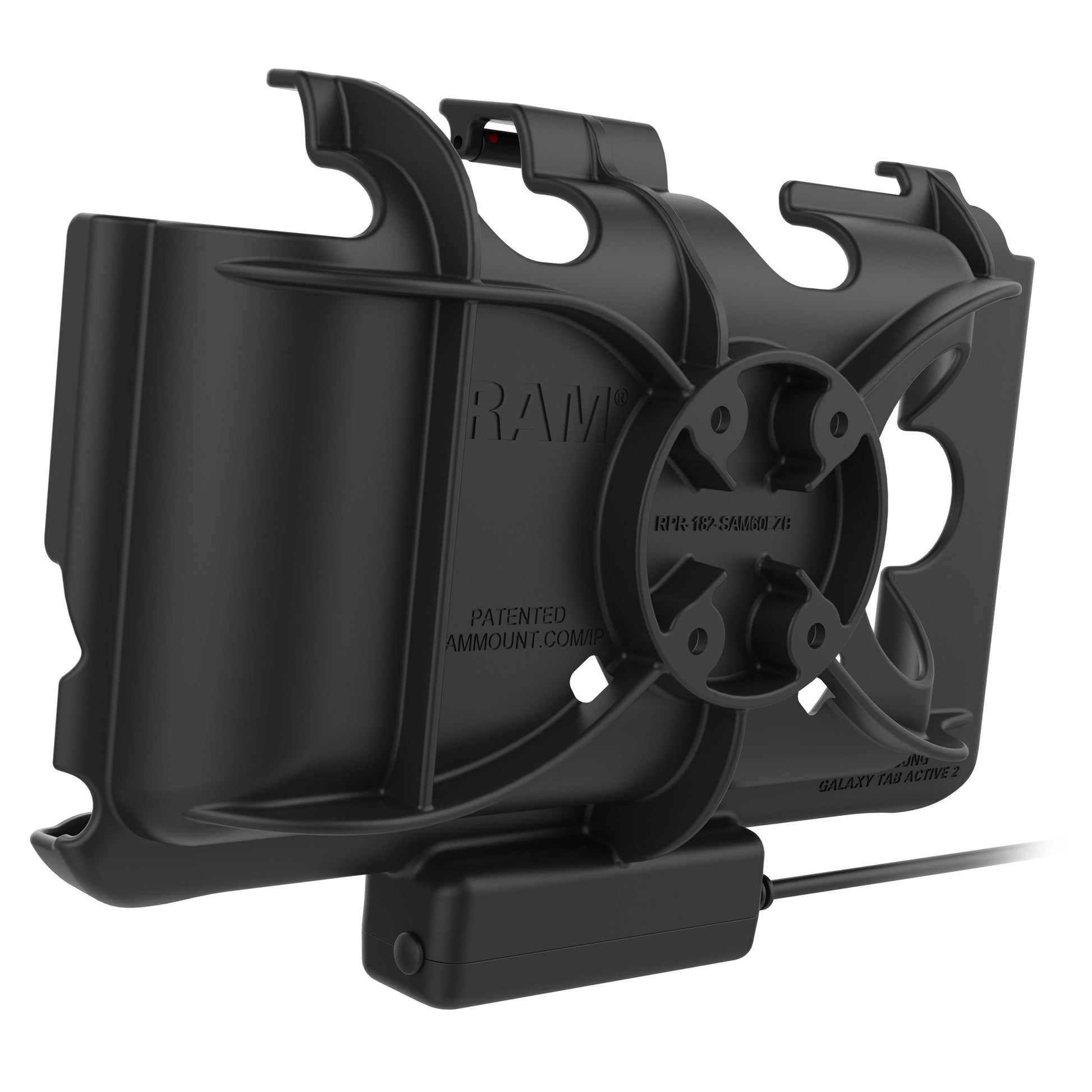

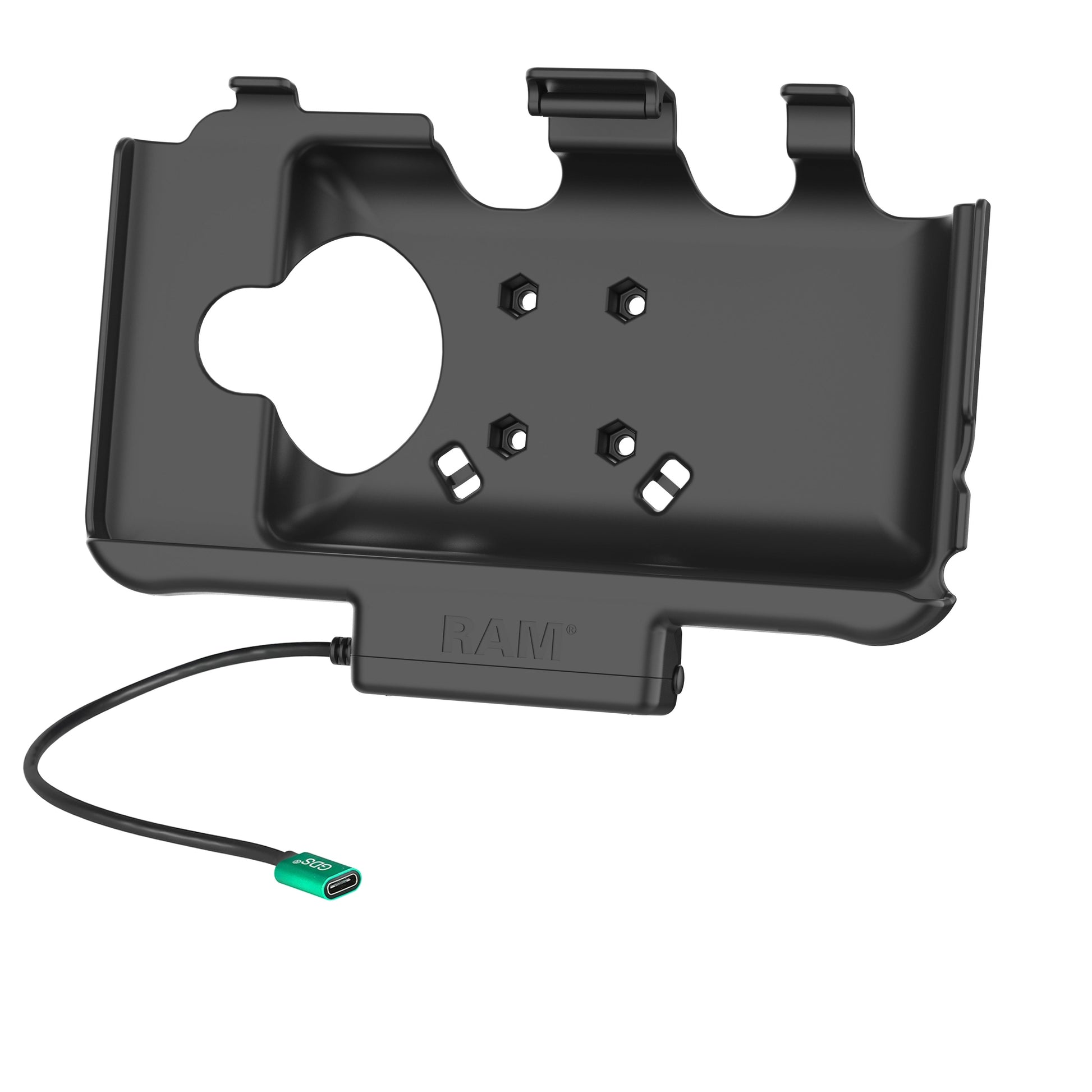

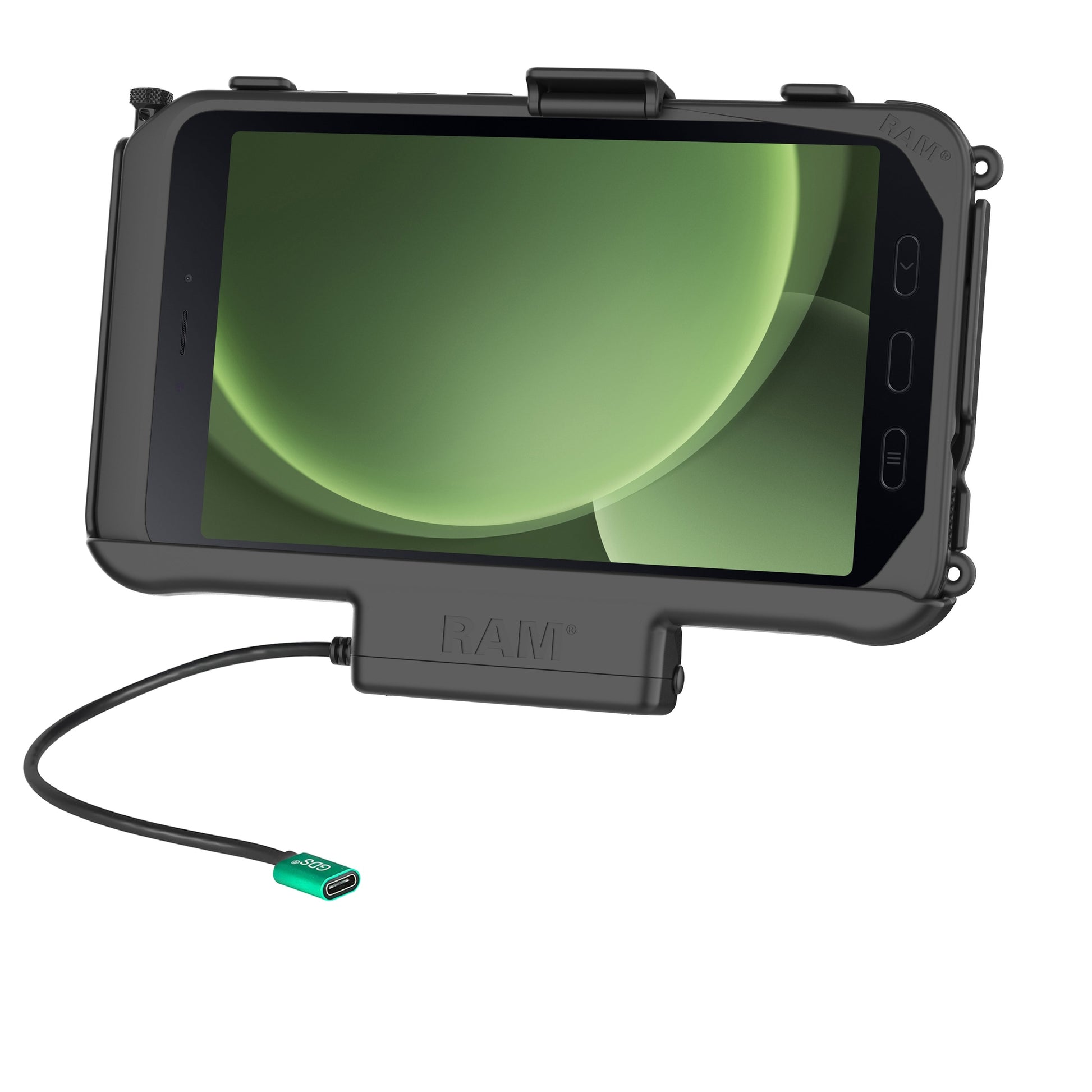

Overview The RAM® USB-C Powered Dock for Samsung Tab Active5, Tab Active3 & 2 (RAM-HOL-SAM60CPU) was thoughtfully designed to meet the demands of commercial truck drivers, field service technicians, pupil transporters, logistics managers, forklift operators, and more. Power and charging capabilities are provided to the device through GDS® pogo pins. This modular dock is compatible with the RAM® Skin™, factory device skin, and GDS® Hand-Stand™. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the dock to any RAM® components containing the universal AMPS hole pattern along with cable clamps and zip ties for cable retention.

Features

  • RAM® EZ-Roll'r™ form-fit powered dock designed specifically for the Samsung Galaxy Tab Active5 & Tab Active3; provides charging through an integrated pogo pin connection and USB-C cable (Non-Power Delivery charger required)
  • Compatible with the Samsung OEM skin as well as the RAM® Skin™; built-in cavity in the back allows for GDS® Hand-Stand™ compatibility
  • Access to speakers, mics, and headphone jack remain while device is docked; allows access to the GDS® shoulder strap loops on RAM® Skin™
  • Backed by a 3-year warranty

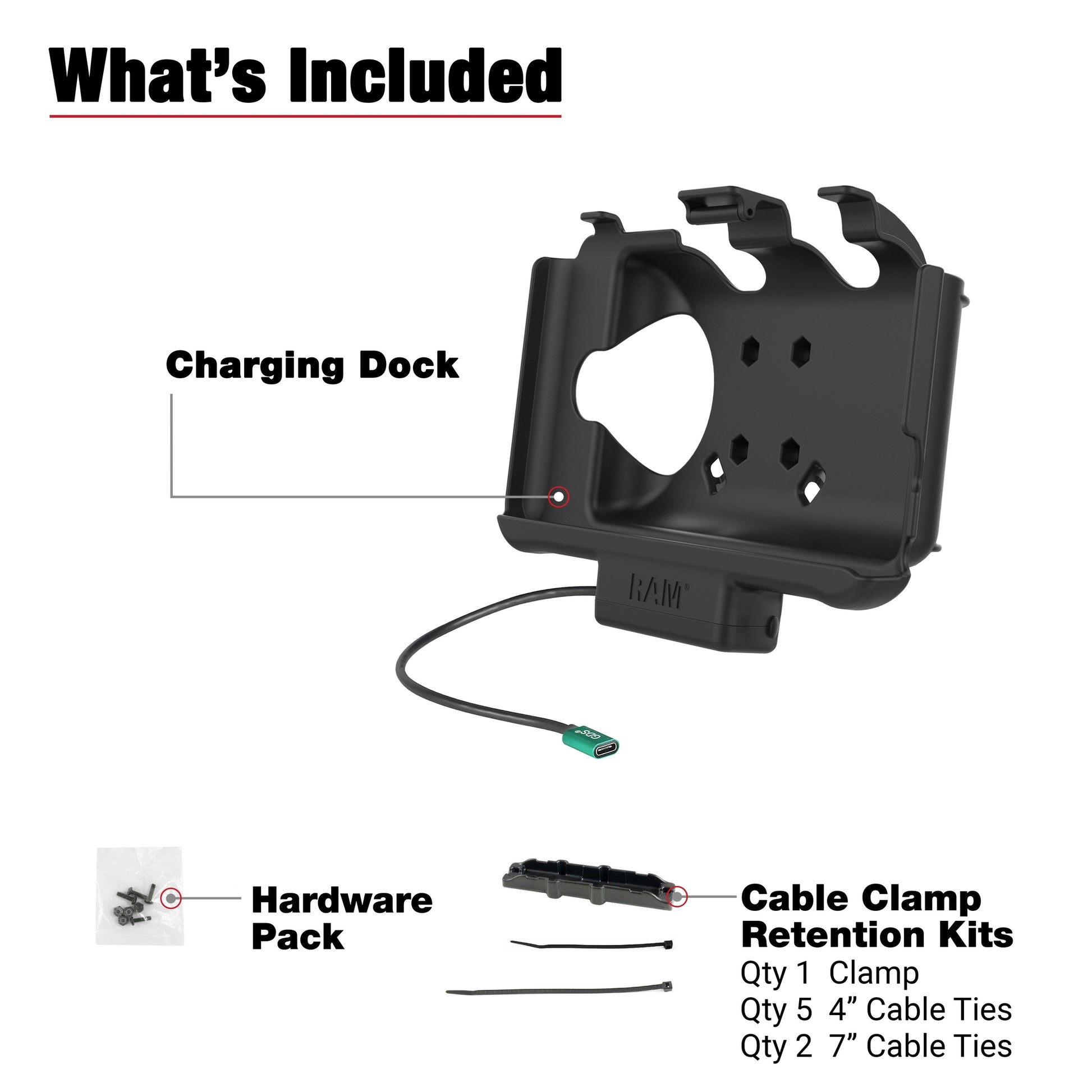

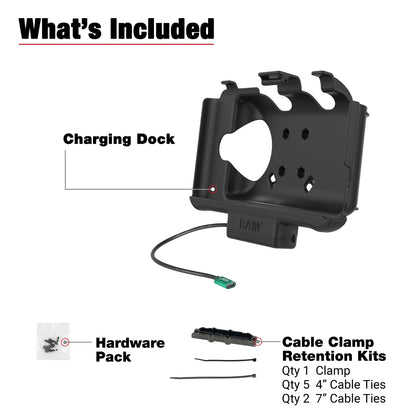

hardware included:

(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(1) Cable Clamp
(2) Large Cable Ties
(5) Small Cable Ties

product dimensions:

Width: 9.24"
Height: 6.34"
Depth: 2.57"

hole pattern:

4-Hole AMPS: 1.181" x 1.496"

materials:

High strength composite

packaging type:

Poly Bag

input voltage:

5.3-5.4VDC

output voltage:

5VDC

power output:

500mA

input connector:

USB Type-C Female

input cable length:

215mm

Warranty:

3 year warranty

Weight:

0.71 lb
