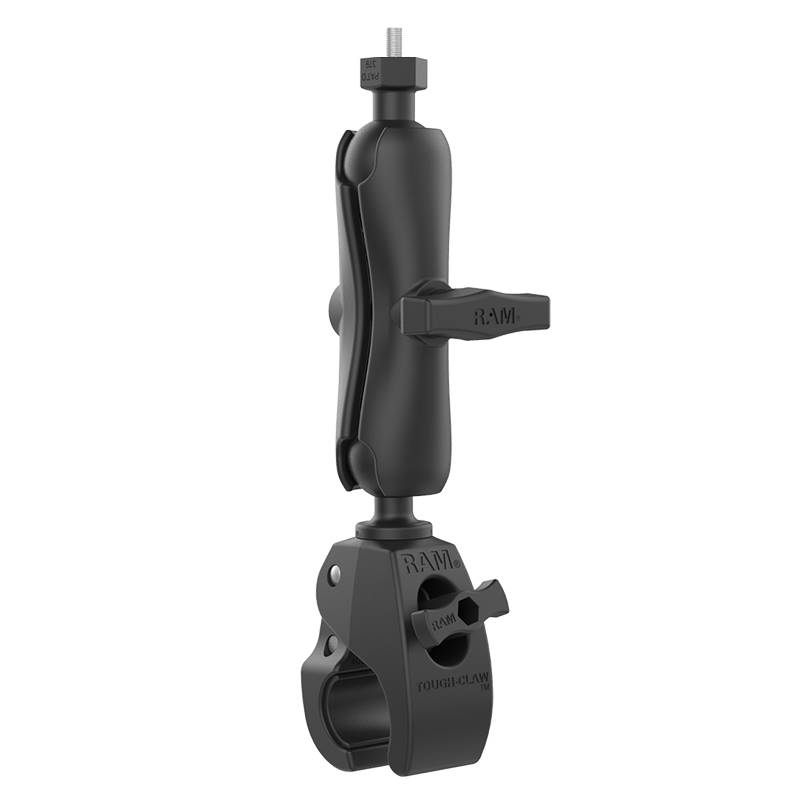

RAM Tough-Claw Heavy Duty Mount for

RAM Mounts has partnered with Samsung to develop a powered
cradle for the Samsung Galaxy Tab Active3 and Tab Active2. Compatible with the Samsung OEM case as well
as the RAM Skin , this cradle has been designed to meet the demands of field
workers in a variety of applications including transportation, field sales, logistics, manufacturing,
and much more. This ultra-low cost cradle provides power to the device through the pogo pin interface on
the tablet and can be easily rotated for both portrait and landscape operation of the device. This
complete mounting kit includes a 3” x 3” steel backing plate with #10-24 threaded holes, two 2.5” round
ball plates, medium length double socket arm, and a GDS modular hardwire charger – an ideal
solution for providing power to the Galaxy Tab Active3 and Tab Active2.

FEATURES

RAM EZ-Roll'r Powered form-fit cradle provides charging capabilities for the Samsung Galaxy Tab Active3 and Tab Active2 through integrated pogo pin connector and mUSB cable

Compatible with the Samsung OEM skin as well as the RAM Skin ; built-in cavity in the back allows for GDS Hand-Stand compatibility

Access to speakers, mics, and headphone jack remain while device is docked; allows access to the GDS shoulder strap loops on RAM Skin

Backed by a 3-year warranty

Hardware Included
Assembly Hardware (1) 3 INCHES x 3 INCHES Steel Backing Plate (4) #10-24 x 1 INCHES Thread
Locking Screws (4) #10-24 Nylock Nuts (1) Cable Clamp (1) mUSB Cable (1) Hardwire
Charger

Socket-to-Socket Length
3 INCHES

Ball/Socket Size
B Size (1 INCHES)

Weight Capacity
Standard Use: 2 lbs Heavy-Duty Use: 1 lb

Materials
Steel Marine-grade alluminum High strength composite

Packaging Type
Poly Bag

Input Voltage
10V - 30V DC

Output Voltage
5-9VDC

Output Current
2.5A max

Input Connector
mUSB 2.0 Female

Input Cable Length
.21 Meter

Operating Temperature
-10°C to +70°C

Storage Temperature
-40°C to +70°C

Compliance
Overvoltage/Load Dump Compliance: Meets SAE J-1113

Certifications
Integrated Short Circuit Protection FCC, Industry Canada, CE, WEEE, e-Mark and RoHS
Compliant USB 2.0 BC 1.2 DCP Support

Weight
1.95 lbs.
