RAM Glare Shield Clamp Double Ball Mount
RAM Glare Shield Clamp Double Ball Mount
Regular price
$55.99 USD
Regular price
Sale price
$55.99 USD
We have new inventory arriving weekly, If you see low or no inventory it may change tomorrow. Please call us at 1.800.789.0087 or email us at sales@custommounts.com for current inventory status.
Ball Size:
B Size 1"
UPC:
793442907562
Mfg Part #:
RAM-B-177-237
Availability:
Out Of Stock
Part Number:
RAM-B-177-237
Quantity
Couldn't load pickup availability
Share
- Description
- Additional Info
- Components

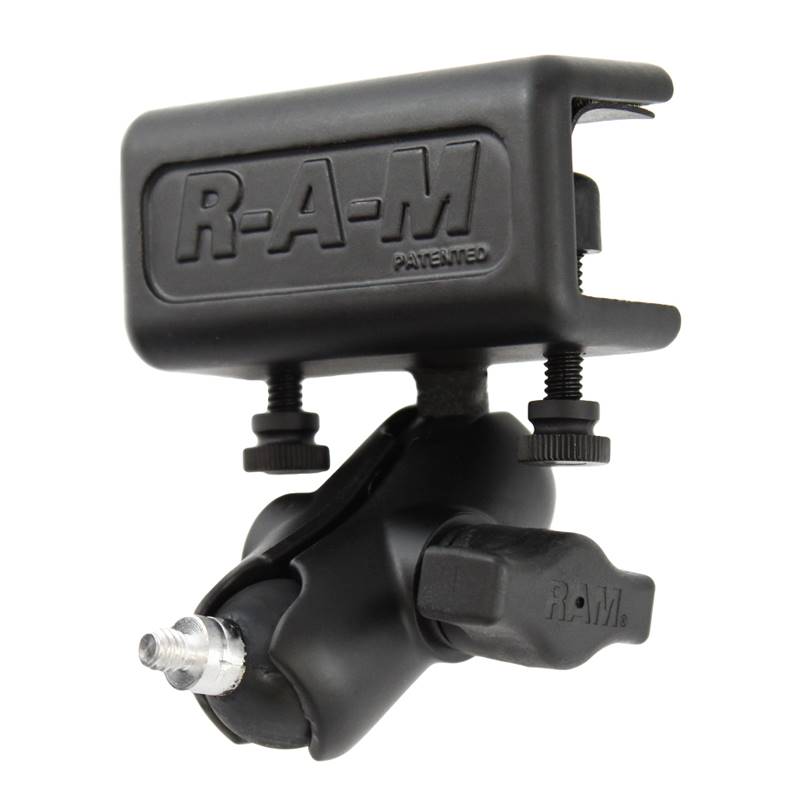

The RAM-B-177-237 consists of a glare shield clamp base, short double socket arm and 1" diameter
rubber ball, connected to a 1/4"-20 camera thread. This mount is designed to mount to the lip edge
of a flat surface up to 5/8" thick. Popular mounting edges include a car side window edge lip or
glare shield on an airplance. The base has two composite bolts that, when tightened, clamp the base
to the lip surface. A RAM 1" diameter rubber ball is connected to the base allowing you to connect a
RAM 1" diamter arm socket and connection plates to create the perfect mount for your application.
The male thread matches most standard camera and camcorder female threads found on the bottom of the
camera.
HARDWARE INCLUDED
(2) 1/4"-20 x 1.25" Composite Thumb Screws
(2) Rubber Caps
(1) 1.93" x 3.06" Rubber Adhesive Pad
CLAMP RANGE
.625" max
SOCKET-TO-SOCKET LENGTH
1.75"
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Retail Bag
WEIGHT
0.61 lbs.
rubber ball, connected to a 1/4"-20 camera thread. This mount is designed to mount to the lip edge
of a flat surface up to 5/8" thick. Popular mounting edges include a car side window edge lip or
glare shield on an airplance. The base has two composite bolts that, when tightened, clamp the base
to the lip surface. A RAM 1" diameter rubber ball is connected to the base allowing you to connect a
RAM 1" diamter arm socket and connection plates to create the perfect mount for your application.
The male thread matches most standard camera and camcorder female threads found on the bottom of the
camera.
HARDWARE INCLUDED
(2) 1/4"-20 x 1.25" Composite Thumb Screws
(2) Rubber Caps
(1) 1.93" x 3.06" Rubber Adhesive Pad
CLAMP RANGE
.625" max
SOCKET-TO-SOCKET LENGTH
1.75"
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Retail Bag
WEIGHT
0.61 lbs.
- Material:High Strength Composite &
Powder Coated Marine Grade Aluminum - Ball Size:B Size 1" Rubber Ball
- Note:Part number reflects product packaged in clear clam shell for store shelf display.
- Mount will attach to flat surfaces with the following dimensions:Min: 4.4mm / 0.17" - Max: 28.0mm / 1.12"
- Weight:0.61 lbs.
