GDS Modular 10-30V Hardwire Ch

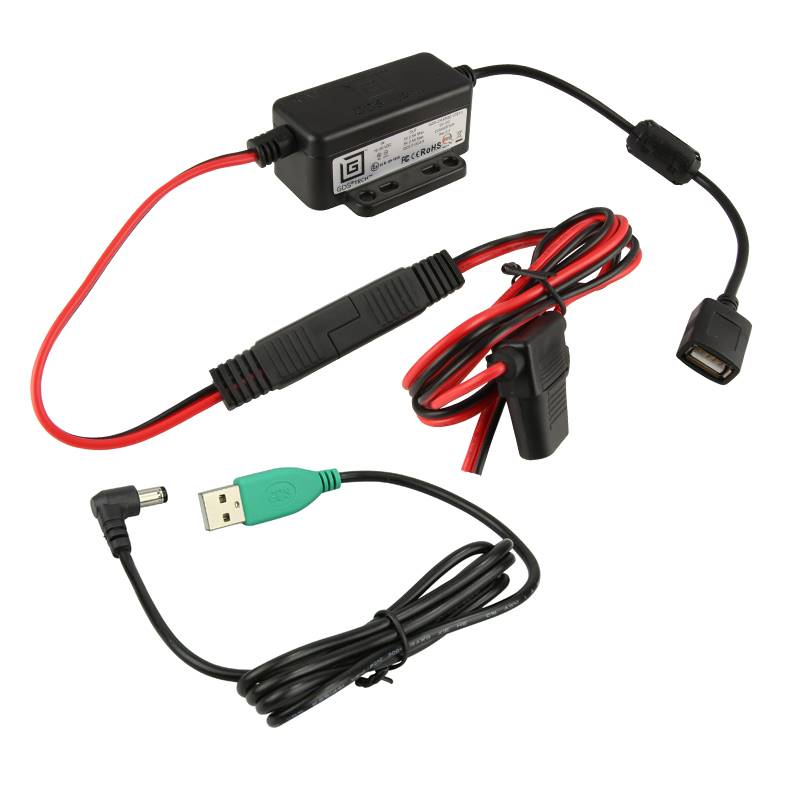

The GDS Modular Hardwire Charger with mUSB cable is the
ideal solution for providing power to any GDS vehicle solution. With the quick disconnect
feature, easily connect any USB Type A charging cable. When it comes time to upgrade, avoid any rewiring
by simply unplugging the power connector and attaching the new charger components. Compatible with any
5V device with a current requirement of 2.5A or less.

FEATURES

Hardwire charger includes USB 2.0 cable with USB Type-A male connection and mUSB male connection

When upgrading devices, avoid rewiring by unplugging power connector and attaching new charger components

Part of the GDS Ecosystem to keep devices protected, connected, and charged in nearly any application

Backed by a 3-year warranty

Packaging Type
Poly Bag

Input Voltage
10V - 30V DC

Output Voltage
5-9VDC

Output Current
2.5A max

Input Connector
mUSB 2.0 Female

Input Cable Length
1.2 Meters including 2 Pole Flat Marine Connector

Output Cable Length
.2 Meter

Operating Temperature
-10�C to +70�C

Storage Temperature
-40�C to +70�C

Compliance
Over Voltage Protection Short Circuit Protection Reverse Polarity Protection
RoHS Compliance WEEE Compliance SAE J-1113-5 Load Dump (Transient Voltage) Moisture
Resistant

Certifications
CE Certification e-Mark Certification RCM Certification FCC Certification

Weight
0.4 lbs.

Warranty Status
3 year warranty
