GDS Power + Data Dock for Zebra ET5x 8.
GDS Power + Data Dock for Zebra ET5x 8.
Regular price
$189.49 USD
Regular price
Sale price
$189.49 USD
We have new inventory arriving weekly, If you see low or no inventory it may change tomorrow. Please call us at 1.800.789.0087 or email us at sales@custommounts.com for current inventory status.
UPC:
793442013973
Mfg Part #:
RAM-HOL-ZE10PDU
Availability:
Out Of Stock
Part Number:
RAM-HOL-ZE10PDU
Quantity
Couldn't load pickup availability
Share
- Description

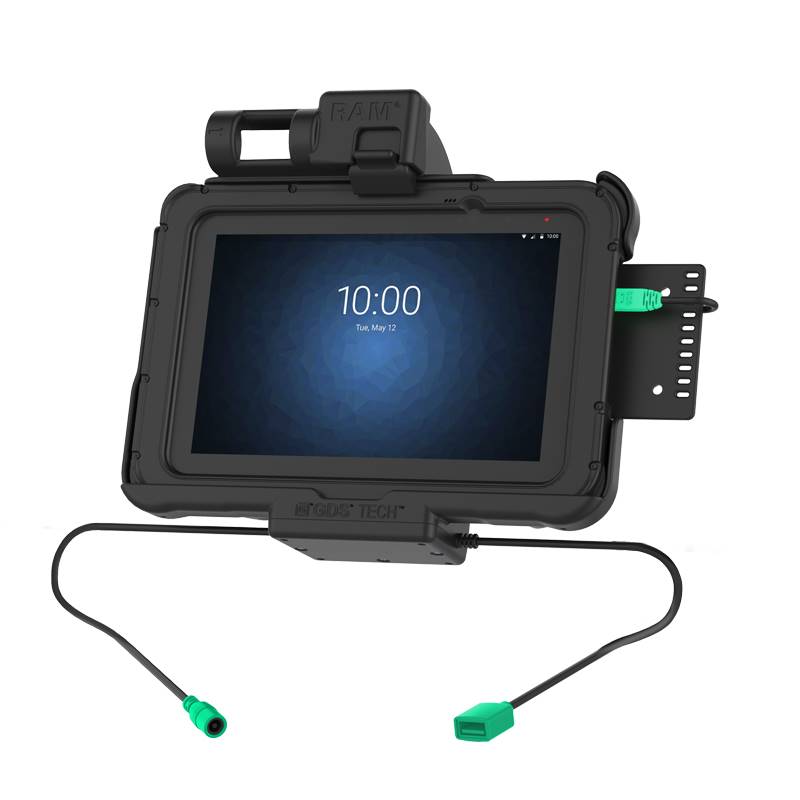

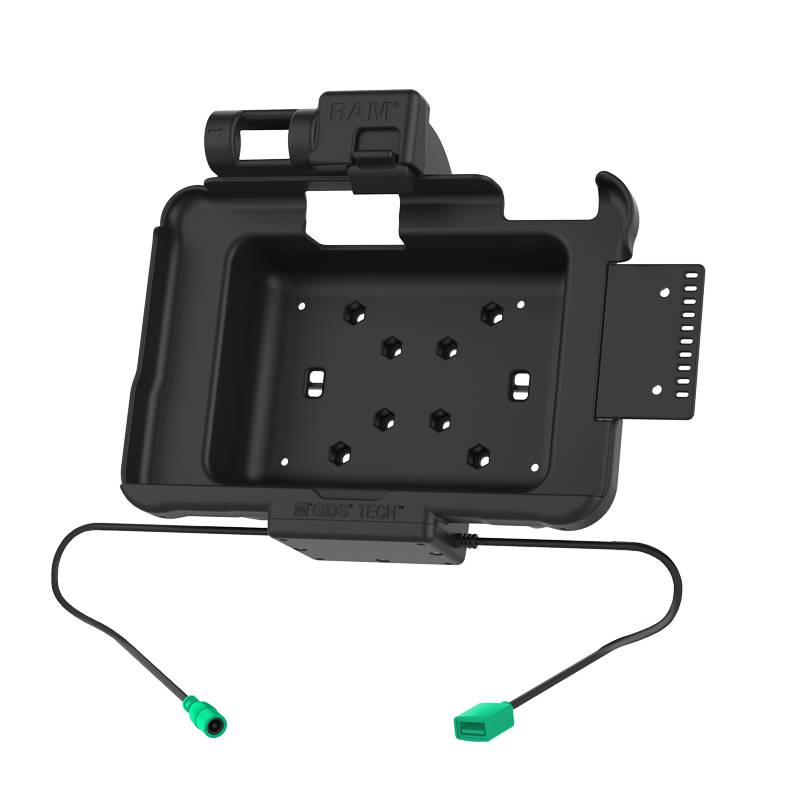

Featuring GDS Technology for charging
capabilities and a key lock for theft deterrence, the GDS Vehicle Dock for Zebra ET5x 8.3 INCHES
& 8.4 INCHES series tablets allows you to keep the device charged through the pogo pin contacts when the
device is docked—power is provided by connecting to the dock's 5.5mm DC power jack. The dock also allows
the tablets scanning function to work through the cutout on the back which also accommodates tablet
add-ons such as scanner, hand strap, and PowerPack battery. This vehicle dock is compatible with C and D

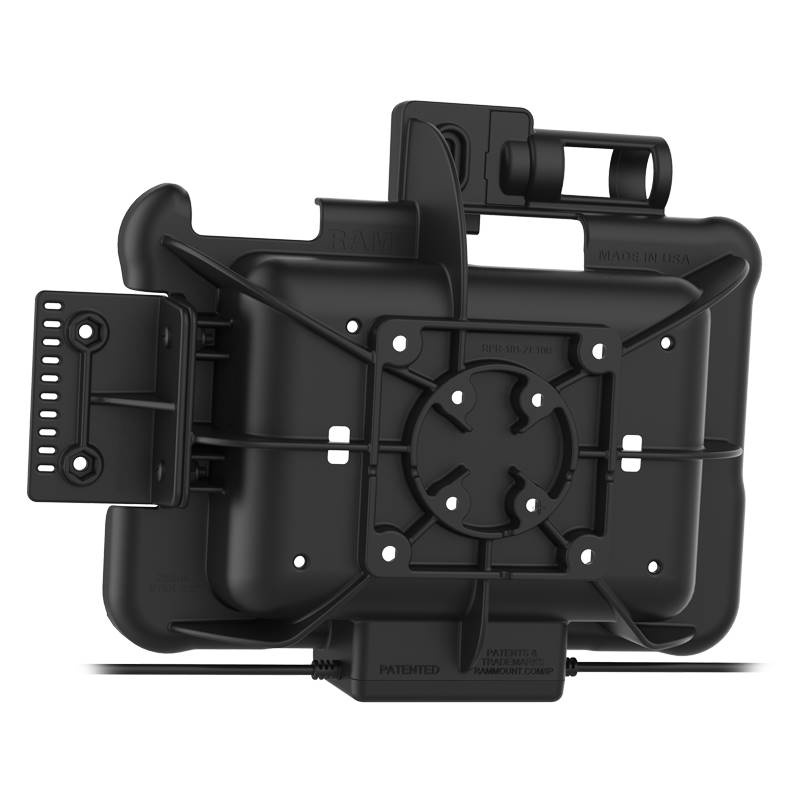

size RAM 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm in
order to complete your mounting solution. Take the solution a step further by taking advantage of the
built-in 2-hole mounting plate compatible with RAM 2-hole diamond base for additional device
mounting such as a phone, or other handheld device. An included optional accessory bracket will allow
you to connect RAM 2-hole diamond bases for device mounting and features a cable management
system.
FEATURES
Key locking powered dock provides charging capabilities for the Zebra ET5x 8.3 INCHES & 8.4 INCHES series tablets with Rugged Frame via DC 5.5mm power jack
When connected to a power source, integrated pogo pins provide power to the device while docked; Dock accommodates tablet add-ons such as scanner, hand strap, and PowerPack battery; tablet scanning works while tablet is docked
Compatible with C and D size RAM 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
Built-in 2-hole mounting plate for additional device mounting such as a phone; compatible with RAM 2-hole diamond bases and accessory side bracket
Backed by a 3-year warranty
Hardware Included
(2) Keys (1) Side bracket for accessory mounting and strain relief (4) #8-32 x
5/8” Machine Screws (2) #8-32 x 1/2” Machine Screws (6) #8-32 Nylock Nuts (4) #10-24 x 5/8”
Machine Screws (4) #10-24 Nylock Nuts (4) Small Cable Ties
Hole Pattern
75 x 75mm VESA 4-Hole AMPS: 1.181 INCHES x 1.496 INCHES
Materials
High strength composite
Packaging Type
Poly Bag
Input Connector
5.5mm DC Connector
Warranty Status
3 year warranty
