RAM No-Drill Laptop Mount for '15-24 Che

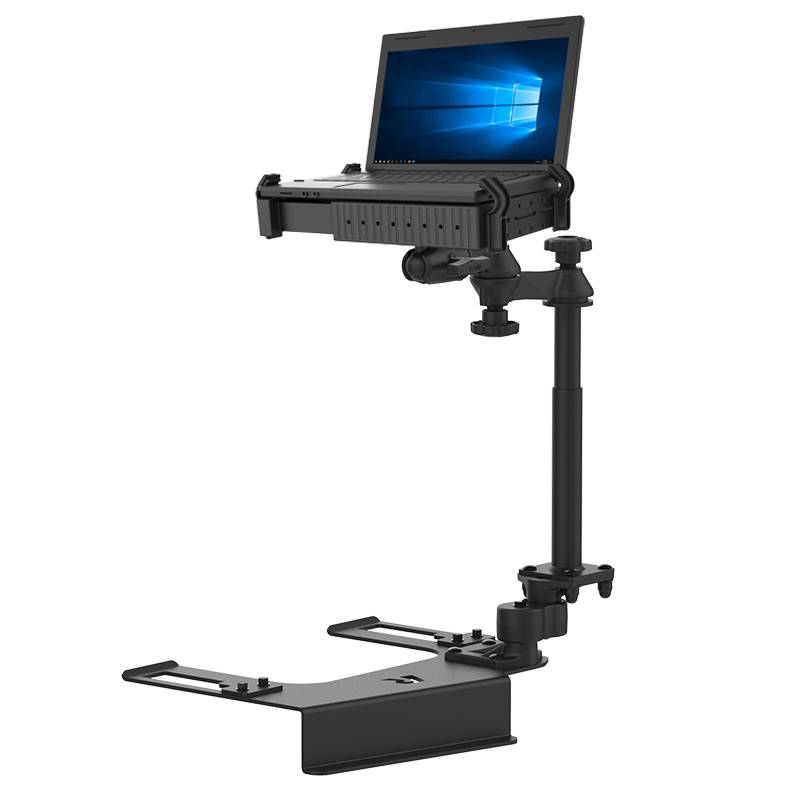

This RAM No-Drill laptop stand system installs quickly and easily into a variety of Chevrolet and
GMC vehicles using the existing hardware of the passenger side seat rails. This configuration
provides a telescoping feature that ranges from 12� to 18�. Dual swing arms provide articulation and
12� of reach for passenger and driver access to the mounted device. RAM rubber ball and socket
technology provides additional adjustability as well as shock and vibration isolation. The spring-
loaded RAM Tough-Tray laptop holder accommodates 10� to 16� wide laptops, and 17� wide screens.
The tray features four adjustable retaining arms with rubber grips that can be moved both vertically
and horizontally. These arms allow for a custom fit for laptops of varying thickness while not
blocking drives or ports. A screen support and USB light are also available to accessorize the RAM
Tough-Tray. In addition, hole patterns on the perimeter of the laptop holder are compatible with
several RAM mounting solutions.

HARDWARE INCLUDED
Assembly Hardware
(2) Leg Clamps
(2) 1/4"-20 Hex Nuts
(2) 1/4" Flat Washers
(2) 1/4" Lock Washers

TRAY DIMENSIONS
Width Range: 10" - 16"
Side Arm Clamp Height: .5" - 1.75"
Tray Depth: 10"
Tray Thickness: 2.125"

BALL/SOCKET SIZE
C Size (1.5")

MATERIALS
Powder coated steel
Marine grade-aluminum
High strength composite

PACKAGING TYPE
Box

ADDITIONAL INFORMATION
This base is best used in bucket seat vehicles with a full center console. For 2014 and 2015 trucks
with a 40/20/40 bench seat, the RAM-VB-191 is also an option. To install this base, the plastic trim
nearest to the passenger door may need to be cut or modified to accommodate the RAM No-Drill
base once installed. If this cannot be done in your vehicle, or you are not comfortable with this,
you should not purchase this product. Note that the RAM-VB-191-SW1 will not work with the 4x4 lever
on the center hump of the vehicle. The RAM-VB-191-SW1 is for 4x2 trucks only.

FEATURES:
RAM No-Drill mounting base offers low-profile mounting; telescoping pole allows for height
adjustments

Dual articulating swing arm allows for ideal placement; universal laptop tray accommodates most
laptops

Made of powder-coated steel and high-strength composite

Backed by a lifetime warranty


WEIGHT
24.0 lbs.
