RAM Tele-Pole with 4" & 5" Poles, Swi

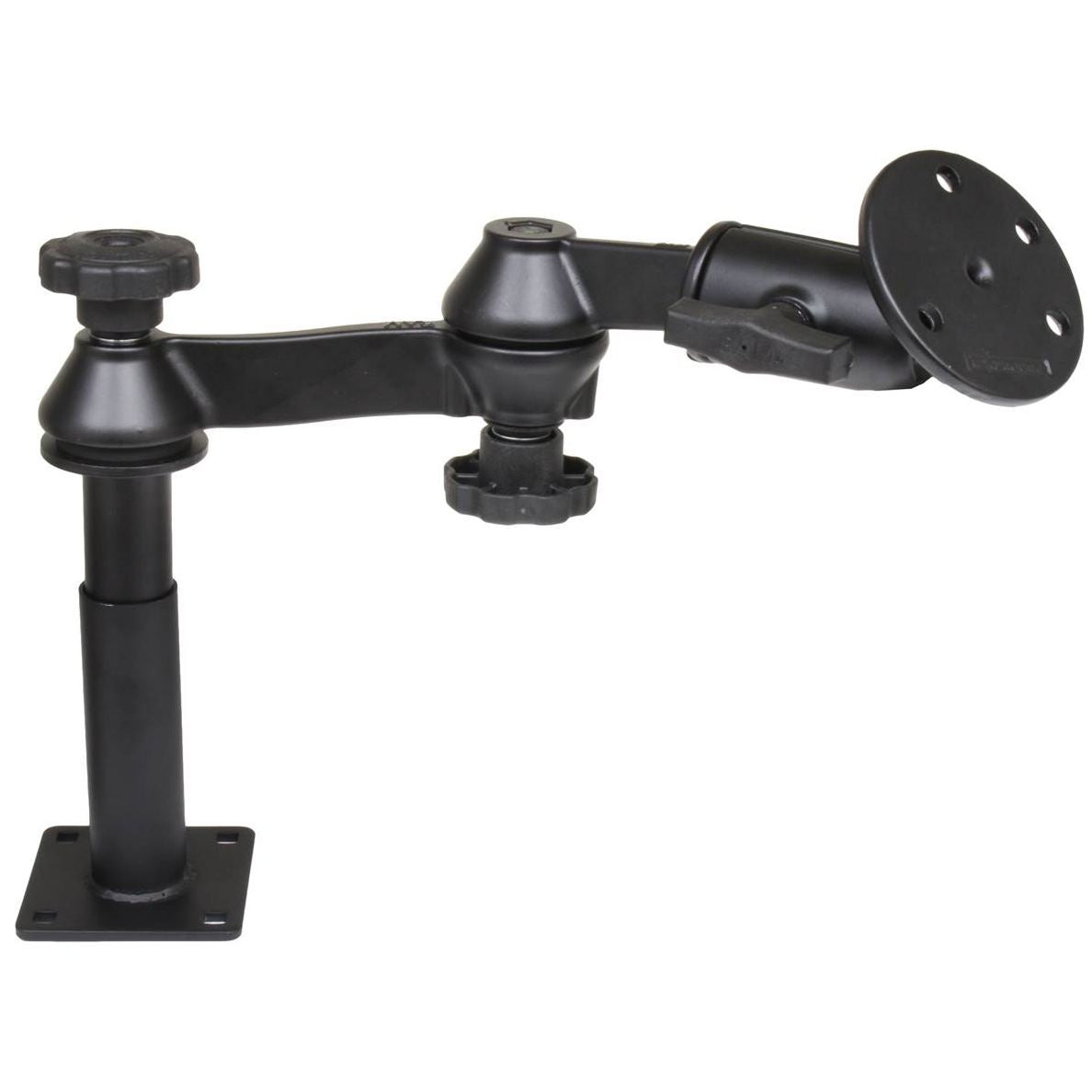

The RAM-VP-SW1-45-240 consists of a 5" lower female Tele-Pole, 4" upper male Tele-Pole, double
swing arm and 3.68" round base. The lower female Tele-Pole will attach to all RAM vehicles bases
that do not contain a welded female Tele-Pole. The height of the Tele-Poles, combinded, can easily
be adjusted by turning the knob at the top of the post. Once the knob has been tightened, the Tele-
Pole becomes a rigid support for connecting devices or cradles. The double swing arm allows you to
twist and tilt the viewing angle of your connected electronic device, when mounted on your RAM
Vehicle Mount. The rotating swivel arm gives you even more viewing positions for your mounted
electronic device while holding everything firmly in place. The length of the double swing arm is
12". The 3.68" round base contains pre-drilled holes that connects to RAM Tough-Dock Powered
Docking Stations.

HARDWARE INCLUDED
Assembly Hardware
(4) 5/16"-18 x 1" Carriage Bolts
(4) 5/16"-18 Hex Nuts
(4) 5/16" Flat Washers
(4) 5/16" Split Lock Washers
(4) Rubber Caps

PRODUCT DIMENSIONS
Minimum Height: 12.3"
Maximum Height: 13.3"

HOLE PATTERN
Tele-Pole: 2.625" x 2.625"
Round Plate: See Drawing

PLATE SIZE
Round Plate: 3.68" Diameter
Lower Pole: 3.5" x 3.5"

BALL/SOCKET SIZE
C Size (1.5")

MATERIALS
Powder coated steel
Marine-grade aluminum

PACKAGING TYPE
Box

WEIGHT
4.4 lbs.
