RAM Tele-Pole with 4" & 7" Poles, Double

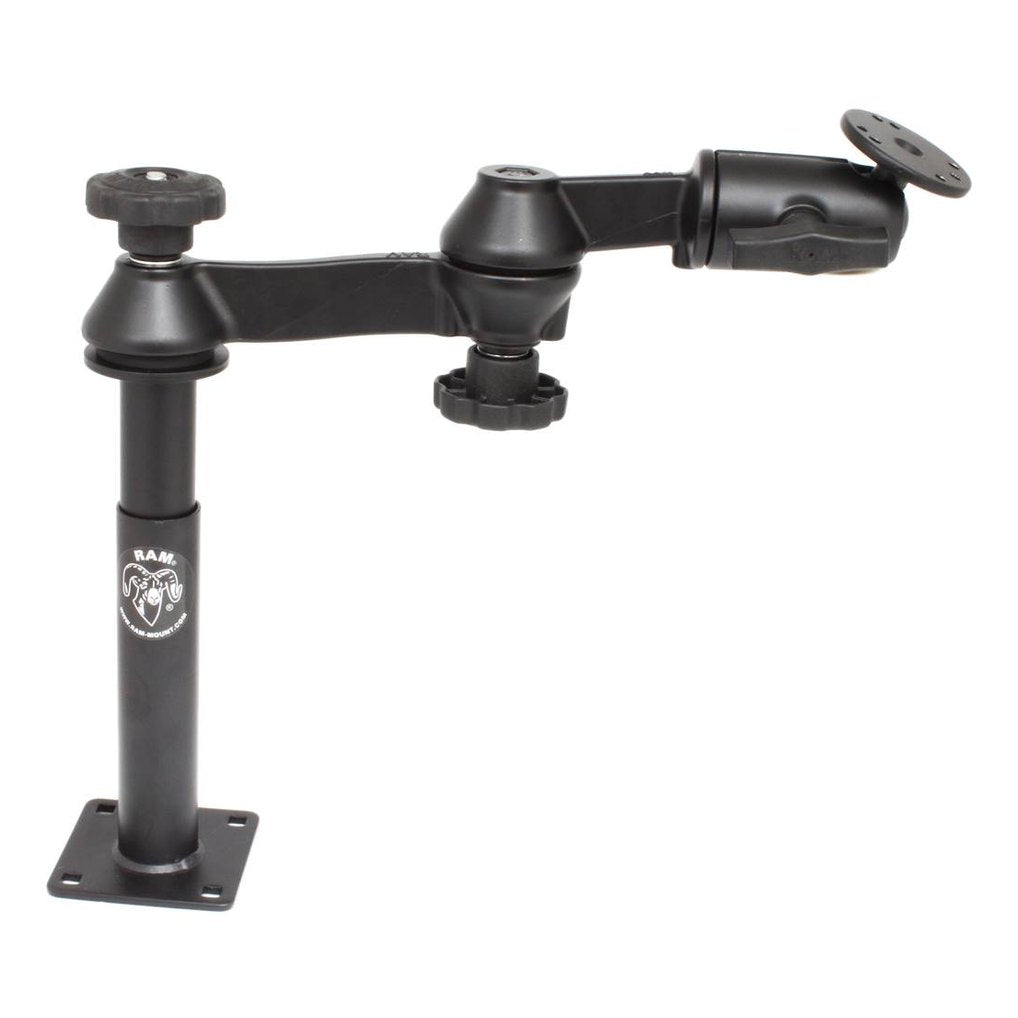

The RAM-VP-SW1-47 consists of a 7" lower female Tele-Pole, 4" upper male Tele-Pole, double swing
arm and 2.5" round base that contains the universal AMPs hole pattern. The lower female Tele-Pole
will attach to all RAM vehicles bases that do not contain a welded female Tele-Pole. The height of
the Tele-Poles, combinded, can easily be adjusted by turning the knob at the top of the post. Once
the knob has been tightened, the Tele-Pole becomes a rigid support for connecting devices or
cradles. The double swing arm allows you to twist and tilt the viewing angle of your connected
electronic device, when mounted on your RAM Vehicle Mount. The rotating swivel arm gives you even
more viewing positions for your mounted electronic device while holding everything firmly in place.
The length of the double swing arm is 12".

HARDWARE INCLUDED
Assembly Hardware
(4) 5/16"-18 x 1" Carriage Bolts
(4) 5/16"-18 Hex Nuts
(4) 5/16" Flat Washers
(4) 5/16" Split Lock Washers
(4) Rubber Caps

PRODUCT DIMENSIONS
Minimum Height: 12.3"
Maximum Height: 15.3"

HOLE PATTERN
Tele-Pole: 2.625" x 2.625"
Round Plate: 4-Hole AMPS: 1.181" x 1.496" & 3-Hole 120-Degree: 1.812" Diameter

PLATE SIZE
Round Plate: 2.5" Diameter
Lower Pole: 3.5" x 3.5"

BALL/SOCKET SIZE
C Size (1.5")

MATERIALS
Powder coated steel
Marine-grade aluminum

PACKAGING TYPE
Box

WEIGHT
6.5 lbs.
