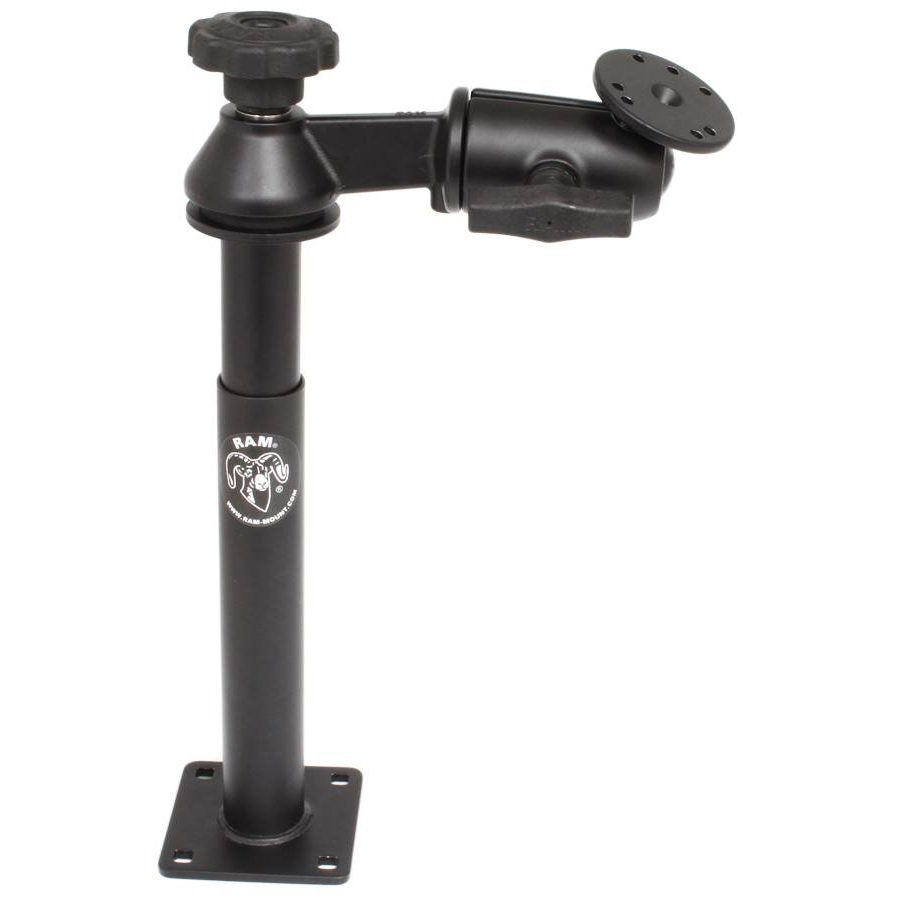

RAM Tele-Pole with 8" & 9" Poles, Single

The RAM-VP-SW2-89 consists of a 9" lower female Tele-Pole, 8" upper male Tele-Pole, single swing
arm and 2.5" round base that contains the universal AMPs hole pattern. The lower female Tele-Pole
will attach to all RAM vehicles bases that do not contain a welded female Tele-Pole. The height of
the Tele-Poles, combinded, can easily be adjusted by turning the knob at the top of the post. Once
the knob has been tightened, the Tele-Pole becomes a rigid support for connecting devices or
cradles.

HARDWARE INCLUDED
Assembly Hardware
(4) 5/16"-18 x 1" Carriage Bolts
(4) 5/16"-18 Hex Nuts
(4) 5/16" Flat Washers
(4) 5/16" Split Lock Washers
(4) Rubber Caps

PRODUCT DIMENSIONS
Minimum Height: 16.3"
Maximum Height: 21.3"

HOLE PATTERN
Tele-Pole: 2.625" x 2.625"
Round Plate: 4-Hole AMPS: 1.181" x 1.496" & 3-Hole 120-Degree: 1.812" Diameter

BALL/SOCKET SIZE
C Size (1.5")

MATERIALS
Powder coated steel
Marine-grade aluminum

PACKAGING TYPE
Box

WEIGHT
6.5 lbs.
