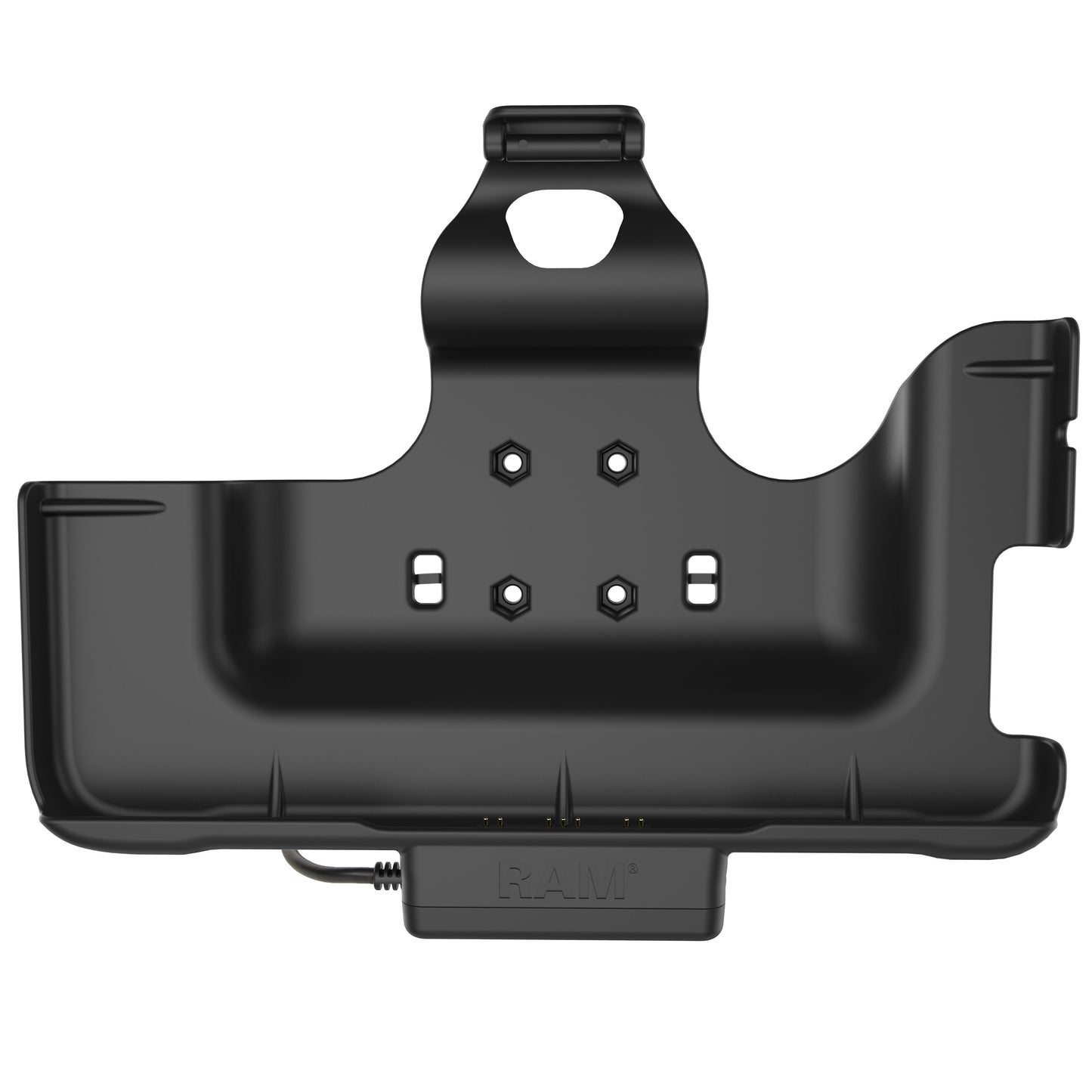

RAM® USB-C Powered Dock for Samsung Tab Active5 Pro & 4 Pro
RAM® USB-C Powered Dock for Samsung Tab Active5 Pro & 4 Pro
Couldn't load pickup availability
Share
- Description
The RAM® USB-C Powered Dock for Samsung Tab Active5 Pro & Tab Active4 Pro (RAM-HOL-SAM52CPU) features integrated pogo pins that power the device via the USB Type-C connector. These pogo pins are compatible with both the RAM® Skin™ for the Galaxy Tab Active5 Pro, Tab Active4 Pro, and Tab Active Pro and the factory Samsung skin that’s included with the device. In addition, this cradle works perfectly with the RAM® Skin™ while utilizing the GDS® Hand-Stand™ or GDS® shoulder strap. While keeping the Galaxy Tab Active5 Pro, Tab Active4 Pro, and Tab Active Pro secure, the RAM® EZ-Roll’r™ powered cradle also leaves the device’s speakers, mics, and headphone jack exposed and usable. For mounting, pair the cradle with RAM® round ball bases. Includes a USB Type-C female pigtail for power, as well as one cable clamp and zip ties for cable retention.
Features
- Powered dock provides charging capabilities for Samsung Galaxy Tab Active5 Pro, Tab Active4 Pro, and Tab Active Pro through integrated pogo pin connector; for light-duty use and landscape mode only (Non-Power Delivery charger required)
- Access to speakers, mics, and headphone jack remain while device is docked
- Easily insert and remove the Samsung Galaxy Tab Active4 Pro and Tab Active Pro with one hand
- Compatible with the Samsung OEM skin as well as the RAM® Skin™
- Backed by a 3-year warranty
Specifications
Hardware included: (4) #8-32 x 5/8" Machine Screws, (4) #8-32 Nylock Nuts, (1) Cable Clamp, (2) Large Cable Ties, (5) Small Cable Ties
Hole pattern: 4-Hole AMPS: 1.181" x 1.496"
Materials: High strength composite
Packaging type: Poly Bag
Input voltage: 5.3-5.4VDC
Output voltage: 5VDC
Power output: 500mA
Input connector: USB Type-C Female
Input cable length: 215mm
Warranty: 3 year warranty
Weight: 0.71 lb
