GDS® Tough-Dock™ + Single USB-A for Tab Active5 Pro & 4 Pro
GDS® Tough-Dock™ + Single USB-A for Tab Active5 Pro & 4 Pro
Regular price
$290.99 USD
Regular price
Sale price
$290.99 USD
UPC:
793442022494
Mfg Part #:
RAM-GDS-DOCK-SAM54NCDU
Availability:
Out Of Stock
Part Number:
RAM-GDS-DOCK-SAM54NCDU
Quantity
Couldn't load pickup availability
Share

- Description

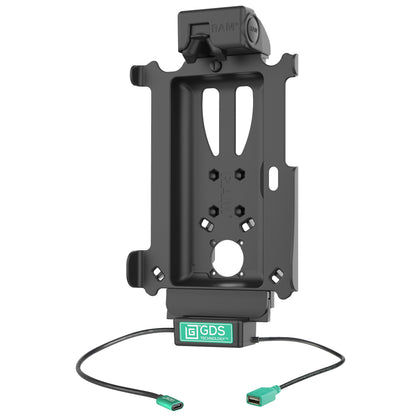

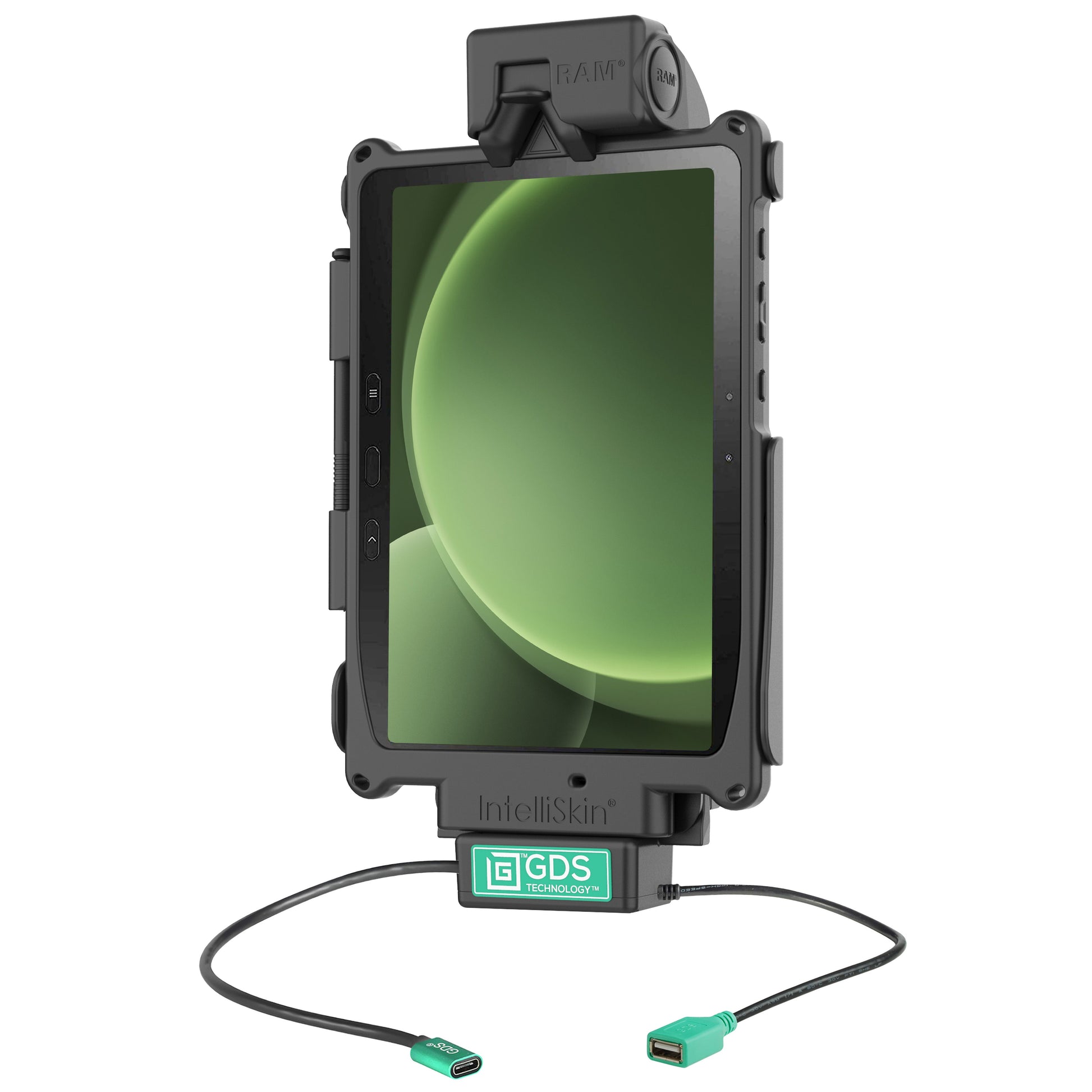

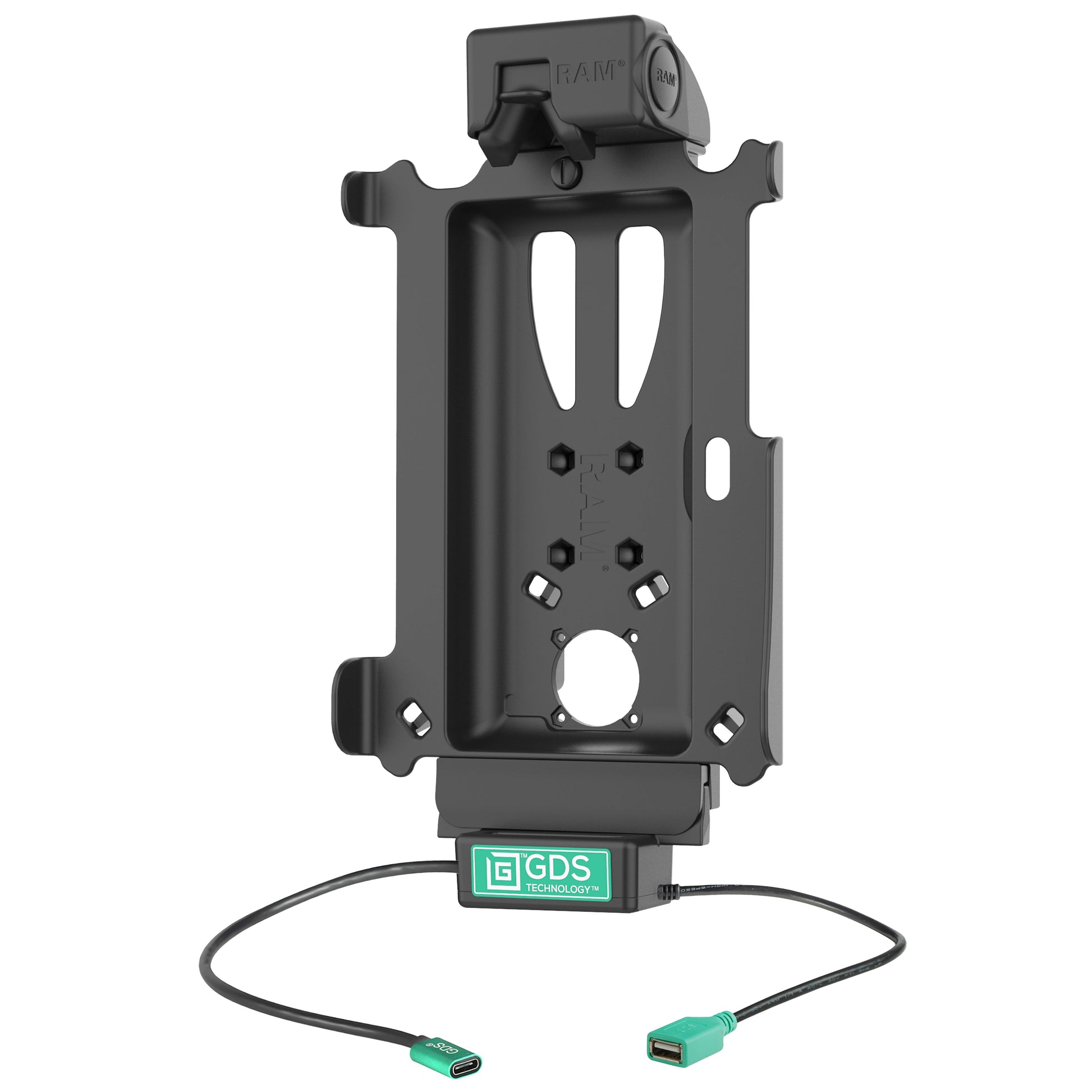

This GDS® Tough-Dock™ vehicle dock (RAM-GDS-DOCK-SAM54NCDU) is designed to support the Samsung Galaxy Tab Active5 Pro and Tab Active4 Pro in an IntelliSkin® Next Gen protective sleeve for your fleet. While the dock uses a USB Type-C female power connector and integrated pogo pins to provide power to the device while docked, the GDS® Tough-Dock™ also includes one USB Type-A connector to support one peripheral add-on such as a keyboard, printer, scanner and more. The GDS® Tough-Dock™ is designed with housing that accommodates the RAM® NFC Extender, is compatible with RAM® ball and socket systems, and requires a 4-hole AMPS pattern ball base. The GDS® Tough-Dock™ is backed by a 3-year warranty. Always Protected. Always Connected.®
Features
- Spring-loaded vehicle dock designed specifically for the Samsung Galaxy Tab Active5 Pro or Tab Active4 Pro wrapped in an IntelliSkin® Next Gen protective sleeve

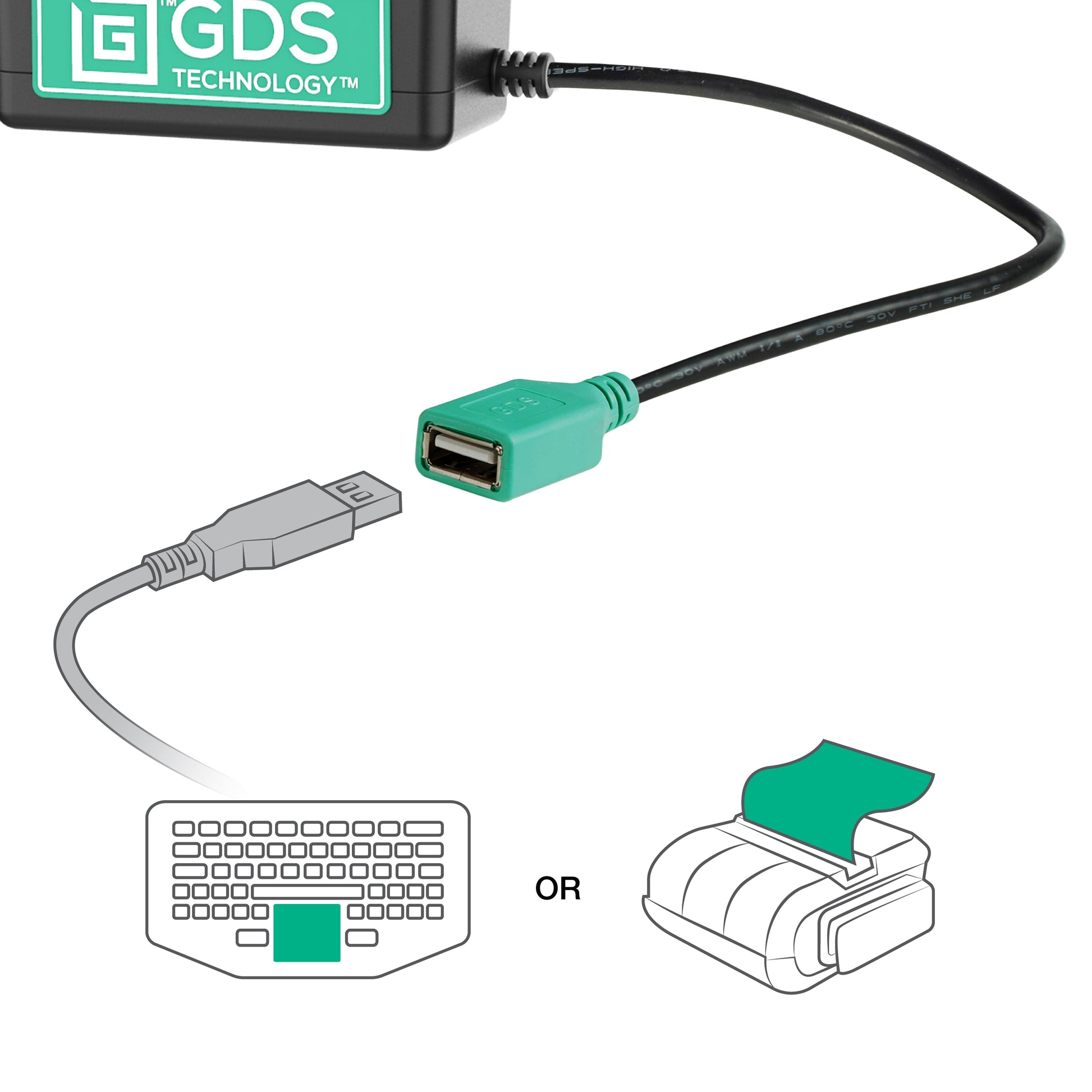

- Power delivered via USB-C connector; connect a single input device via USB-A connector
- RAM® Mounts Compatible™ including RAM® NFC Extender and GDS® Hand-Stand™ Hand Strap and Kickstand
- Backed by a 3-year warranty
Specifications

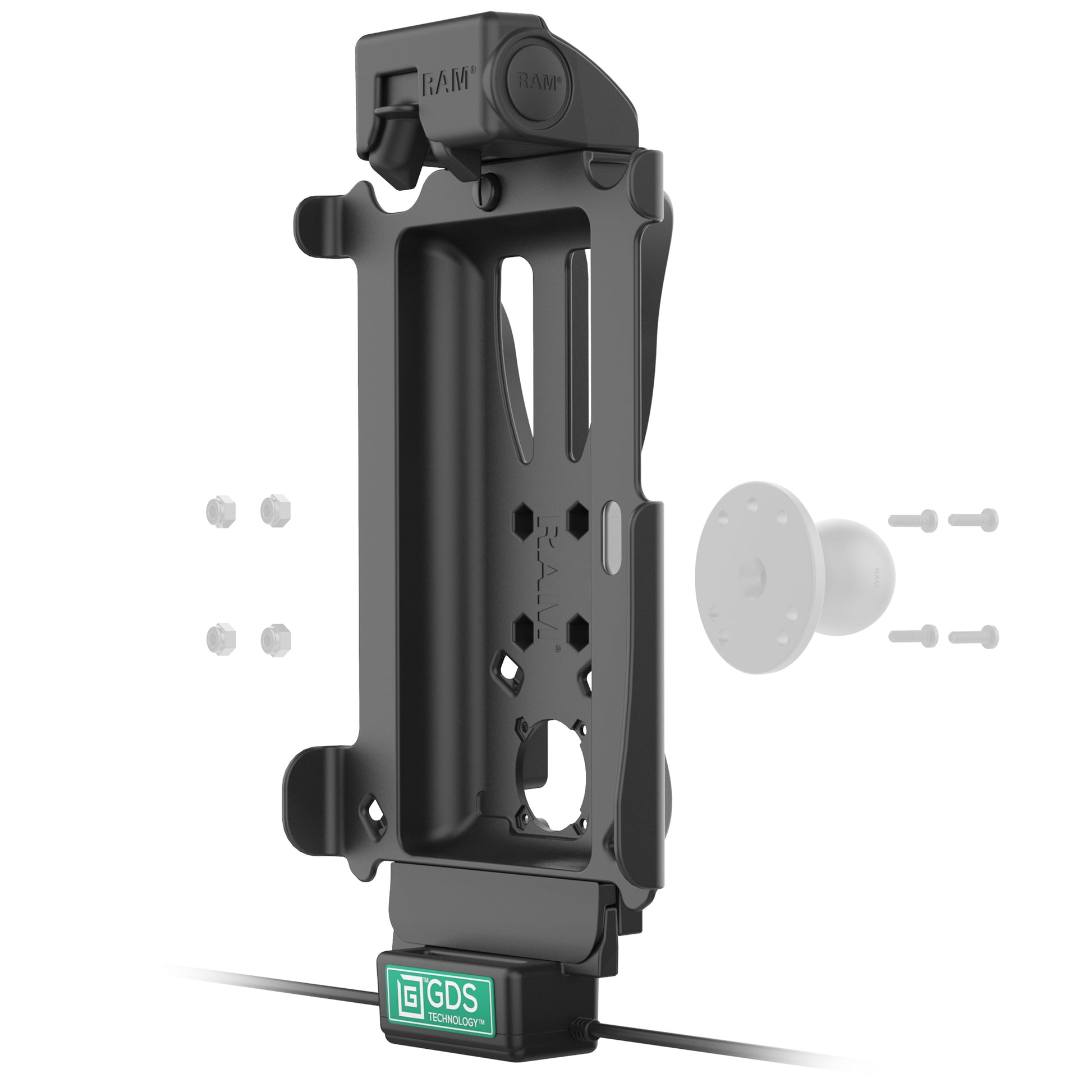

Hardware included: (4) #8-32 x 5/8" Machine Screws, (4) #8-32 Nylock Nuts, (1) Cable Clamp with Zip Ties, (1) USB Type-C to Type-A Cable
Hole pattern: 4-Hole AMPS: 1.181" x 1.496"
Materials: High strength composite
Packaging type: Poly Bag
Output voltage: 5V - 20V @ 3A
Power output: 60W
Input connector: USB Type-C, USB Type A for 1 Peripheral
Output cable length: 215mm
Peripheral output: 500mA
Warranty: 3 year warranty
Weight: 1.7 lb
