GDS® Tough-Dock™ with Multi-Mode for Tab Active5 Pro & 4 Pro

GDS® Tough-Dock™ with Multi-Mode for Tab Active5 Pro & 4 Pro

Regular price $269.49 USD
Regular price Sale price $269.49 USD
Sale Sold out
UPC:
793442019838
Mfg Part #:
RAM-GDS-DOCK-SAM54N-MMU
Availability:
Out Of Stock
Part Number:
RAM-GDS-DOCK-SAM54N-MMU
Quantity
View full details

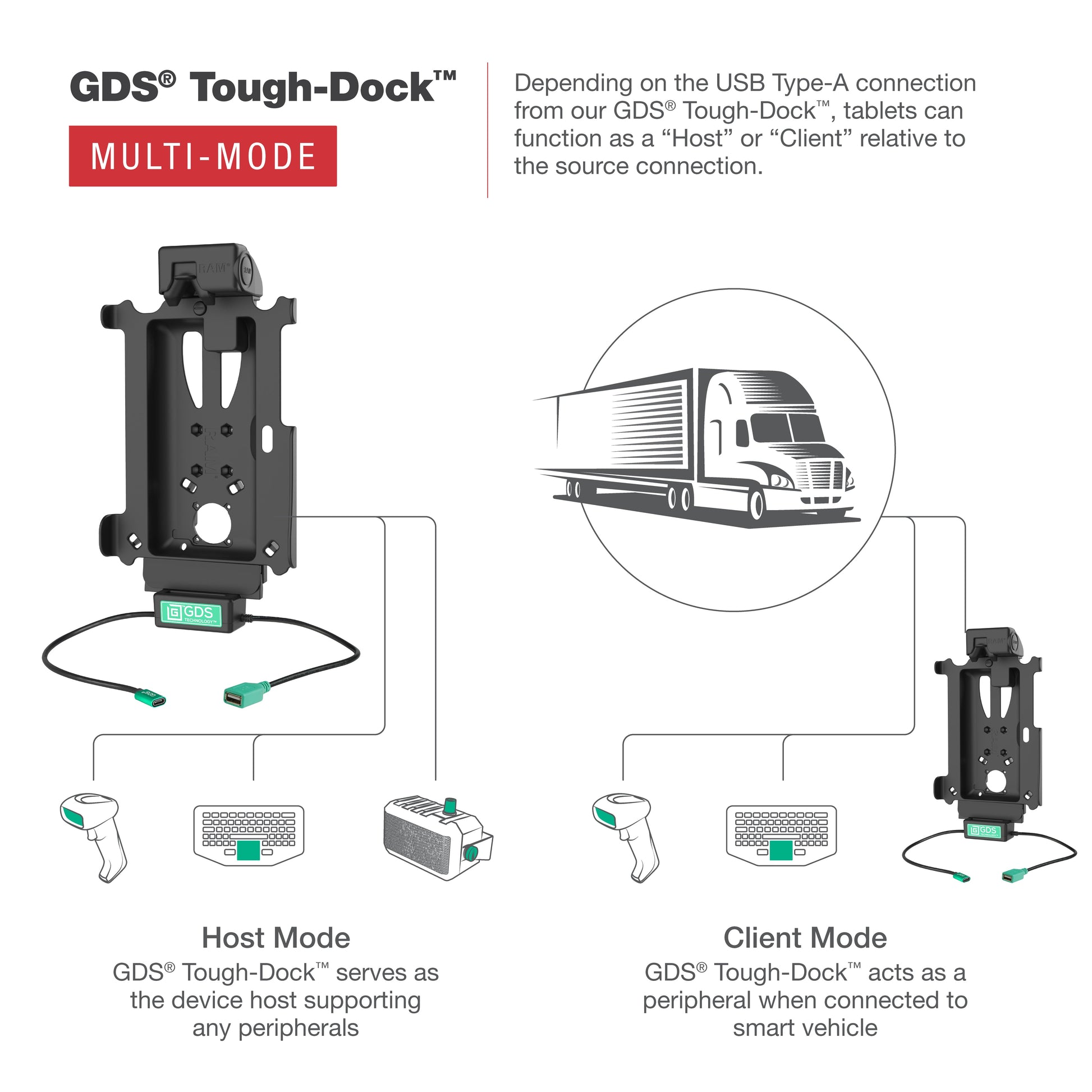

The GDS® Tough-Dock™ for Tab Active5 Pro, Tab Active4 Pro, & Tab Active Pro with Multi-Mode (RAM-GDS-DOCK-SAM54N-MMU) is a vehicle dock designed to support the Samsung Galaxy Tab Pro series in an IntelliSkin® Next Gen protective sleeve for your fleet. Mutli-Mode is integrated into the dock allowing centralized AI systems to perform as the host instead of the tablet, turning your IntelliSkin®-wrapped tablet into a peripheral. There is no button or switch that turns this function on and off — Multi-Mode is automatically activated when the device is docked. Using a USB Type-C power connector, the GDS® Tough-Dock™ supports high speed charging capabilities for the device. The GDS® Tough-Dock™ is designed with housing that accommodates the RAM® NFC Extender, is compatible with RAM® ball and socket systems, and requires a 4-hole AMPS pattern ball base. The GDS® Tough-Dock™ is backed by a 3-year warranty. Always Protected. Always Connected.®

Features

  • Multi-mode allows for centralized AI software systems to access tablets when docked
  • Designed specifically for the Samsung Galaxy Tab Active5 Pro, Tab Active4 Pro, and Tab Active Pro wrapped in an IntelliSkin® Next Gen protective sleeve
  • Integrated pogo pin connectors provide high speed charging to devices via integrated USB Type-C Female connector
  • RAM® Mounts Compatible™ including RAM® NFC Extender and GDS® Hand-Stand™ Hand Strap and Kickstand
  • Backed by a 3-year warranty

Specifications

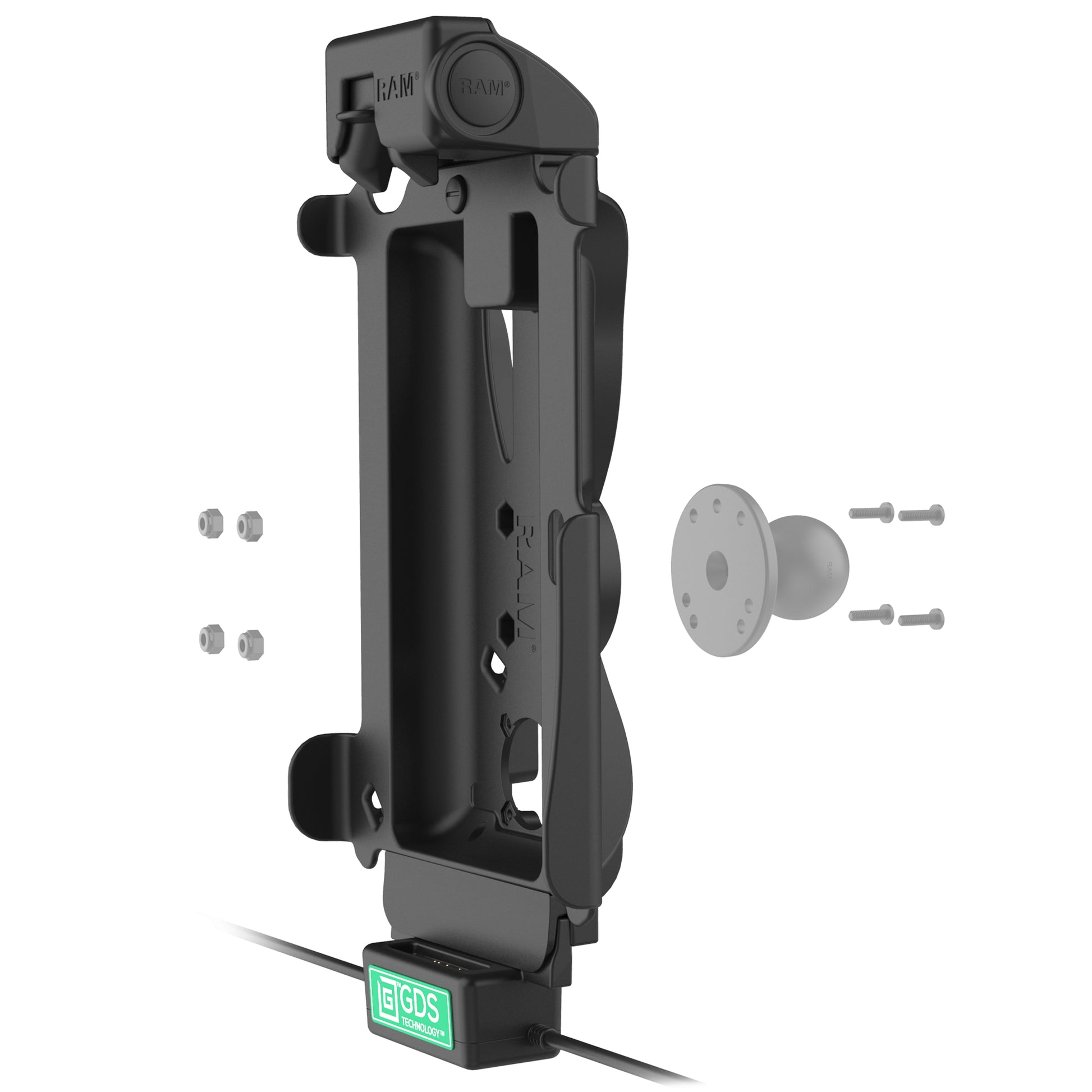

Hardware included: (4) #8-32 x 5/8" Machine Screws, (4) #8-32 Nylock Nuts, (1) Cable Clamp with Zip Ties, (1) USB Type-C to Type-A Cable

Hole pattern: 4-Hole AMPS: 1.181" x 1.496"

Materials: High strength composite

Packaging type: Poly Bag

Output voltage: 5V - 20V @ 3A

Power output: 60W

Input connector: USB Type-C, USB Type A for 1 Peripheral

Output cable length: 215mm

Peripheral output: 500mA

Warranty: 3 year warranty

Weight: 1.44 lb
