GDS® Uni-Conn™ 7" Locking Pedestal Dock with PoE
GDS® Uni-Conn™ 7" Locking Pedestal Dock with PoE
Couldn't load pickup availability
Share
- Description

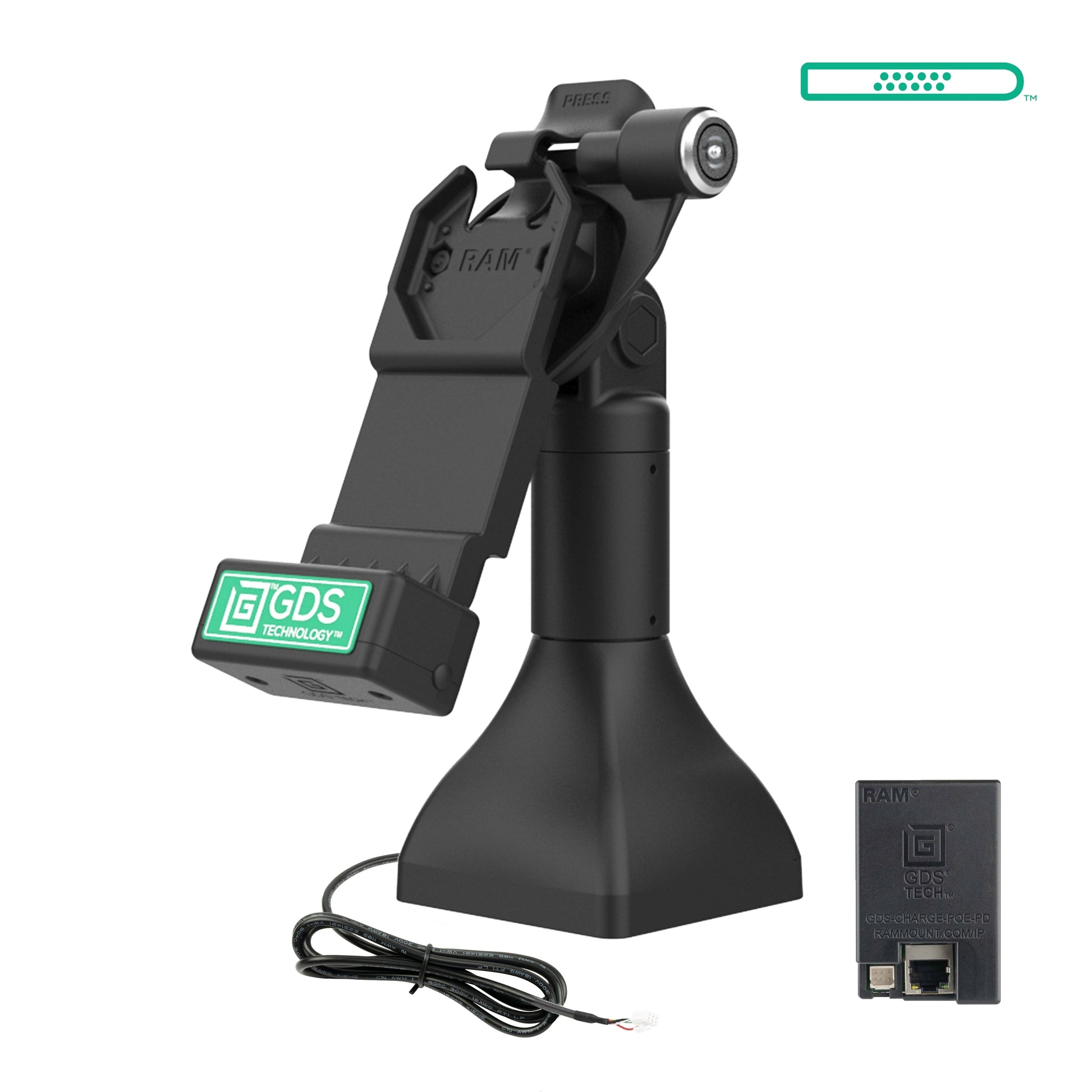

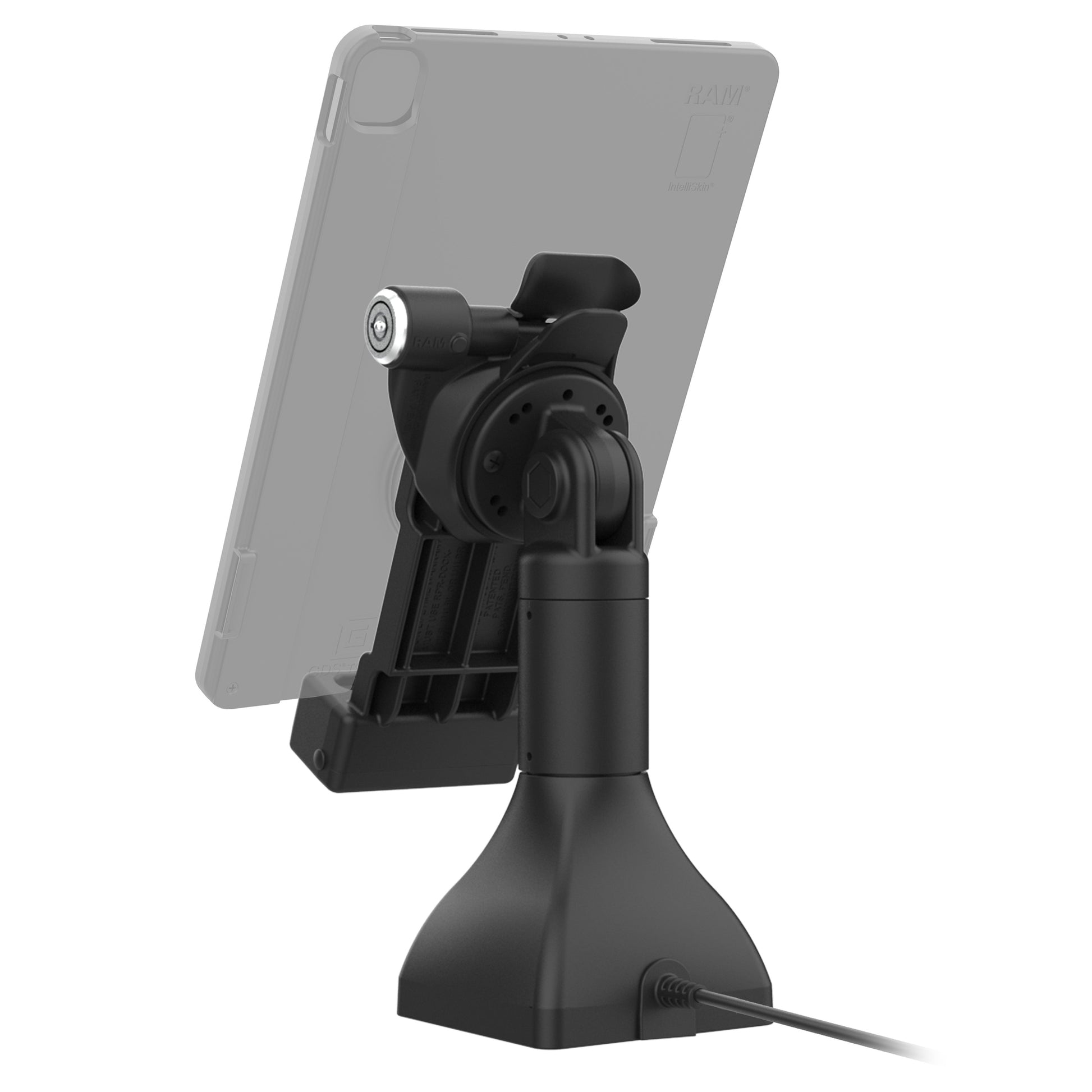

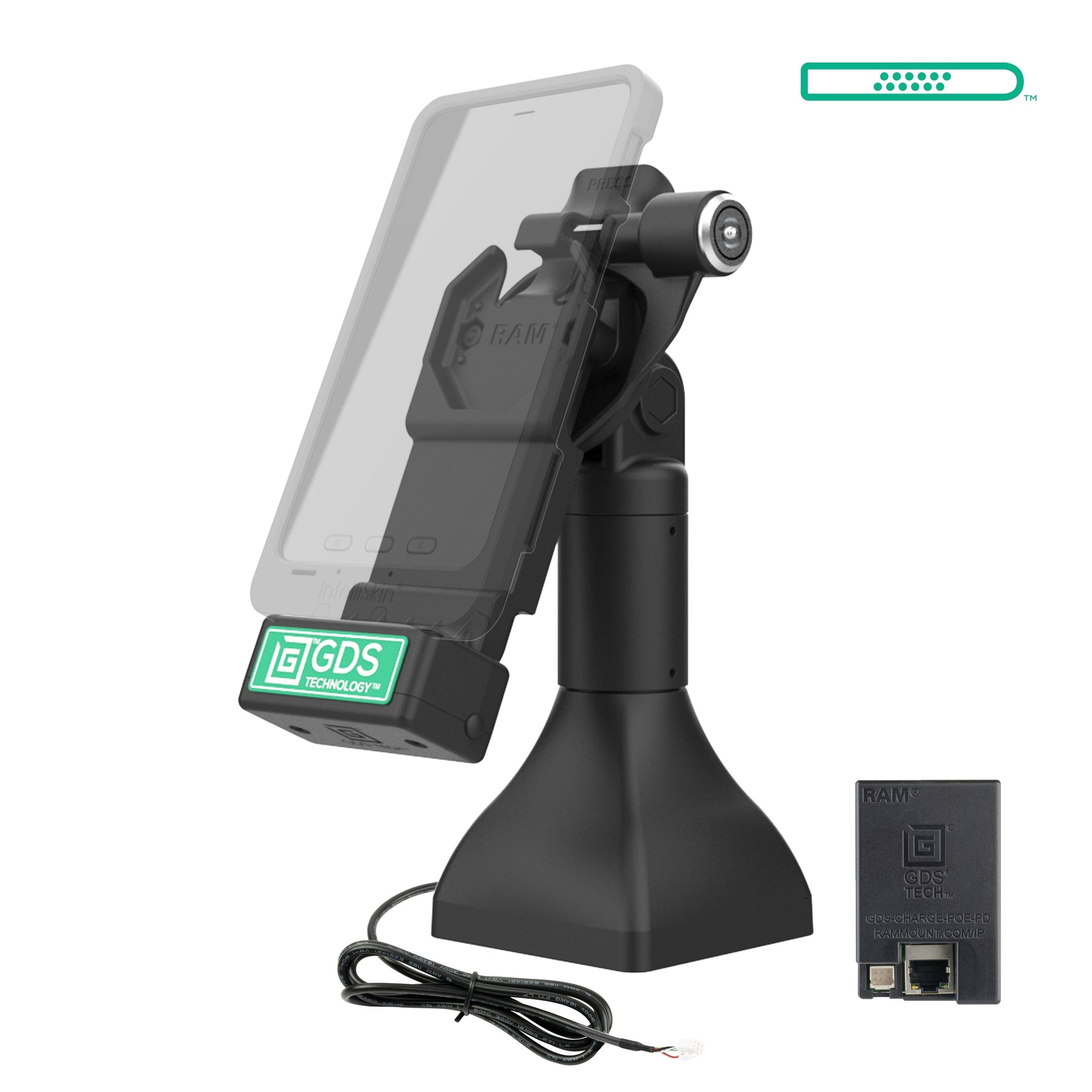

The GDS® Uni-Conn™ 7" Locking Pedestal Dock with PoE (RAM-GDS-DOCKLR-D11-7-U1E) is a free-standing, 7" pedestal dock for devices enclosed in an IntelliSkin® Next Gen, IntelliSkin® Hard Case, or standard IntelliSkin® Thin-Case™ with a GDS® Uni-Conn™ adapter. This solution can swivel 180 degrees and allows devices to tilt 180 degrees, which is ideal for customer-centric industries like retail, hospitality, food service, and more. Keep your device safe in high-traffic environments with the key lock, integrated to provide additional theft deterrence. Power is provided to the pogo pins integrated into the GDS® Uni-Conn™ dock via Power over Ethernet (PoE) connection. This dock features a drill-down attachment style, providing a stable base for the tall dock. One Dock to Connect Them All™ Always Protected. Always Connected.®
Features

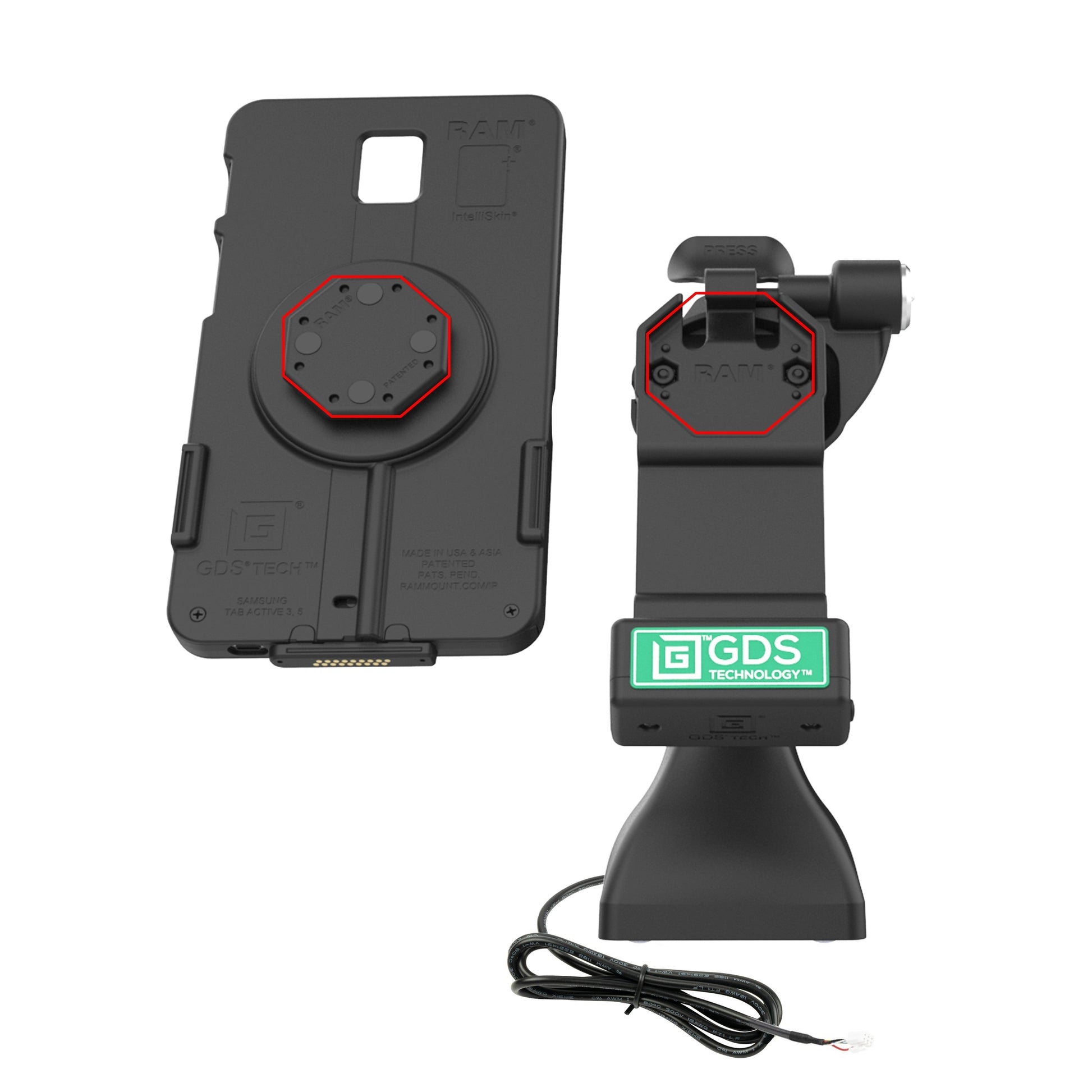

- Key-locking 7" pedestal dock for devices enclosed in an IntelliSkin® with D-shaped bottom connection and GDS® Uni-Conn™ Adapter
- GDS® Uni-Conn™ dock pogo pins provide charging via PoE

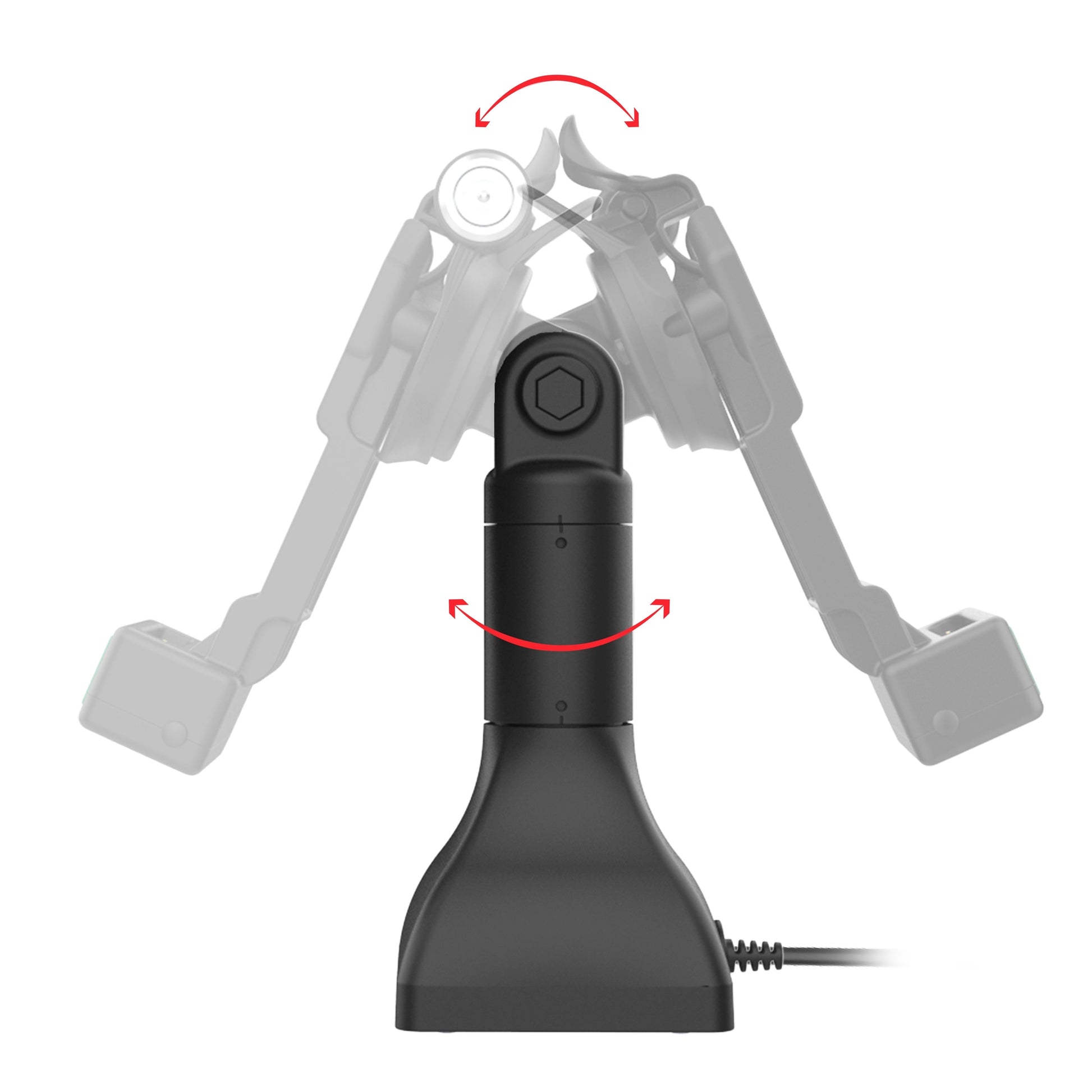

- Dock swivels 180 degrees and enables connected devices to tilt 180 degrees
- Install dock to any surface with drill-down base
- Backed by a 3-year warranty
Specifications

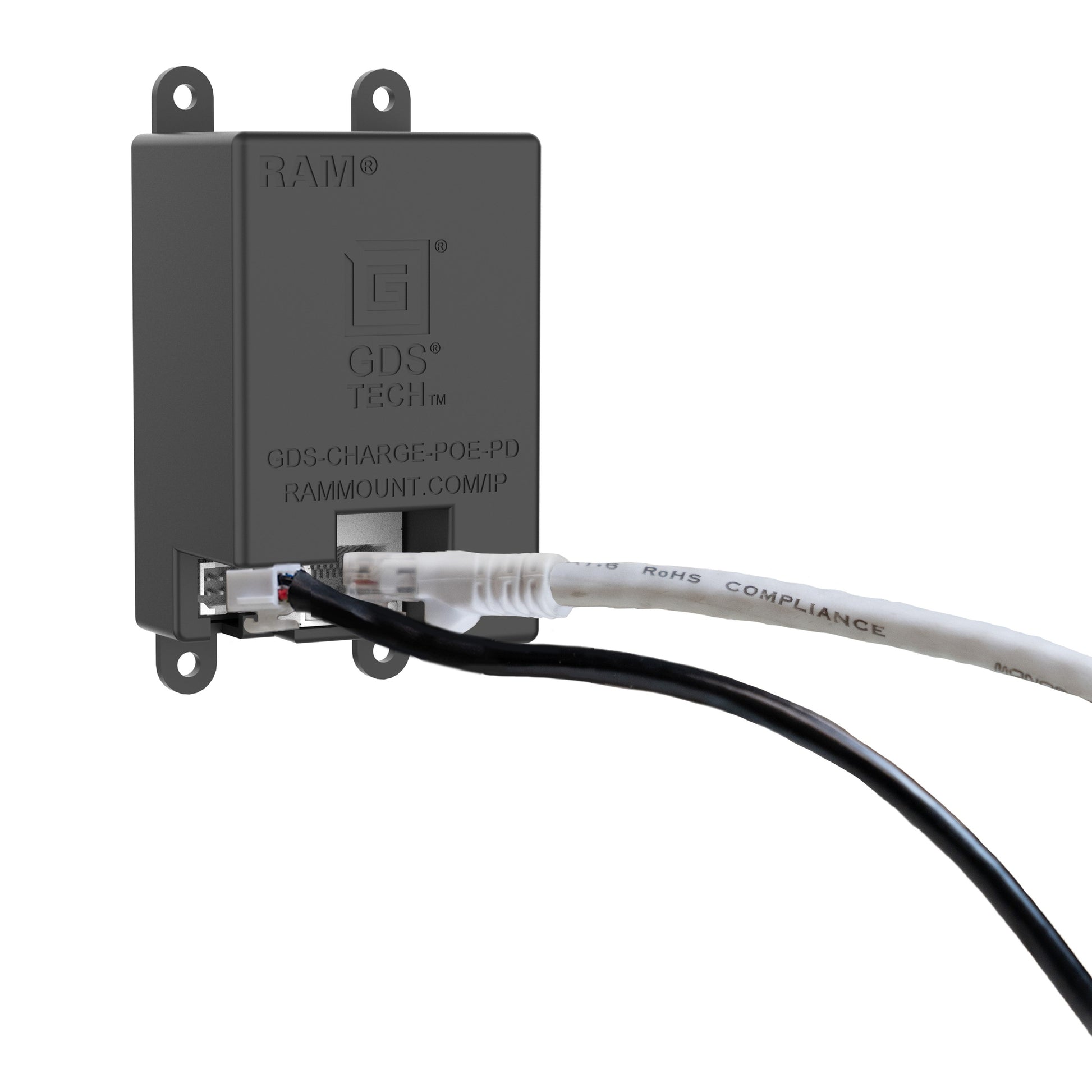

Hardware included: (1) RAM® PoE to PD Charging Module

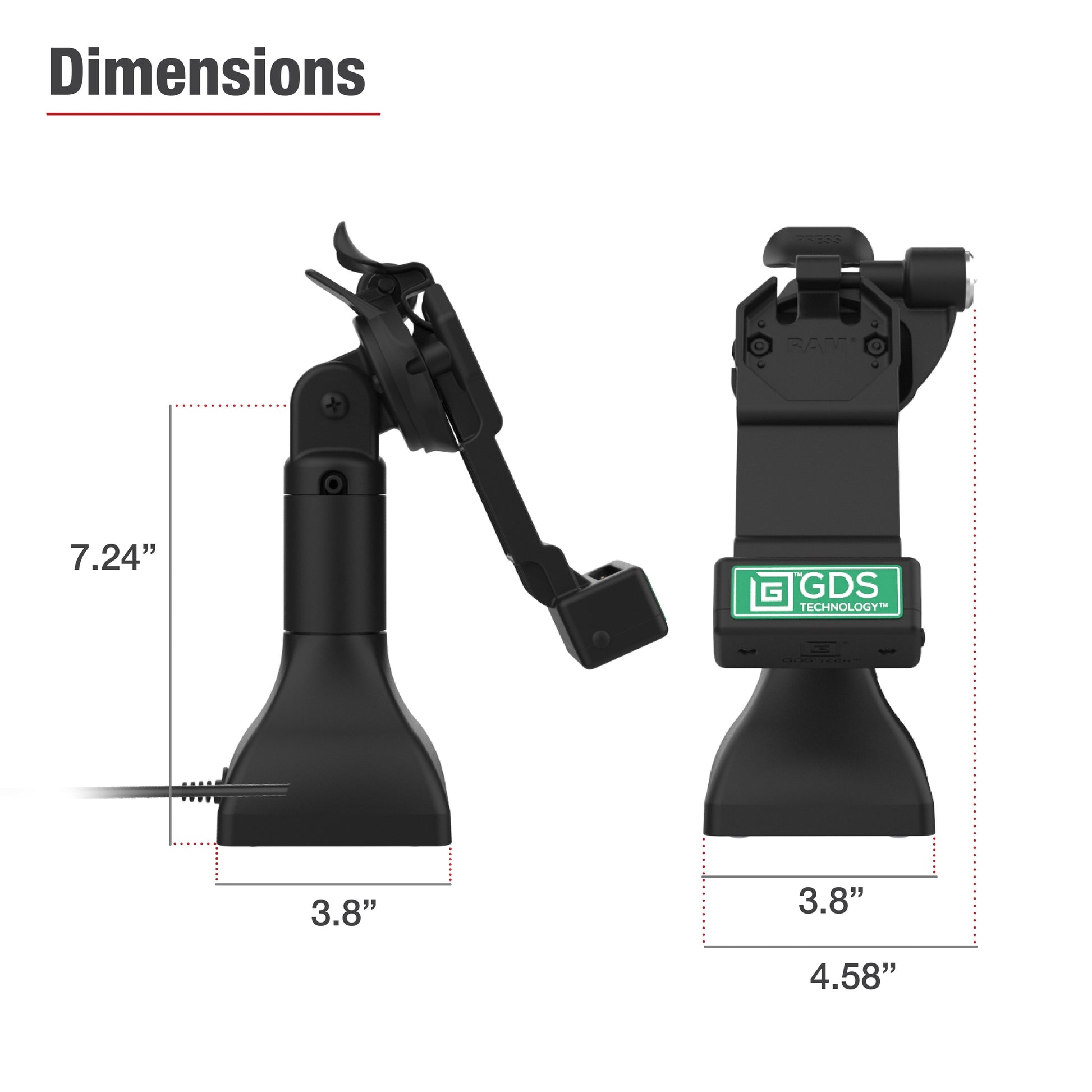

Product dimensions: Height from Base to Tilt Bolt: 7.24", Base Width: 3.8", Base Depth: 3.8"
Materials: Powder coated steel, High Strength Composite
Packaging type: Box
Power specifications: Required Input: POE+ (802.3at) or greater
Output voltage: PD 3.0: 5V @ 3A, 9V @ 2.22A, 12V @ 1.67A
Power output: 20W Max
Input connector: JST Male Connector
Input cable length: 1.5 Meters
Transfer speed: 10/100Mbps
Warranty: 3 year warranty
Weight: 2.44 lb
