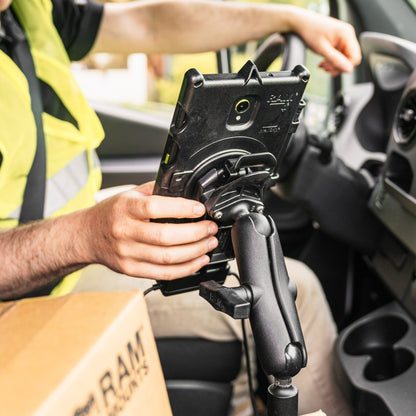

GDS® Uni-Conn™ Dock + Dual USB-A with Release Lever

GDS® Uni-Conn™ Dock + Dual USB-A with Release Lever

Regular price $192.99 USD
Regular price Sale price $192.99 USD
Sale Sold out
Ball Size:
RAM-GDS-DOCK-U1CD2U
UPC:
793442020407
Availability:
In Stock
Quantity
View full details

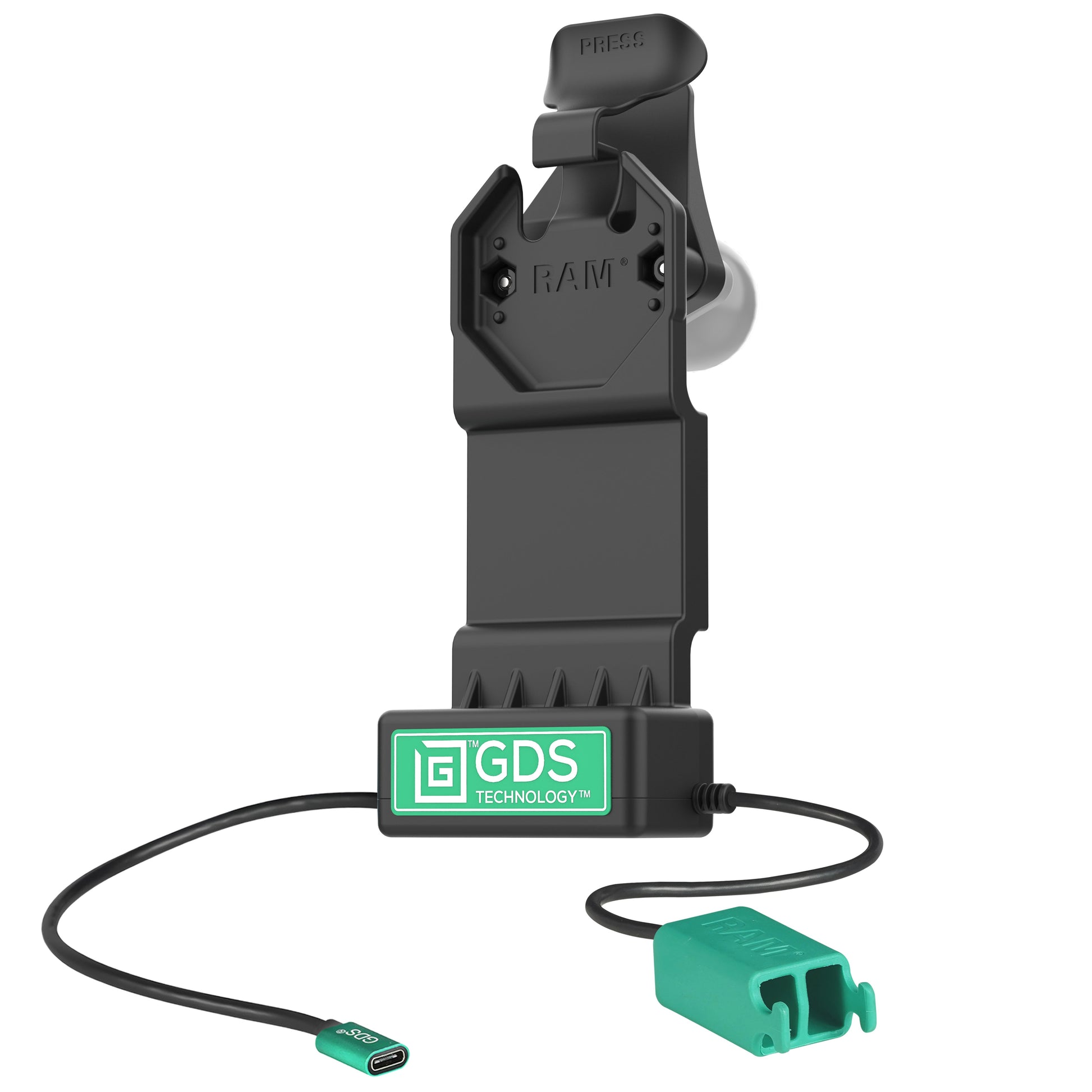

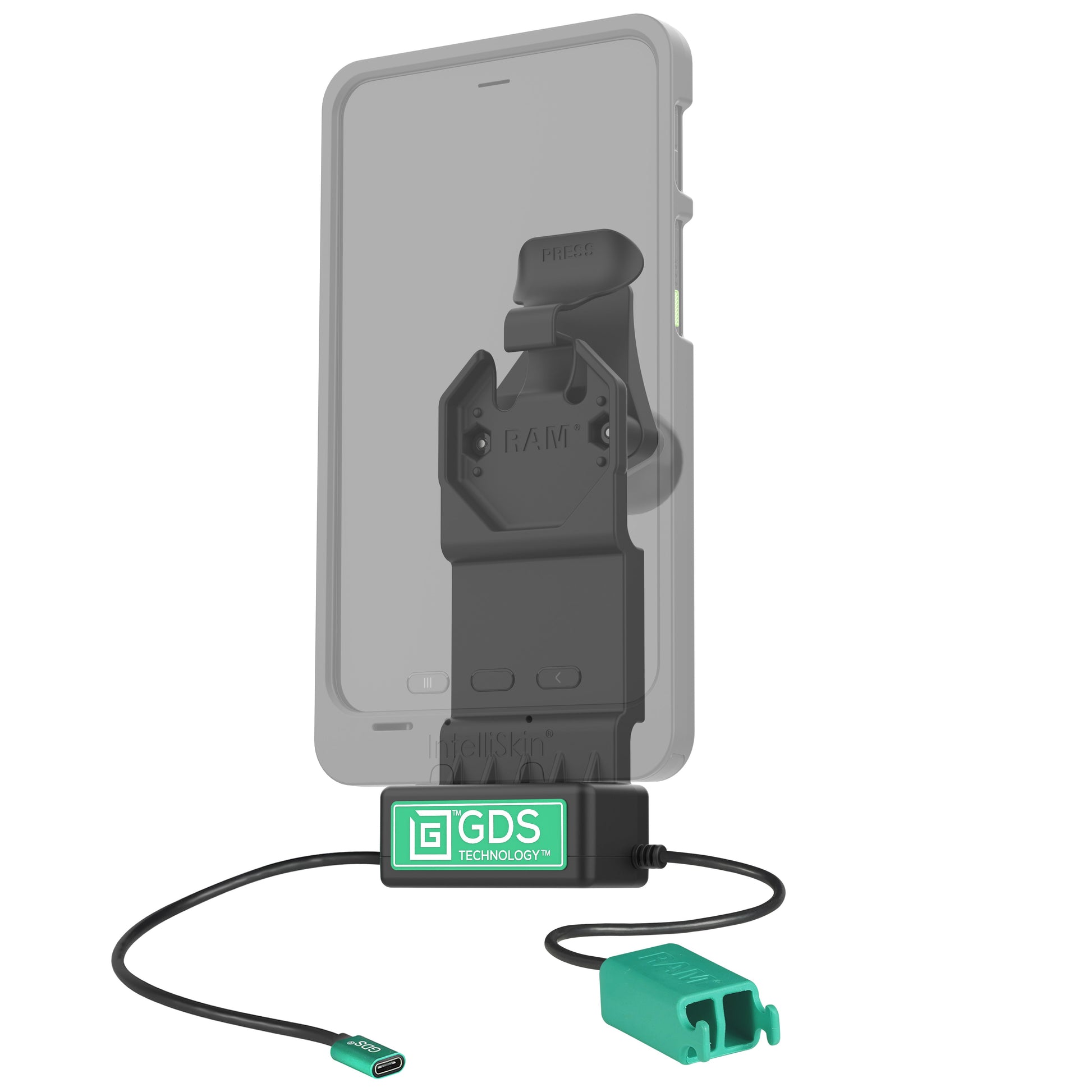

The GDS® Uni-Conn™ Dock + Dual USB-A (RAM-GDS-DOCK-U1CD2U) is a revolutionary universal docking platform. This clip-in, quick-release solution securely holds your device in place. When docked, power is delivered via the pogo pin connection, enabled by the USB-C female connector. Integrate up to two peripheral devices into your solution with the USB-A female connector. It features an easy docking and undocking process, simply place the IntelliSkin®-wrapped device into the base of the dock and push it to snap into place. When undocking, a simple push of a lever releases the tablet. The docking station requires the GDS® Uni-Conn™ adapter (RAM-GDS-U1U) to be installed on the intended IntelliSkin®-wrapped device. Current compatibility for this fixed dock height includes the Samsung Tab A7 Lite, Tab A 8.4, Tab S9 FE, Tab S9 FE+, Tab Active5, Tab Active3, and Tab A9+. The GDS® Uni-conn™ dock is backed by a 3-year warranty. Warranty is void if lever stop is not installed. Always Protected. Always Connected.® One Dock to Connect Them All™.

Features

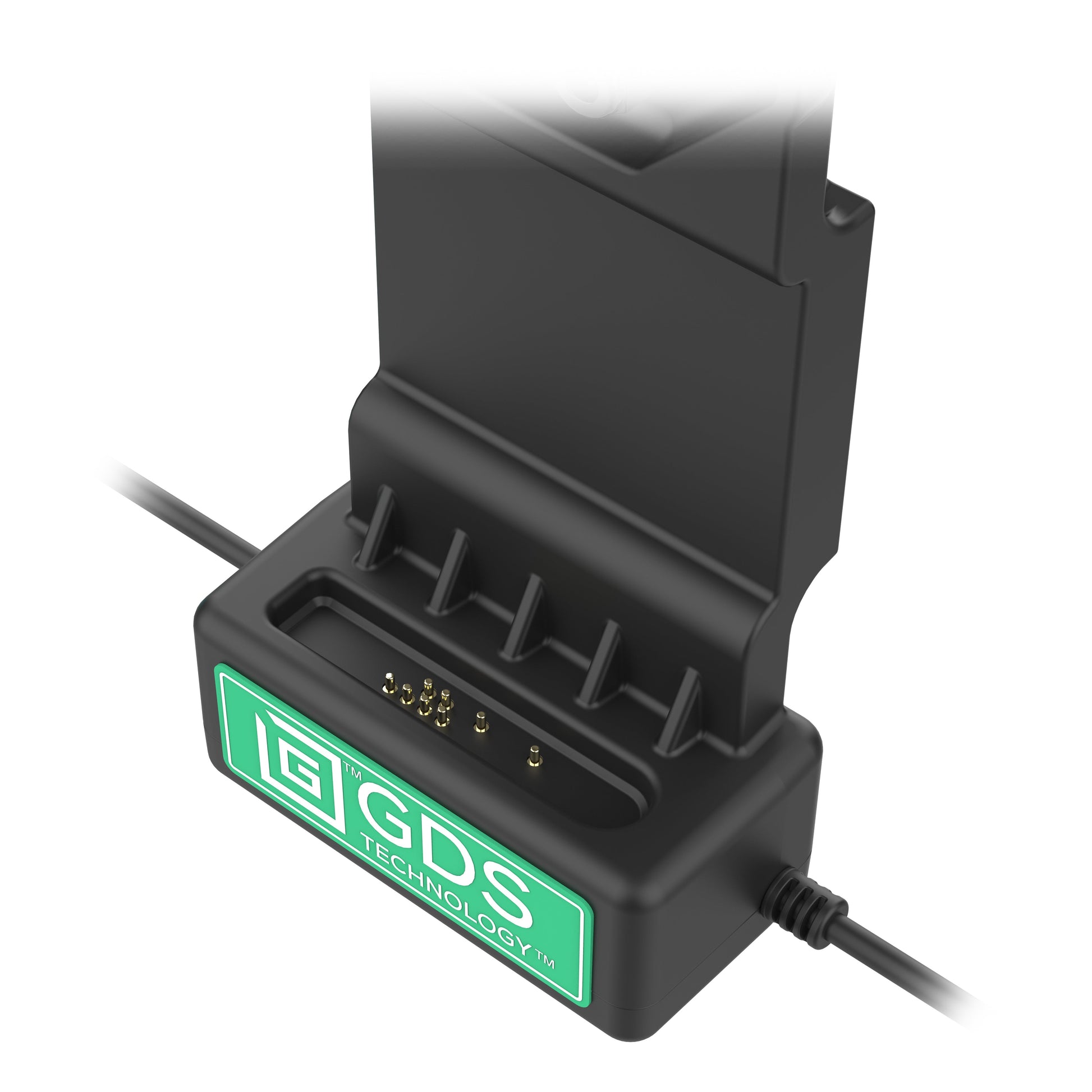

  • Snap-in dock featuring GDS® Technology™ uses an integrated pogo pin connector to provide high-speed charging and connection to two additional USB peripherals

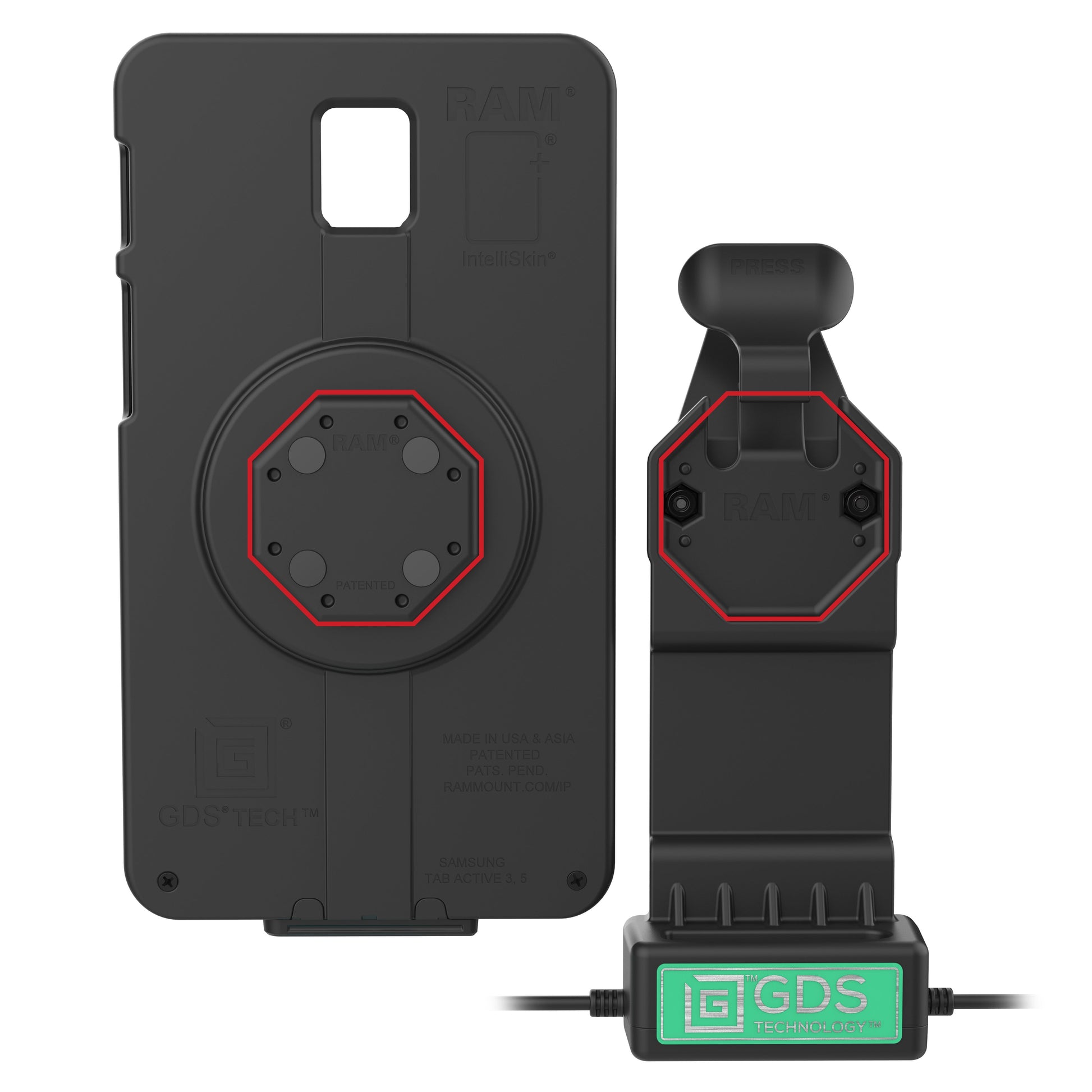

  • Designed for devices wrapped in an IntelliSkin® protective sleeve with GDS® Uni-Conn™ Adapter installed
  • Power delivered via USB-C connector; connect up to 2 input devices via dual USB-A connector
  • RAM® Mounts Compatible™
  • Backed by a 3-year warranty

Specifications

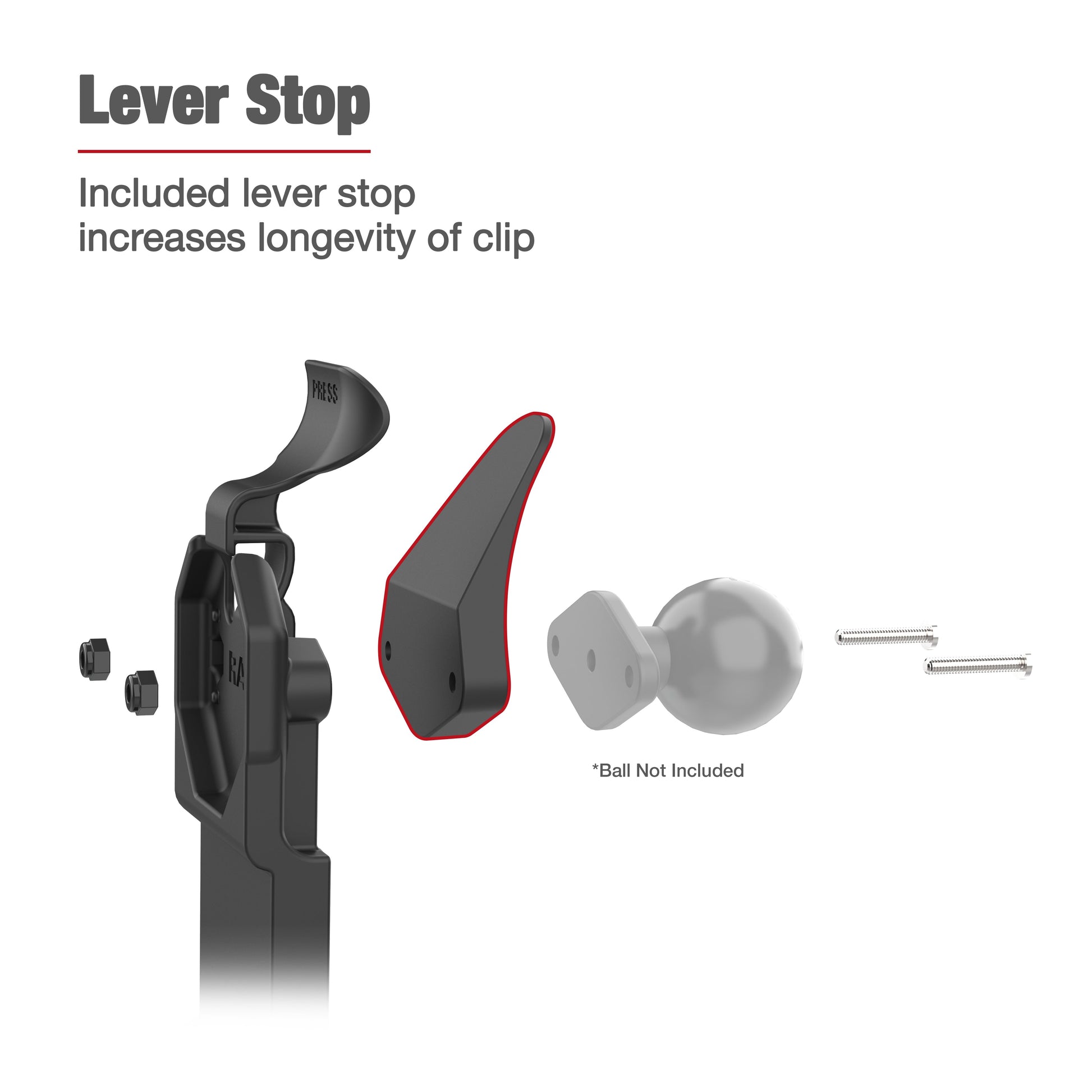

Hardware included: (1) Lever Stop, (2) #8-32 x 1" Machine Screws, (2) #8-32 Nylock Nuts, (1) Cable Clamp Kit

Product dimensions: Overall Width: 3.16", Overall Height: 8.44", Overall Depth: 3.03"

Hole pattern: 2-Hole AMPS: 1.912"

Materials: High strength composite

Packaging type: Poly Bag

Output voltage: 5V - 20V @ 3A

Power output: 60W

Input connector: USB Type-C, USB Type A for 2 Peripherals

Input cable length: 215mm

Output cable length: 215mm

Peripheral output: 900mA (per port)

Warranty: 3 year warranty

Weight: 0.57 lb
