GDS® Uni-Conn™ Dock + Single USB-A with Release Lever

GDS® Uni-Conn™ Dock + Single USB-A with Release Lever

Regular price $176.49 USD
Regular price Sale price $176.49 USD
Sale Sold out
UPC:
793442020391
Mfg Part #:
RAM-GDS-DOCK-U1CDU
Availability:
Out Of Stock
Part Number:
RAM-GDS-DOCK-U1CDU
Quantity
View full details

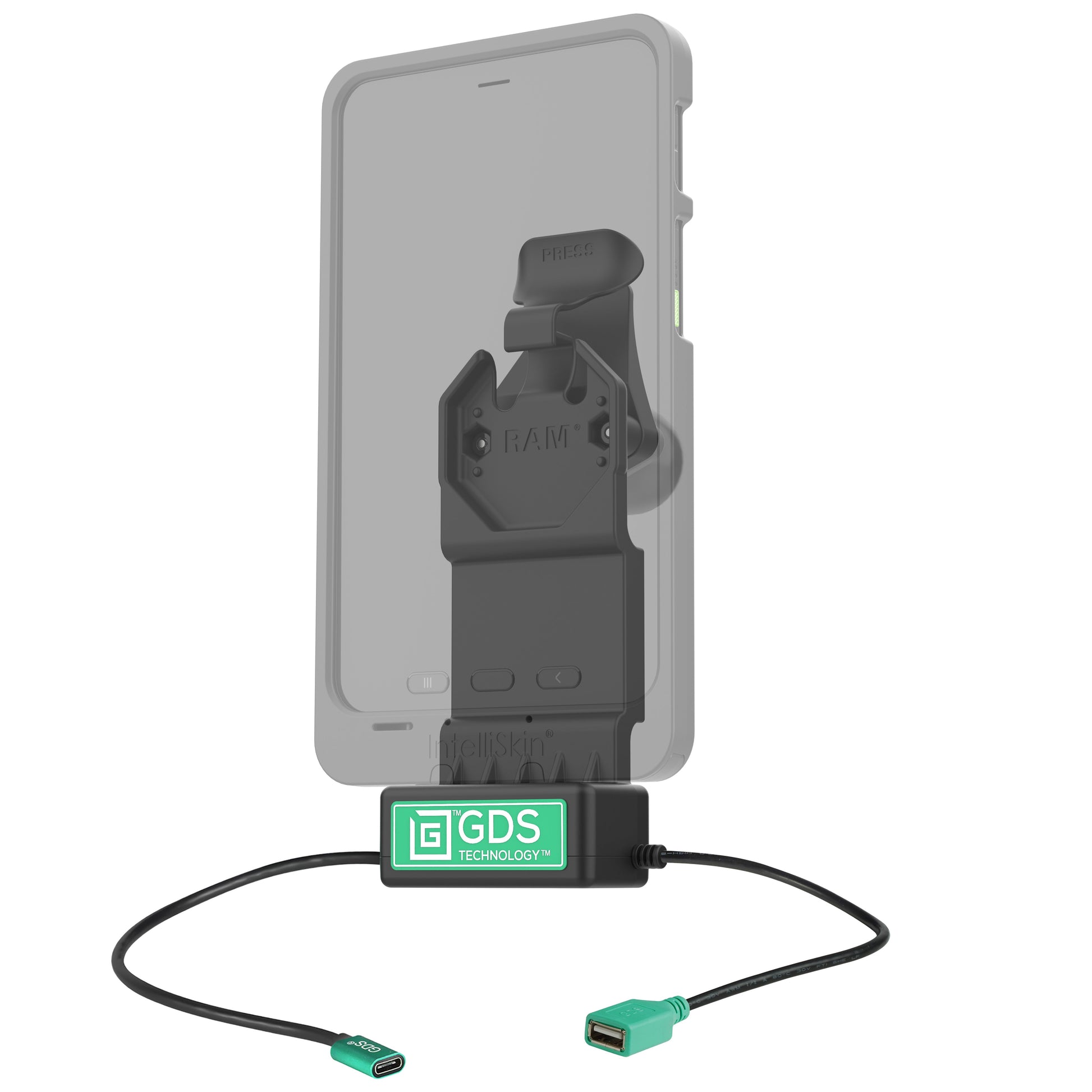

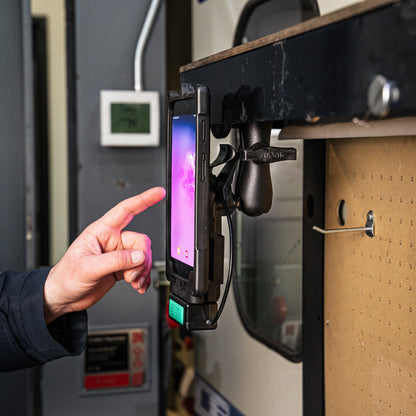

The GDS® Uni-Conn™ Dock + Single USB-A (RAM-GDS-DOCK-U1CDU) is a revolutionary universal docking platform. This clip-in, quick-release solution securely holds your device in place. When docked, power is delivered via the pogo pin connection, enabled by the USB-C female connector. Integrate up to one peripheral device into your solution with the USB-A female connector. It features an easy docking and undocking process, simply place the IntelliSkin®-wrapped device into the base of the dock and push it to snap into place. When undocking, a simple push of a lever releases the tablet. The docking station requires the GDS® Uni-Conn™ adapter (RAM-GDS-U1U) to be installed on the intended IntelliSkin®-wrapped device. Current compatibility for this fixed dock height includes the Samsung Tab A7 Lite, Tab A 8.4, Tab S9 FE, Tab S9 FE+, Tab Active5, Tab Active3, and Tab A9+. The GDS® Uni-conn™ dock is backed by a 3-year warranty. Warranty is void if lever stop is not installed. Always Protected. Always Connected.® One Dock to Connect Them All™.

Features

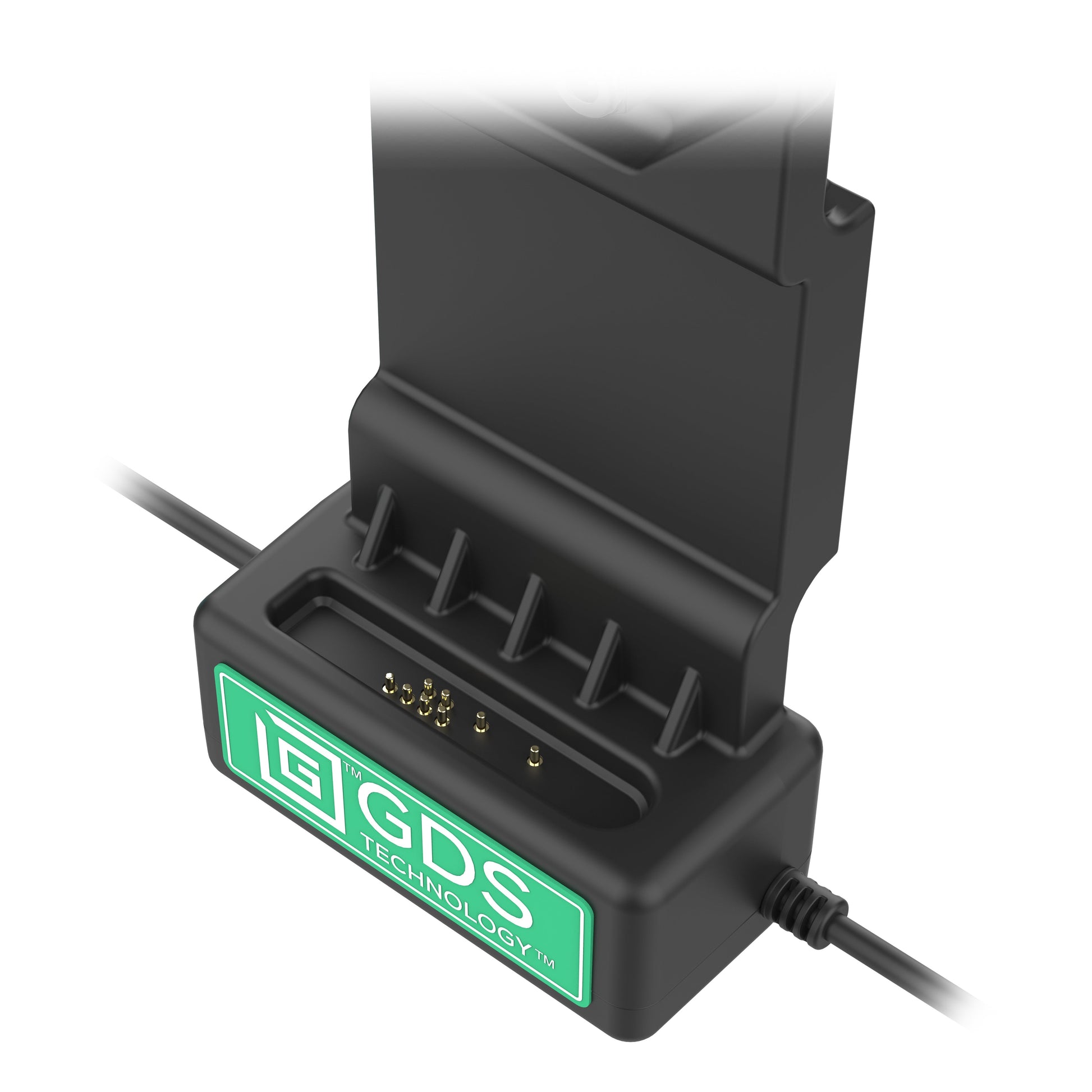

  • Snap-in dock featuring GDS® Technology™ uses an integrated pogo pin connector to provide high-speed charging and connection to one additional USB peripheral

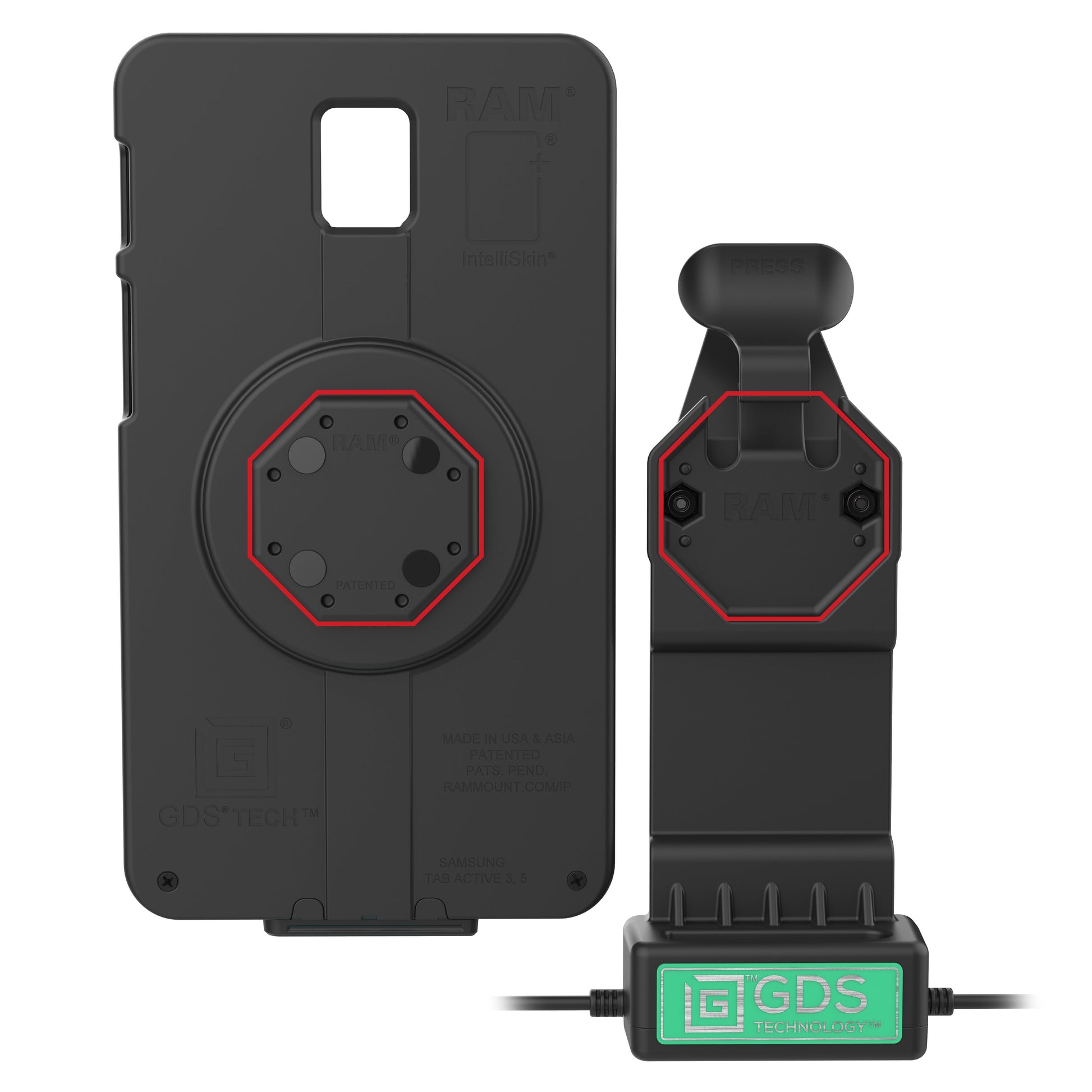

  • Designed for devices wrapped in an IntelliSkin® protective sleeve with GDS® Uni-Conn™ Adapter installed

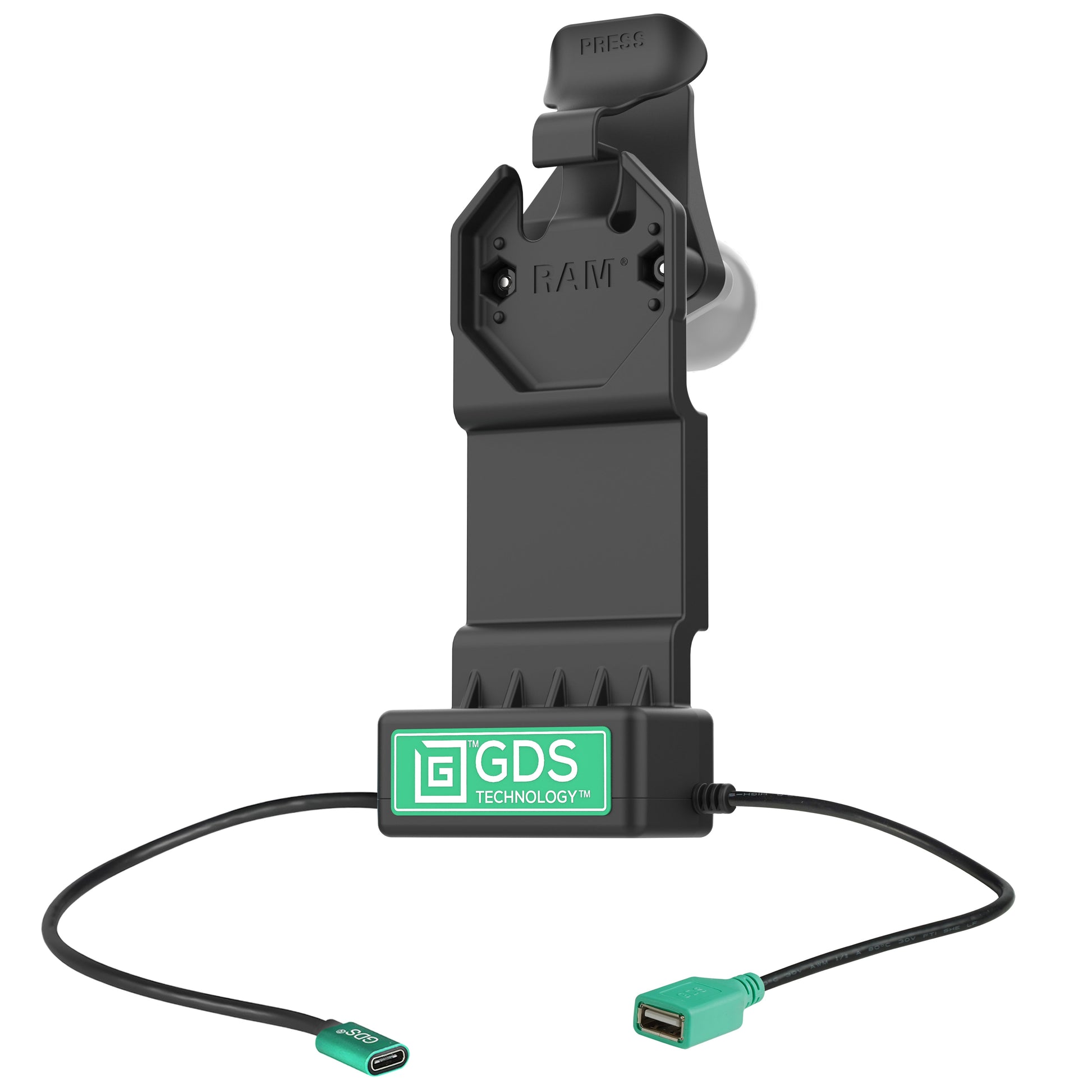

  • Power delivered via USB-C connector; connect a single input device via USB-A connector
  • RAM® Mounts Compatible™
  • Backed by a 3-year warranty

Specifications

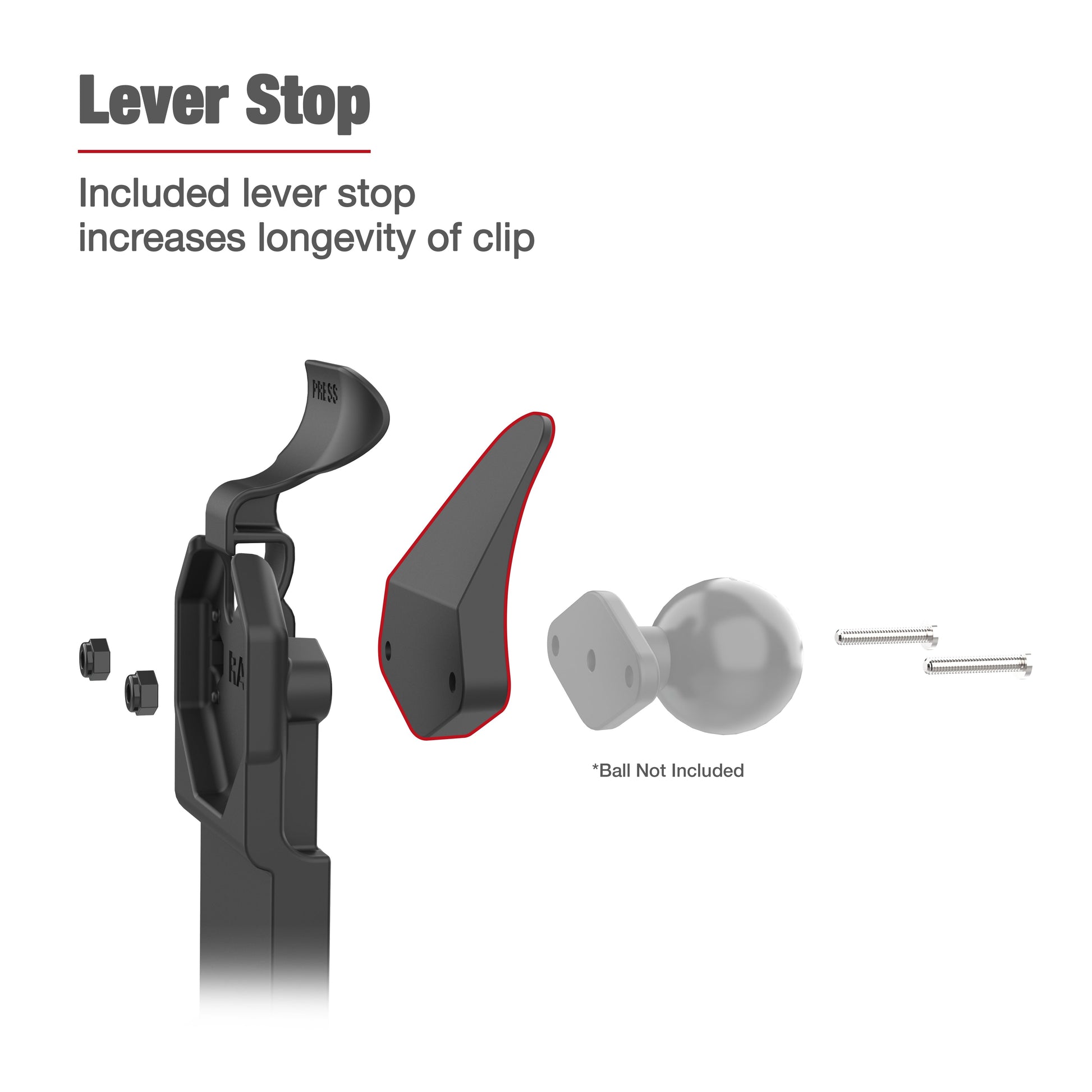

Hardware included: (1) Lever Stop, (2) #8-32 x 1" Machine Screws, (2) #8-32 Nylock Nuts, (1) Cable Clamp Kit

Product dimensions: Overall Width: 3.16", Overall Height: 8.44", Overall Depth: 3.03"

Hole pattern: 2-Hole AMPS: 1.912"

Materials: High strength composite

Packaging type: Poly Bag

Output voltage: 5V - 20V @ 3A

Power output: 60W

Input connector: USB Type-C, USB Type A for 1 Peripheral

Input cable length: 215mm

Output cable length: 215mm

Peripheral output: 500mA

Warranty: 3 year warranty

Weight: 0.55 lb
