GDS® Uni-Conn™ Left Locking Dock + USB-A & RJ45 with Release Lever

GDS® Uni-Conn™ Left Locking Dock + USB-A & RJ45 with Release Lever

Regular price $291.99 USD
Regular price Sale price $291.99 USD
Sale Sold out
UPC:
793442022715
Mfg Part #:
RAM-GDS-DOCKLL-U1CP-RJ45AU
Availability:
Out Of Stock
Part Number:
RAM-GDS-DOCKLL-U1CP-RJ45AU
Quantity
View full details

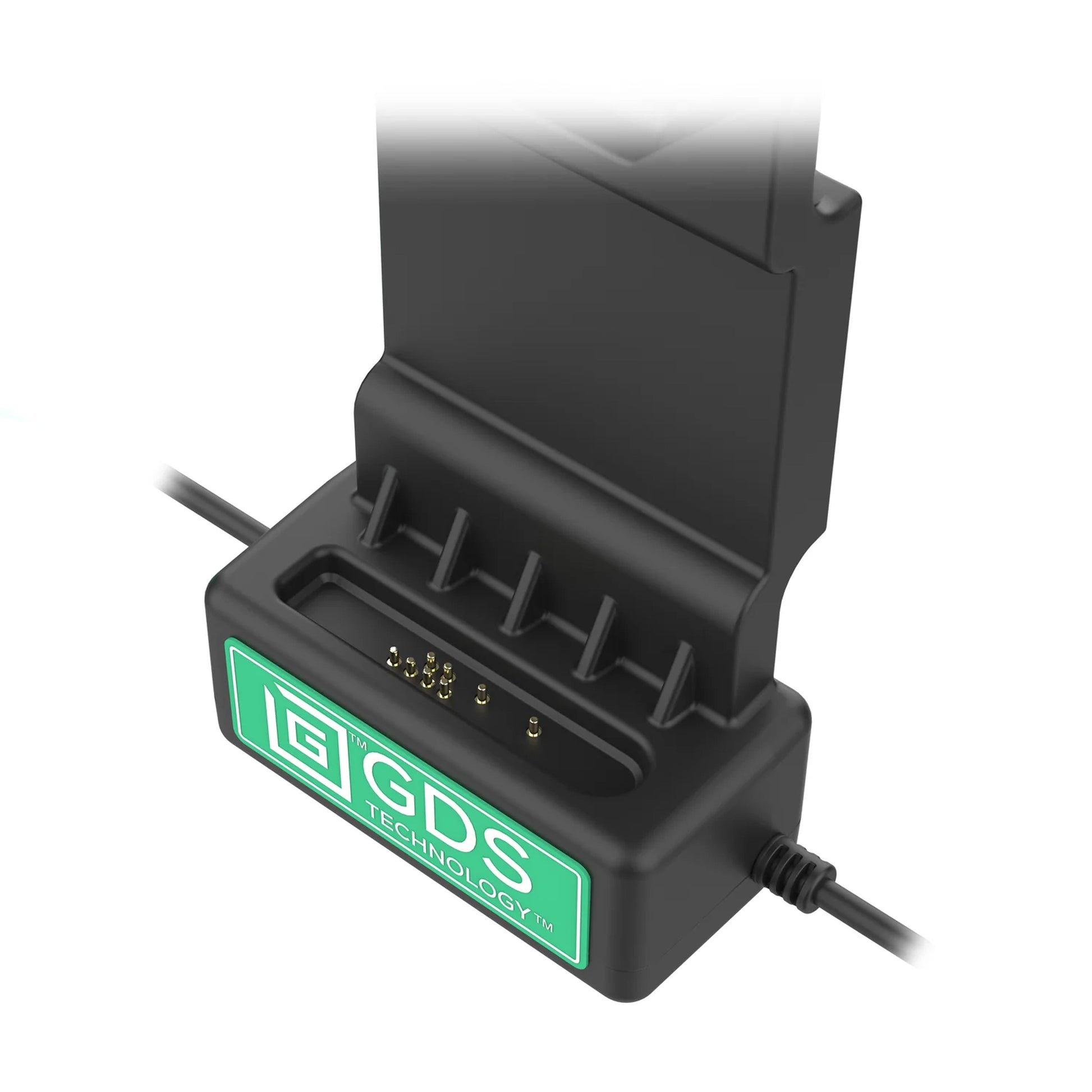

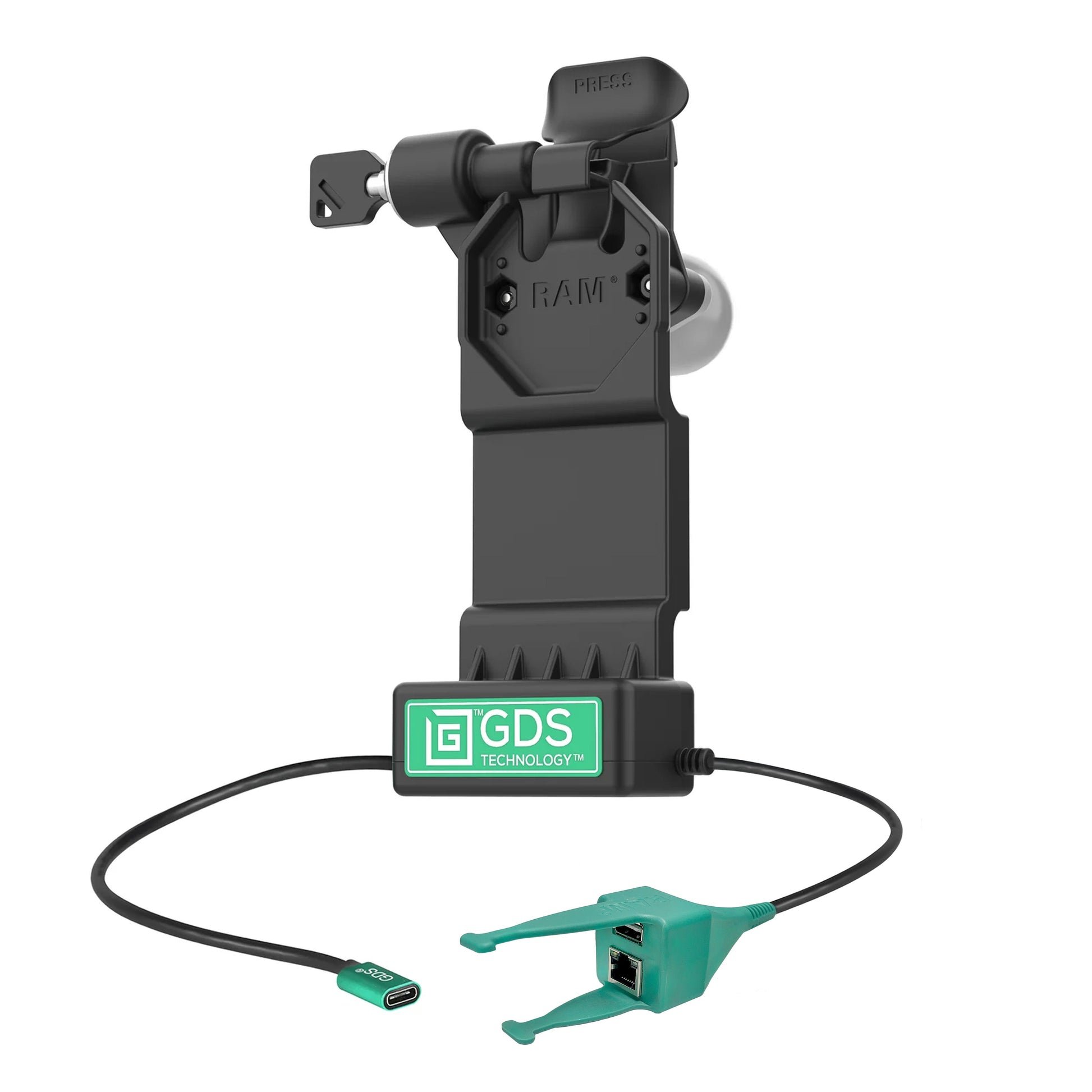

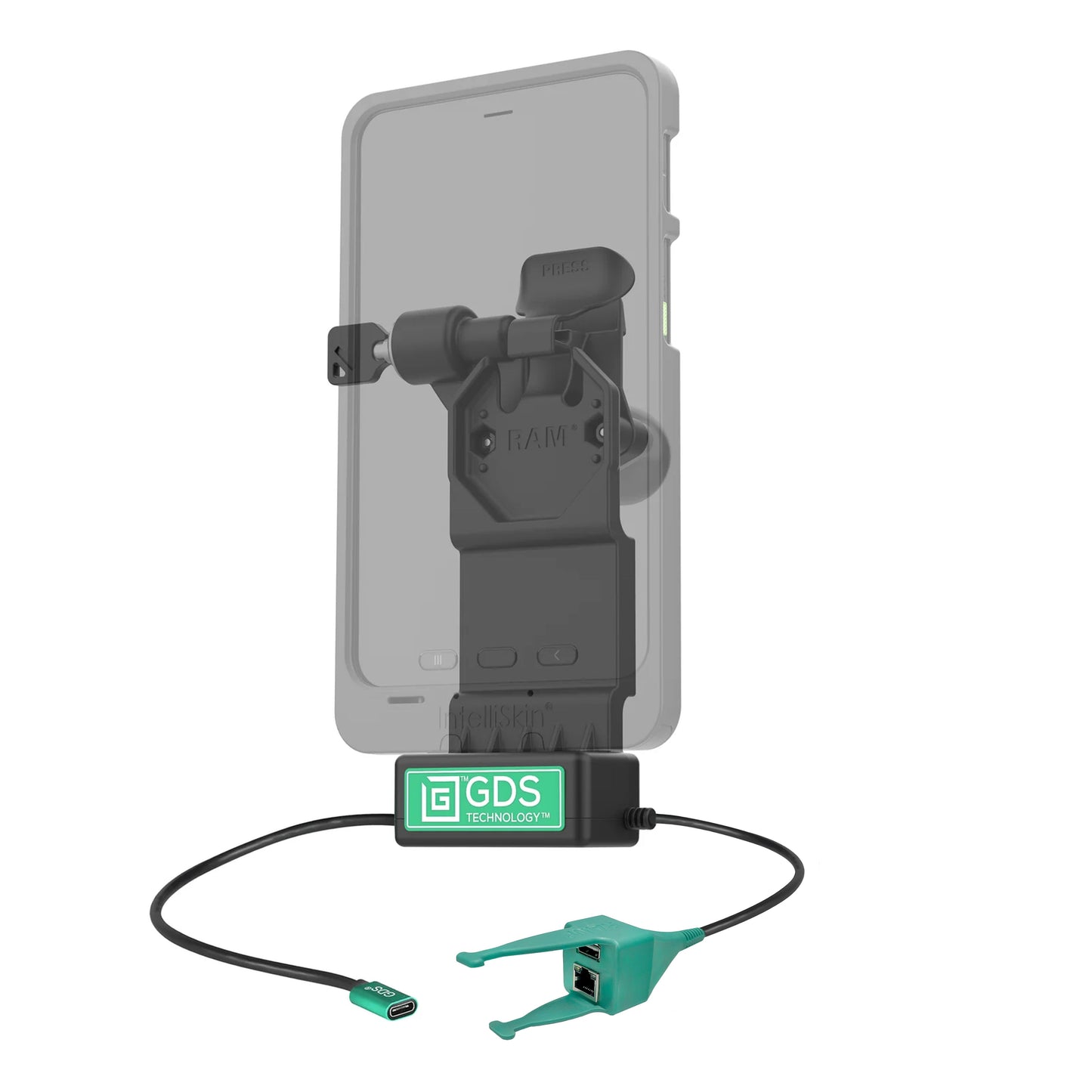

The GDS® Uni-Conn™ Left Locking Powered Dock with USB-A & RJ45 Data (RAM-GDS-DOCKLL-U1CP-RJ45AU) is a revolutionary universal docking platform. This clip-in, quick-release solution securely holds your device in place and features a key lock on the left side for additional theft deterrence. For the same dock with a lock on the right side, see RAM-GDS-DOCKLR-U1CP-RJ45AU. When docked, power is delivered via the pogo pin connection, enabled by the USB-C female connector. It also includes a dual-input pigtail that features one RJ45 (ethernet) connector for a direct and secure connection to your network alongside one USB Type-A female connector for connecting peripherals to your tablet. It features an easy docking and undocking process, simply place the IntelliSkin®-wrapped device into the base of the dock and push it to snap into place. When undocking, a simple push of a lever releases the tablet. The docking station requires the GDS® Uni-Conn™ adapter (RAM-GDS-U1U) to be installed on the intended IntelliSkin®-wrapped device. The GDS® Uni-conn™ dock is backed by a 3-year warranty. Warranty is void if lever stop is not installed. Always Protected. Always Connected.® One Dock to Connect Them All™.

Features

  • Snap-in locking dock featuring GDS® Technology™ uses an integrated pogo pin connector to provide high-speed charging and connection to one additional USB-A peripheral

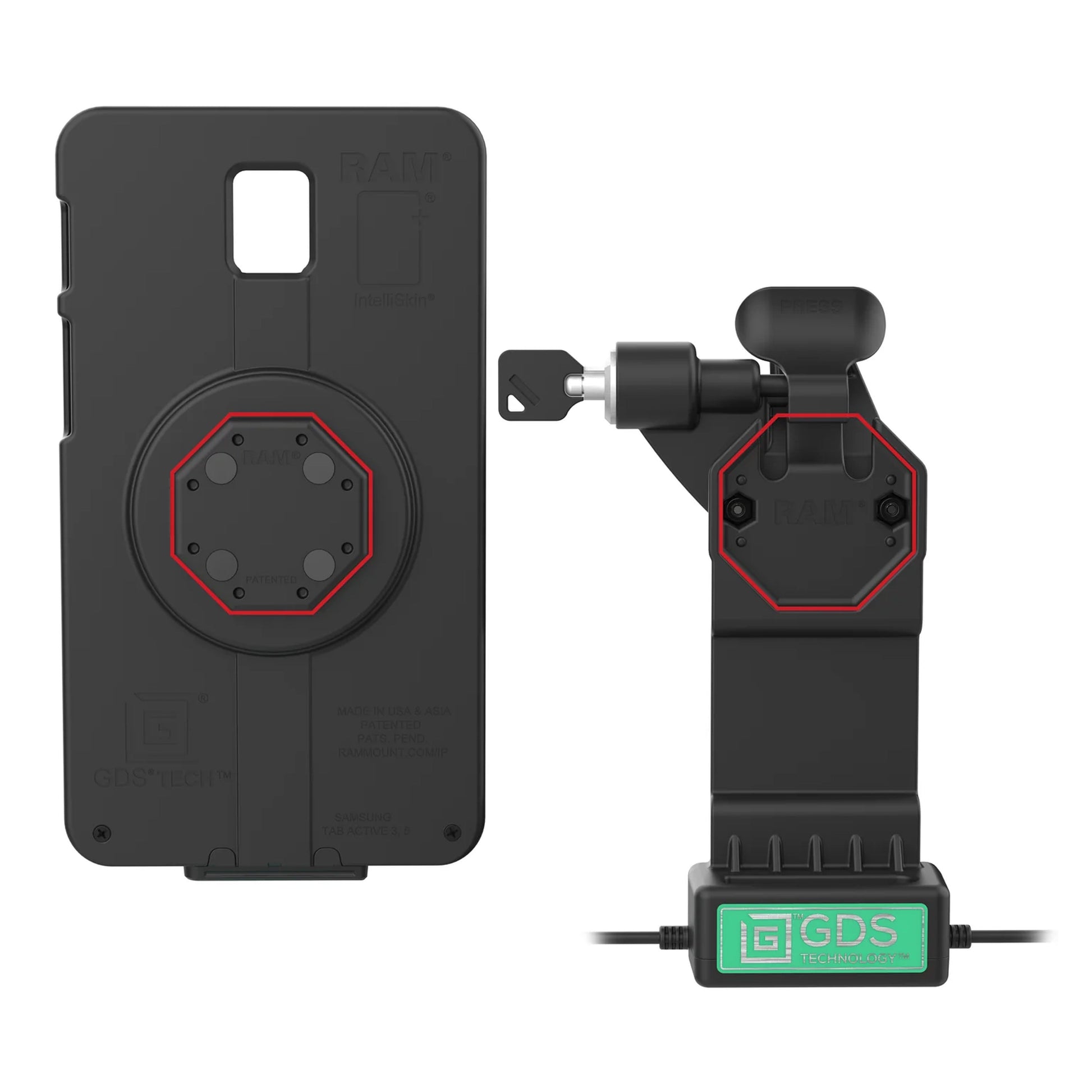

  • Designed for devices wrapped in an IntelliSkin® protective sleeve with GDS® Uni-Conn™ Adapter installed
  • Power delivered via USB-C connector; data and ethernet connects to dual USB-A and RJ45 connector
  • RAM® Mounts Compatible™
  • Backed by a 3-year warranty

Specifications

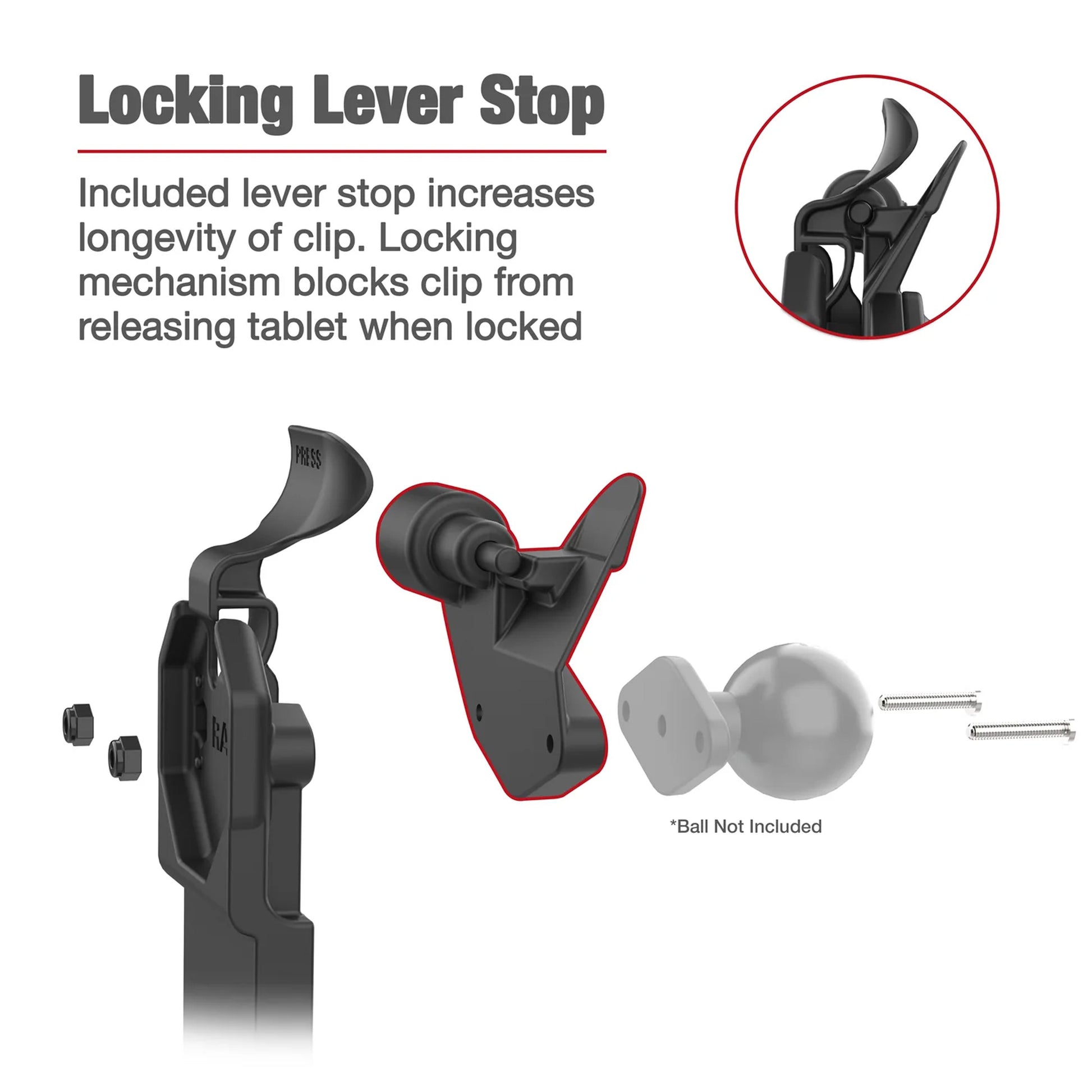

Hardware included: (2) Keys, (1) Locking Lever Stop, (2) #8-32 x 1" Machine Screws, (2) #8-32 Nylock Nuts, (1) Cable Clamp Kit

Product dimensions: Overall Width: 4.27", Overall Height: 8.44", Overall Depth: 3.03"

Hole pattern: 2-Hole AMPS: 1.912"

Materials: High strength composite

Packaging type: Poly Bag

Output voltage: Type-C Tablets: 5V - 12V @ 3A max, mUSB Tablets: 5V @ 1.5A max

Power output: 15W

Input connector: USB Type-C (Power In)

Input cable length: 215mm

Output connector: (1) USB Type-A & (1) RJ45 Female

Output cable length: 215mm

Peripheral output: 900mAh

Warranty: 3 year warranty

Weight: 0.83 lb
