GDS® Uni-Conn™ Locking Vehicle Bundle for Samsung Tab A9+

Overview

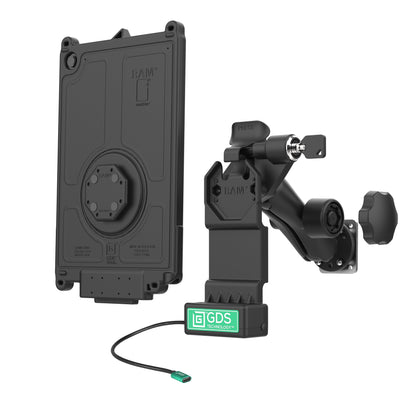

The GDS^® Uni-Conn^™ Locking Vehicle Bundle for Samsung Tab A9+ (RAM-GDS-U1-SAM88-KIT2) is a comprehensive kit of everything needed to deploy the Tab A9+ in your fleet. It contains one GDS^® Uni-Conn^™ locking dock with right lock, Uni-Conn^™ adapter, IntelliSkin^® for the Tab A9+, and double ball mount with backing plate. The dock uses a USB Type-C female power connector and integrated pogo pins to provide power to the device while docked. It also features an easy docking and undocking process, simply place the IntelliSkin^®-wrapped device into the base of the dock and push it to snap into place. When undocking, a simple push of a lever releases the tablet. The GDS^® Uni-Conn^™ is backed by a 3-year warranty. Warranty is void if the lever stop is not installed. Always Protected. Always Connected.^® One Dock to Connect Them All^™

Specifications

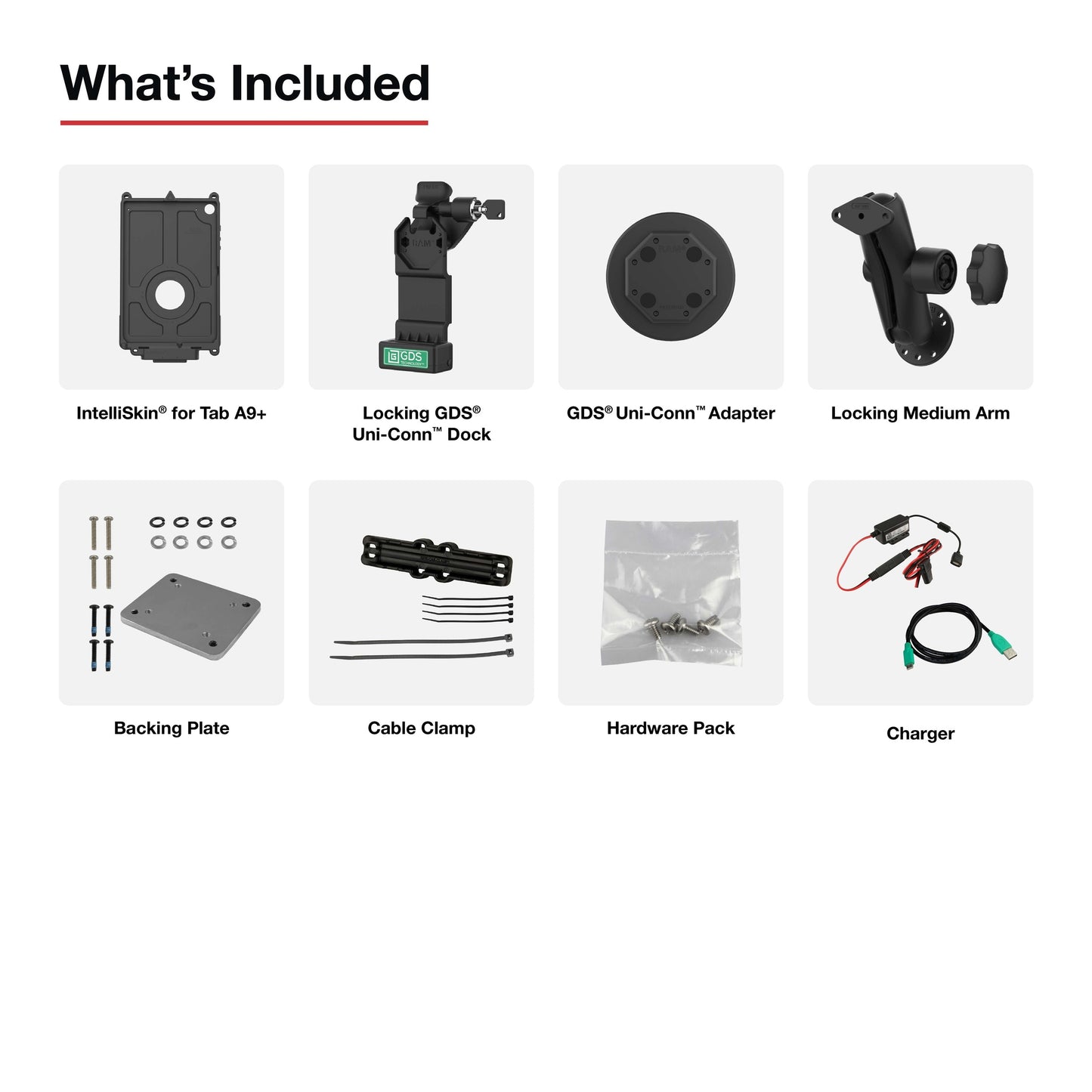

Assembly Hardware
(2) Keys
(1) 2.10" x 2.60" Steel Backing Plate
(4) #8-32 x 1" Screws
(4) #8 Split Lock Washers
(4) #8 Flat Washers
(1) Cable Clamps
(1) USB Cable
(1) Vehicle Hardwire Charger
Socket to socket length: 4.66"
Ball size: C Size (1.5")
Materials: Steel, Marine-grade aluminum, High strength composite
Packaging type: Poly Bag
Input voltage: 10-30VDC
Output voltage: 5-9VDC*
Output current: 2.5A max
Operating temperature: -10°C to +70°C
Storage temperature: -40°C to +70°C
Regulatory: Over Voltage Protection, Short Circuit Protection, Reverse Polarity Protection, RoHS Compliance, WEEE Compliance, SAE J-1113-5 Load Dump (Transient Voltage), Moisture Resistant, FCC, CE, UKCA, IC
Certifications: E-Mark Certification, RCM Certification, IEC/UL 62368-1
Warranty: 3 year warranty
Weight: 3.4 lb
