GDS® Uni-Conn™ Powered 14" Locking Pedestal Dock with PoE

GDS® Uni-Conn™ Powered 14" Locking Pedestal Dock with PoE

Regular price $393.49 USD
Regular price Sale price $393.49 USD
Sale Sold out
UPC:
793442024917
Mfg Part #:
RAM-GDS-DOCKLR-D11-14-U3E
Availability:
Out Of Stock
Part Number:
RAM-GDS-DOCKLR-D11-14-U3E
Quantity
View full details

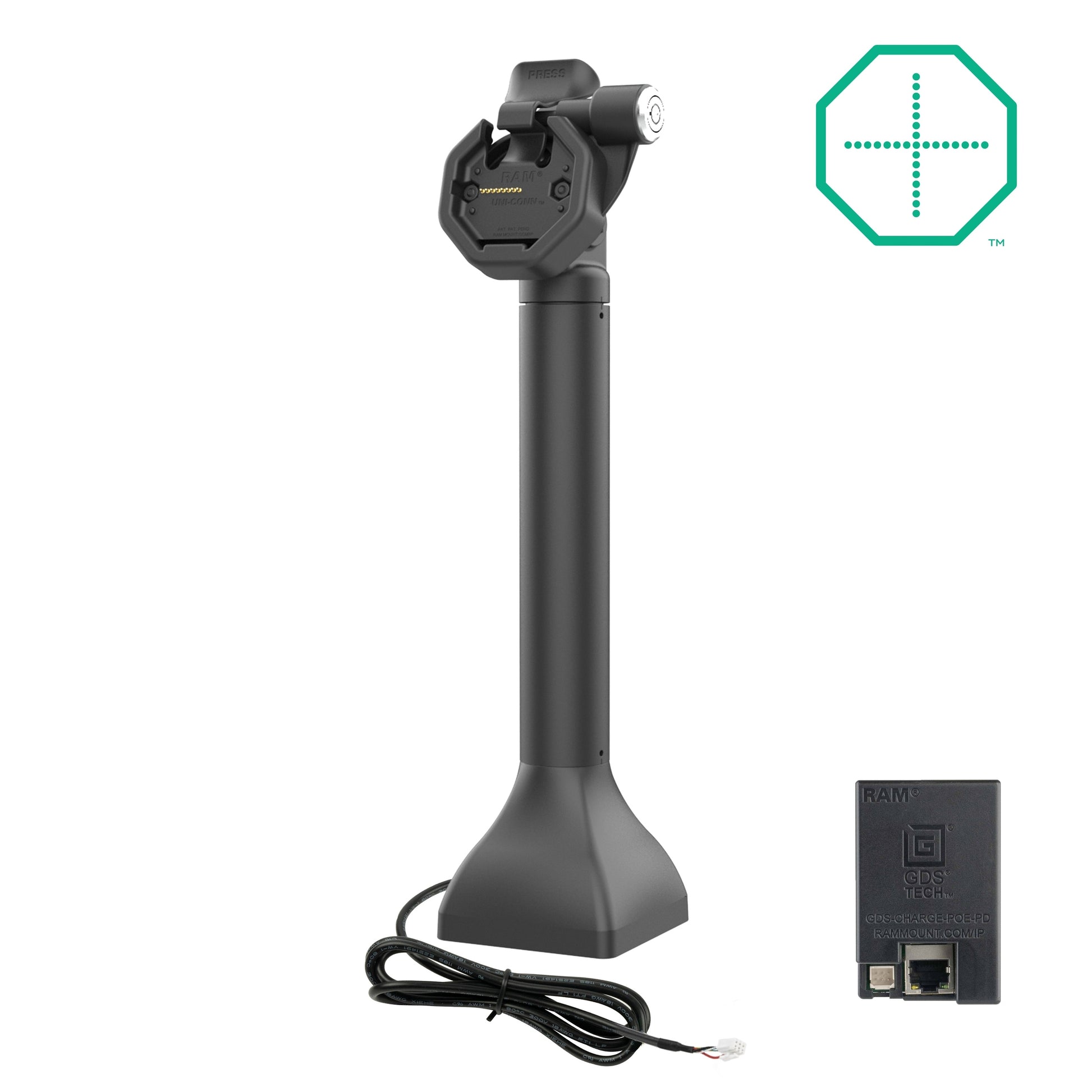

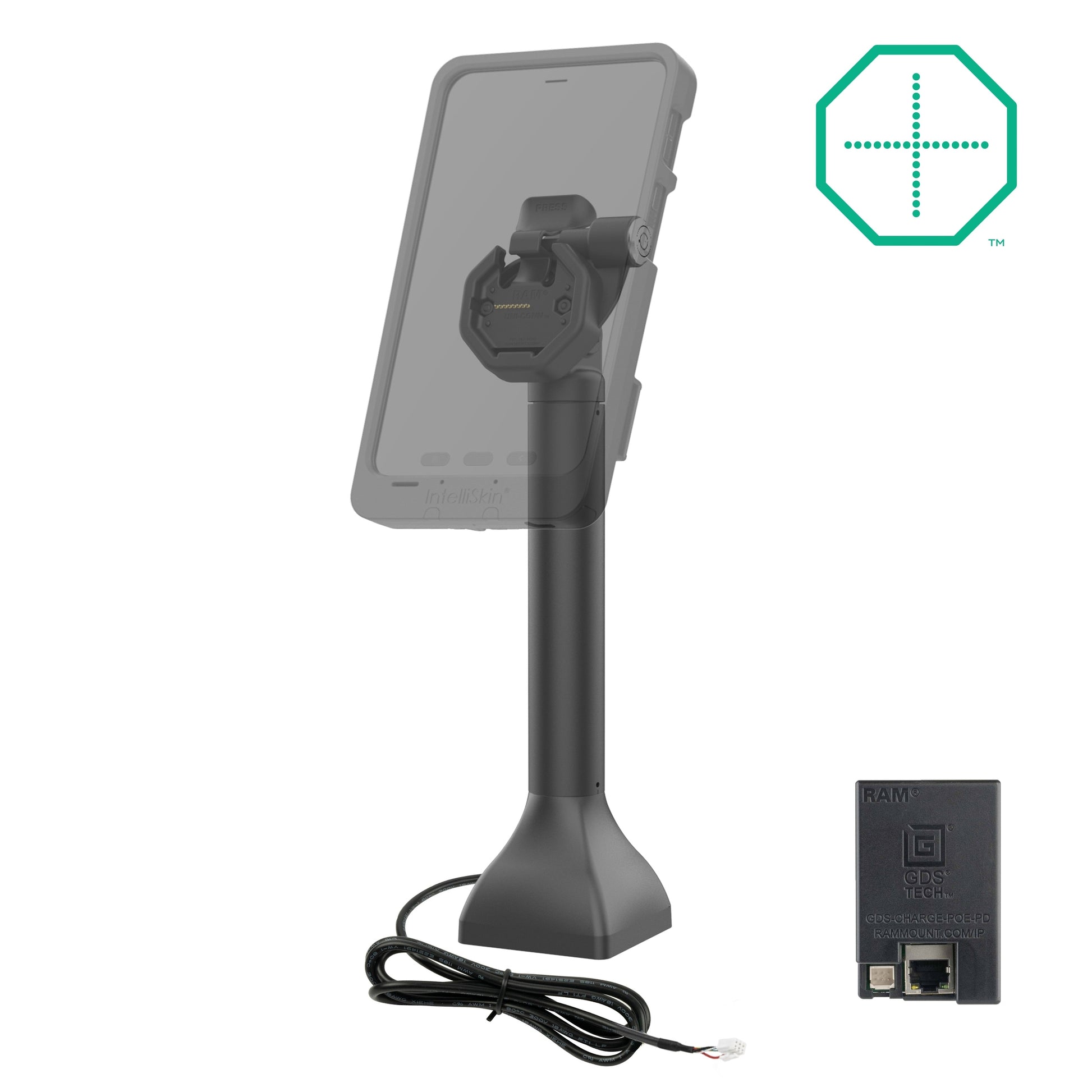

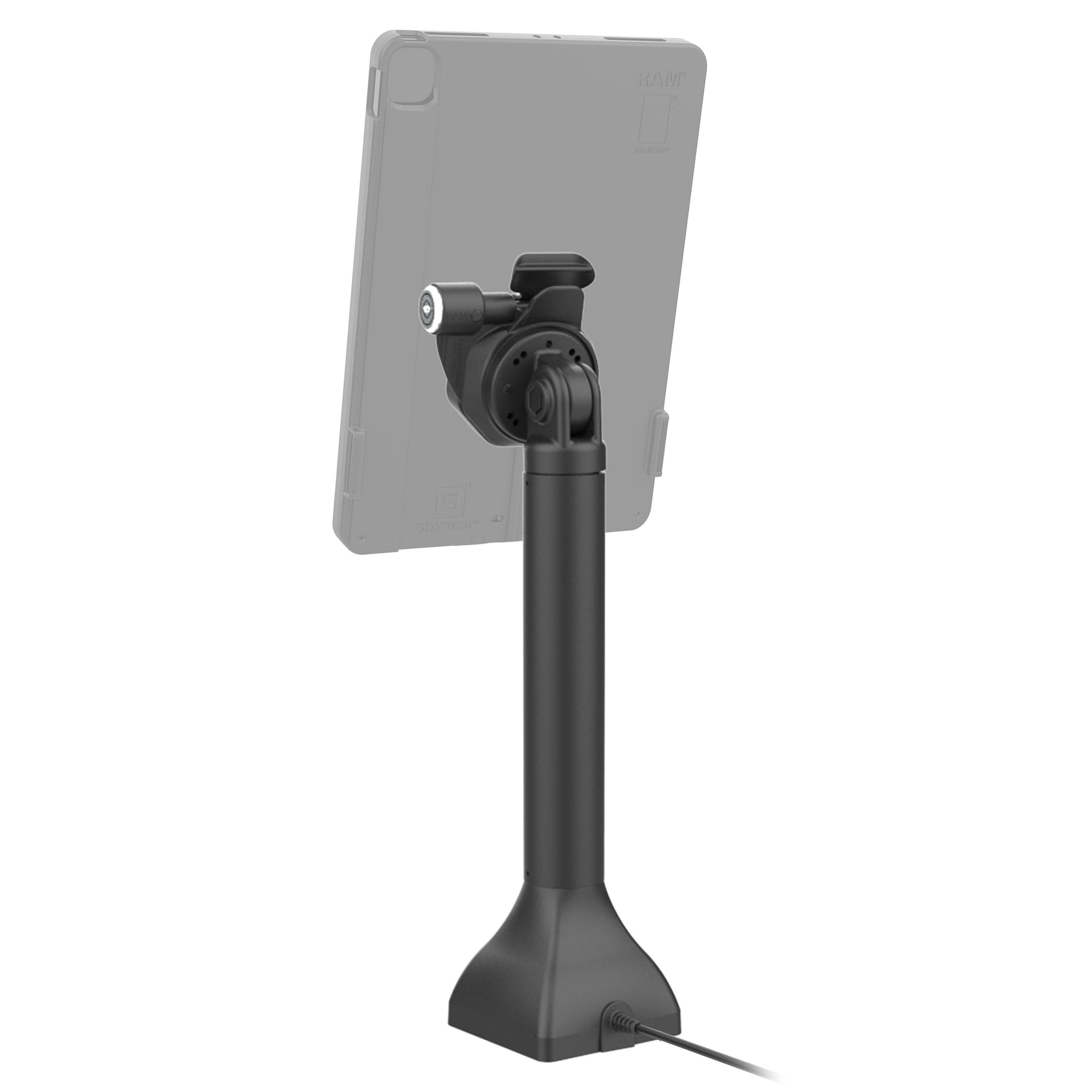

The GDS® Uni-Conn™ Powered 14" Locking Pedestal Dock with PoE (RAM-GDS-DOCKLR-D11-14-U3E) is a free-standing, 14" pedestal dock for devices enclosed in an IntelliSkin® Thin-Case™ with Rear Pogo Pads. This solution can swivel 180 degrees and allows devices to tilt 180 degrees, which is ideal for customer-centric industries like retail, hospitality, food service, and more. Keep your device safe in high-traffic environments with the key lock, integrated to provide additional theft deterrence. Easily dock and undock your device with the assistance of the mechanical attachment mechanism. Power is provided to the pogo pins integrated into the GDS® Uni-Conn™ adapter via Power over Ethernet (PoE) connection. This dock features a drill-down attachment style, providing a stable base for the tall dock. One Dock to Connect Them All™ Always Protected. Always Connected.®

Features

  • Key-locking 14" pedestal dock for devices enclosed in an IntelliSkin® Thin-Case™ with Rear Pogo Pads
  • GDS® connector and pogo pins provide charging via Power over Ethernet (PoE); Mechanical attachment mechanism allows for quick docking and undocking

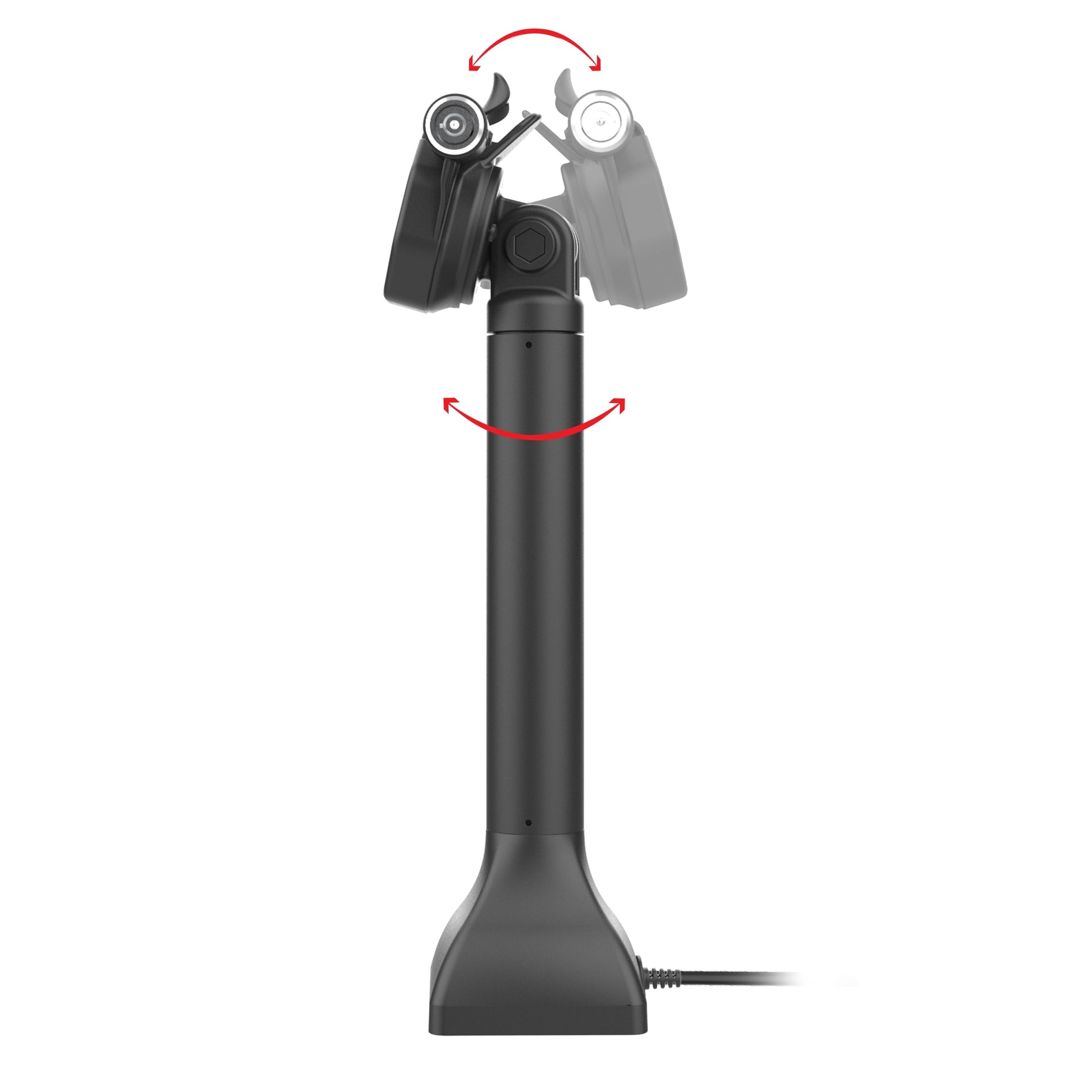

  • Dock swivels 180 degrees and enables connected devices to tilt 180 degress
  • Install dock to any surface with drill-down base
  • Backed by a 3-year warranty

Specifications

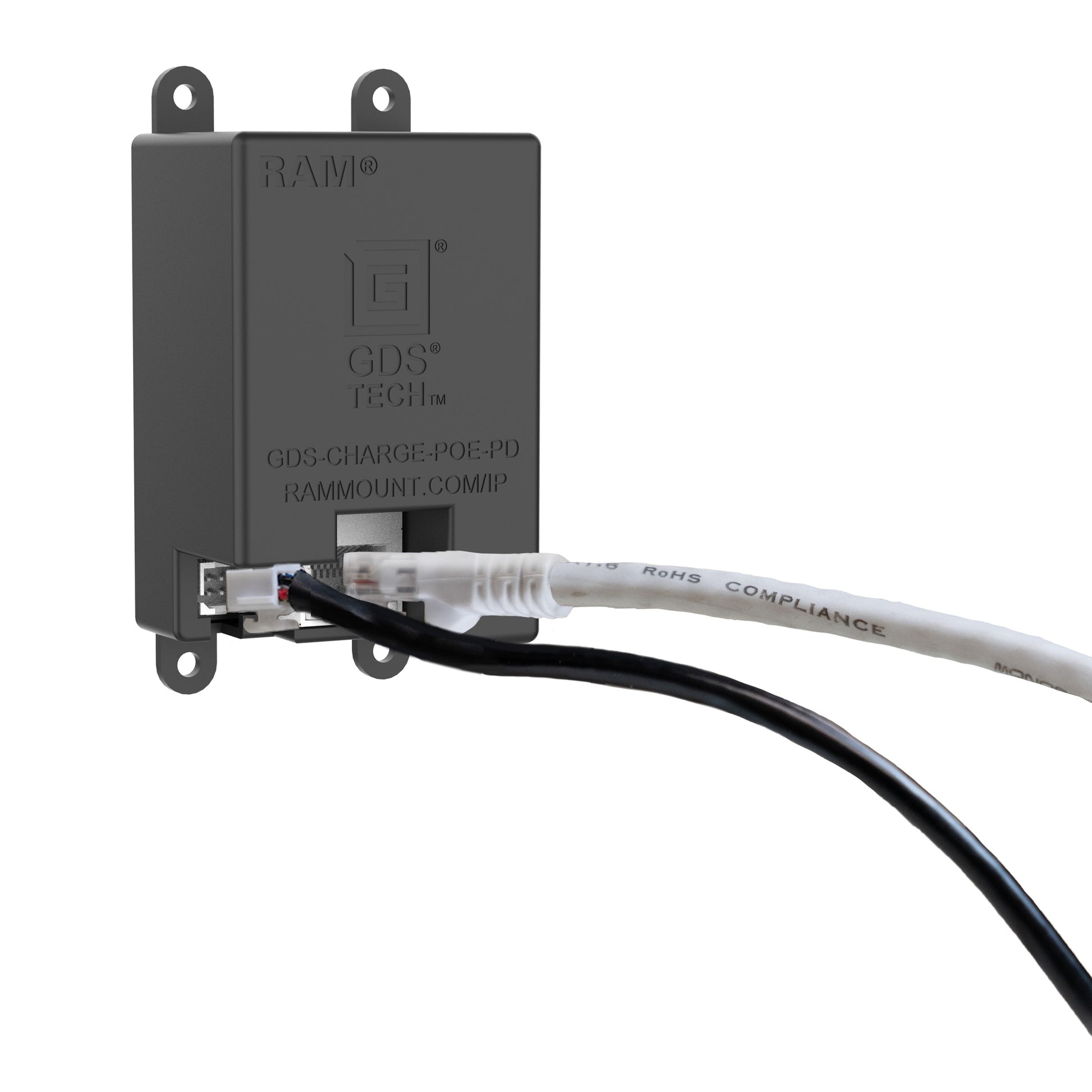

Hardware included: (1) RAM® PoE to PD Charging Module

Materials: Powder coated steel, High Strength Composite

Packaging type: Box

Power specifications: Required Input: POE+ (802.3at) or greater

Output voltage: PD 3.0: 5V @ 3A, 9V @ 2.22A, 12V @ 1.67A

Power output: 20W Max

Input connector: JST Male Connector

Input cable length: 1.5 Meters

Transfer speed: 10/100Mbps

Warranty: 3 year warranty

Weight: 3.0 lb
