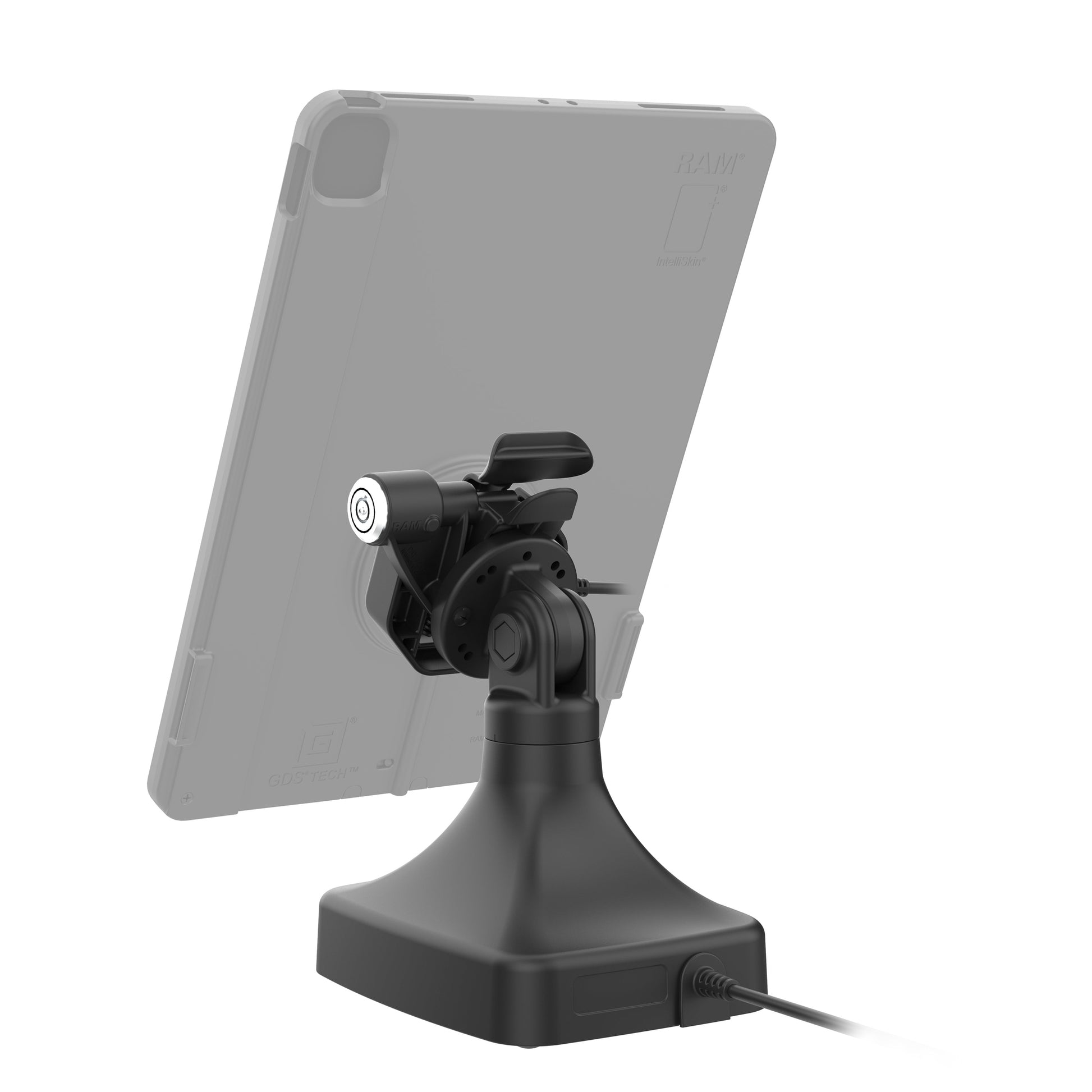

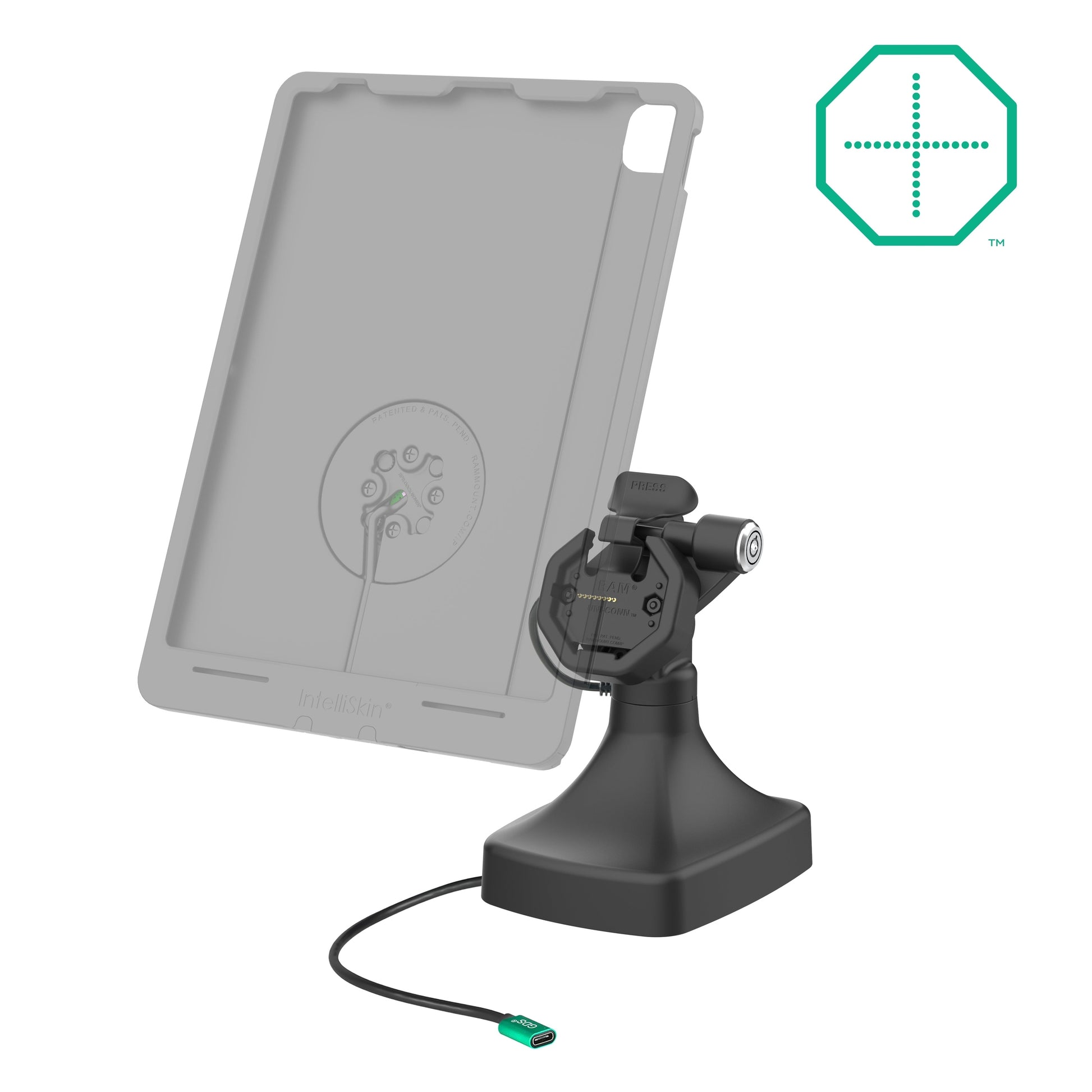

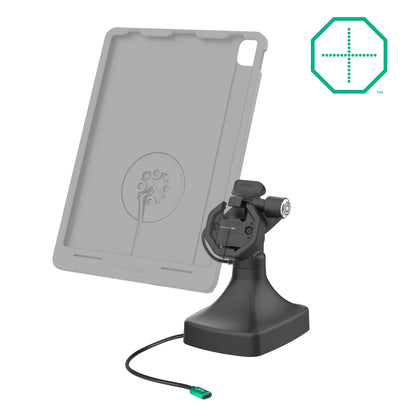

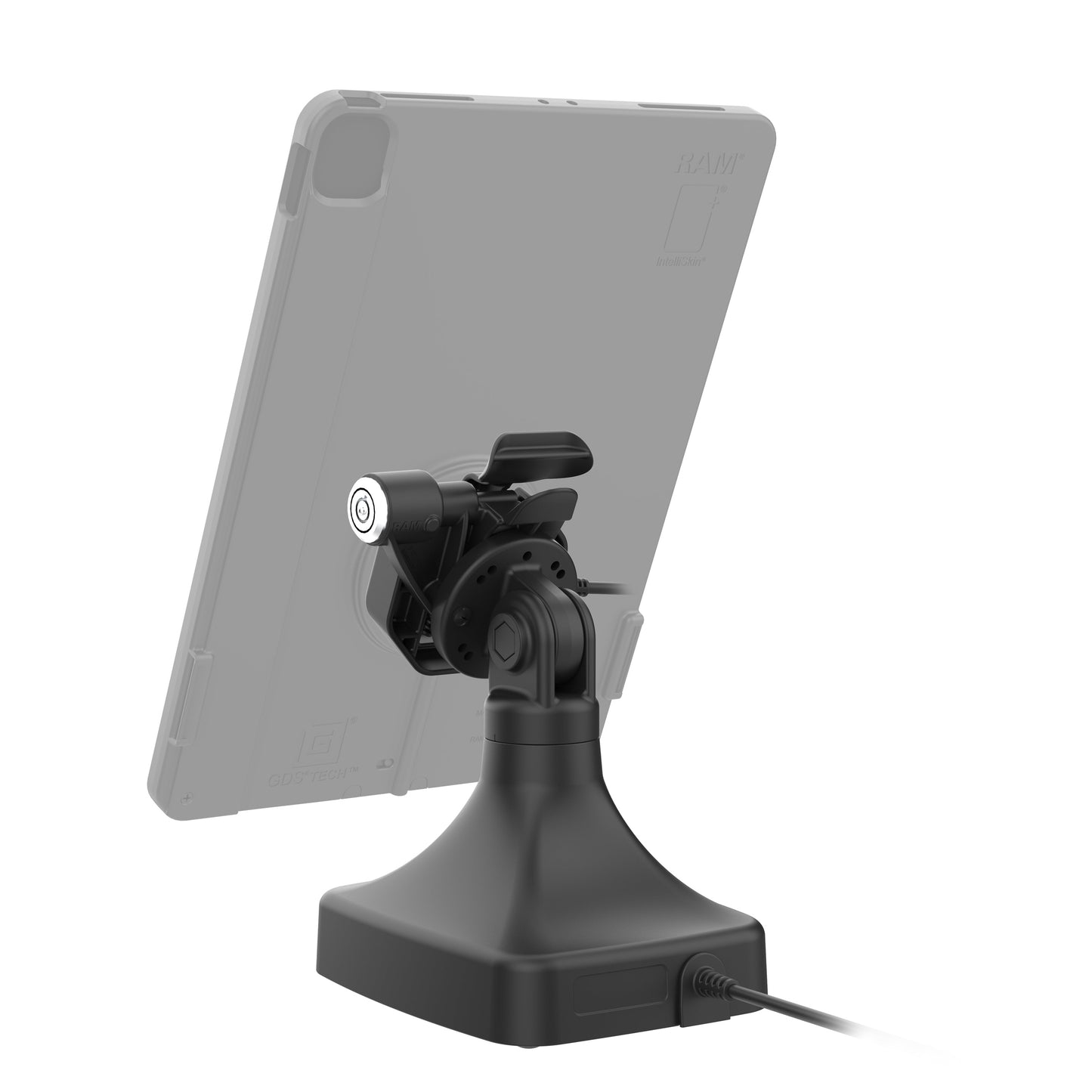

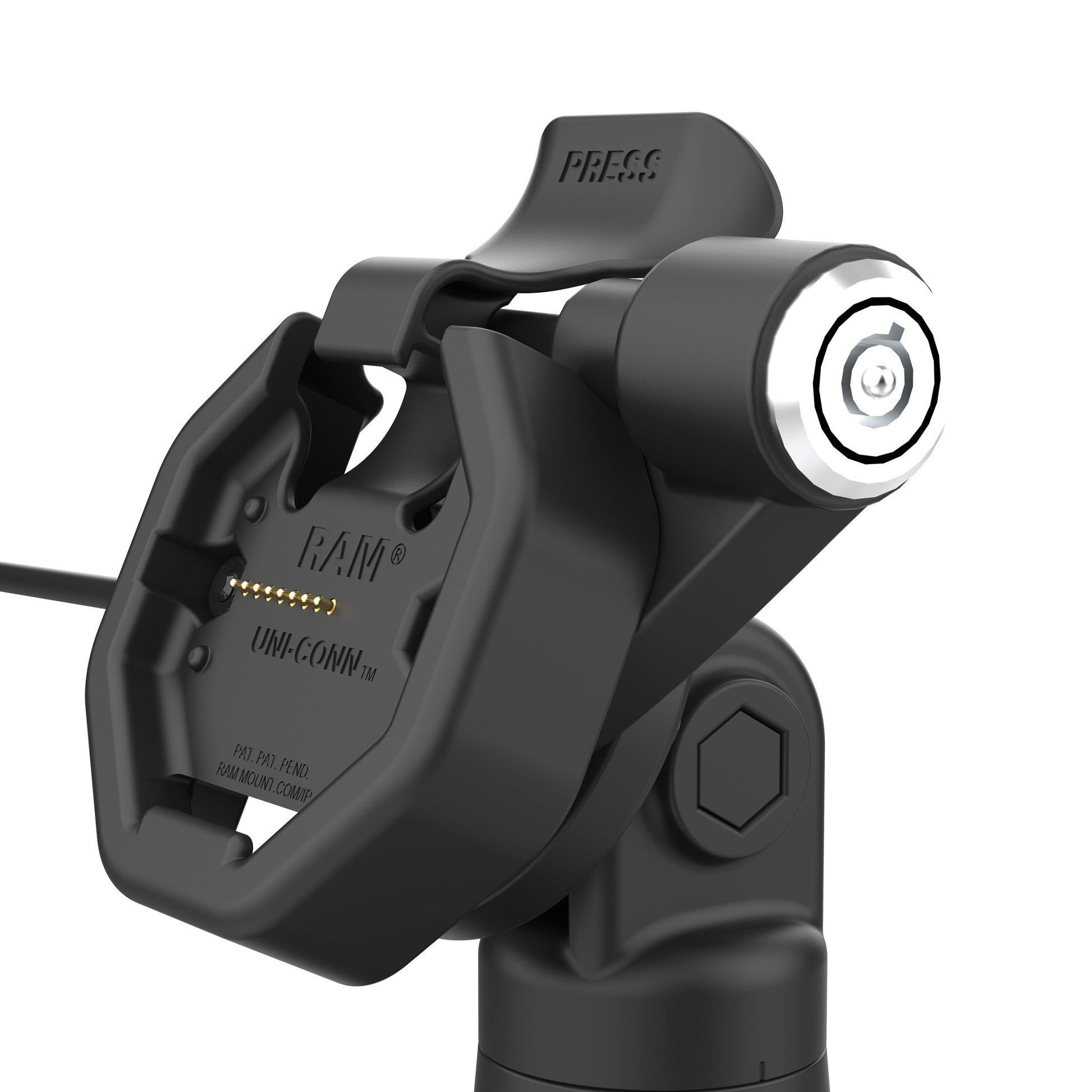

The GDS® Uni-Conn™ Powered Locking Tilt & Swivel Dock with USB-C (RAM-GDS-DOCKLR-D14-U3C) is a free-standing, powered dock for devices enclosed in an IntelliSkin® Thin-Case™ with Rear Pogo Pads. This solution can swivel 180 degrees and allows devices to tilt 180 degrees, ideal for customer-centric industries like retail, hospitality, food service, and more. Easily dock and undock your device with the assistance of the mechanical attachment mechanism. Power is provided to the pogo pins integrated into the GDS® Uni-Conn™ adapter via USB-C connection. This dock features a weighted base and rubber pads that offer theft deterrence and prevent it from sliding around on surfaces. Keep your device safe in high-traffic environments with the key lock, integrated to provide additional theft deterrence. One Dock to Connect Them All™ Always Protected. Always Connected.®
Features
- Key-locking, free-standing Kiosk dock for devices enclosed in an IntelliSkin® Thin-Case™ with Rear Pogo Pads

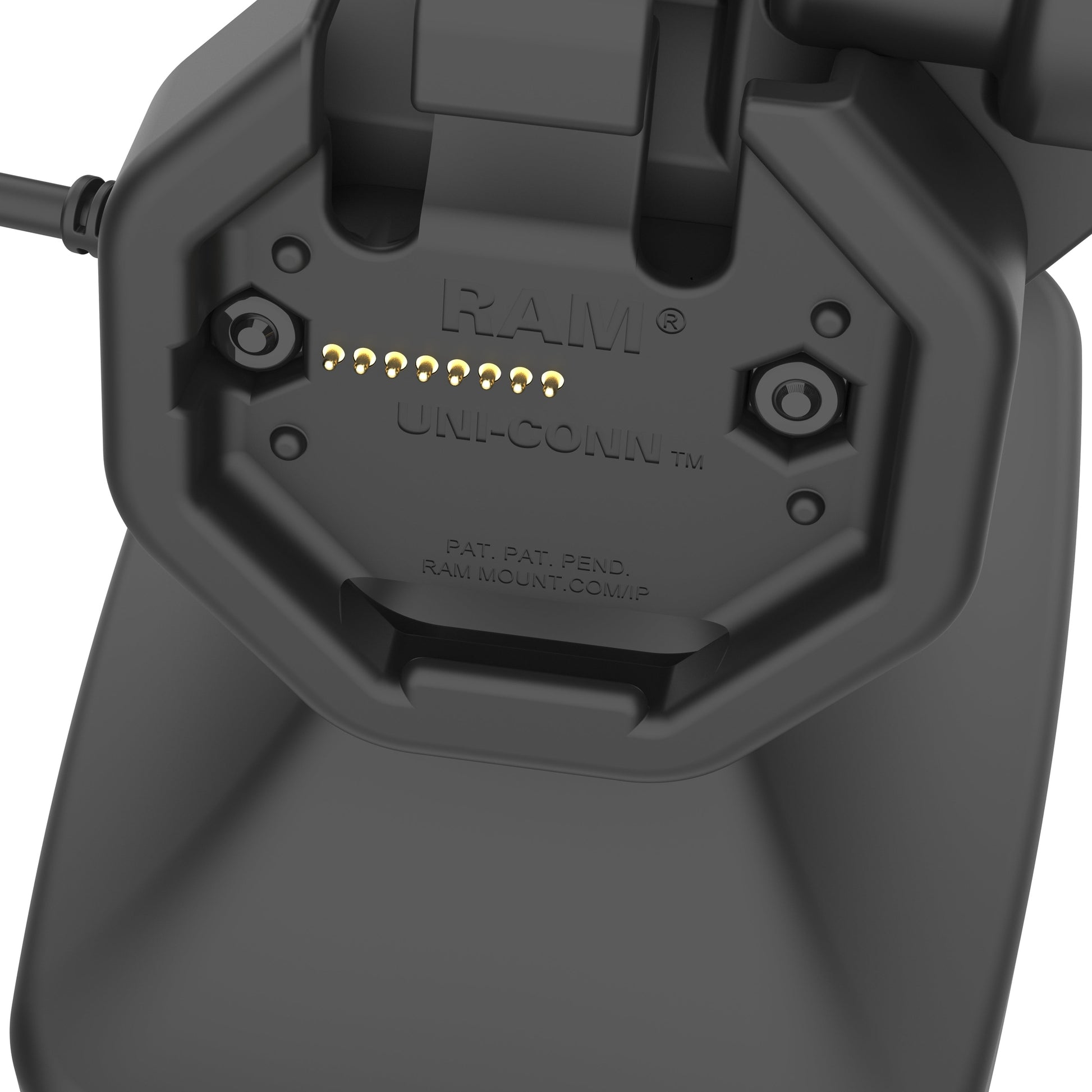

- GDS® connector and pogo pins provide charging via USB-C; Mechanical attachment mechanism allows for quick docking and undocking

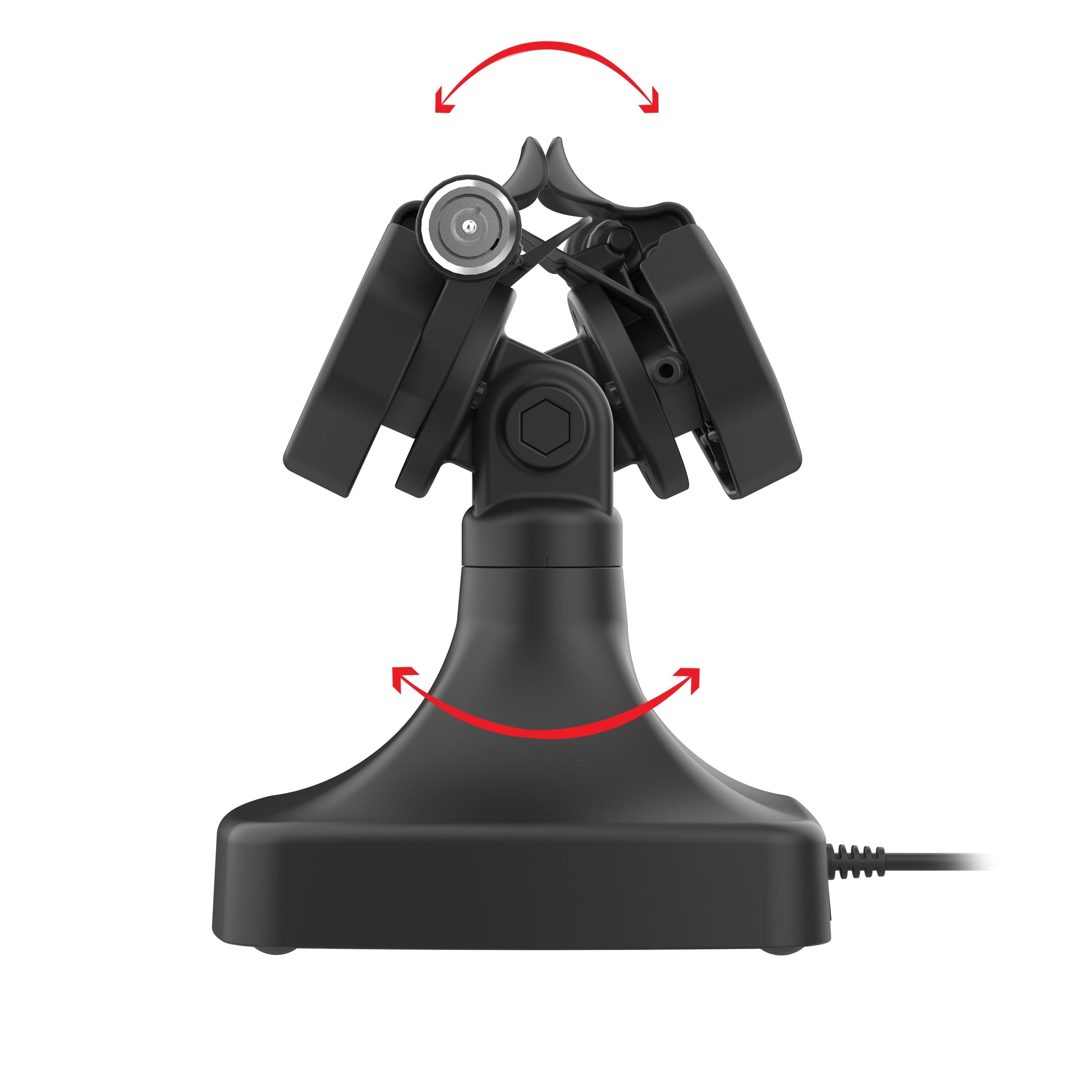

- Dock swivels 180 degrees and enables connected devices to tilt 180 degrees
- Weighted base with rubber pads prevents kiosk from moving
- Backed by a 3-year warranty
Specifications

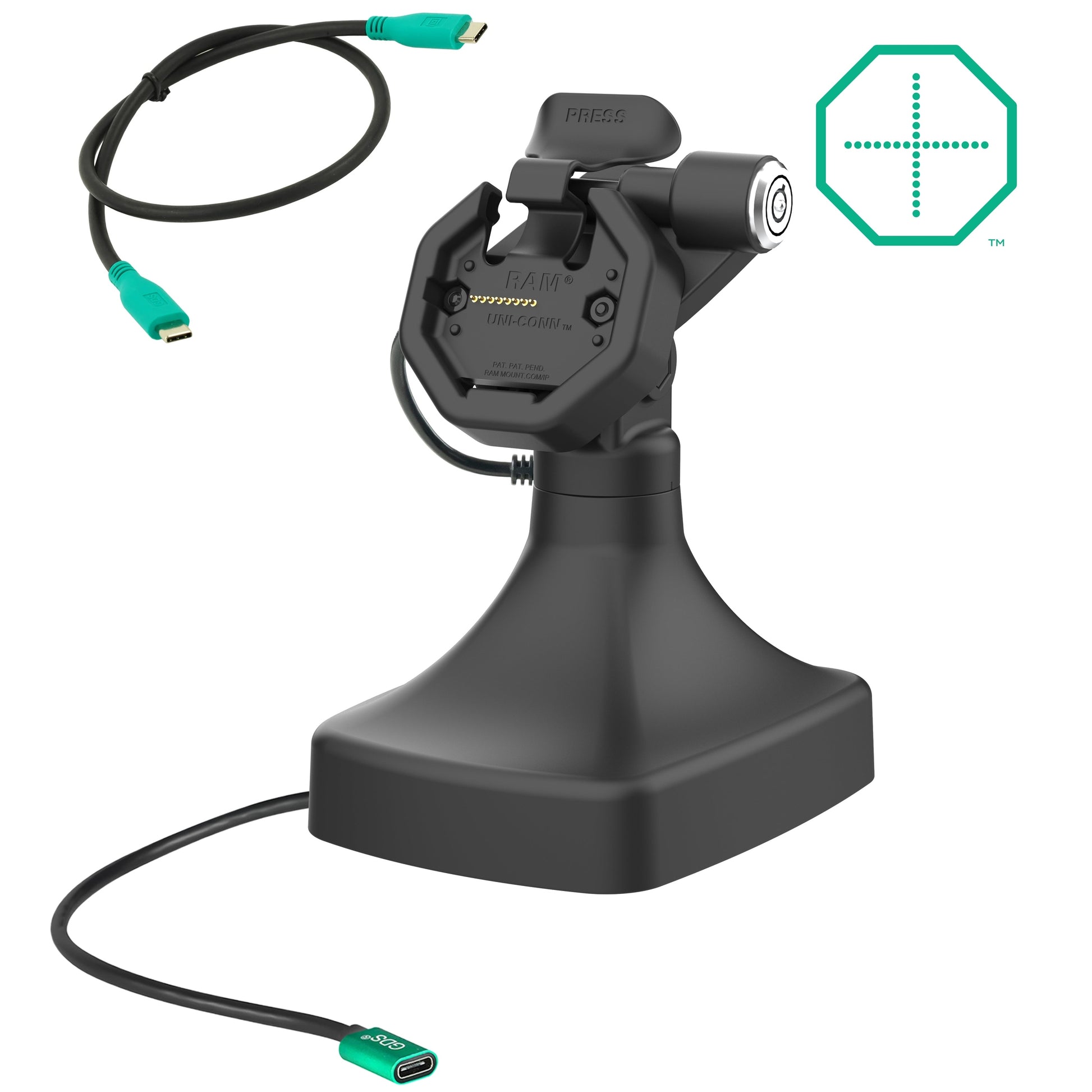

- Hardware included: (1) 1 Meter USB-C 2.0 Male to Male Cable

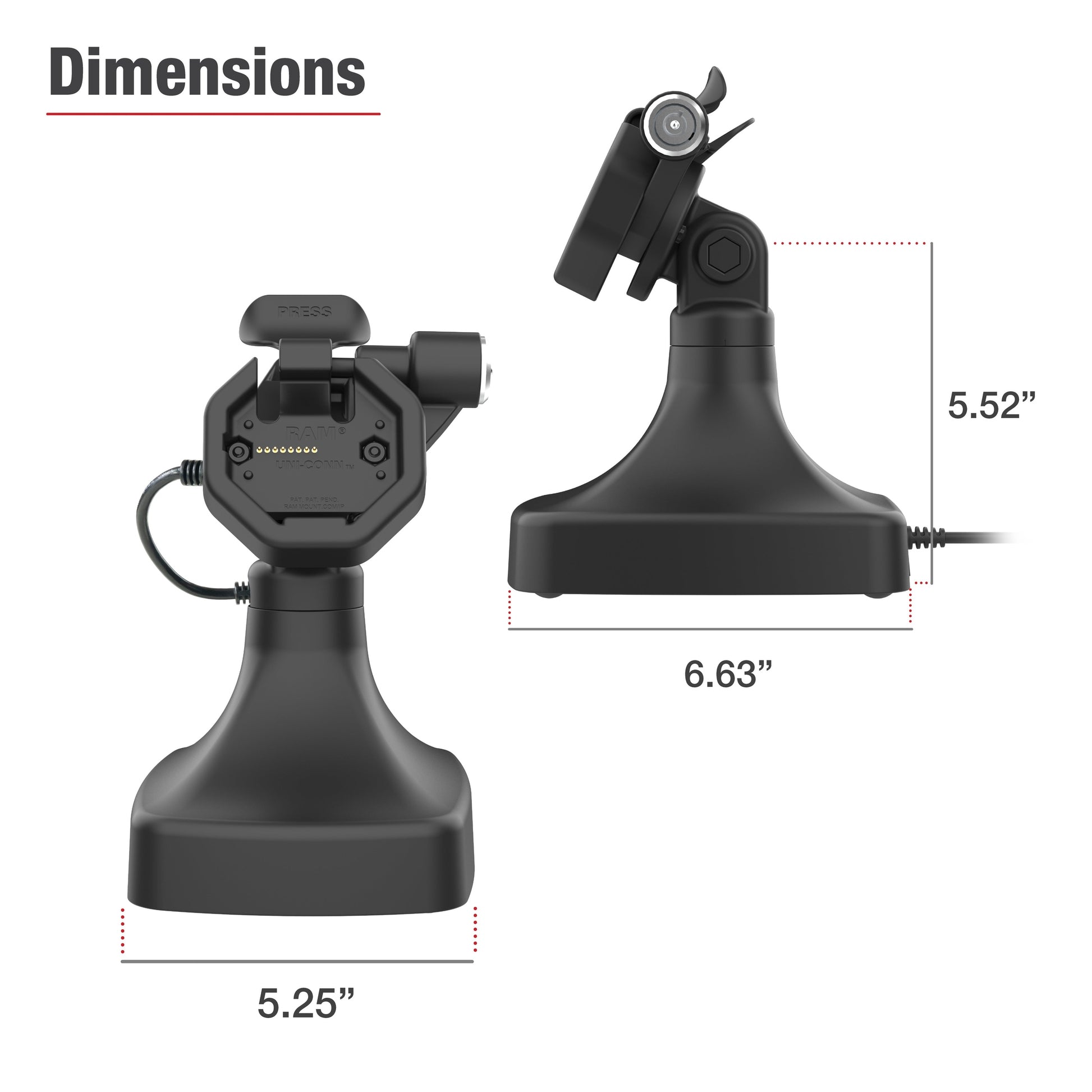

- Product dimensions: Height from Base to Tilt Bolt: 5.52", Base Width: 5.13", Base Depth: 6.63"
- Materials: High Strength Composite
- Packaging type: Box
- Output voltage: USB-C Tablets: 5V - 20V @ 3A Max, mUSB Tablets: 9V @ 1.67A Max
- Power output: 60W Max
- Input connector: USB Type-C Female
- Input cable length: 1.5 Meters
- Warranty: 3 year warranty
- Weight: 6.05 lb
