GDS® Uni-Conn™ Vehicle Bundle + Single USB-C for Samsung Tab A9+
GDS® Uni-Conn™ Vehicle Bundle + Single USB-C for Samsung Tab A9+
Couldn't load pickup availability
Share
- Description
Overview

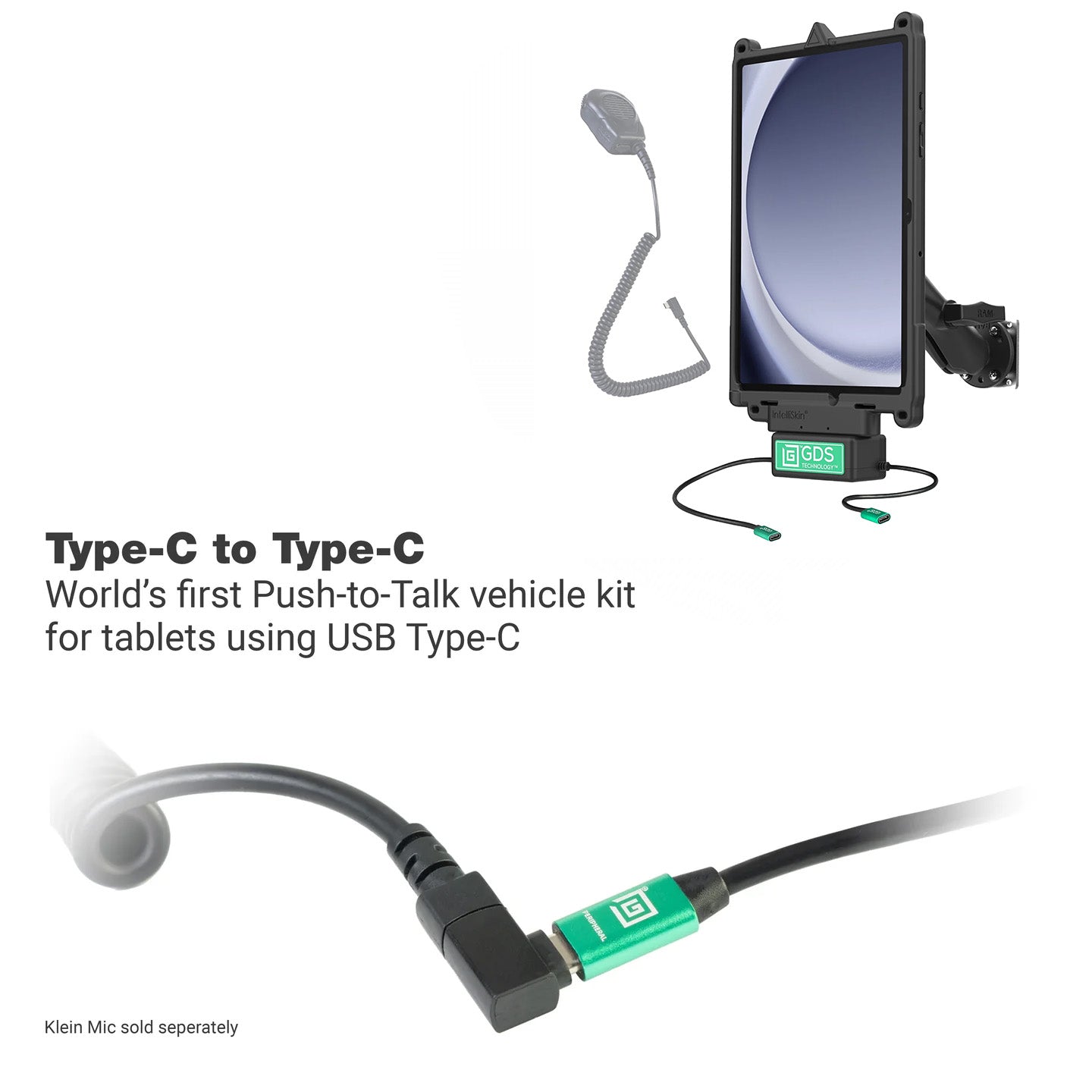

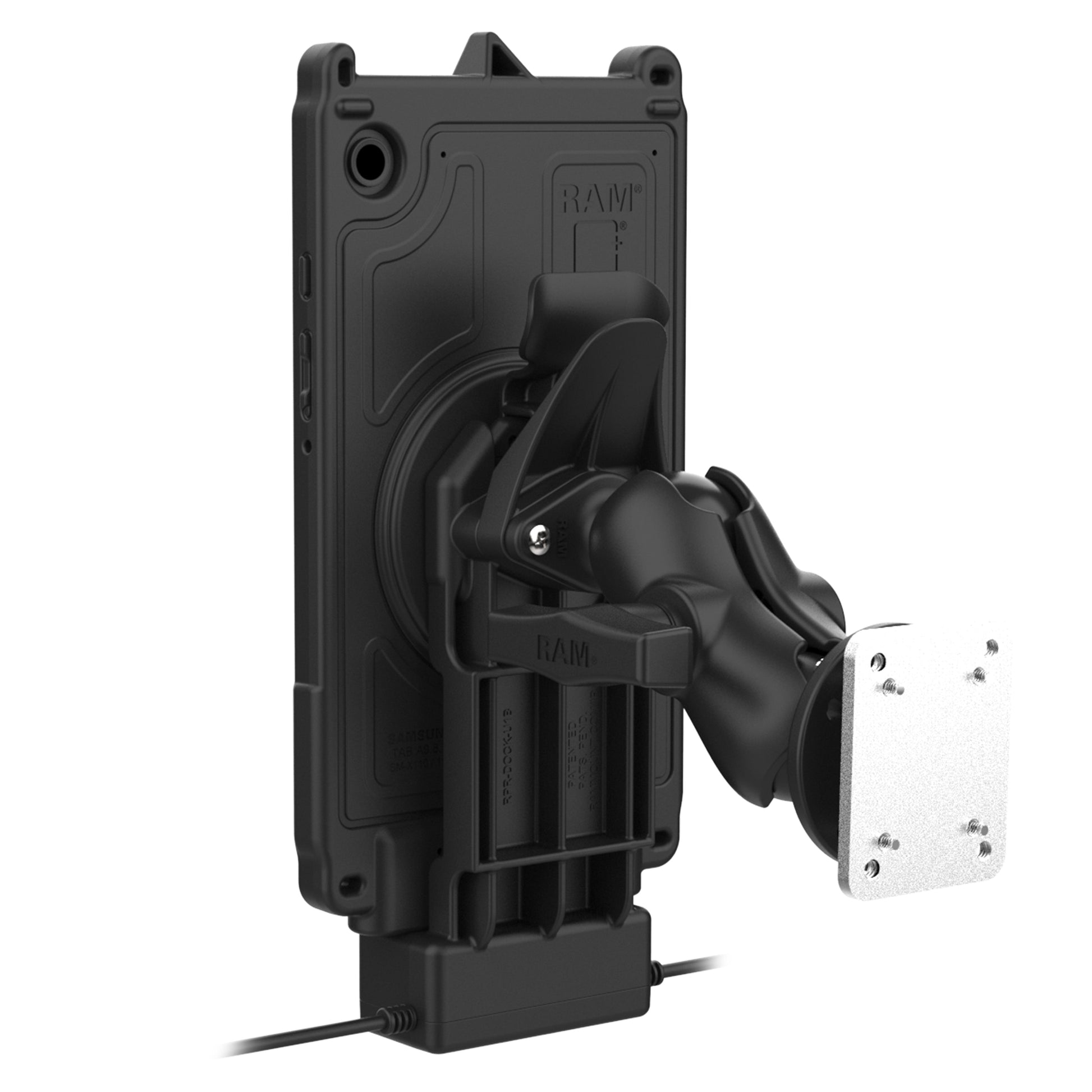

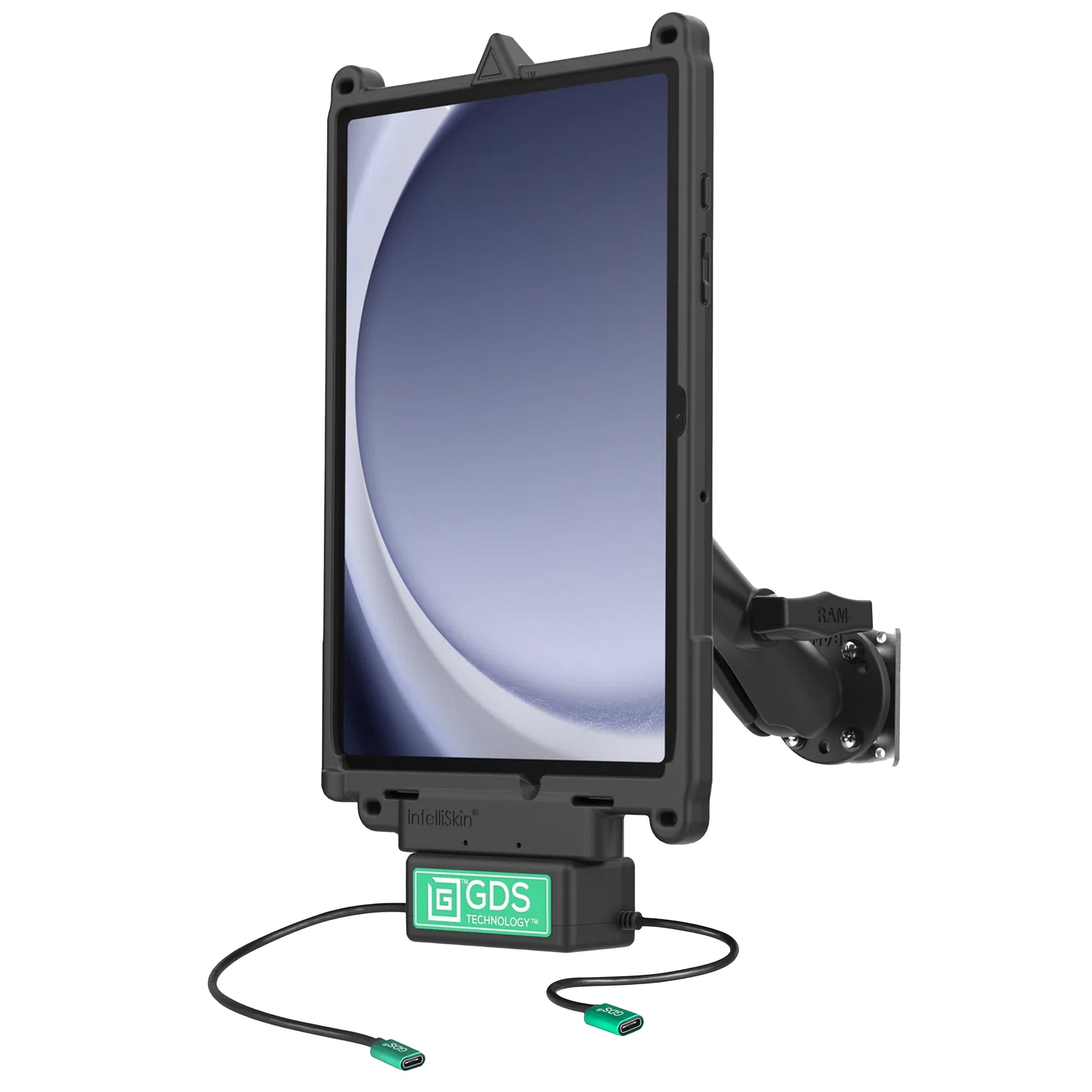

The GDS® Uni-Conn™ Vehicle Bundle + Single USB-C for Samsung Tab A9+ (RAM-GDS-U1-SAM88-KIT4) is the world's first vehicle dock capable of facilitating push-to-talk communications via a USB Type-C connection. This bundle is a comprehensive kit of everything needed to deploy the Tab A9+ in your fleet. It contains one GDS® Uni-Conn™ dock, Uni-Conn™ adapter, IntelliSkin® for the Tab A9+, and short double ball mount with backing plate. The dock uses a USB Type-C female power connector while the USB-C pigtail allows you to connect one input device such as a mouse, keyboard, scanner gun, & more. The integrated pogo pins connect to the IntelliSkin®-wrapped device, providing power while docked. This dock features an easy docking and undocking process, simply place the IntelliSkin®-wrapped device into the base of the dock and push it to snap into place. When undocking, a simple push of a lever releases the tablet. This Push-to-Talk Bundle is only compatible with ESChat and Zello. The GDS® Uni-Conn™ is backed by a 3-year warranty. Warranty is void if the lever stop is not installed. Always Protected. Always Connected.® One Dock to Connect Them All™
Features

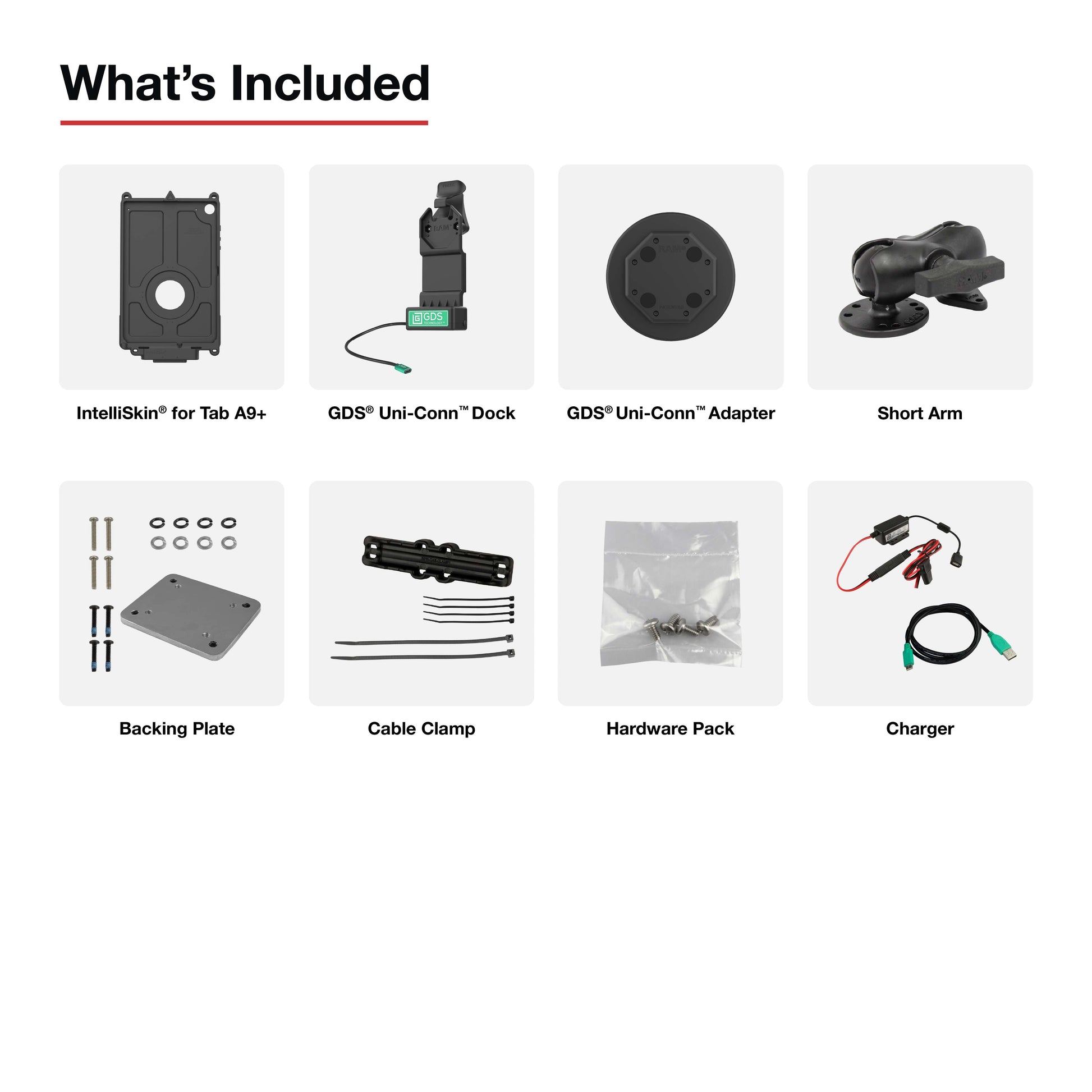

- Bundle includes the GDS® Uni-Conn™ dock, Uni-Conn adapter, IntelliSkin® Next Gen for Samsung Tab A9+, C size double ball mount with short arm, backing plate adapter, and cable clamp
- Dock features GDS® Technology™ for charging and data sync capabilities; one USB-C port connects to power and one USB-C port connects one input device
- Capable of Push-To-Talk via USB Type-C connection
- RAM® Mounts Compatible™ and compatible with the GDS® Uni-Conn™ Adapter with Hand Strap
- Backed by a 3-year warranty
Specifications
Assembly Hardware
(1) 2.10" x 2.60" Steel Backing Plate
(4) #8-32 x 1" Screws
(4) #8 Split Lock Washers
(4) #8 Flat Washers
(2) Cable Clamps
(1) Vehicle Hardwire Charger
Socket to socket length: 2.5"
Ball size: C Size (1.5")
Materials: Steel, Marine-grade aluminum, High strength composite
Packaging type: Box
Input voltage: 10-30VDC
Output voltage: 5-9VDC*
Output current: 2.5A max
Input connector: USB Type-C, USB Type-C for 1 Peripheral
Input cable length: 215mm
Output cable length: 215mm
Peripheral output: 500mA
Operating temperature: -10°C to +70°C
Storage temperature: -40°C to +70°C
Regulatory: Over Voltage Protection, Short Circuit Protection, Reverse Polarity Protection, RoHS Compliance, WEEE Compliance, SAE J-1113-5 Load Dump (Transient Voltage), Moisture Resistant, FCC, CE, UKCA, IC
Certifications: E-Mark Certification, RCM Certification, IEC/UL 62368-1
Weight: 3.96 lb
