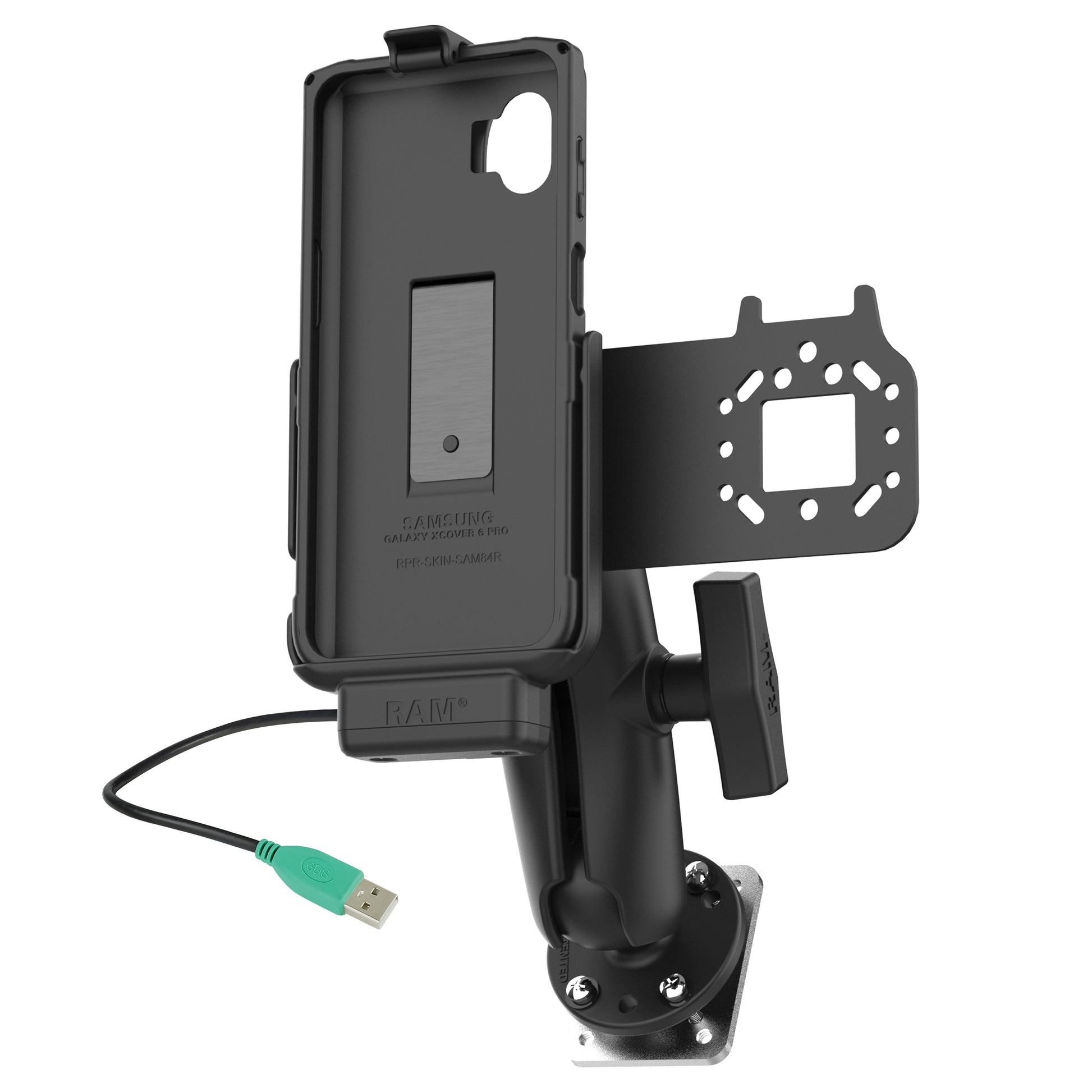

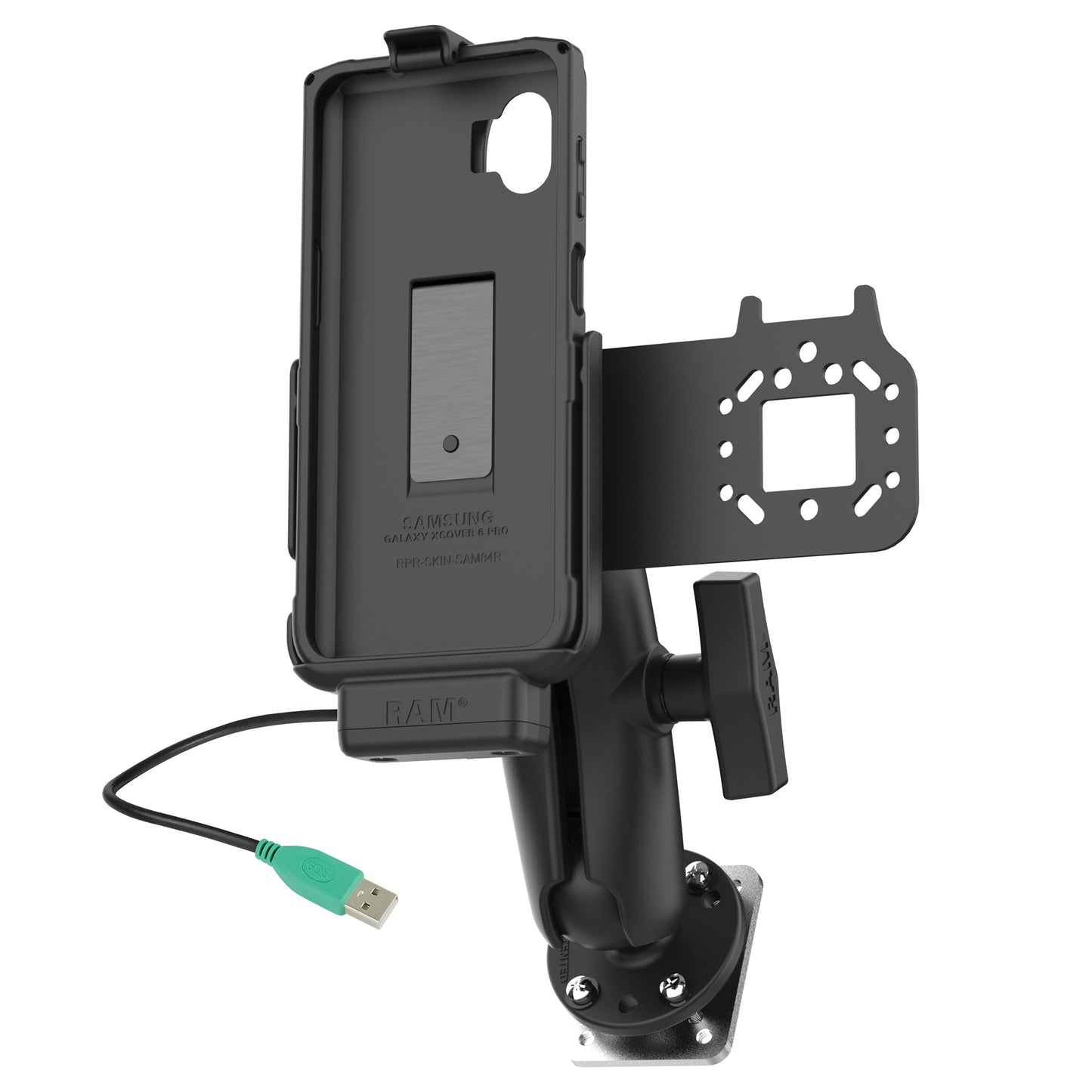

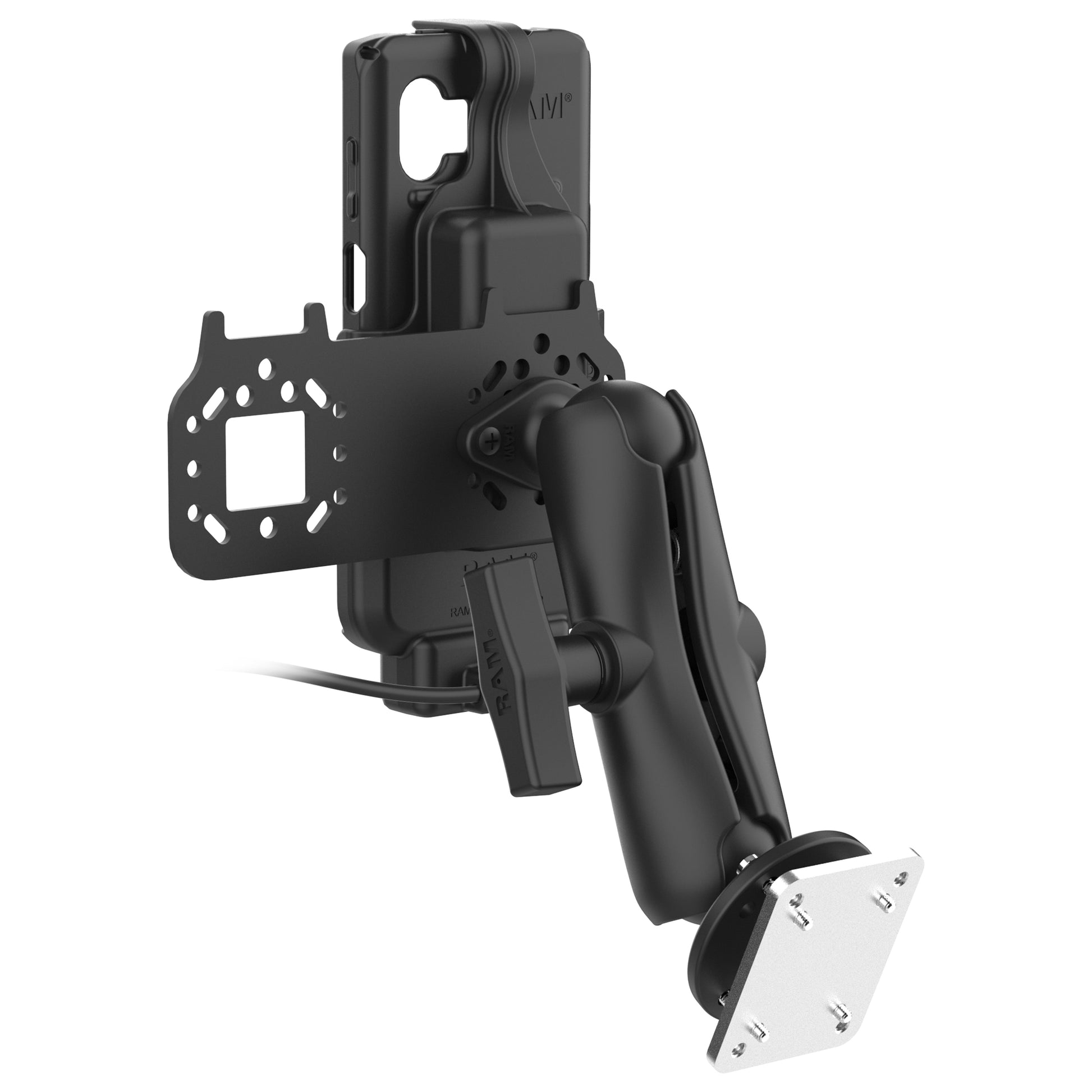

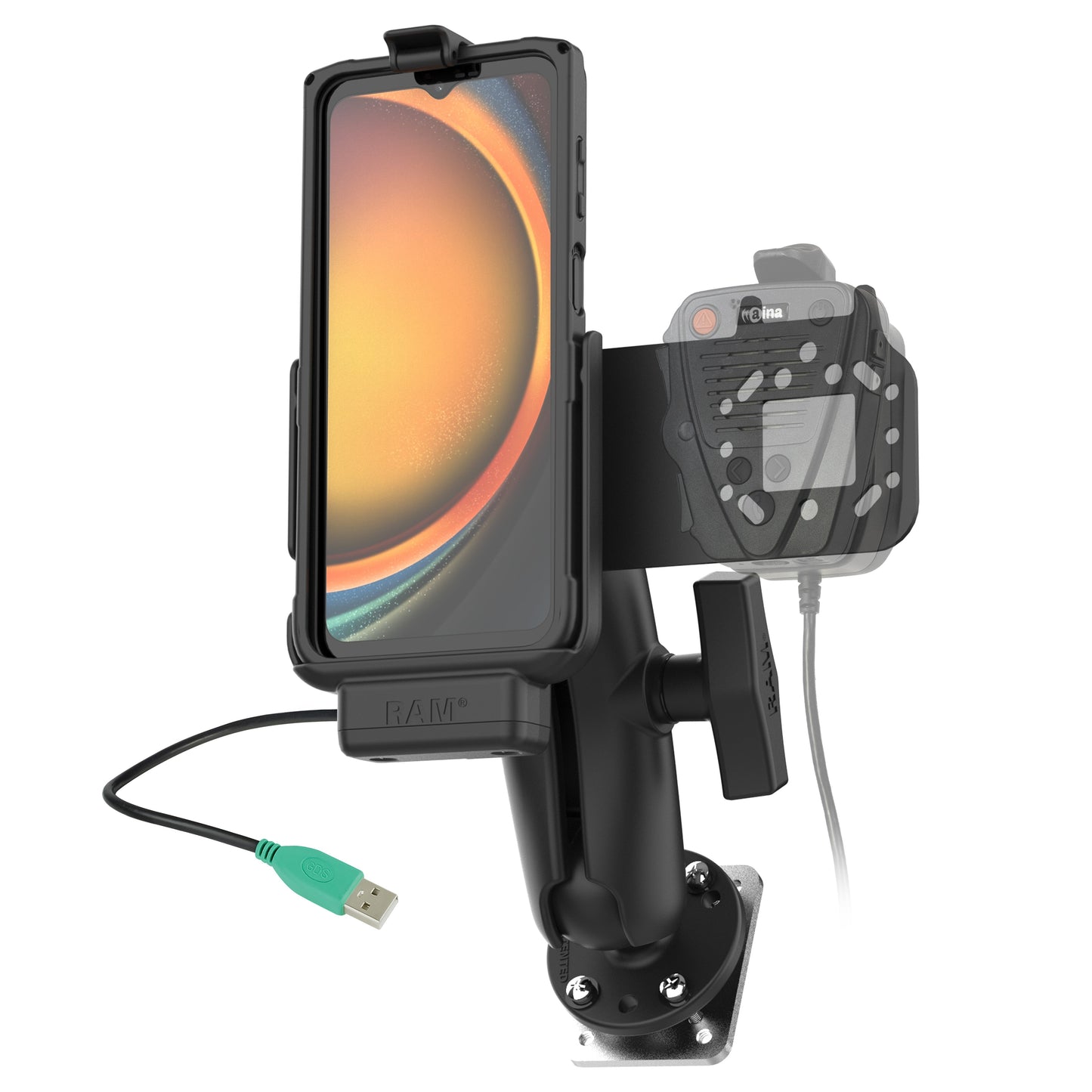

RAM® Aina PTT Voice Responder Bundle for Samsung XCover7 Pro & 6 Pro
RAM® Aina PTT Voice Responder Bundle for Samsung XCover7 Pro & 6 Pro
Couldn't load pickup availability
Share

- Description
Overview
The RAM® Aina PTT Voice Responder Bundle for Samsung XCover7 Pro & 6 Pro (RAM-101-SAM84CP-PTT1) is a rugged, all-in-one Push-To-Talk (PTT) mounting solution designed to seamlessly integrate the XCover7 Pro & 6 Pro into mission-critical workflows. Ideal for field operations, public safety, and fleet management, this bundle includes a RAM® EZ-Roll'r™ Dock, RAM® Skin™, microphone bracket, two hardwire chargers, SAE splitter, and double ball mount with backing plate for secure in-vehicle installation. The dock features a USB Type-A male power connector for direct connection to the hardwire charger, while the AINA Vehicle Charging Cradle connects plugs directly into the second hardwire charger for power. Bluetooth-enabled Push-To-Talk communication is supported exclusively through AINA's Voice Responder Remote Speaker Microphone (RSM), offering reliable wireless connectivity in demanding environments. Integrated pogo pins on the dock provide connect directly to the pogo pads integrated on the device, ensuring optimal uptime and device readiness. This PTT bundle is optimized for use with ESChat. Zello, and Kodiak, making it a powerful communication hub for modern mobile teams.
Features

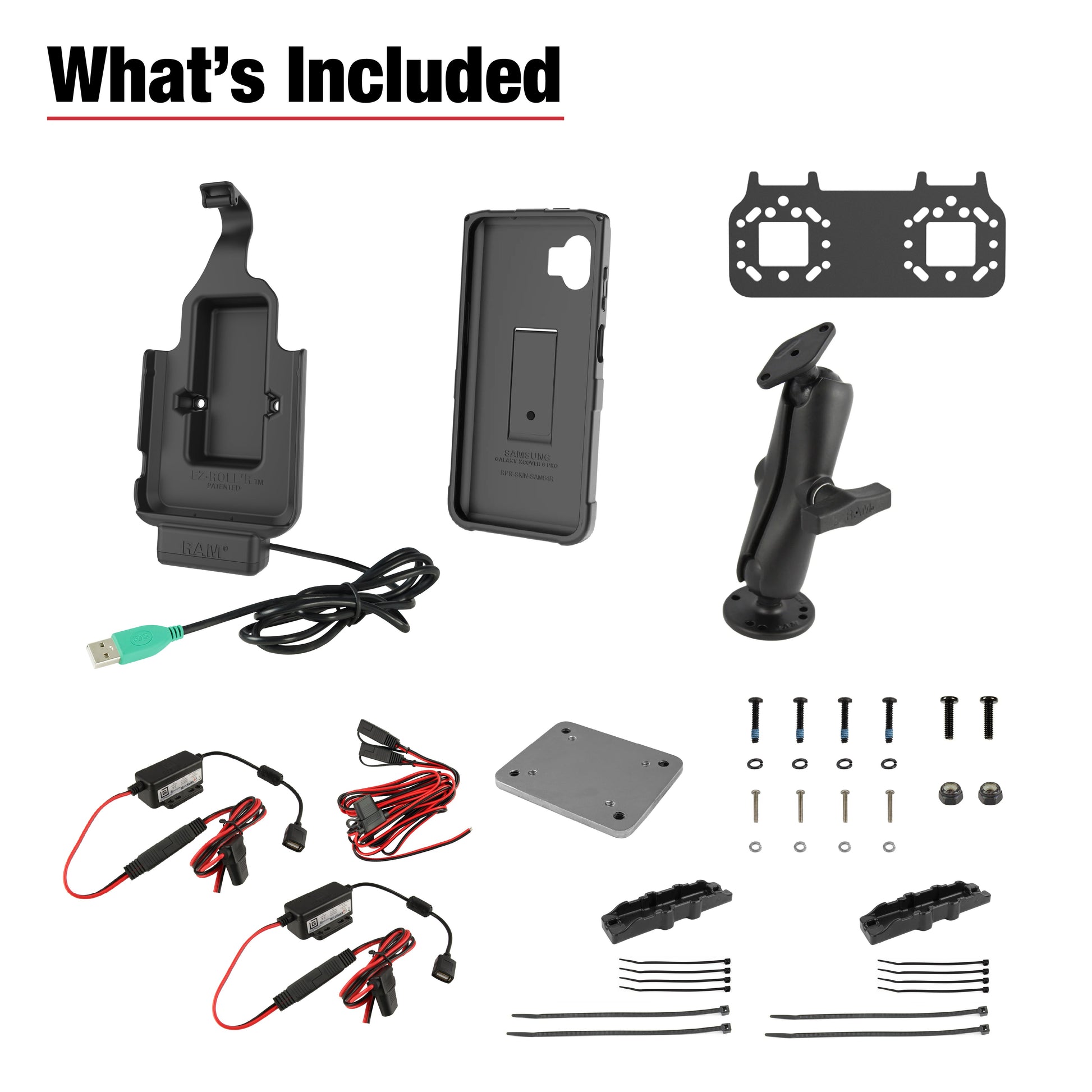

- Bundle includes RAM® EZ-Roll'r™ Dock, RAM® Skin™ microphone bracket, two hardwire chargers, SAE splitter, and double ball mount with backing plate
- Dock's pogo pins align with device's pogo pads for charging capabilities, USB-C port connects to power
- AINA's Voice Responder RSM and Vehicle Cradle recommended for bluetooth PTT
- Made of high-strength composites for durability and reliability in the most demanding environments
- Backed by a 3-year warranty
Specifications
hardware included: Assembly Hardware, Mic Bracket, (2) Hardwire Chargers with USB-A Female Connector, SAE Splitter Cable, (2) Cable Clamps, Dashboard Backing Plate with Hardware
socket to socket length: 4.66"
hole pattern: 4-Hole AMPS: 1.181" x 1.496"
ball size: C Size (1.5")
weight capacity: Standard Use: 4 lbs, Heavy-Duty Use: 3 lbs
materials: Steel, Marine-grade aluminum, High strength composite
packaging type: Box
input voltage: 10-30VDC (Both Chargers)
output voltage: 5-9VDC @ 2.5A (Both Chargers)
input connector: Bare Wire (via SAE Splitter)
output connector: USB-A Female
regulatory: Over Voltage Protection, Short Circuit Protection, Reverse Polarity Protection, RoHS Compliance, WEEE Compliance, SAE J-1113-5 Load Dump (Transient Voltage), Moisture Resistant, FCC, CE, UKCA, IC
certifications: E-Mark Certification, RCM Certification, IEC/UL 62368-1
Weight: 4.48 lb
