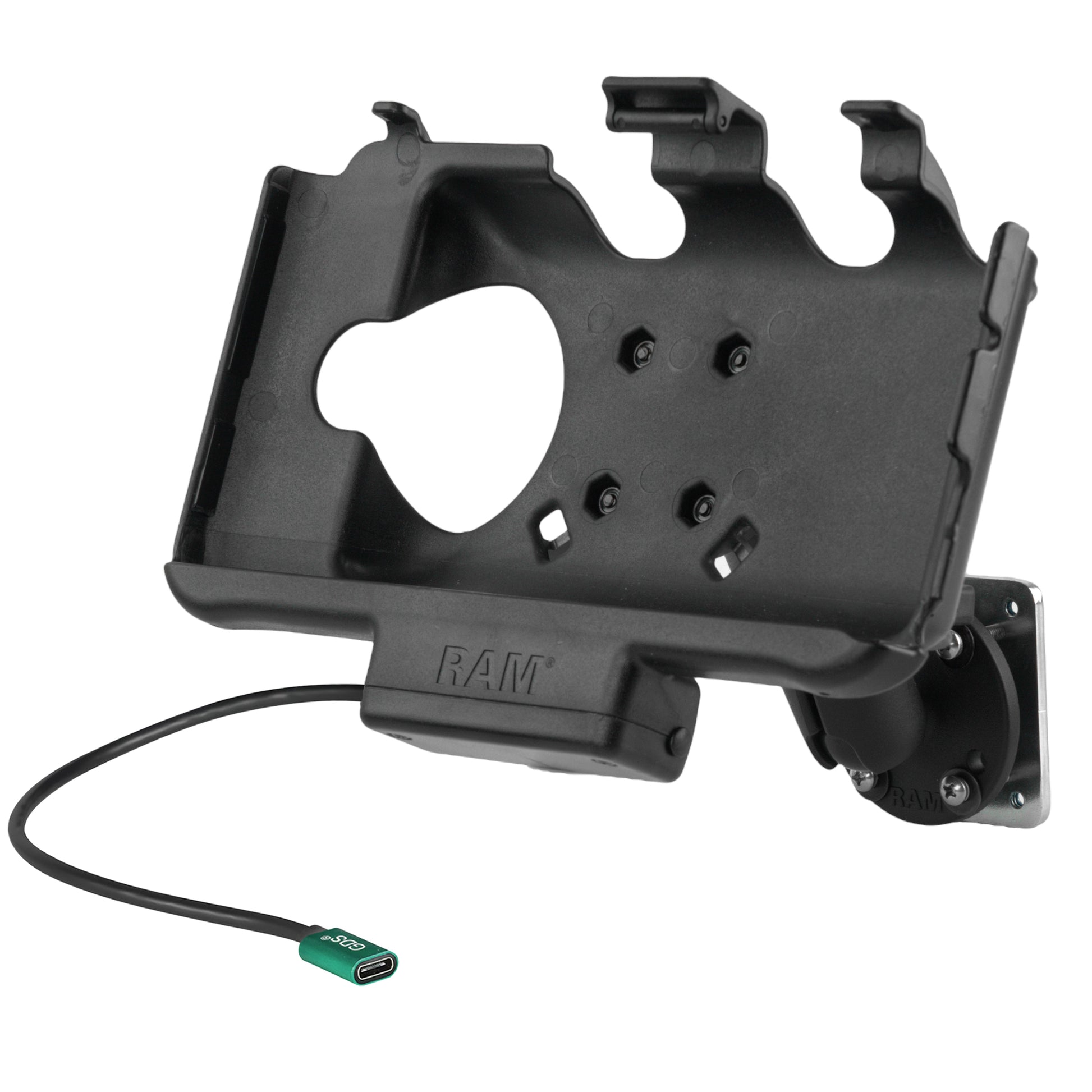

RAM® EZ-Roll'r™ USB-C Powered Mount for Samsung Tab Active5 & 3
RAM® EZ-Roll'r™ USB-C Powered Mount for Samsung Tab Active5 & 3
Couldn't load pickup availability
Share
- Description

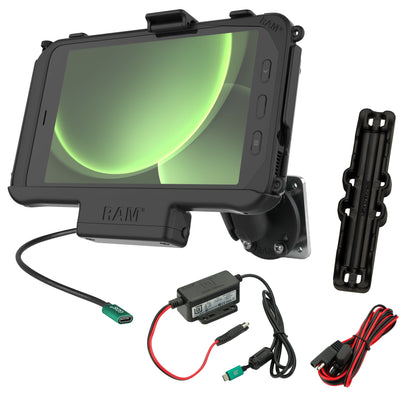

RAM® Mounts has partnered with Samsung to develop a powered cradle for the Samsung Galaxy Tab Active5, Tab Active3 & 2. Compatible with the Samsung OEM case as well as the RAM® Skin™, this cradle has been designed to meet the demands of field workers in a variety of applications including transportation, field sales, logistics, manufacturing, and much more. This ultra-low cost cradle provides power to the device through the pogo pin interface on the tablet and can be easily rotated for both portrait and landscape operation of the device. This complete mounting kit includes a 2.10" x 2.60" steel backing plate with #8-32 threaded holes, two 2.5” round ball plates, medium length double socket arm, and a GDS® modular hardwire charger – an ideal solution for providing power to the Galaxy Tab Active5, 3 & 2.
Features
- RAM® EZ-Roll'r™ Powered form-fit cradle provides charging capabilities for the Samsung Galaxy Tab Active5, Tab Active3 and 2 through integrated pogo pin connector and USB-C cable
- Compatible with the Samsung OEM skin as well as the RAM® Skin™; built-in cavity in the back allows for GDS® Hand-Stand™ compatibility
- Access to speakers, mics, and headphone jack remain while device is docked; allows access to the GDS® shoulder strap loops on RAM® Skin™
- Backed by a 3-year warranty
Specifications

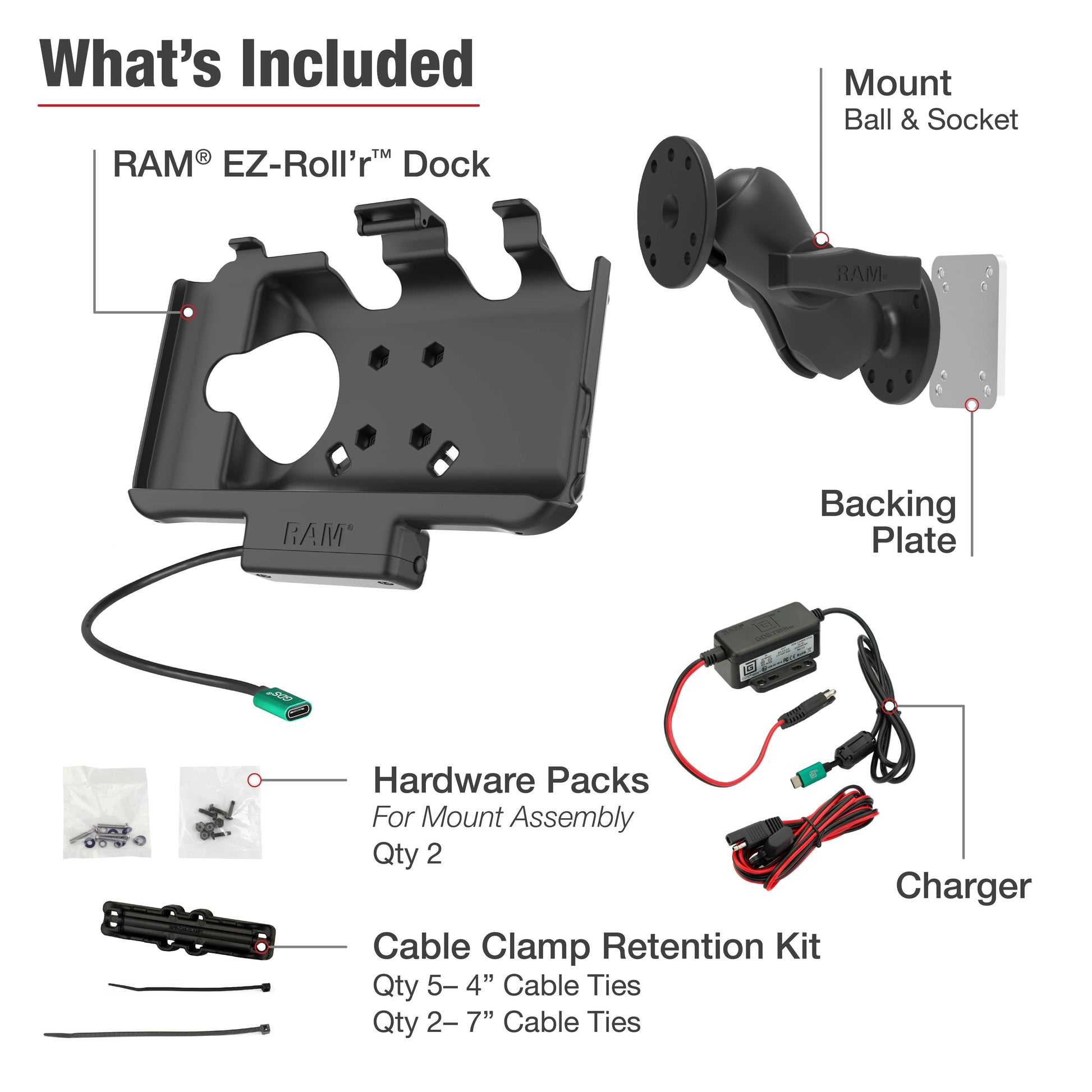

Assembly Hardware
(1) 2.10" x 2.60" Steel Backing Plate
(4) #8-32 x 1" Screws
(4) #8 Split Lock Washers
(4) #8 Flat Washers
(1) Cable Clamp
(1) Hardwire Charger
Socket to socket length: 3"
Ball size: C Size (1.5")
Weight capacity: Standard Use: 4 lbs, Heavy-Duty Use: 3 lbs
Materials: Steel, Marine-grade aluminum, High strength composite
Packaging type: Poly Bag
Input voltage: 5.3-5.4VDC
Output voltage: 5VDC
Power output: 500mA
Input connector: USB Type-C Female
Input cable length: 215mm
Operating temperature: -10°C to +70°C
Storage temperature: -40°C to +70°C
Regulatory: Overvoltage/Load Dump Compliance: Meets SAE J-1113, FCC, CE, UKCA, IC
Certifications: E-Mark Certification, Integrated Short Circuit Protection, WEEE and RoHS Compliant, USB 2.0 BC 1.2 DCP Support, IEC/UL 62368-1
Weight: 2.25 lb
