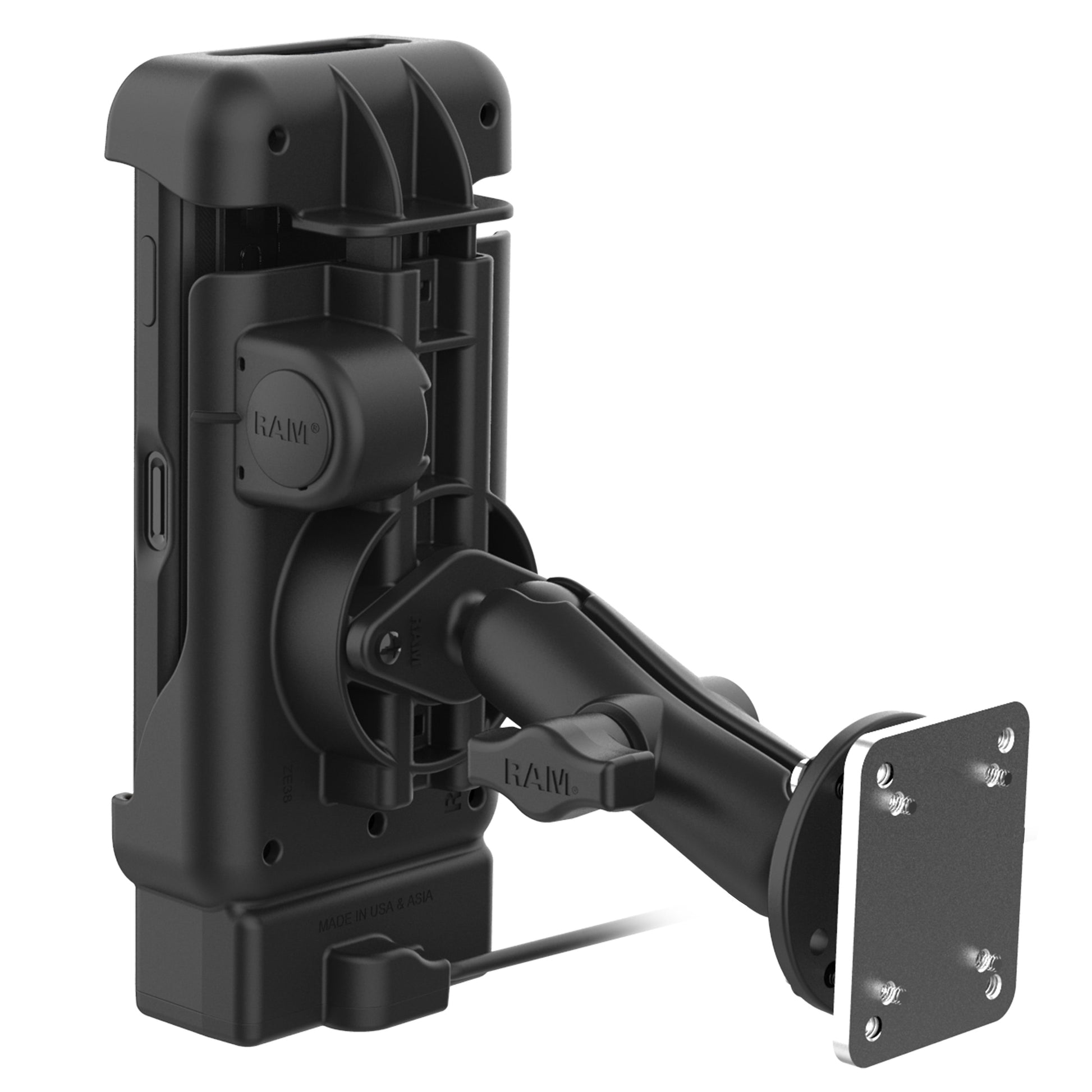

RAM-B-101-225B2-ZE38-V3C-2U RAM® Powered Dock & Dashboard Mounting Kit for Zebra EM45
RAM-B-101-225B2-ZE38-V3C-2U RAM® Powered Dock & Dashboard Mounting Kit for Zebra EM45
Couldn't load pickup availability
Share
- Description
Overview
The RAM® Powered Dock & Dashboard Mounting Kit for Zebra EM45 (RAM-B-101-225B2-ZE38-V3C-2U) is a comprehensive kit of everything needed to deploy the Zebra EM45 in your fleet. It contains one RAM® Powered Vehicle Dock and double ball mount with backing plate. The dock uses a USB Type-C female power connector and provides power to the device via direct USB-C connection that's tested for more than 250,000 cycles. The spring-loaded design of this dock allows for a quick one-handed insertion or removal of your device while the precise design of the dock body minimizes human error and port damage when docking the device onto the USB-C male connector. The RAM® Vehicle Dock is backed by a 3-year warranty.
Features

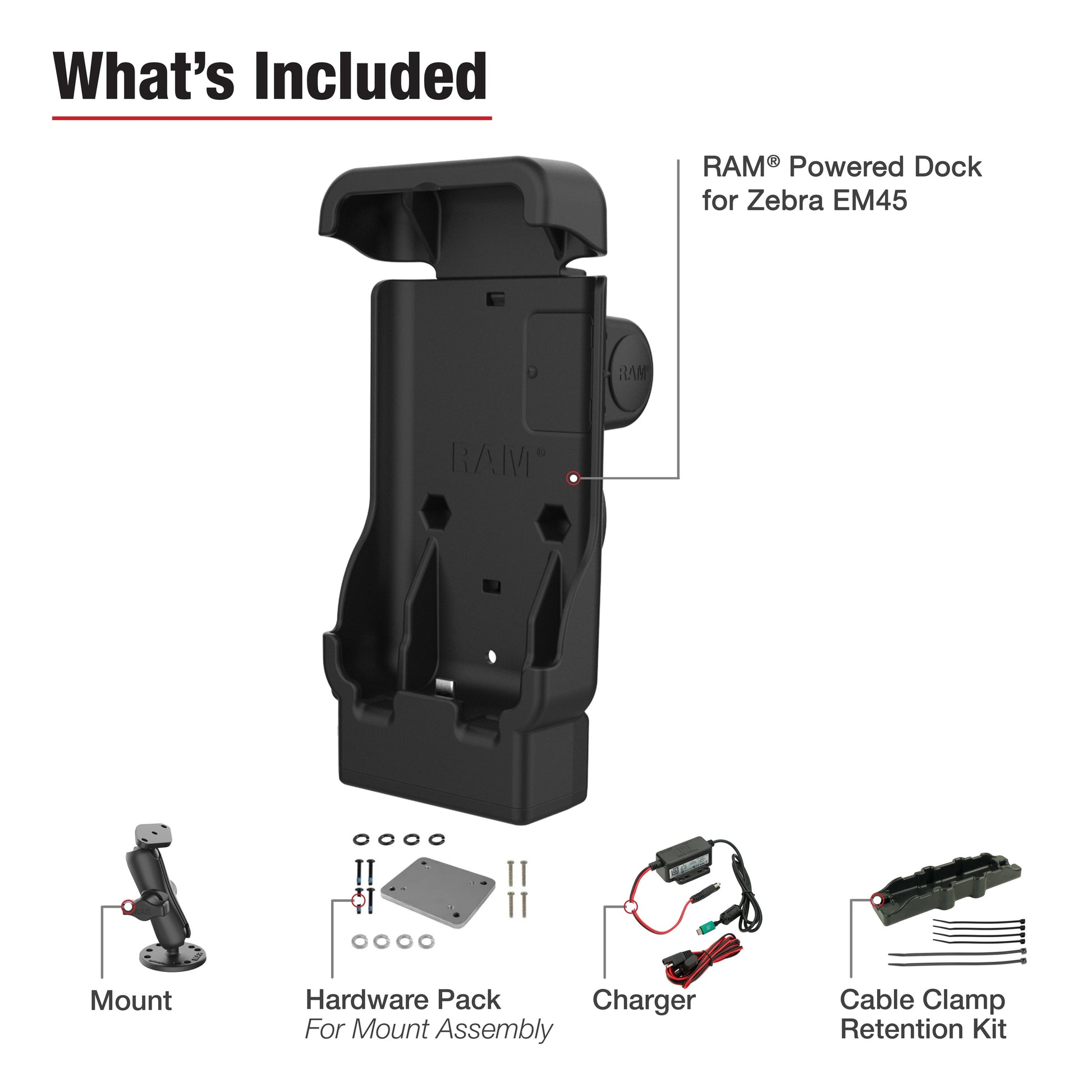

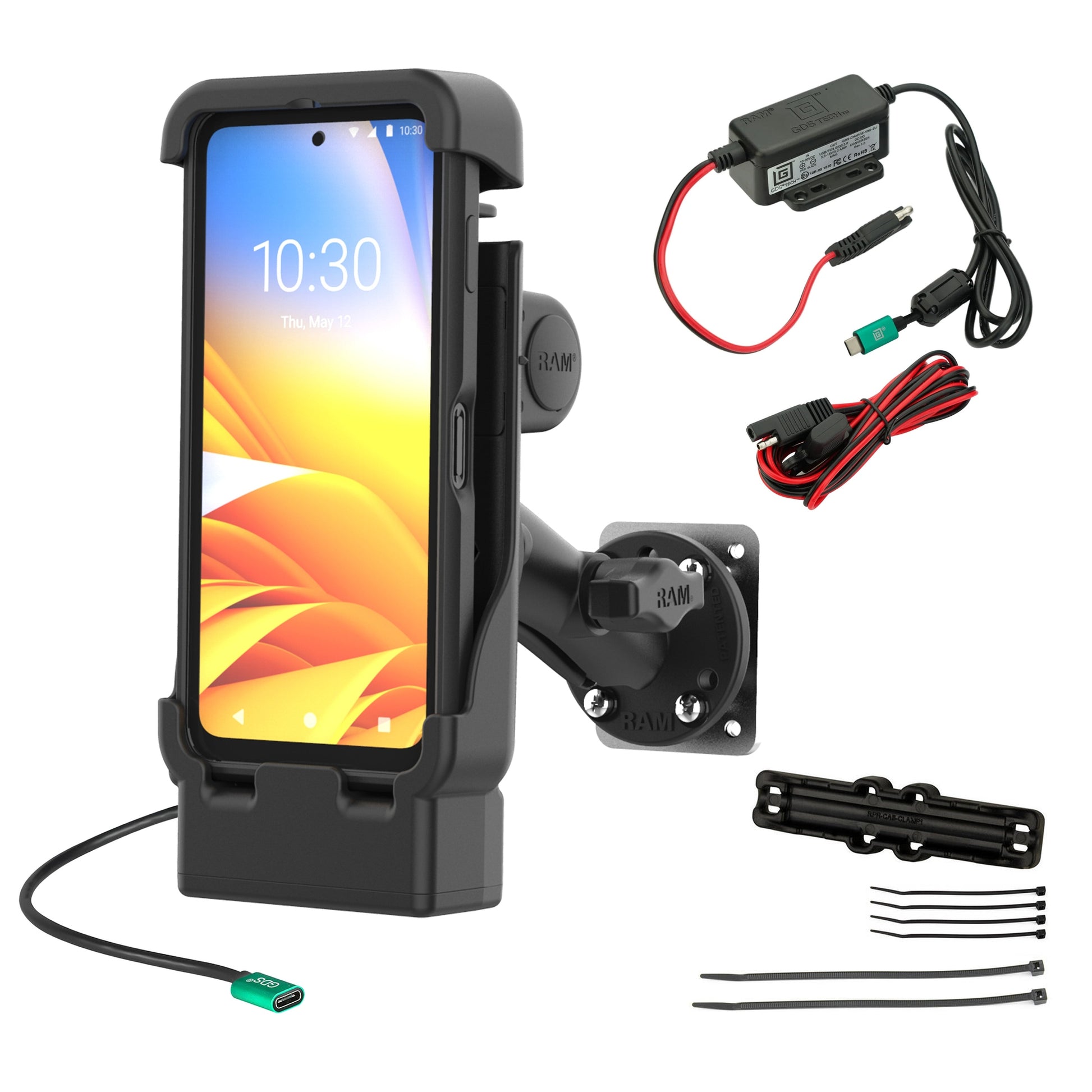

- Bundle includes the RAM® Vehicle Dock, B size double ball mount with medium arm, backing plate adapter, and cable clamp
- Spring-loaded powered dock featuring USB-C device connection designed for the Zebra EM45
- Back cavity accommodates OEM ergonomic accessories
- Made of high-strength composites for durability and reliability in the most demanding environments
- Backed by a 3-year warranty
Specifications
hardware included:
Assembly Hardware
(1) 2.10" x 2.60" Steel Backing Plate
(4) #8-32 x 1" Screws
(4) #8 Split Lock Washers
(4) #8 Flat Washers
socket to socket length:
3"
ball size:
B Size (1")
weight capacity:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials:
Steel
Marine-grade aluminum
High strength composite
packaging type:
Poly Bag
input voltage:
10-30VDC
output voltage:
5-15VDC
output current:
3A max
input cable length:
1.2 Meters including 2 pole flat marine connector
operating temperature:
-10°C to +70°C
storage temperature:
-40°C to +70°C
regulatory:
Overvoltage/Load Dump Compliance: Meets SAE J-1113
certifications:
Integrated Short Circuit Protection
FCC, Industry Canada, CE, WEEE, RCM, E-Mark and RoHS Compliant
USB 2.0 BC 1.2 DCP Support
Weight:
2.07 lb
