RAM-B-189-PIV1-TAB10-ALA1-KRU RAM® Tab-Tite™ with RAM® Twist-Lock™ Pivot Suction for Toughpad FZ-A1
RAM-B-189-PIV1-TAB10-ALA1-KRU RAM® Tab-Tite™ with RAM® Twist-Lock™ Pivot Suction for Toughpad FZ-A1
Couldn't load pickup availability
Share
- Description

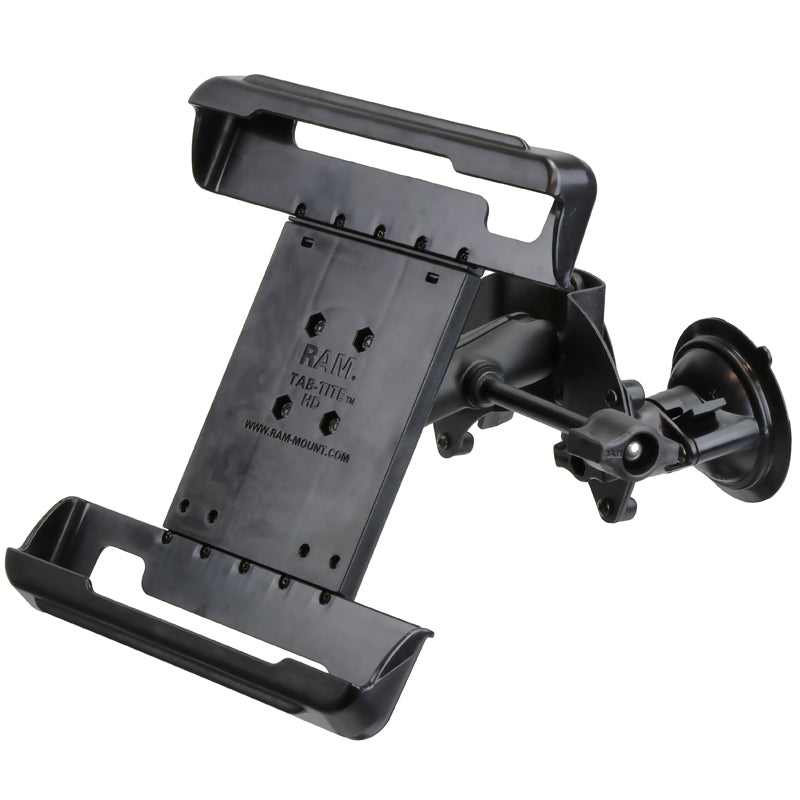

The RAM-B-189-PIV1-TAB10-ALA1_KRU consists of a dual articulating 3.3" twist lock suction cup base, double socket arm, and universal Tab-Tite™ cradle for 10" Tablets. The dual articulating suction cup base is an amazing innovation in suction cup mounting. With the ability to independently articulate each suction cup, this mounting base can be used in a variety of applications such as curved windows and surfaces. The Tab-Tite™ cradle is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size.
Specifications
- Hardware included: Assembly Hardware
- Holder dimensions: Height Range: 9.75" - 12", Width Range: 6.38" - 8.62", Depth Range: .13" - 1"
- Suction size: (2) 3.3" Diameter Bases, Total Width 7.95"
- Socket to socket length: 3"
- Ball size: B Size (1")
- Weight capacity: Standard Use: 2 lbs, Heavy-Duty Use: 1 lb
- Materials: Powder coated steel, Marine-grade aluminum, High strength composite
- Packaging type: Poly Bag
- Weight: 2.04 lb
Additional Information
*The rubber material used in suction cups is considered a general wear item and is not covered under the lifetime warranty. Learn more about the RAM® warranty policy here.
