• RAM® Universal Post Clamp Mount with Diamond Plate - C Size Short Arm
1 1

RAM-102U-B-247 RAM® Universal Post Clamp Mount with Diamond Plate - C Size Short Arm

RAM-102U-B-247 RAM® Universal Post Clamp Mount with Diamond Plate - C Size Short Arm

$102.49 USD
$102.49 USD
Sale Sold out
Availability:
In Stock
View full details
  • Description

Overview

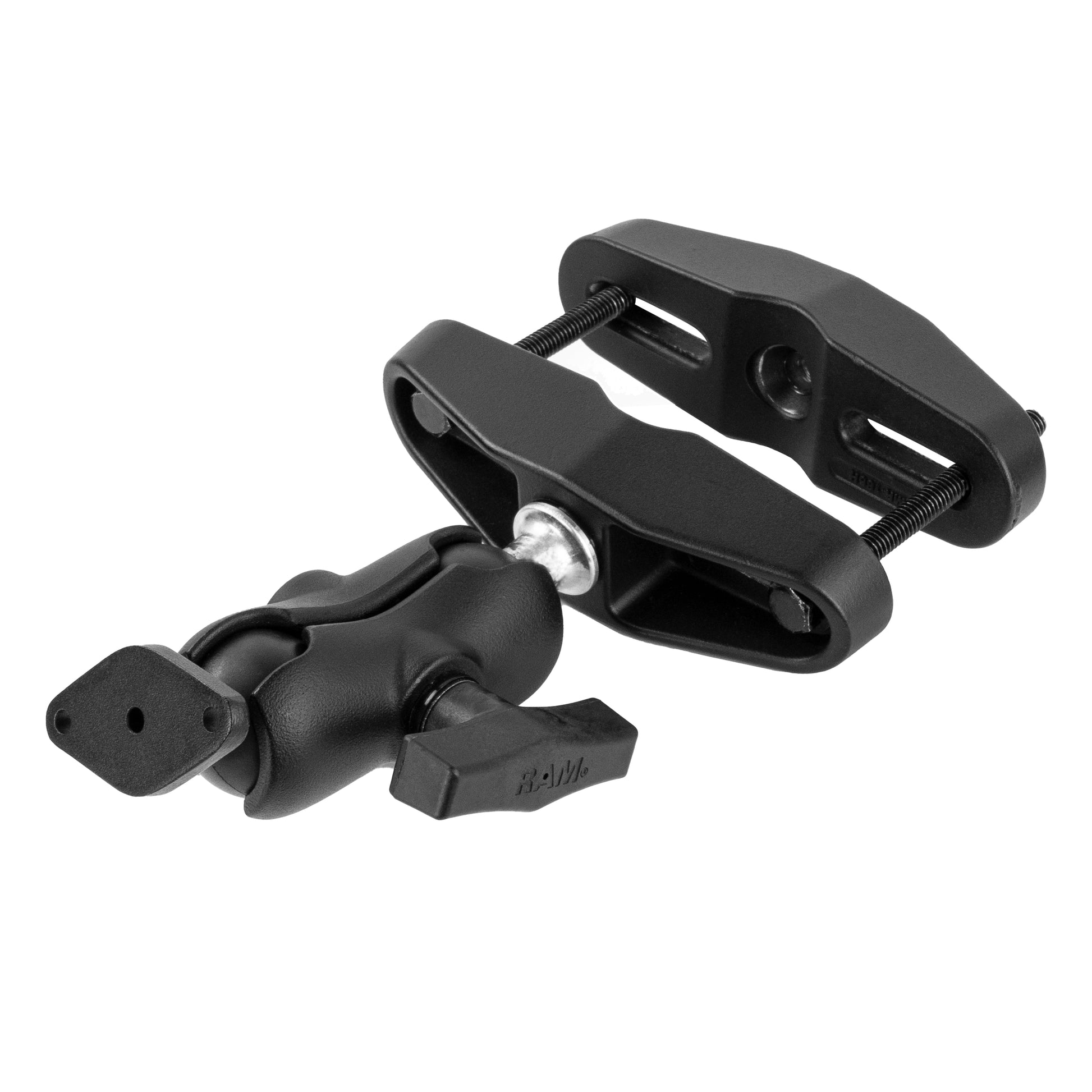

The RAM® Universal Post Clamp Mount with Diamond Plate - C Size Medium Arm (RAM-102U-B-247) is a mounting solution designed to secure large handheld devices to forklifts. This kit consists of one (1) double socket C size short arm, one (1) diamond plate with C size ball, and one (1) square post clamp. The square post clamp will wrap around a square post with a maximum width of 4" and is tightened by screwing the two plates together with the included nuts and bolts. The RAM® rubber ball and socket technology dampens shock and vibration, as well as allows for almost infinite adjustment and perfect viewing angles.

Features

  • 2.43" x 1.31" diamond plate connects to RAM® device holders containing the universal AMPS hole pattern
  • Includes 4" clamping base for posts and a short length, C size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
  • Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

Specifications

Hardware included: Assembly Hardware

Clamp range: 1.75" - 4" width

Socket to socket length: 2.5"

Hole pattern: 2-Hole AMPS 1.912"

Plate size: 2.43" x 1.31"

Ball size: C Size (1.5")

Weight capacity: Standard Use: 4 lbs, Heavy-Duty Use: 3 lbs

Materials: Marine-grade aluminum

Packaging type: Poly Bag

Weight: 2.05 lb
