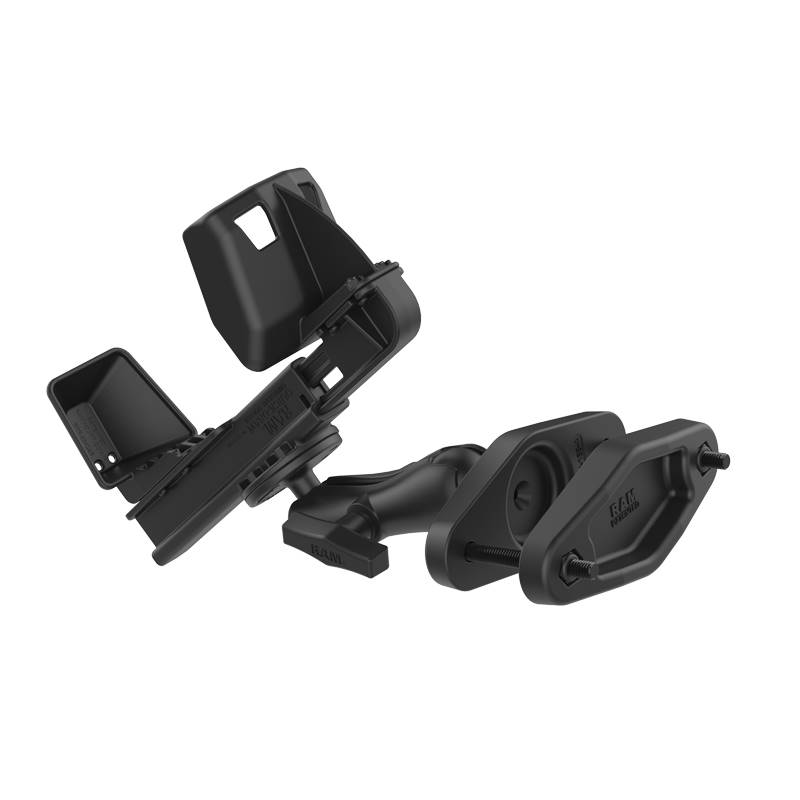

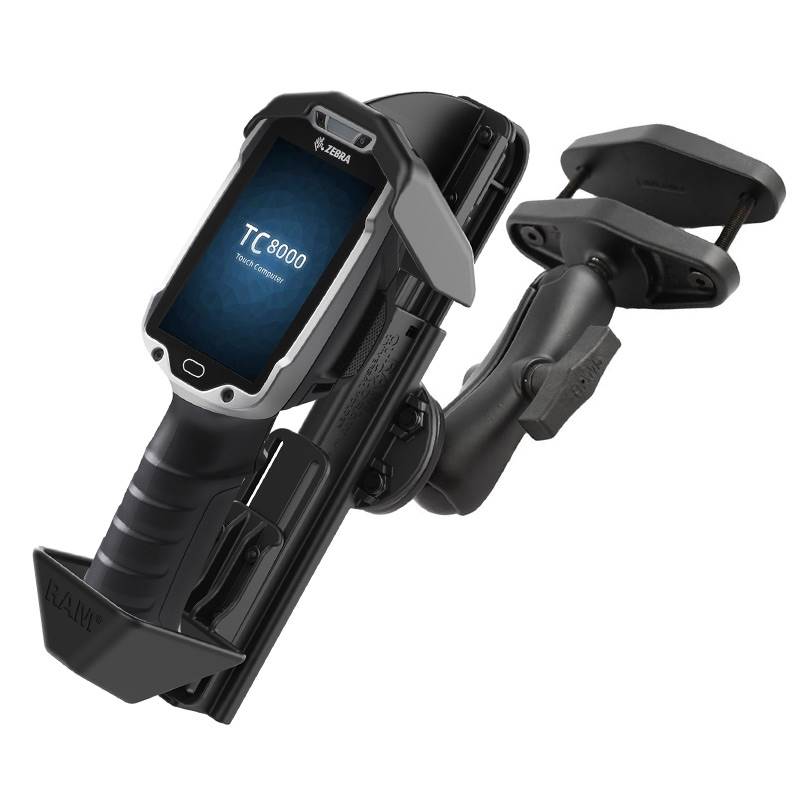

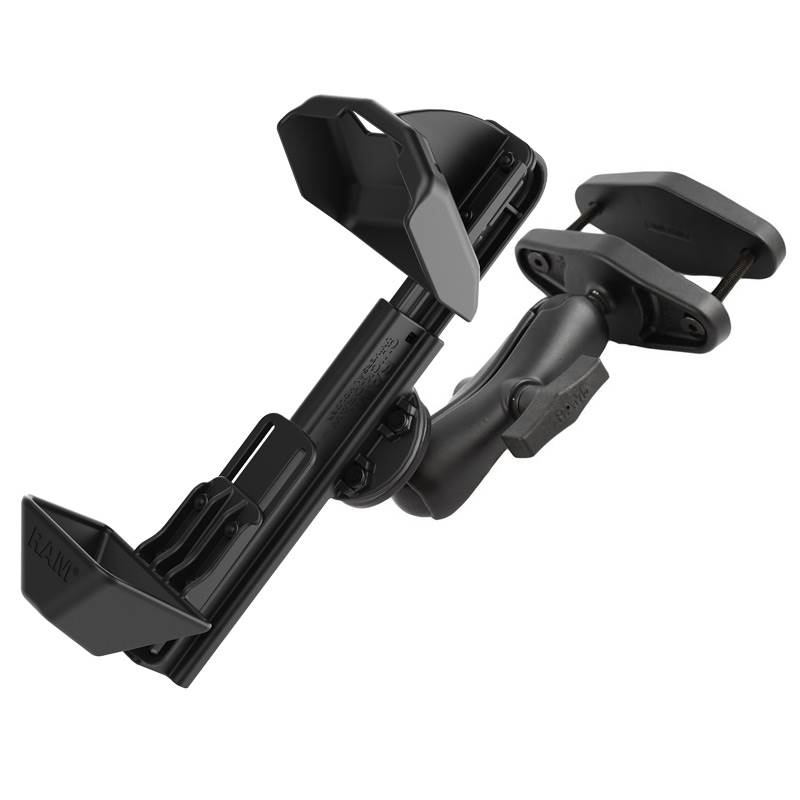

RAM-101-247-4-ZE9U_RAM Quick-Draw Mount for Zebra TC800

This RAM Quick-Draw is designed specifically for
the Zebra TC8000 and TC8300 and consists of the small RAM Tough-Claw base, double
socket arm and round base adapter. The RAM Tough-Claw is the perfect mounting
base for quick and easy tool-less installation and removal on round, square, odd shaped rails and bars.
The RAM Tough-Claw can be clamped on rails from .625 INCHES - 1.5 INCHES outer diameter. The
round base adapter contains the industry standard universal AMPS hole pattern. The mount is designed
with a RAM 1.5 INCHES diameter patented rubber ball and socket system that has adjustment points at
both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing
angles.

FEATURES

Spring-loaded RAM Quick-Draw holder provides easy removal of your Zebra TC8000 and TC8300

Includes small version of the RAM Tough-Claw , medium length C size RAM double socket arm, and 2.5 INCHES round plate compatible with several RAM device holders and cradles

Large version of the RAM Tough-Claw base is designed to quickly clamp to round, square, and odd-shaped rails and bars ranging from 1 INCHES to 2.25 INCHES in outer diameter; rubber pads provide stable gripping and protection of mounting surface

Made of high-strength composite and stainless steel hardware for durability and reliability in the most demanding environments

Backed by a lifetime warranty

Hardware Included
Assembly Hardware

Clamp Range
.625 INCHES - 1.5 INCHES diameter 0 INCHES - 1.14 INCHES flat surfaces

Socket-to-Socket Length
4.66 INCHES

Ball/Socket Size
C Size (1.5 INCHES)

Weight Capacity
Standard Use: 4 lbs Heavy-Duty Use: 3 lbs

Materials
Marine-grade aluminum

Packaging Type
Poly Bag

Weight
1.9 lbs.
