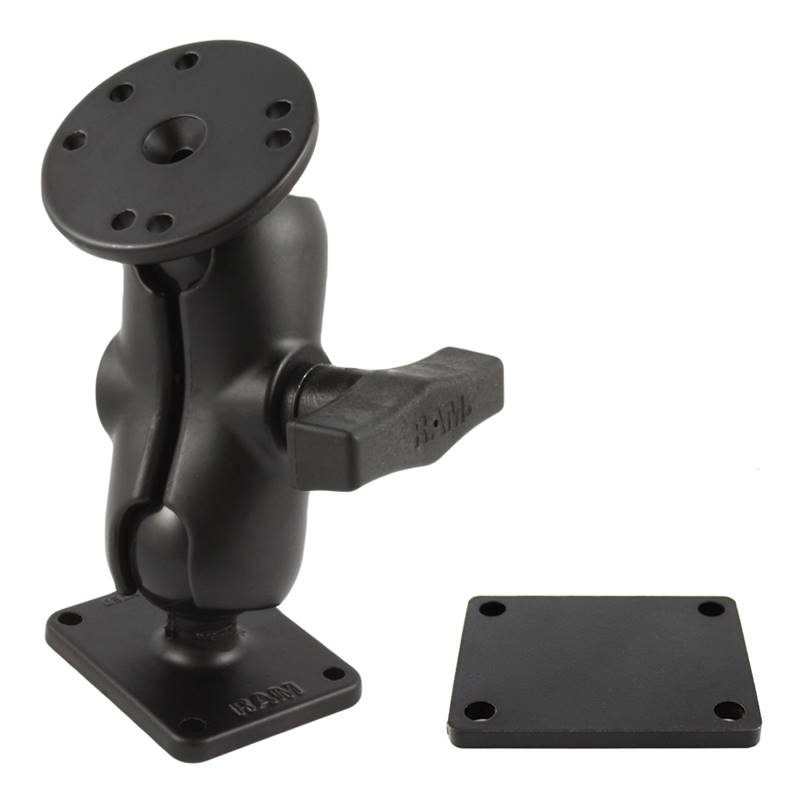

RAM-101-B-SAE1_RAM Double Ball Mount - Aluminum Backing

The RAM-101-B-SAE1 consists of a short double socket arm, 2.5" diameter round base with the
universal AMPS hole pattern and 2" x 2.5" rectangular base that has pre-drilled holes at each corner
of the base plate. Designed into the mount is a 1.5" diameter patented rubber ball and socket system
with adjustment points at both socket ends of the arm. Rubber ball and socket technology allows for
almost infinite adjustment and perfect viewing angles.

HARDWARE INCLUDED
(1) 2" x 2.5" Aluminum Backing Plate
(1) 8" Zip Tie
(4) #10-24 x 1.5" Machine Screws
(4) #10-24 Nylock Nuts
(1) #8 x 1/2" Sheet Metal Screw
(1) #8 Washer
(1) 5/16" Wire Clip

PRODUCT DIMENSIONS
Overall Height: 5.225"

SOCKET-TO-SOCKET LENGTH
2.5"

HOLE PATTERN
Round Plate:
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
Rectangular Plate: 1.5" x 2"

PLATE SIZE
Round Plate: 2.5" Diameter
Rectangular Plate: 2" x 2.5"

BALL/SOCKET SIZE
C Size (1.5")

WEIGHT CAPACITY
4 lbs

MATERIALS
Marine-grade aluminum

PACKAGING TYPE
Box

WEIGHT
1.25 lbs.
