RAM-101-B-SAE1P-2U_RAM Double Ball Mount with Steel Bac

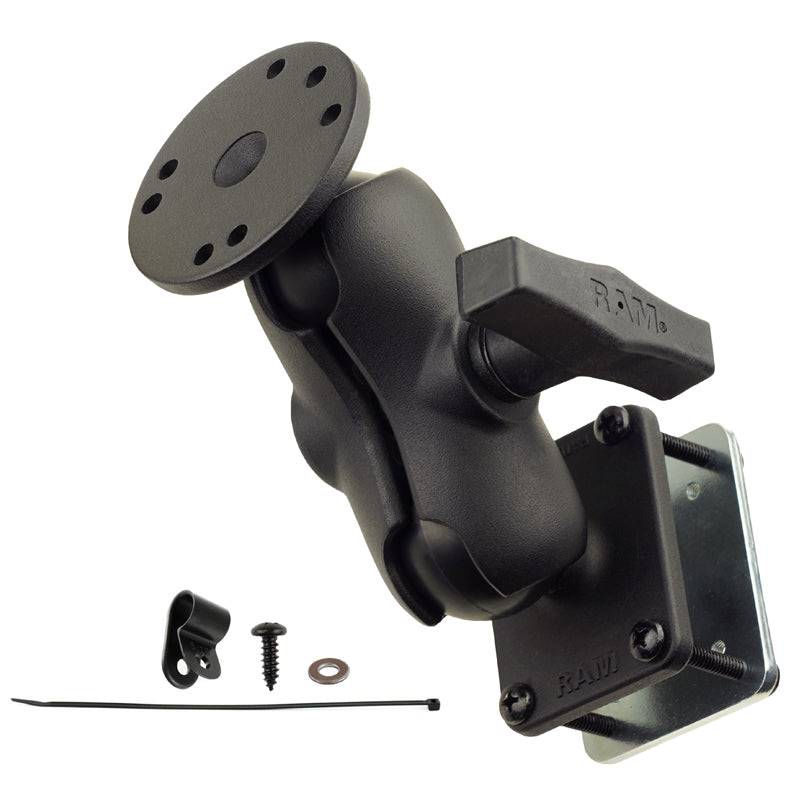

The RAM-101-B-SAE1P-2U consists of a short double socket arm, 2.5" diameter round base with the universal AMPS hole pattern and 2" x 2.5" rectangular base that has pre-drilled holes at each corner of the base plate. Designed into the mount is a 1.5" diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm. Rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles.

FEATURES

Drill-down mount with two 2" x 2.5" rectangular base that has pre-drilled holes at each corner of the base plate connects to RAM components containing the universal AMPS hole pattern

Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments

Backed by a lifetime warranty

hardware included
(1) 2.1 X 2.6" Steel Backing Plate(4) #10-24 x 1.5" Machine Screws(4) #10-24 Nylock Nuts(1) #8 x 1/2" Sheet Metal Screw(1) #8 Washer(1) 5/16" Wire Clip(1) 8" Zip Tie

product dimensions
Overall Height: 5.225"

socket to socket length
2.5"

hole pattern
Round Plate:4-Hole AMPS: 1.181" x 1.496"3-Hole 120-Degree: 1.812" DiameterRectangular Plate: 1.5" x 2"

plate size
Round Plate: 2.5" DiameterRectangular Plate: 2" x 2.5"

ball size
C Size (1.5")

weight capacity
Standard Use: 4 lbsHeavy-Duty Use: 3 lbs

materials
Marine-grade aluminumHigh strength compositeSteel

packaging type
Poly Bag

Weight
1.17 lb
