RAM-101-B-SAE1P_RAM Double Ball Mount - Composite Backi

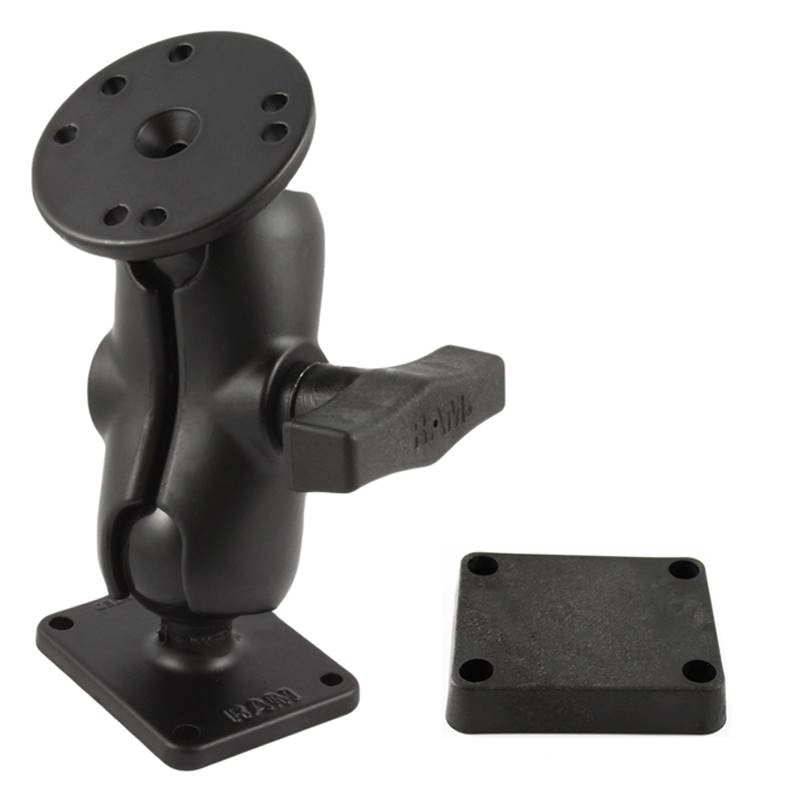

The RAM-101-B-SAE1P consists of a short double socket arm, 2.5" diameter round base with the
universal AMPS hole pattern, 2" x 2.5" rectangular base that has pre-drilled holes at each corner of
the base plate and omposite backer plate. Designed into the mount is a 1.5" diameter patented rubber
ball and socket system with adjustment points at both socket ends of the arm. Rubber ball and socket
technology allows for almost infinite adjustment and perfect viewing angles.

HARDWARE INCLUDED
(1) 2" x 2.5" Composite Backing Plate
(1) 8" Zip Tie
(4) #10-24 x 1.5" Machine Screws
(4) #10-24 Nylock Nuts
(1) #8 x 1/2" Sheet Metal Screw
(1) #8 Washer
(1) 5/16" Wire Clip

PRODUCT DIMENSIONS
Overall Height: 5.225"

SOCKET-TO-SOCKET LENGTH
2.5"

HOLE PATTERN
Round Plate:
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
Rectangular Plate: 1.5" x 2"

PLATE SIZE
Round Plate: 2.5" Diameter
Rectangular Plate: 2" x 2.5"

BALL/SOCKET SIZE
C Size (1.5")

WEIGHT CAPACITY
4 lbs

MATERIALS
Marine-grade aluminum
High strength composite

PACKAGING TYPE
Box

WEIGHT
1.17 lbs.
