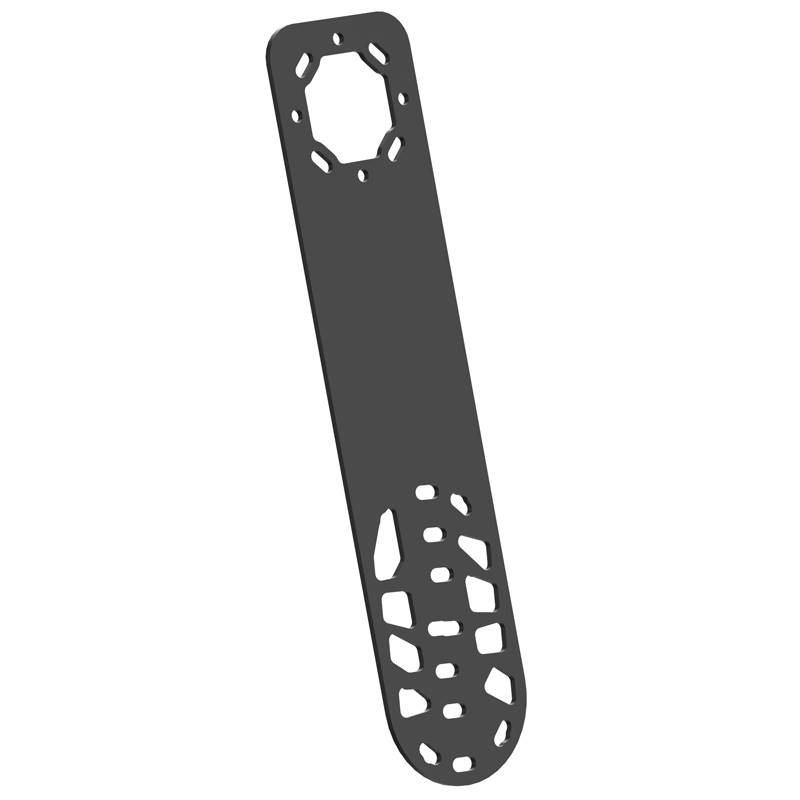

RAM-101-MIC2U RAM Standard Bracket Adapter for Speakers

Attach a speaker or microphone to your RAM Tab-Tite or RAM Tab-Lock cradle with the RAM
Speaker/Microphone Bracket. Simply install the bracket between the cradle and the ball base – two
screws are included for attaching the bracket to any RAM Tab-Lock cradle. Compatible with
speakers, microphones and accessories that use the common AMPS hole pattern, the bracket features
four spaced AMPS hole pattern sets that allow for various mounting heights. Also included is a
vertical and horizontal set of holes for attaching a diamond base. Measuring 10.81" in length, this
bracket supports both portrait and landscape placement.

HARDWARE INCLUDED
(2) #8 x 3/4" Sheet Metal Screws
(4) #8-32 x 3/4" Machine Screws
(2) #8-32 x 3/8" Machine Screws
(2) #8-32 Nylock Nuts
(2) M4 x 35mm Machine Screws
(2) M4 Nylock Nuts

PRODUCT DIMENSIONS
Overall Length: 10.81"

HOLE PATTERN
See Drawing

MATERIALS
Powder coated steel

PACKAGING TYPE
Poly Bag
