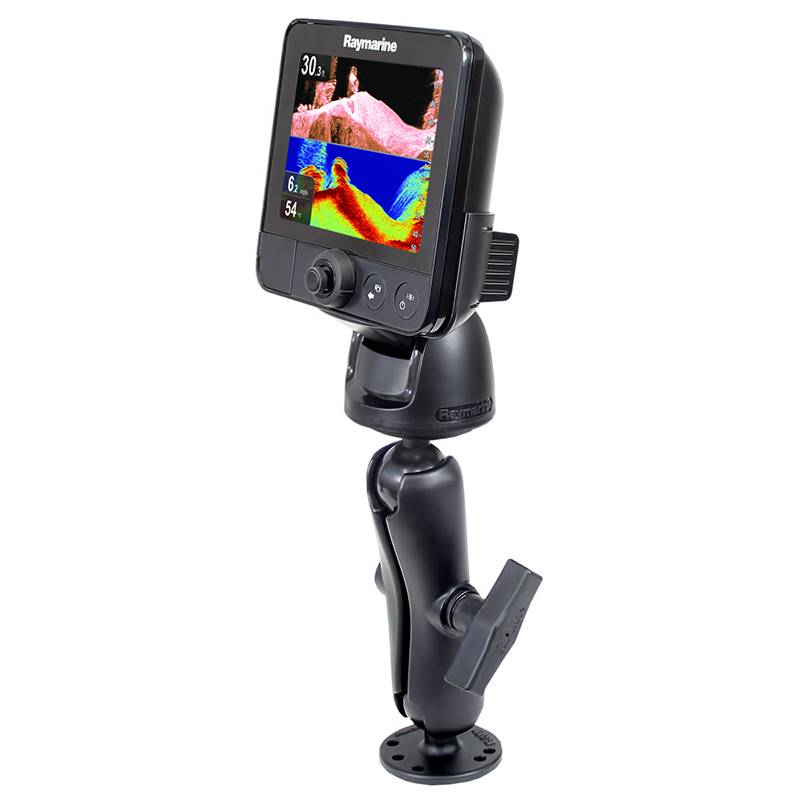

RAM-101-RYM1_RAM Double Ball Mount for Raymarine Dragon

The RAM-101-RYM1 consists of (2 quantity) 2.5" diameter round bases that contains the universal AMPS
hole pattern and standard length double socket arm. Included are (3 quantity) (#8-32 x 3/4" PH PD
Mach Screws) and (3 quantity) (#8-32 SS Nylock Nuts) that will connect the RAM-101-RYM1 to the
bottom of all Raymarine Dragonfly Sonar/GPS devices. The mount is designed with a RAM 1.5"
diameter patented rubber ball and socket system that has adjustment points at both ends of the
double socket arm, allowing for almost infinite adjustment and perfect viewing angles. This is a
drill-down mounting solution.

HARDWARE INCLUDED
(3) #8-32 x 3/4" Machine Screws
(3) #8-32 Nylock Nuts
(3) .312" x .187" Shoulder Washers

PRODUCT DIMENSIONS
Overall Height: 7.35"

SOCKET-TO-SOCKET LENGTH
4.66"

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

BALL/SOCKET SIZE
C Size (1.5")

WEIGHT CAPACITY
4 lbs

MATERIALS
Marine-grade aluminum

PACKAGING TYPE
Retail Bag

WEIGHT
1.3 lbs.
