RAM Double Ball Mount - Aluminum Backing P

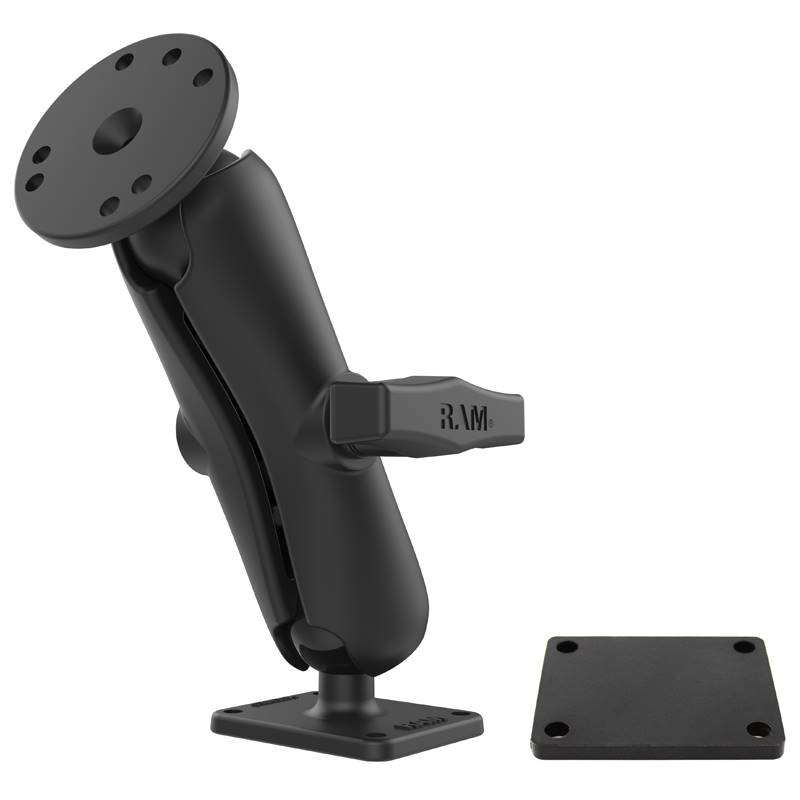

The RAM-101-SAE1 consists of a double socket arm, 2.5" diameter round base with the universal AMPS
hole pattern and 2" x 2.5" rectangular base that has pre-drilled holes at each corner of the base
plate. Designed into the mount is a 1.5" diameter patented rubber ball and socket system with
adjustment points at both socket ends of the arm. Rubber ball and socket technology allows for
almost infinite adjustment and perfect viewing angles.

HARDWARE INCLUDED
(1) 2" x 2.5" Aluminum Backing Plate
(1) 8" Zip Tie
(4) #10-24 x 1.5" Machine Screws
(4) #10-24 Nylock Nuts
(1) #8 x 1/2" Sheet Metal Screw
(1) #8 Washer
(1) 5/16" Wire Clip

PRODUCT DIMENSIONS
Overall Height: 7.35"

SOCKET-TO-SOCKET LENGTH
4.66"

HOLE PATTERN
Round Plate:
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
Rectangular Plate: 1.5" x 2"

BALL/SOCKET SIZE
C Size (1.5")

WEIGHT CAPACITY
4 lbs

MATERIALS
Marine-grade aluminum

PACKAGING TYPE
Box

WEIGHT
1.48 lbs.
