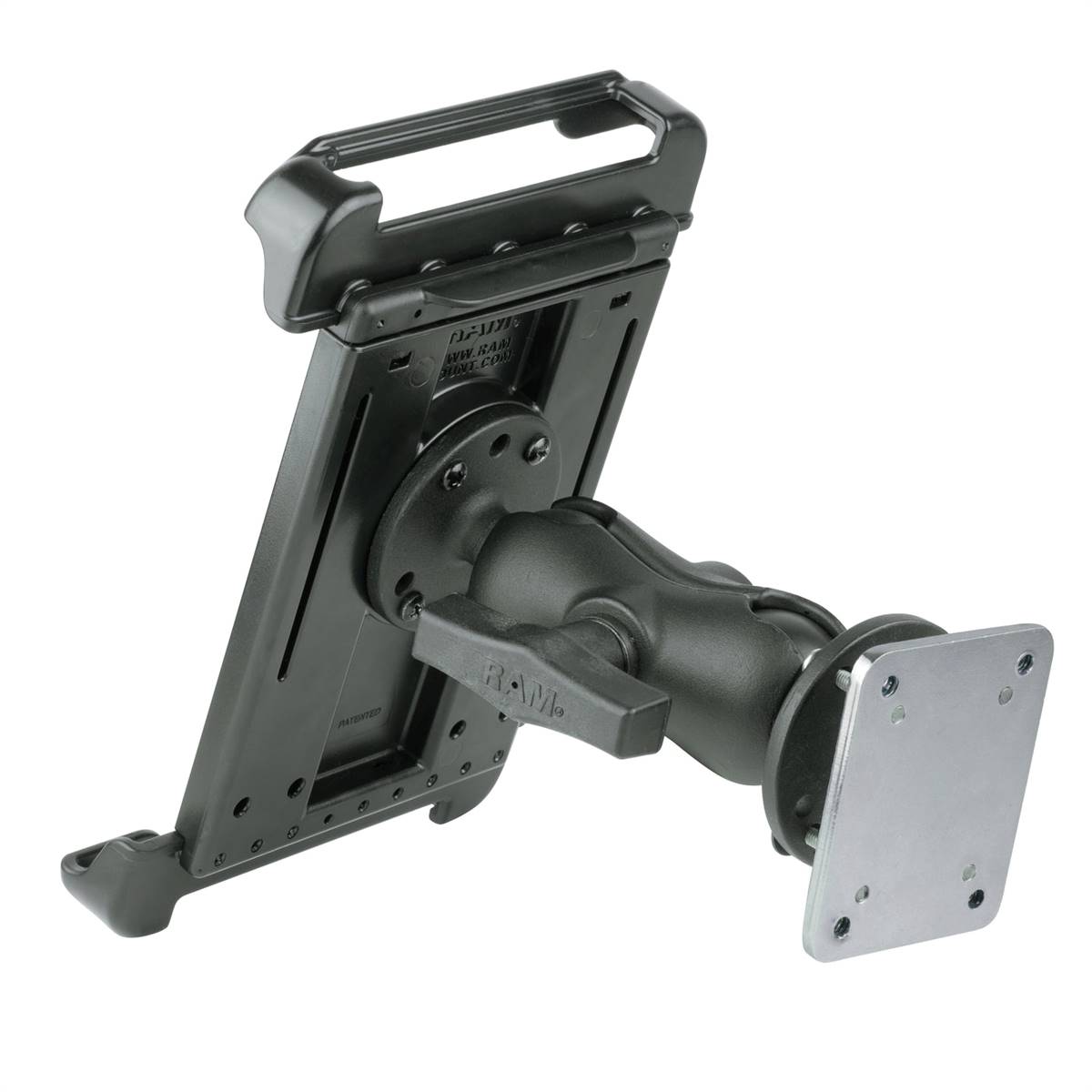

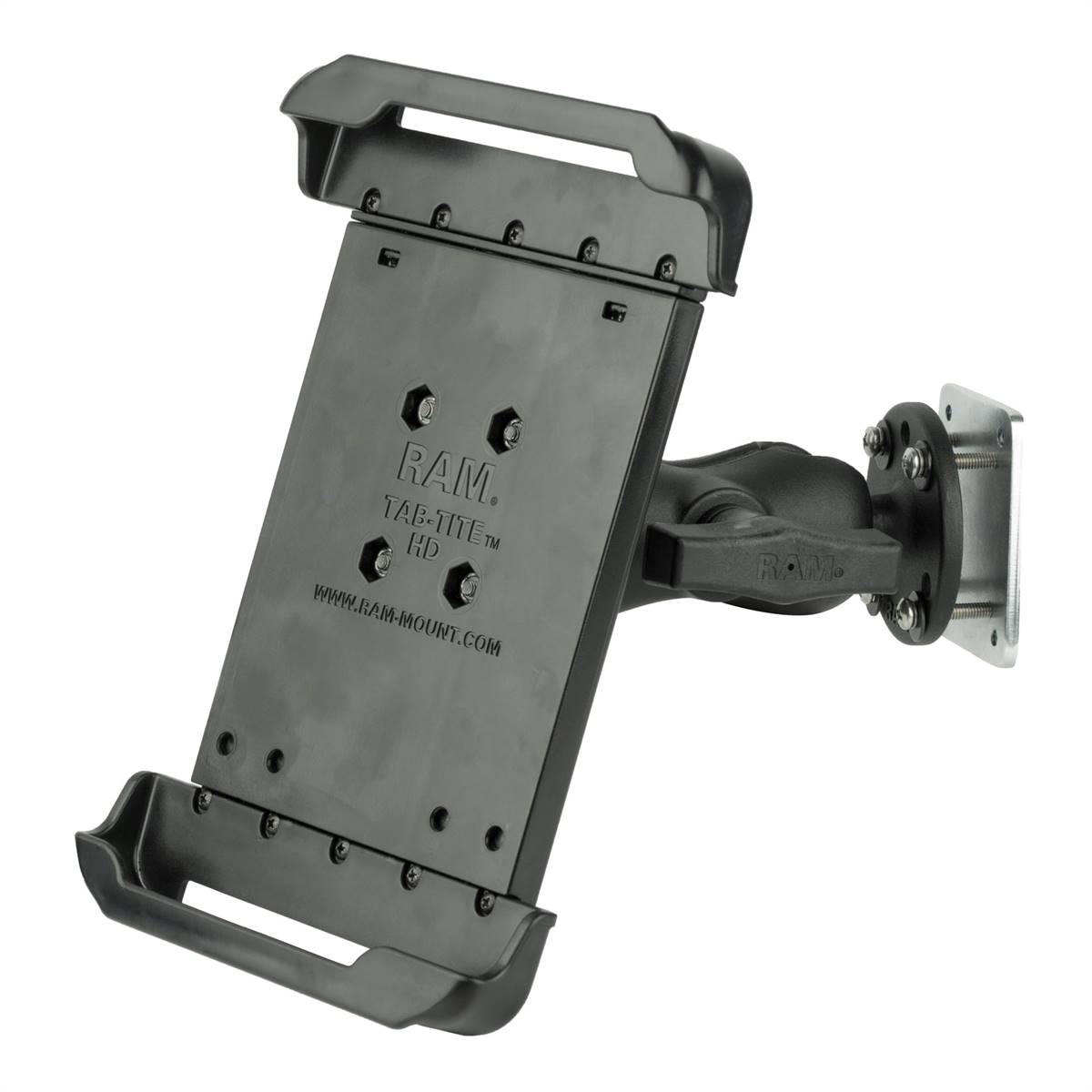

RAM Dashboard Mount with Backing Plate

The RAM Tab-Tite bundle is a rugged mount including the RAM Tab-Tite, RAM Universal Double Ball Mount with Two Round Plates, and RAM Backing Plate Adapter. The RAM Tab-Tite spring loaded, quick release holder offers a secure fit with easy access to the mounted tablet. The spring loaded design makes it easy to insert and remove your tablet, along with keeping it secure in mobile applications. The custom end cups are designed to optimize the functionality of your tablet, enabling access to all ports and tablet functions. The RAM-101U-B consists of a short double socket arm and two 2.5" diameter round bases with the universal AMPS hole pattern. Designed into the mount is a 1.5" diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm. Rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles. The included 2.10" x 2.60" steel backing plate with #8-32 threaded holes attaches to a variety of RAM Mounts ball bases.

FEATURES

Spring-loaded holder secures 7"-8" tablets with a case; interchangeable end cups allow you to modify the holder when upgrading devices

Drill-down mounting solution; choose either round plate featuring the AMPS hole pattern for attachment to compatible device holders

2.10" x 2.60" steel backing plate attaches to a variety of RAM Mounts ball bases

Ball and socket technology allows for near-infinite adjustability

Backed by a lifetime warranty

hardware included
Assembly Hardware(1) 2.10" x 2.60" Steel Backing Plate(4) #8-32 x 1" Screws(4) #8 Split Lock Washers(4) #8 Flat Washers

holder dimensions
Height Range: 8.32" - 10.92"Width Range: 4.43" - 5.3"Depth Range: .13" - .62"

socket to socket length
2.5"

hole pattern
4-Hole AMPS: 1.181" x 1.496"3-Hole 120-Degree: 1.812" Diameter

ball size
C Size (1.5")

weight capacity
Standard Use: 4 lbsHeavy-Duty Use: 3 lbs

materials
Marine-grade aluminumHigh strength compositePowder coated steel

packaging type
Poly Bag

Weight
1.98 lb
