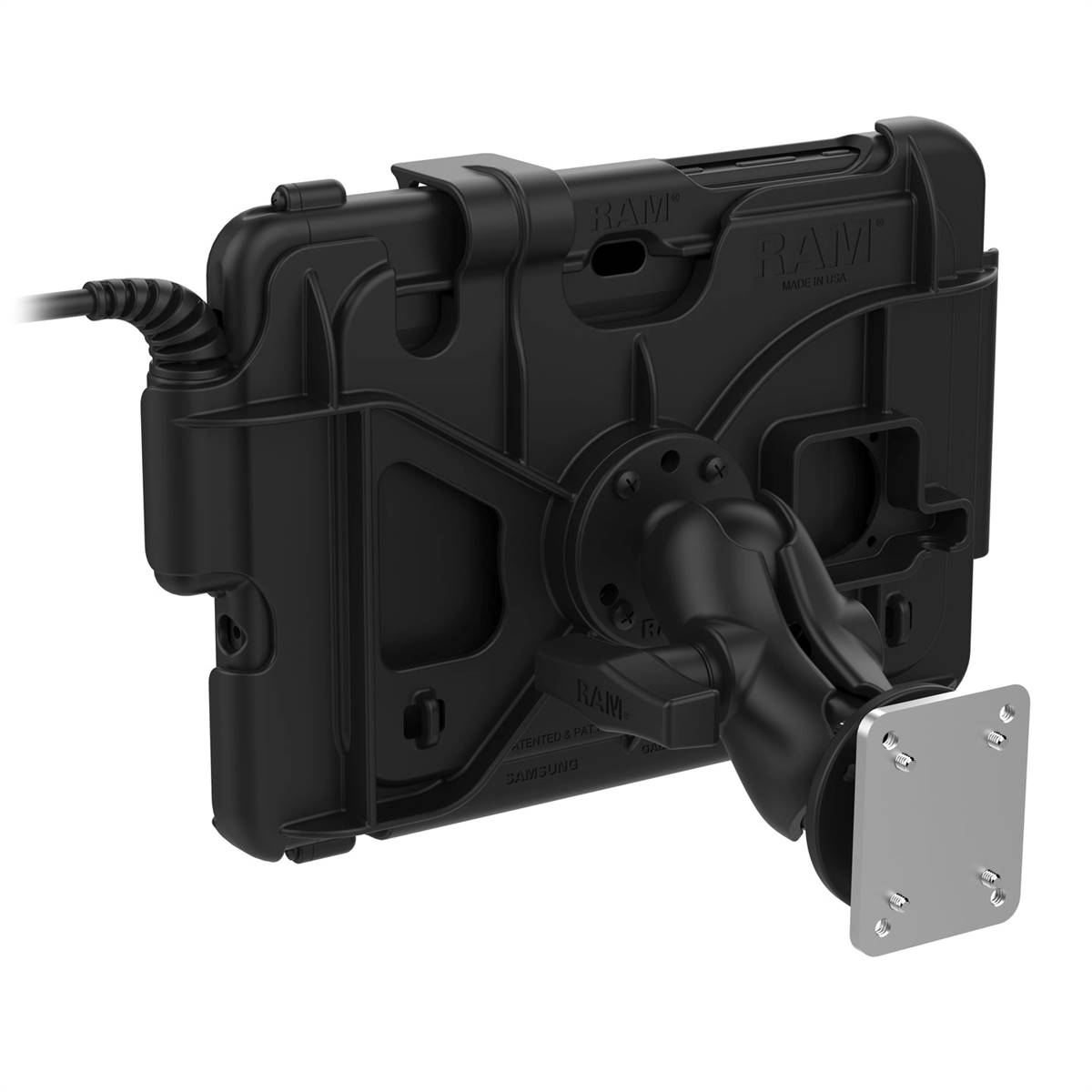

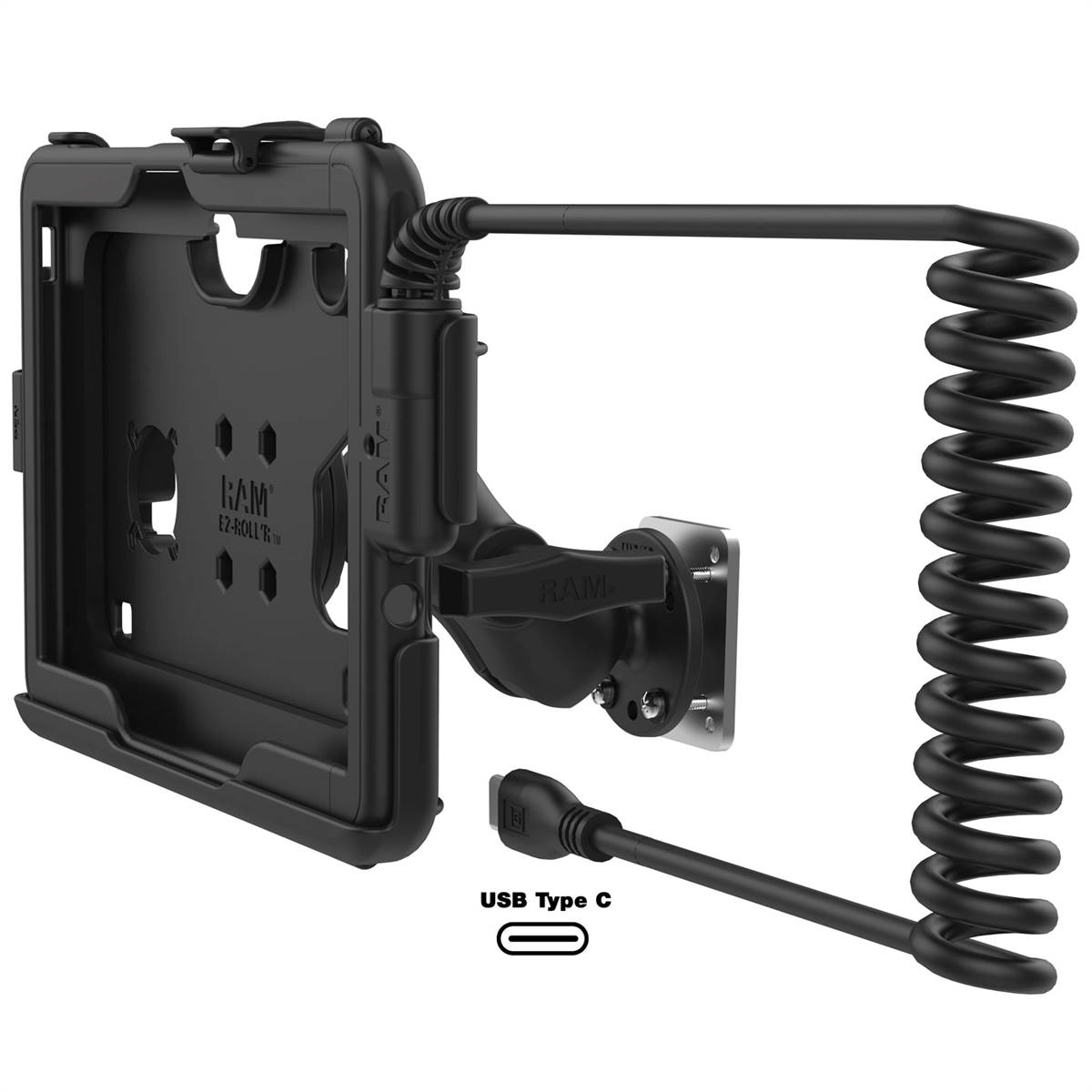

RAM-101B2-TC-SAM54C-V3FCU RAM Tough-Case Bundle for Tab

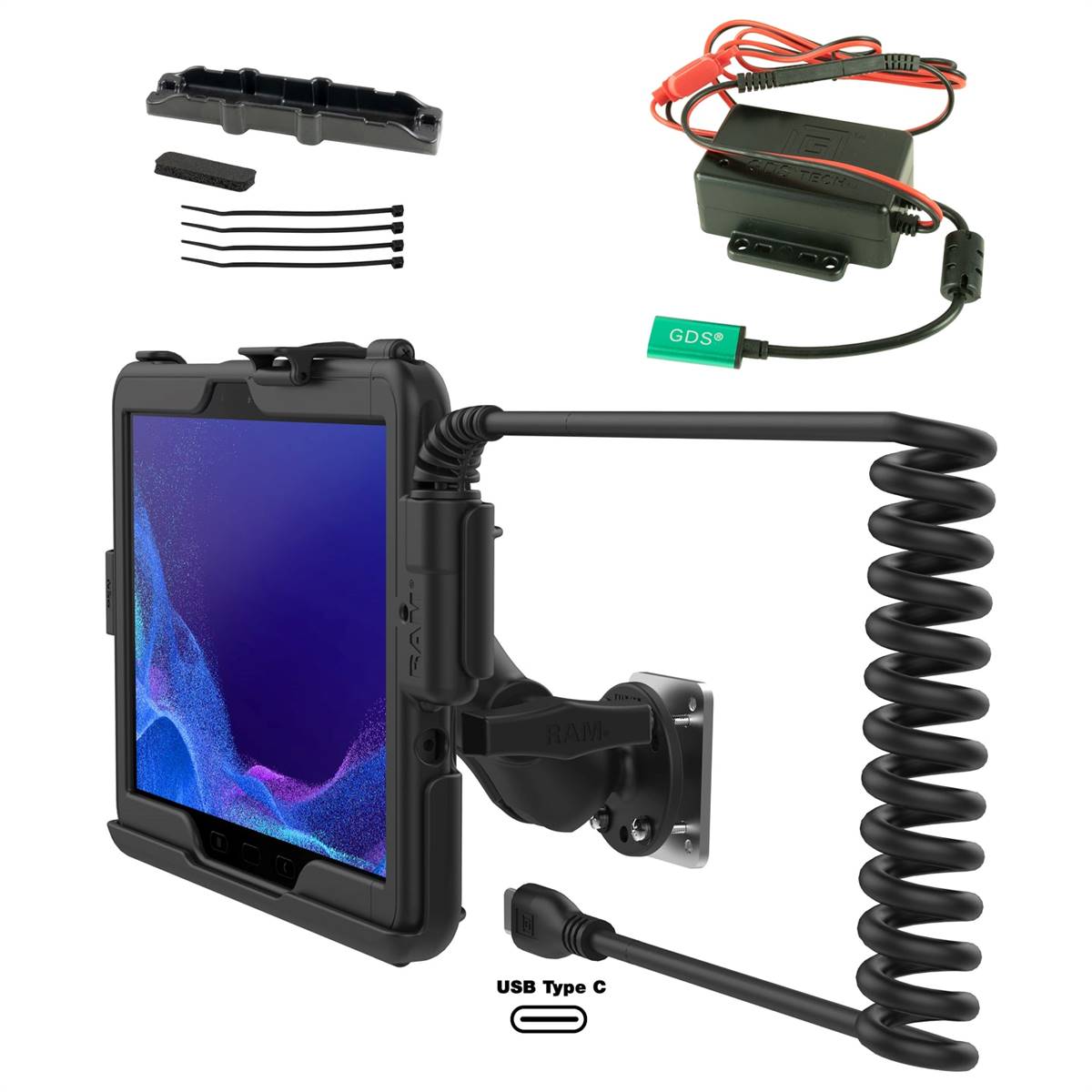

The RAM Tough-Case bundle is a rugged mount including the RAM Tough-Case, Tough-Case holder, C size double ball mount, backing plate and Power Delivery Hardwire Charger. The RAM Tough-Case bundle is a two-piece enclosure for the Samsung Galaxy Tab Active4 Pro that tethers the device inside of any vehicle with the help of the double ball mount and backing plate, meeting the demands of the transportation industry with ELD compliance and supports the device in No Battery Mode. This ultra-low cost bundle provides power to the device through a USB Type-C Male connector. The back of the tablet remains well exposed to allow heat to flow from the device to help maintain temperature levels. Unique features include access to the NFC reader while in the cradle for scanning NFC tags as well as the stylus. This complete mounting kit includes a 2.10" x 2.60" steel backing plate with #8-32 threaded holes, two 2.5" round ball plates, medium length double socket arm, and a GDS Power Delivery Hardwire Charger an ideal solution for providing power to the Samsung Galaxy Tab Active4 Pro. Get the Heat Out! with RAM Tough-Case.
FEATURES
RAM Tough-Case holder provides charging capabilities for the Samsung Galaxy Tab Active4 Pro in a RAM Tough-Case
Includes RAM C size double mount, backing plate and Power Delivery Hardwire Charger for dashboard installation
Tethered connection of tablet to vehicle with coiled cable and durable oversized strain relief
Compartment on the back of the holder for optional cooling fan
Integrated S Pen holder
hardware included
Assembly Hardware(1) 2.10" x 2.60" Steel Backing Plate(4) #8-32 x 1" Screws(4) #8 Split Lock Washers(4) #8 Flat WashersModular Hardwire ChargerCable Clamp Assembly
socket to socket length
2.5"
hole pattern
4-Hole AMPS: 1.181" x 1.496"3-Hole 120-Degree: 1.812" Diameter
ball size
C Size (1.5")
weight capacity
Standard Use: 4 lbsHeavy-Duty Use: 3 lbs
materials
Marine-grade aluminumHigh strength composite
packaging type
Poly Bag
input voltage
12V - 24V (Vehicles)
output voltage
5V @ 3A (15W)9V @ 3A (27W)12V @ 3A (36W)15V @ 2.5A (37.5W)
power output
37.5W Total
output current
3A max
input connector
Female USB Type-C
input cable length
1.2 Meters including 2 Pole Flat Marine Connector
output cable length
150mm
operating temperature
-20C to +70C
storage temperature
-40C to +85C
compliance
Meets SAE J-1113 5a, Integrated Short Circuit Protection (SCP), Integrated Over Voltage Protection (OVP)
certifications
FCC, IC, CE RCM, WEEE, RoHS Compliant USB Power Delivery 2.0 and 3.0 Support
Warranty
3 year warranty
Weight
3.58 lb
