RAM-101LU-D-246_RAM Key Lock Mount with 100x100mm VESA

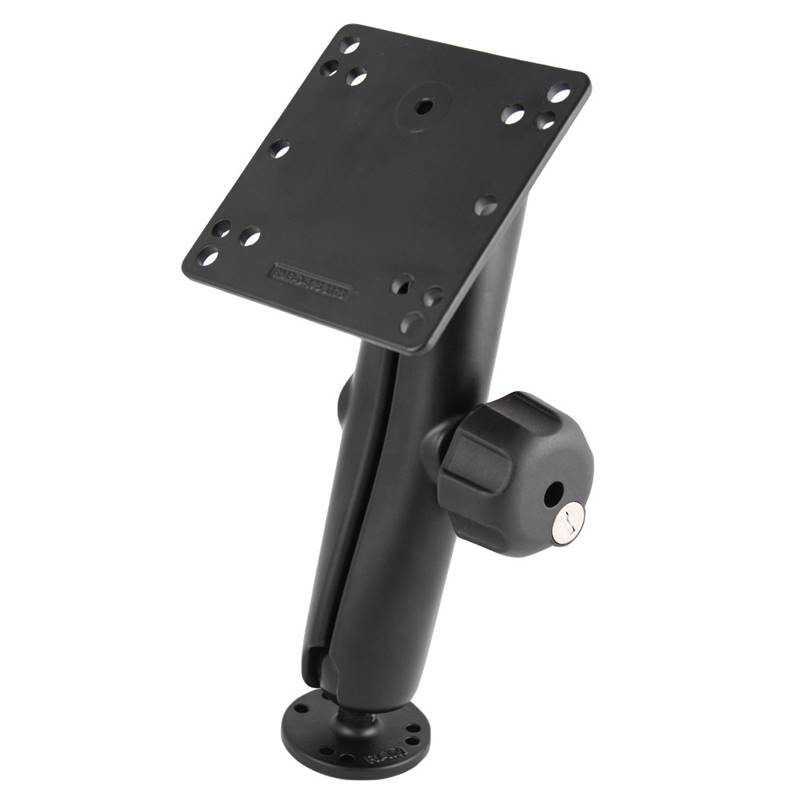

The RAM-101LU-D-246 consists of a long double socket arm, 2.5" diameter round base with the
universal AMPS hole pattern and 4.75" square plate with the VESA hole pattern. The VESA plate
contains a 75mm X 75mm and 100mm X 100mm hole pattern. Designed into the mount is a 1.5" diameter
patented rubber ball and socket system with adjustment points at both socket ends of the arm. Rubber
ball and socket technology allows for almost infinite adjustment and perfect viewing angles. This
kit comes with a key lock knob that allows the user to lock the mount in one position, preventing
other from adjusting or disassembling the mount without the use of the provided keys.

HARDWARE INCLUDED
(4) .312" x .187" Shoulder Washers (2) Keys

PRODUCT DIMENSIONS
Overall Height: 10.85"

SOCKET-TO-SOCKET LENGTH
8"

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
See Drawing

BALL/SOCKET SIZE
C Size (1.5")

WEIGHT CAPACITY
4 lbs

MATERIALS
Marine-grade aluminum

PACKAGING TYPE
Poly Bag

WEIGHT
2.53 lbs.
